CDD-Z Full Electric Paper Roll Clamp Stacker
CDD-Z Full Electric Paper Roll Clamp Stacker

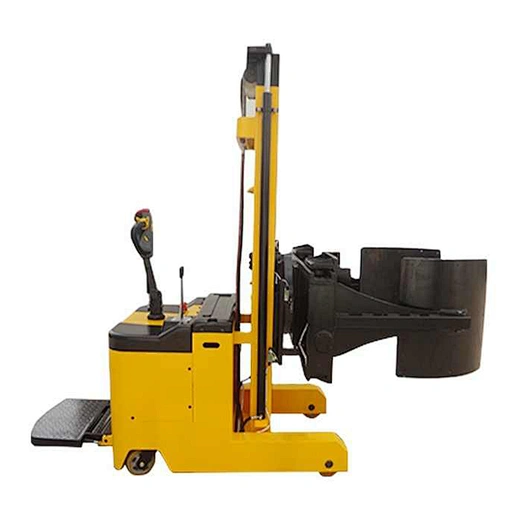

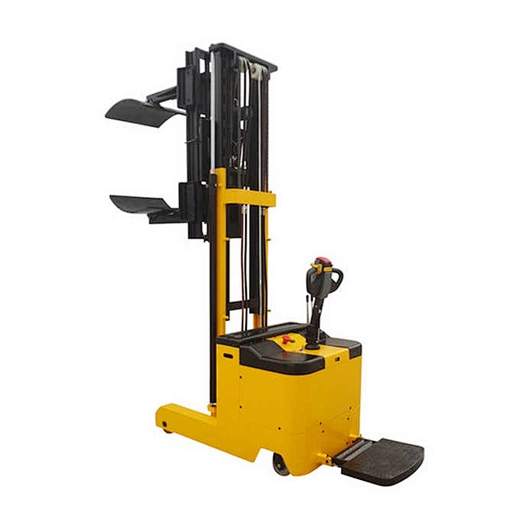

CDD-Z Full Electric Paper Roll Clamp Stacker is expertly designed for safely handling and rotating erect cylindrical loads such as paper rolls, film rolls, and similarly shaped materials. Its dual clamps—equipped with soft rubber protection—ensure a secure grip without leaving visible marks on sensitive surfaces. The clamp efficiently rotates loads by 90 degrees, enabling smooth transition from vertical to horizontal placement onto pallets or workstands. Featuring the Curtis control system from the U.S., it offers seamless variable speed driving, regenerative braking, and emergency reverse for enhanced operational safety. Ideal for a wide range of industries including paper, textile, cable, and metal processing, this stacker is a versatile and reliable solution for transporting round-shaped objects.
Özellikler
Mark-Free Handling: Equipped with soft rubber-protected clamps, it securely grips sensitive materials like paper and film rolls without leaving any clamping marks or surface damage.

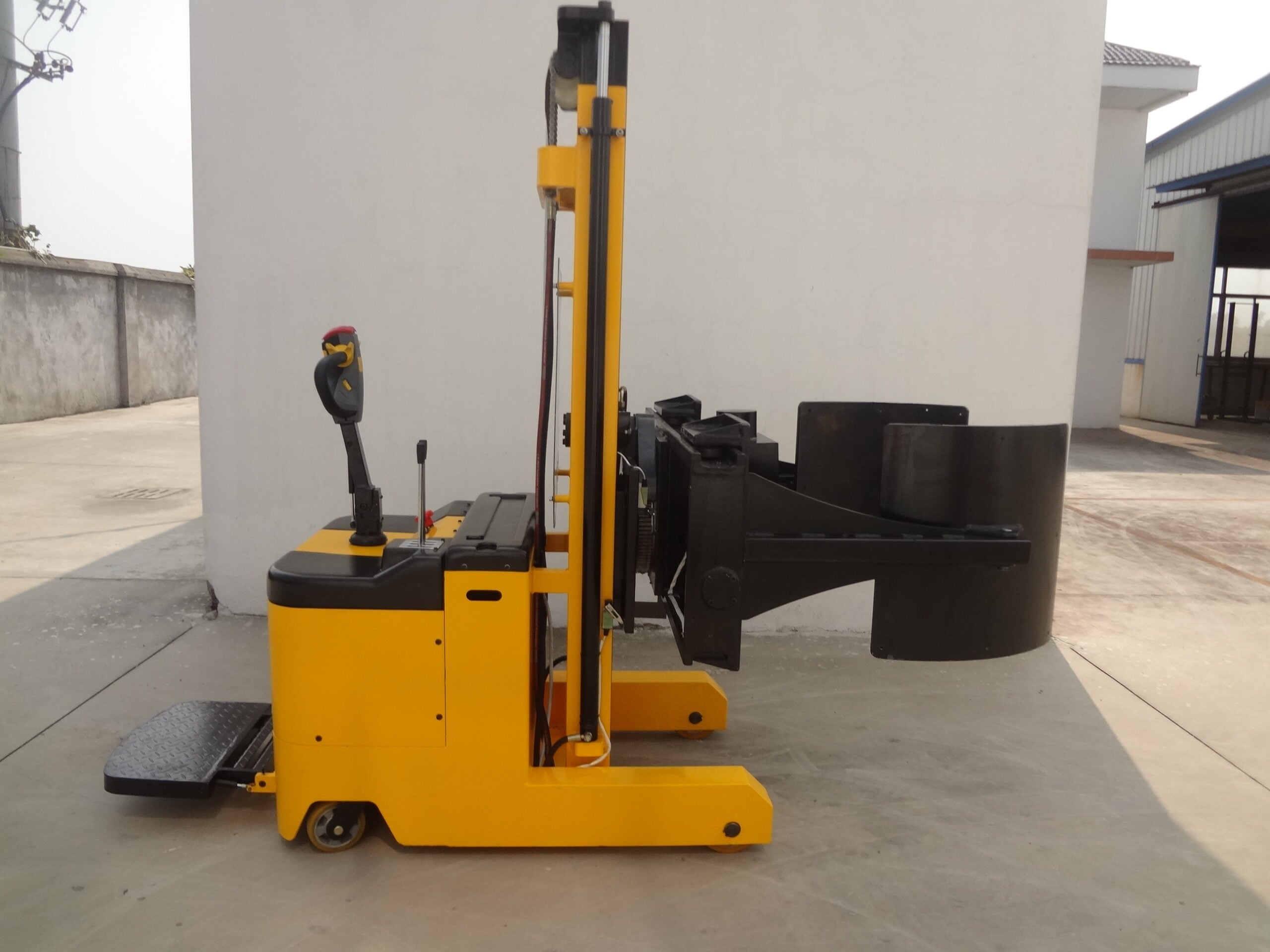

Electric 90-Degree Rotation: Allows smooth and precise flipping of loads from vertical to horizontal positioning, enabling safe placement onto pallets or stands.
Advanced Curtis Control System: Provides smooth travel with variable speeds, regenerative braking, and emergency reverse functionality for enhanced safety and energy efficiency.
Robust Hydraulic System: Features high-precision honing tubes, imported oil seals, and an integrated valve block, ensuring reliability and easy maintenance.
Wide Applicability: Suitable for handling various cylindrical loads including paper, steel coils, tires, carpets, cables, and plastic rolls.
Parametreler
| Örnek | CDD0516-Z | CDD1016-Z | CDD0525-Z |
| Load Capacity (kg) | 500 | 1000 | 500 |
| Lifting Height (mm) | 1600 | 1600 | 2500 |
| Battery (V/Ah) | 24/165 | 24/165 | 24/210 |
| Charger (V/A) | 24/20 | 24/20 | 24/30 |
| Lifting Pump (Kw) | 2.5 | 2.5 | 2.5 |
| Drive Motor (Kw) | AC1.5 | AC1.5 | AC1.5 |
| Suitable for Material diameter | Φ800-1200mm | Φ600-1000mm | Φ400-800mm |
| Self Weight (Kg) | 710 | 730 | 760 |
| Overall Dimension (mm) L*W*H | 2500*1650*2000 | 2300*1450*2000 | 2100*1250*1780 |
| Turning Radius (mm) | 2600 | 2400 | 2200 |
| Walking Aisel | 1700mm | 1500mm | 1300mm |
| Drive Wheel (mm) | 1*Φ250*80 | ||
| Auxiliary Wheell (mm) | 2*Φ150*50 | ||
| Front Wheel (mm) | 4*Φ80*70 | ||
| Gradeability(%) | 4/6 | ||
| Travel Spee Km/h | 4/6 | ||
| Lifting Speed mm/s | 45/50 | ||
| Falling Speed mm/s | 45/40 | ||
| Braking Type | Electromagenetic braking |
Ürün Detayları
Identical Bilateral Clamping System

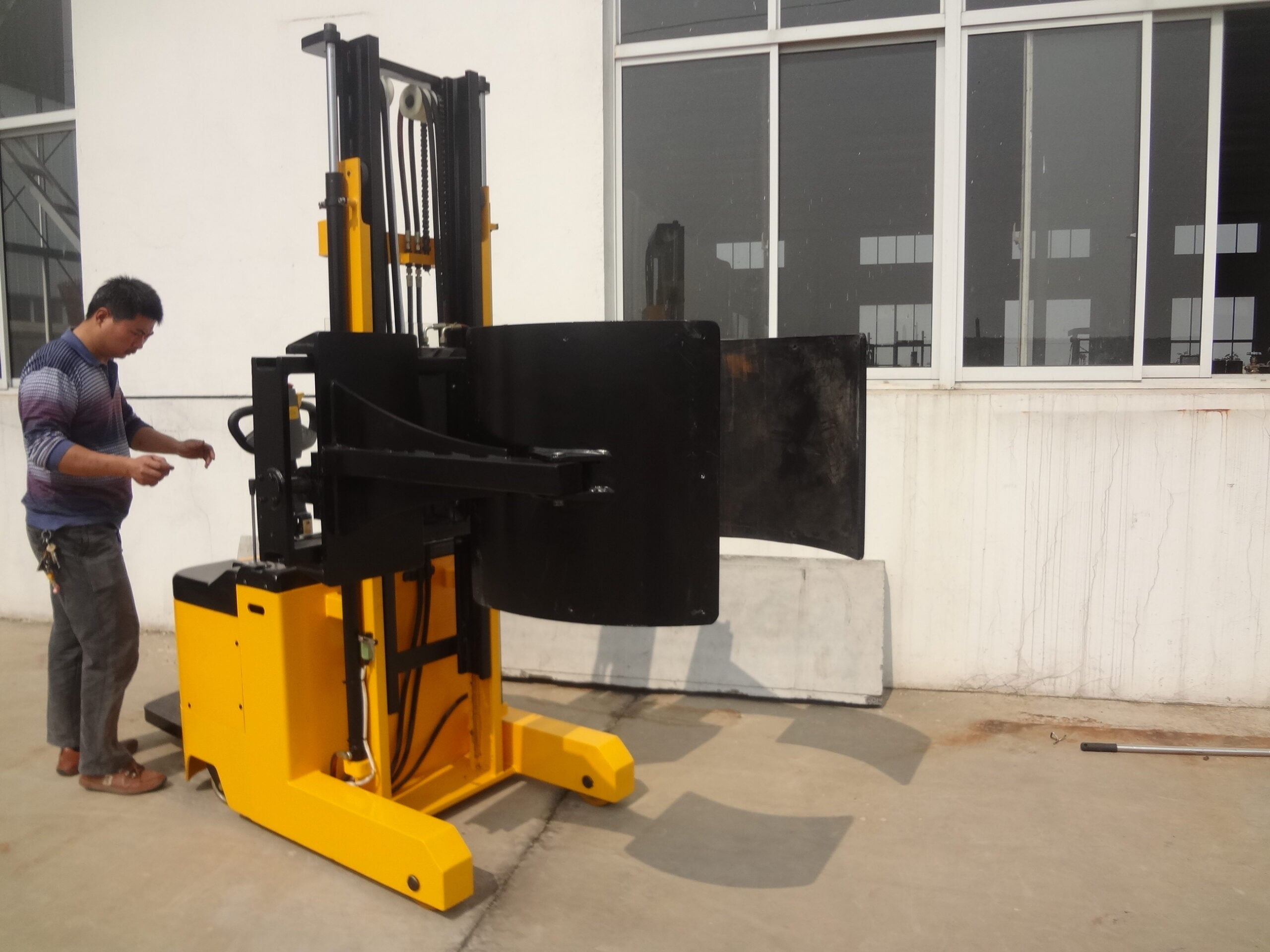

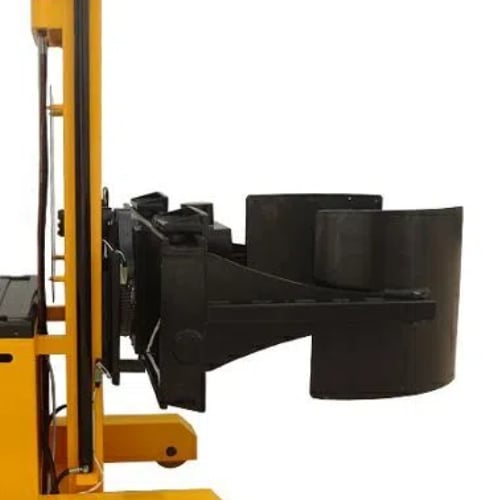

Clamping claws on both sides are of the same size, specially designed for securely lifting vertical paper rolls and film rolls. The unit can electrically rotate by 90 degrees, smoothly transitioning erect rolls into a horizontal position onto trays or work racks.

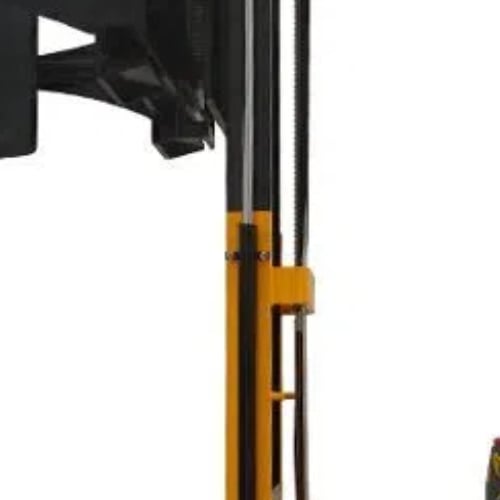

High-Performance Hydraulic Structure
The oil cylinder adopts high-precision honing pipes, imported oil seals, and a one-piece valve core. This robust construction ensures reliable operation while allowing easy disassembly and maintenance.

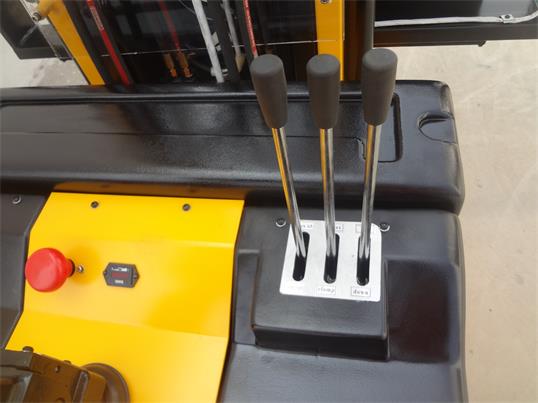

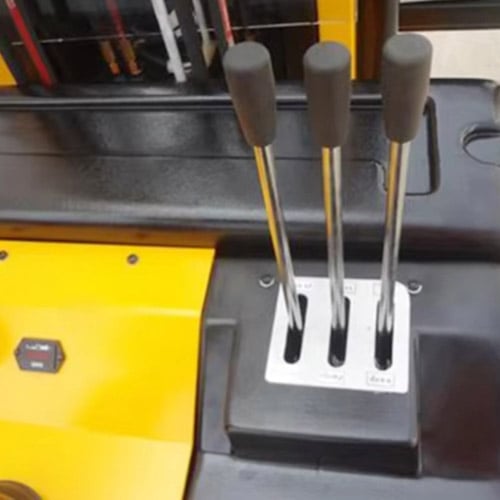

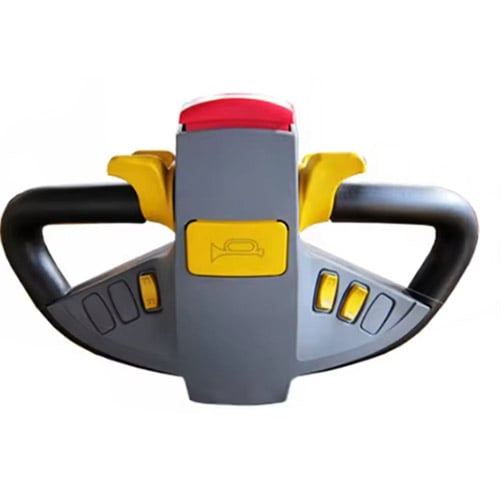

Intuitive Control Panel with Curtis System
Featuring a clear control interface equipped with Curtis controller and infinitely variable speed driving. This offers operators precise movement control and adaptable working speeds.
Ergonomically Designed Handle
The comfortable and responsive handle enhances operator control and reduces fatigue during extended use, contributing to both safety and efficiency.
Medya Galerisi
SSS
Q1: How does the soft rubber protection on the clamps prevent damage to sensitive materials like paper or film rolls?
A: The clamps are lined with high-density, compliant rubber pads that conform to the shape of the roll under pressure. This significantly increases the surface contact area, distributing the clamping force evenly to eliminate point pressure. This design effectively prevents crushing, denting, or leaving any noticeable clamping marks on delicate surfaces.Q2: What are the benefits of the regenerative braking feature in this electric clamp stacker?
A: Regenerative braking improves energy efficiency by capturing kinetic energy during deceleration or lowering and converting it back into electrical energy to recharge the battery. This process also provides smoother, more controlled braking, reducing mechanical wear on brakes. Furthermore, it enhances operational safety by ensuring quicker and more responsive stopping power, especially when handling heavy loads.Q3: Can this stacker handle loads other than paper rolls, such as steel coils or tires?
A: Absolutely. While optimized for paper rolls, the robust clamp design and programmable control system make it highly adaptable for various dense cylindrical loads. The powerful clamping force and stable rotation mechanism are engineered to securely grip and maneuver heavy objects like steel coils, rubber tires, and large cables. However, we always recommend confirming the specific weight and dimensions of your loads to ensure optimal performance.Q4: How does the emergency reverse function work to protect the operator?
A: The emergency reverse function is a critical safety sensor-based feature. If the clamp contacts an obstacle or the operator during travel, it immediately triggers the system to stop and briefly reverse direction. This rapid response minimizes the risk of injury to personnel and helps prevent damage to both the equipment and the load. This feature is integrated into the sensitive travel control system for reliable operation in unexpected situations.Q5: What is the advantage of having a one-piece valve core in the hydraulic system?
A: The one-piece valve core design minimizes potential leakage points within the hydraulic system, enhancing overall reliability and maintaining consistent clamping pressure. It simplifies the hydraulic circuit, which leads to fewer failures and lower maintenance requirements over the long term. This robust design also makes troubleshooting and any necessary valve service more straightforward and efficient.
İsteğe bağlı ekstralar
Different lifting heights
We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.
Industrial Smart Charger (Optional)
This advanced charging system features automatic self-recovery function and real-time LED status monitoring. Multi-color indicator lights clearly display charging progress and fault alerts for 24V battery packs.
Integrated Digital Scale
Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.
Silent Caster Kit
Upgrade to our ultra-quiet rolling system featuring noise-dampened polyurethane treads and precision ball bearings, reducing operational noise below 50dB. Ideal for hospital, laboratory, and office environments where noise control is critical.
Reel Presence Limit Switch (Optional)
Ensure operational safety with our industrial-grade limit switch, featuring non-contact magnetic sensing for reliable reel position detection. The IP67-rated housing with dual-color LED indicators provides instant visual status feedback during loading/unloading cycles.
24-Volt D.C. power lift
AC powered lift, pneumatic lift or air over hydraulic lift
Duplex Twin Chain Drive
This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.
Front Swivel Casters
Upgrade your roll lifter with heavy-duty front swivel casters for effortless 360° maneuverability in tight spaces. These lockable casters provide smooth mobility during transport while ensuring stability when positioned. Perfect for navigating narrow aisles in print shops or warehouses.
