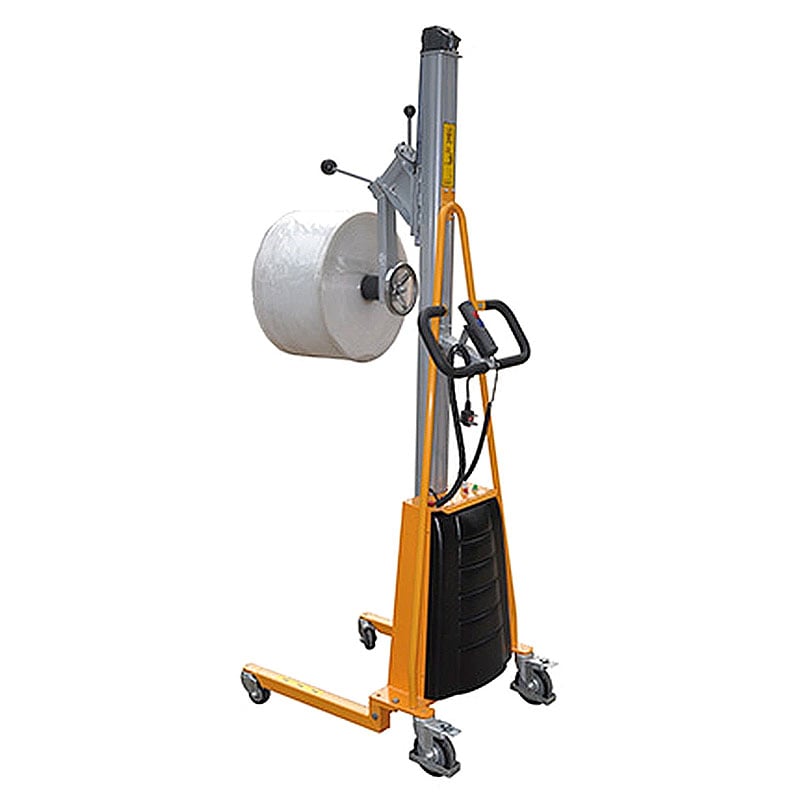

E series Electric Work Positioner with Dilatant Turner
E series Electric Work Positioner with Dilatant Turner
The E series Electric Work Positioner with Dilatant Turner is designed to effortlessly handle lifting tasks from ground level to above shoulder height, reducing physical strain on users. It features a more powerful motor, a larger 12Ah battery with low voltage protection, and highly flexible 360° rotation for superior maneuverability in narrow aisles and confined spaces. Ideal for a wide range of environments including warehouses, laboratories, kitchens, retail spaces, and pharmaceutical or food processing facilities. Its smart control interface and overload protection ensure both safety and ease of operation.
Özellikler
Enhanced Power & Battery: Equipped with a stronger motor and a large 12Ah maintenance-free battery with low-voltage protection, ensuring extended runtime and reliable performance.
Superior Maneuverability: Features a compact design with high-quality casters and a 360° dilatant turner, enabling effortless operation in narrow aisles and confined spaces.
Ergonomic Lifting: Effortlessly handles loads from ground level to above shoulder height, reducing physical strain and improving productivity with its smooth lifting controller.
Wide Applicability: Ideal for diverse environments such as warehouses, laboratories, pharmaceuticals, food processing, kitchens, and retail outlets.
Advanced Safety: Includes automatic electronic overload protection, a secure guardrail, and a rear wheel foot brake for ensured operational safety.
Parametreler
| Örnek | ME100-15 | ME100-17 | ME100-20 | ME150-15 | |
| ME100L-15 | ME100L-17 | ME100L-20 | ME150L-15 | ||
| Kapasite | (kilogram) | 100 | 100 | 100 | 100 |
| Yük Merkezi | (mm) | 230 | 230 | 230 | 230 |

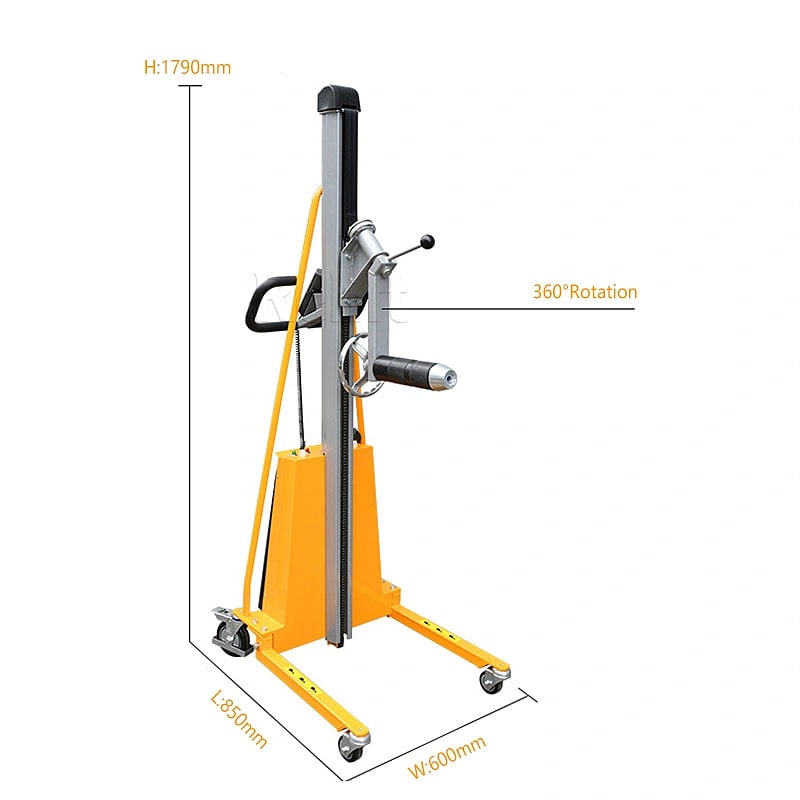

| Genel Boyut | (mm) | 850x600x1790 | 850x600x1990 | 870x600x2290 | 870x600x1790 |
| Yük Tekerleği | (mm) | Ø75 PU, Universal or Fixed type | |||
| Direksiyon | (mm) | Ø125 (P) | |||
| Güç Ünitesi | V/W | 24/200 | |||
| Pil (Servis Ücretsiz) | V/Ah | 24V/12(17)Ah | |||
| Net ağırlığı | (kilogram) | 60 | 62 | 68 | 60 |
Ürün Detayları
Fixed with screws, easy to install and replace, compatible with flatbeds, single axle, hooks, etc
Built-in maintenance-free battery, chain lift device with no oil leakage risk, clear and safe wiring distribution
simple control panel Clear and simple layout, optional speed controller
Control the lift with the electric button, adjustable lift height, simple and labor-saving operation
Medya Galerisi
SSS
Q1: What are the main benefits of using an electric work positioner?
A: The primary benefit is a significant reduction in physical strain and risk of injury for operators by effortlessly lifting heavy loads from the floor to overhead heights. Its highly maneuverable and compact design allows for safe and efficient operation even in tight spaces like narrow aisles. Furthermore, features like the 360° rotation and intuitive controls drastically improve workflow productivity.Q2: How long does the battery last on a single charge?
A: While runtime depends on usage intensity, the large 12Ah battery is designed to power a full shift for most common lifting applications. It comes with an automatic charger for convenient recharging and is maintenance-free, reducing long-term upkeep costs. The system also includes low-voltage protection to safeguard the battery's health and longevity.Q3: Is this work positioner suitable for use in clean environments like labs or pharmacies?
A: Yes, absolutely. Its design and functionality make it an ideal solution for clean and sensitive environments such as pharmaceuticals, laboratories, and food processing facilities. The machine operates without producing emissions, thanks to its electric power source. Its versatility also extends to catering, retail, and office spaces, making it a perfect all-rounder.Q4: What safety features does this electric lifter have?
A: Safety is a core design focus, featuring an automatic electronic overload protection system that prevents the machine from lifting beyond its safe capacity. The secure guardrail and rear wheel foot brake provide stability and safety during operation. These integrated features work together to create a reliable and secure working environment for the user.Q5: How maneuverable is the work positioner in tight spaces?
A: Exceptionally maneuverable. It is specifically engineered for narrow aisles and confined spaces, featuring a flexible universal wheel design for minimal driving resistance. The ability to perform 360° rotations with the dilatant turner allows for precise positioning and easy navigation around obstacles. This makes it invaluable in crowded warehouses, storerooms, and retail backrooms.
İsteğe bağlı ekstralar
Roller platform
Ball paltform
Stainless Steel Platform
V-shaped Plate
Ball Transfer Platform
Single Rod Fork
Rotator
Double Rod Forks
Fixed Forks
Rubber rollers
Hook
Roller single-rod shaft
Single round bar fork
