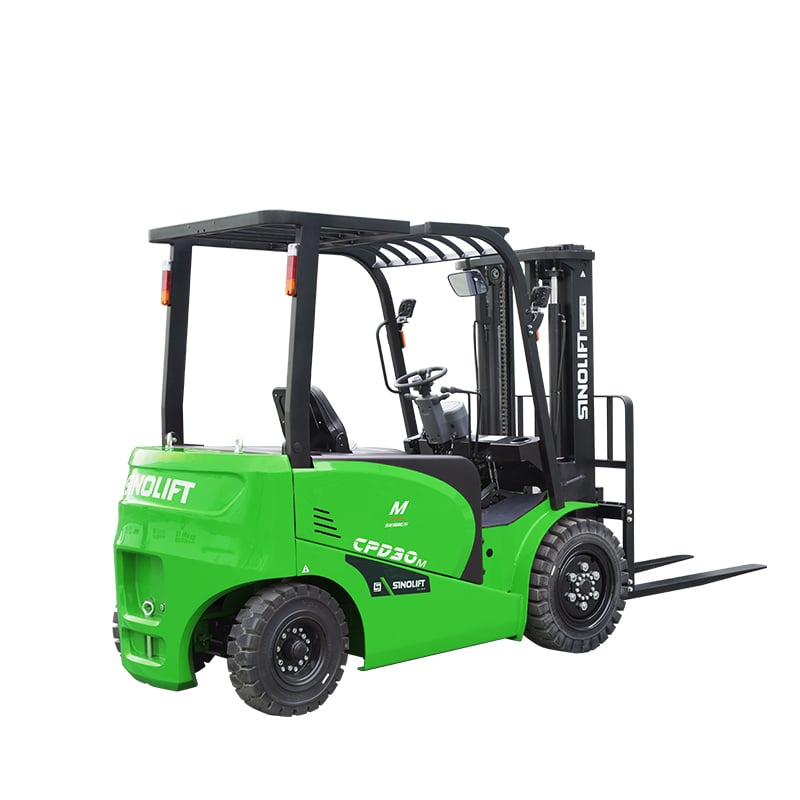

MA7 Series 2.0-3.5T Lithium-Ion Battery Operated Forklift

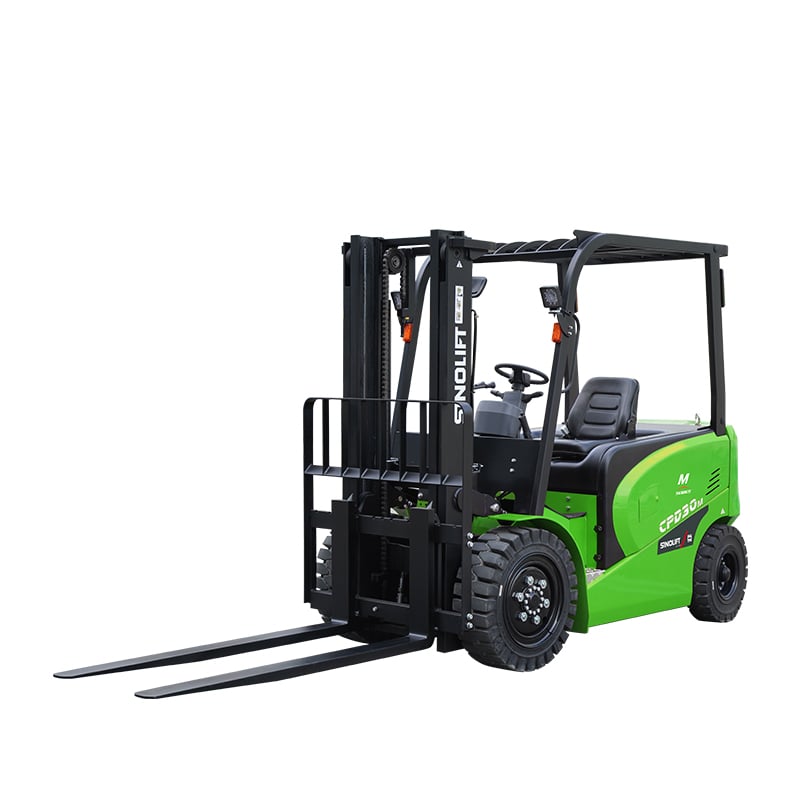

MA7 Series 2.0-3.5T Lithium-Ion Battery Operated Forklift - Imagen 2

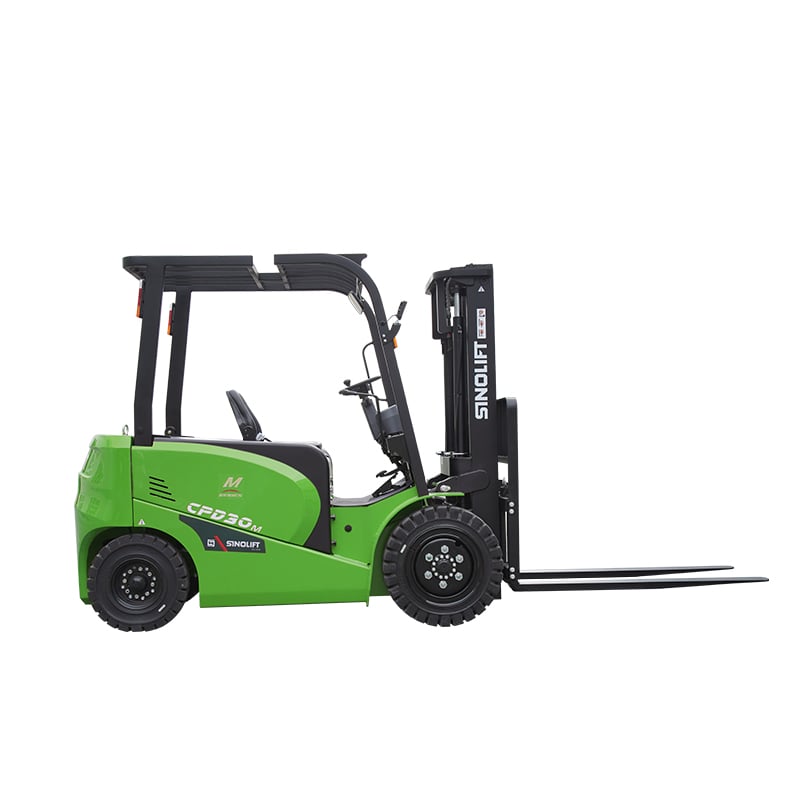

MA7 Series 2.0-3.5T Lithium-Ion Battery Operated Forklift - Imagen 3
MA7 Series 2.0-3.5T Lithium-Ion Battery Operated Forklift - Imagen 4

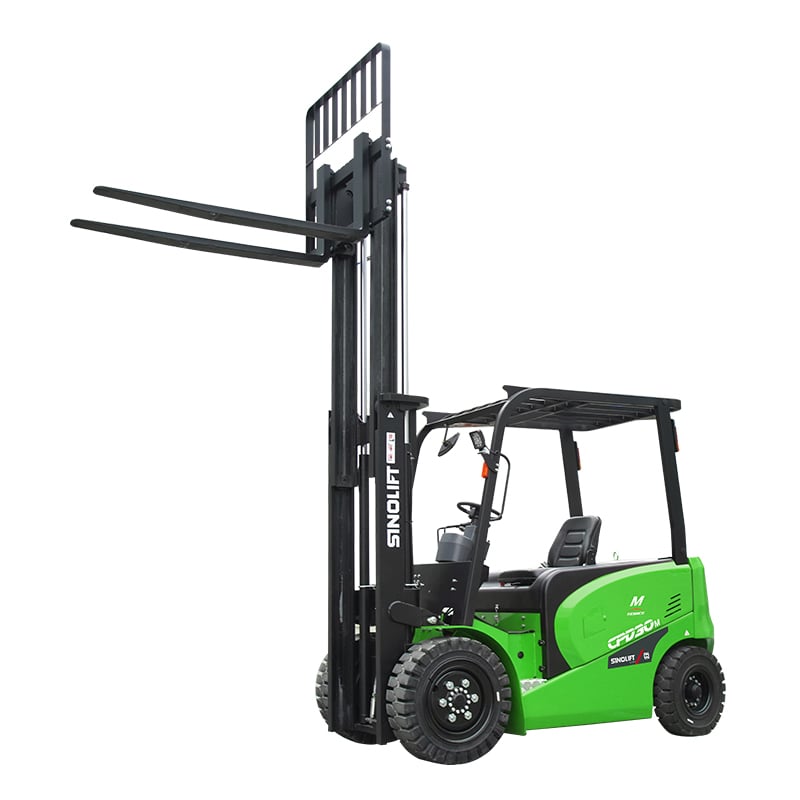

MA7 Series 2.0-3.5T Lithium-Ion Battery Operated Forklift - Imagen 5

MA7 Series 2.0-3.5T Lithium-Ion Battery Operated Forklift

MA7 Series 2.0-3.5T Lithium-Ion Battery Operated Forklift

Developed by SINOLIFT as a next-generation solution, the MA7 Series 2.0-3.5T Lithium-Ion Forklift inherits the rugged reliability of the classic “M” series while being specifically engineered to tackle complex, high-intensity material handling. Powered by innovative, maintenance-free lithium-ion technology and a direct-drive motor, it features rapid opportunity charging to guarantee continuous truck availability and significantly reduced operating costs. Operators benefit from unmatched comfort and safety through a 50% larger ergonomic cabin, a widened mast field of vision, and smart features like automatic turning speed limits. Equipped with an IP54 waterproof rating and brilliant LED illumination, this versatile forklift delivers peak performance across demanding indoor warehouses, busy manufacturing plants, and rigorous all-weather outdoor operations.

Contáctenos
Descargar

Características

Experience the next generation of material handling with the SINOLIFT MA7 Series 2.0-3.5T Lithium-Ion Forklift. Inheriting the classic “M” series design, this powerhouse features an optimized internal structure and a premium LiFePO4 battery for rapid charging and zero-maintenance operation. The advanced direct-drive motor maximizes energy utilization, delivering internal combustion-level performance with zero emissions. Designed with the operator in mind, the redesigned ergonomic cabin offers 50% more space and a 20% wider field of vision for unmatched comfort. Built for high-intensity work in demanding environments, it boasts an IP54 protection rating and an intelligent speed limit system for safer cornering. Maximize your warehouse productivity and continuous uptime with this reliable, energy-efficient solution.

Parámetros

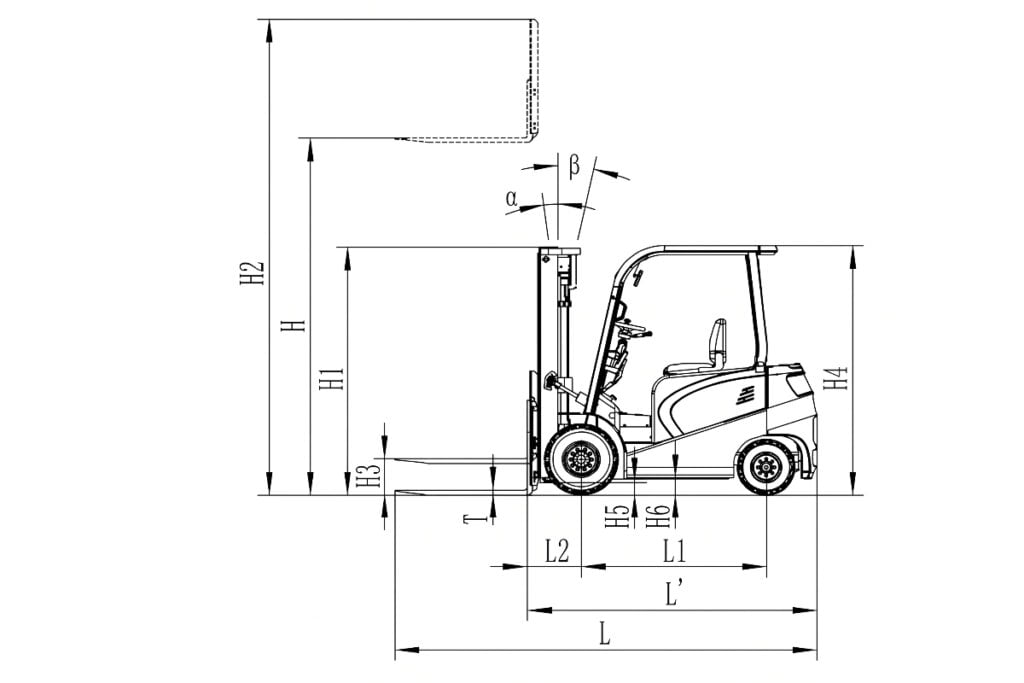

Modelo CPD20MA7Li CPD25MA7Li CPD30MA7Li CPD35MA7Li
Tipo de energía Eléctrico Eléctrico Eléctrico Eléctrico
Tipo de operación Sentado Sentado Sentado Sentado
Capacidad nominal Q kilogramo 2000 2500 3000 3500
Centro de carga do mm 500 500 500 500
Voladizo delantero L2 mm 445 445 475 490
Distancia entre ejes L1 mm 1620 1620 1750 1750
Ángulo de inclinación del mástil α/β ° 6/12 6/12 6/10 6/10
Altura del mástil bajado H1 mm 2050 2050 2080 2080
Altura de elevación libre H3 mm 120 120 150 150
Standard Mast Lift Height yo mm 3000 3000 3000 3000
Altura extendida del mástil H2 mm 4045 4045 4150 4150
Altura del tejadillo protector H4 mm 2120 2120 2150 2150
Distance from Botoom to Seat mm 1070 1070 1070 1070
Altura del perno de tracción mm 300 300 300 300
Overall Length (include forks) yo mm 3555 3555 3740 3760
Longitud hasta la cara de la horquilla El' mm 2485 2485 2670 2690
Ancho total W1 mm 1175 1175 1235 1235
Tamaño de la horquilla TxAnxL4 mm 40/100/1070 40/122/1070 45/125/1070 50/125/1070
Tipo de horquilla ISO2328 2A ISO2328 2A ISO2328 3A ISO2328 3A
Fork Carriage Outline Width mm 1038 1038 1100 1100
Ancho de extensión del carro de horquillas W5 mm 225-972 247-995 250-1090 250-1090
 Ground Clearance Under Mast Laden H5 mm 100 100 110 110
Ground Clearance at Center of the Wheelbase H6 mm 125 125 135 135

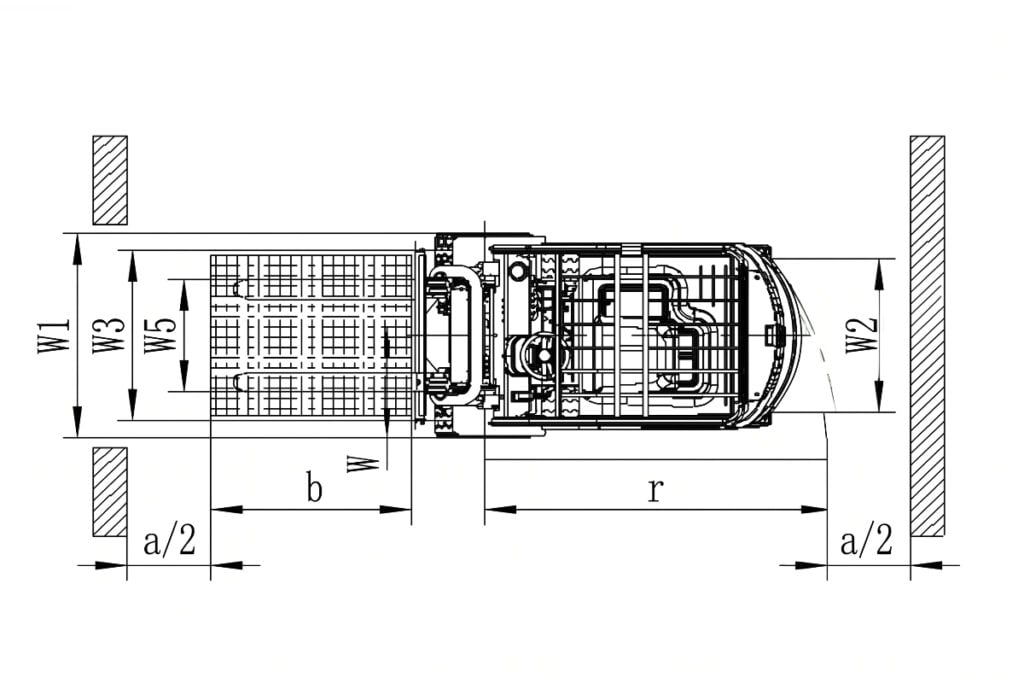

Min. Right Angle Stacking Aisle Width (Pallet 1000×1000) Ast mm 3895 3895 4125 4140
Min. Right Angle Stacking Aisle Width (Pallet 1200×1200) Ast mm 4095 4095 4325 4340
Radio de Turing o mm 2250 2250 2450 2450
Peso del servicio kilogramo 3300 3600 4300 4650
Front Axle Rated Load Capacity with laden kilogramo 4720 5430 6640 7415
Rear Axle Rated Load with Laden kilogramo 580 670 660 735
Rated Load Capacity with unladen kilogramo 1290 1400 2020 2185
Rear Axle Rated Load with unladen kilogramo 2010 2160 2280 2465
Tipo de neumático Neumático Neumático Neumático Neumático
Tamaño del neumático (delantero) 7.00-12NHS-12PR 7.00-12NHS-12PR 28×9-15-14PR 28×9-15-14PR
Tamaño del neumático (trasero) 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR
Wheel Number (x=Drive Wheel) 2x/2 2x/2 2x/2 2x/2
Banda de rodadura delantera mm 970 970 1000 1000
Rosca trasera mm 980 980 980 980
Max. Travel Speed (Laden/Unladen) kilómetros por hora 15/15 15/15 15/15 15/15
Lifting Speed (Laden/Unladen) mm/s 330/360 310/360 340/420 320/210
Velocidad de descenso (con carga/sin carga) mm/s 400/340 420/340 400/360 420/360
Máxima pendiente superable (con/sin carga) % 15/20 15/20 15/20 15/20
Tipo de freno de servicio Hidráulico Hidráulico Hidráulico Hidráulico
Tipo de freno de estacionamiento Mecánico Mecánico Mecánico Mecánico
Drive Motor Rating S2 60min kilovatios 16 16 16.6 16.6
Lifting Motor Rating at S315% kilovatios 18 18 22.6 13/13.5
Battery Voltagl/Capacicty K5 V/Ah 76.8/202 76.8/202 76.8/280 76.8/280
Peso de la batería kilogramo 216 216 259 259
 Maximum Allowable Battery Size mm 964x580x675 964x580x675 675x780x964 675x780x964
Marca del controlador Curtis Curtis Curtis Curtis
Modelo de controlador 1234SE+1232SE 1234SE+1232SE 1236SE+1253 1236SE+1234SE
Presión de apego bar 140 140 140 140
Volumen de aceite del accesorio L/min 65 65 65 65
Hydraulic oil tank volume yo 35 35 >=35 >=35
Sound Level at Driver’s Ear According to EN 12 053 dB 72 72 72 72





Detalles del producto

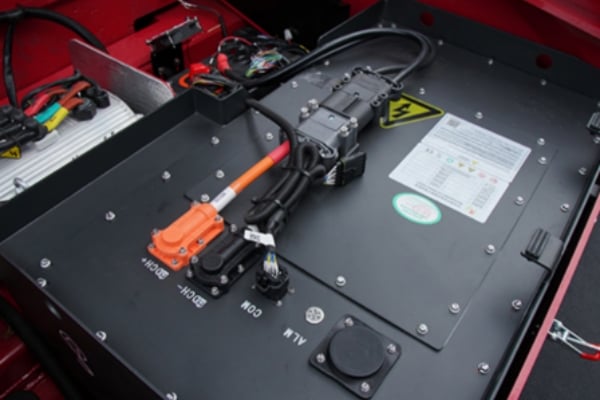

Reliable LiFePO4 Battery

Reliable LiFePO4 Battery

Over 90% charge/discharge efficiency with 1.5-2 hours rapid charging. Supports opportunity charging for continuous uptime. Backed by a 5-year or 10,000-hour warranty.

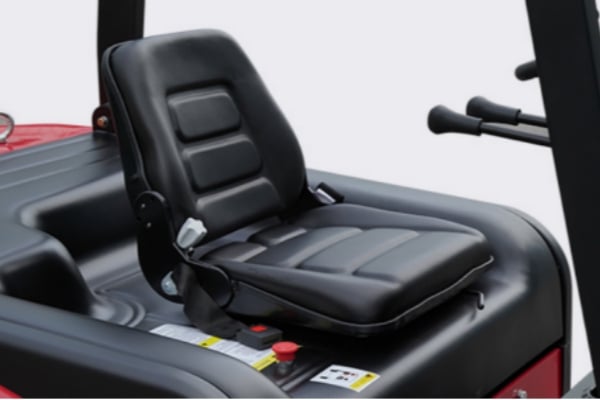

Active Operation Protection

Active Operation Protection

Equipped with intelligent cornering deceleration to prevent rollovers, and a seat power-off (OPS) function that automatically cuts off lifting and traveling power when the operator leaves the seat.

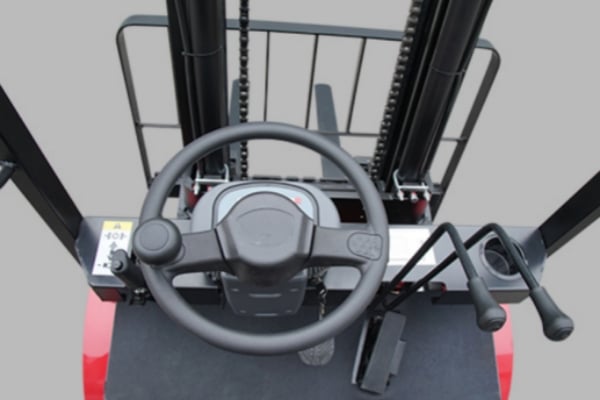

Enhanced Wide-View Mast

Enhanced Wide-View Mast

Widened mast design increases the operator's field of vision by 20%. Constructed with custom special-shaped steel for superior load-bearing capacity.

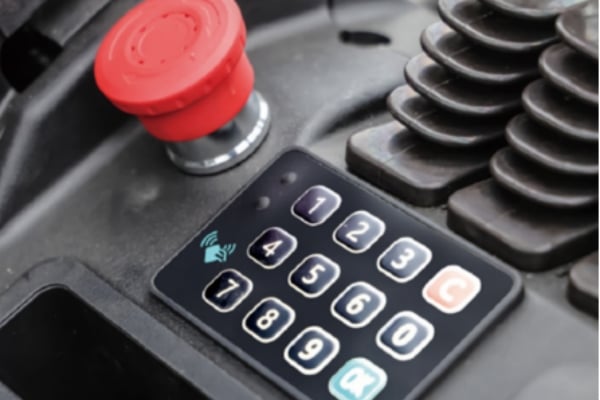

Intelligent Access System

Intelligent Access System

Two-level startup (Electric lock + PIN code/RFID card) prevents unauthorized operation, complying with TSG81 safety regulations.

Galería de medios

Preguntas frecuentes

  • Q1: What is the expected lifespan of the lithium-ion battery in the MA7 series, and how does it impact ROI?

    A1: The advanced lithium iron phosphate (LiFePO4) battery utilized in the MA7 series offers a significantly longer operational lifespan compared to traditional lead-acid alternatives, typically exceeding 10,000 hours of use with minimal capacity degradation. Because it requires zero daily battery maintenance and delivers higher energy conversion rates, this forklift provides a much lower total cost of ownership (TCO) and an accelerated return on investment for your material handling fleet.

  • Q2: Can the MA7 series be equipped with specialized third-party hydraulic attachments other than the standard factory options?

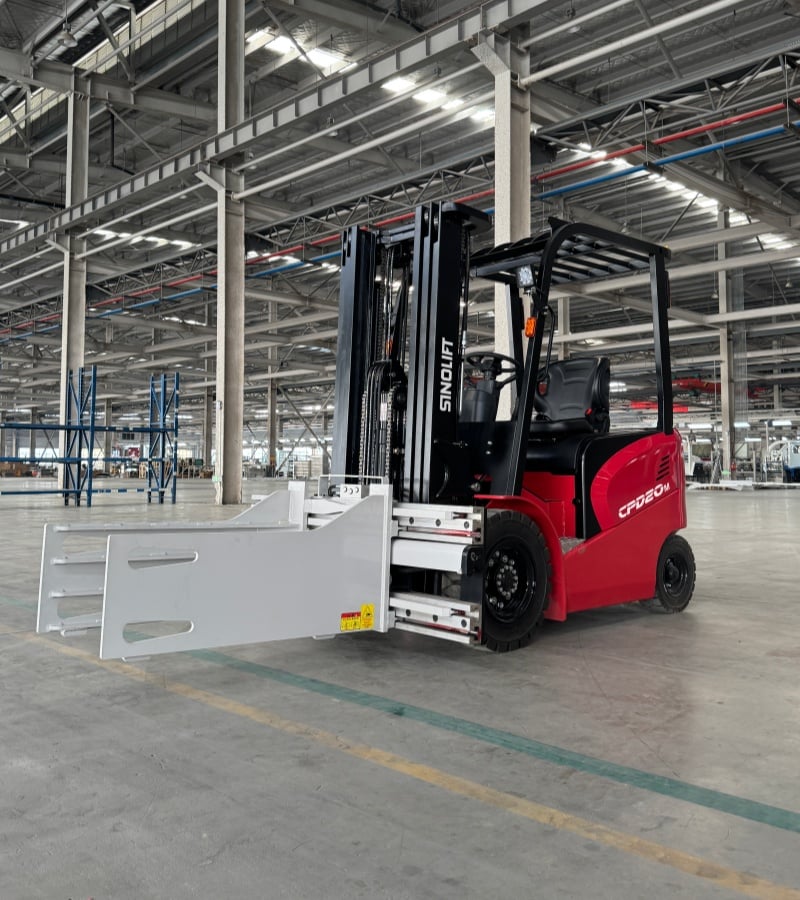

    A2: Yes, the MA7 series is engineered with a high-capacity independent hydraulic system that easily accommodates a wide variety of specialized attachments. Whether your operations require multi-pallet handlers, paper roll clamps, or rotators, our technical team can customize the hydraulic routing to ensure seamless and efficient integration.

  • Q3: Is this forklift reliable for continuous heavy-duty operation in extreme weather conditions or varying temperature zones?

    A3: Absolutely. The truck is built to withstand harsh environments, featuring IP54-rated protection against water and dust for reliable outdoor use. Furthermore, the lithium battery pack is equipped with a standard low-temperature electric heating system, ensuring consistent power output and charging efficiency even in freezing environments like cold storage facilities.

  • Q4: How do the maintenance requirements of this lithium forklift compare to internal combustion (IC) models?

    A4: By utilizing a direct-drive motor and a lithium power system, the MA7 series eliminates the extensive mechanical upkeep associated with IC engines, meaning no more engine oil changes, filter replacements, or exhaust system repairs. Your maintenance technicians can simply focus on routine mechanical wear-and-tear inspections, such as checking tire conditions, mast lubrication, and hydraulic fluid levels, drastically reducing your operational downtime.

  • Q5: What intelligent safety systems are integrated to protect operators during high-intensity shifts?

    A5: Safety is built into the core software of the MA7 series to prevent workplace accidents and reduce operator fatigue. It features an intelligent turning speed limit that automatically slows the vehicle during cornering to prevent rollovers, alongside a smart seat sensor that instantly cuts off lifting and driving functions the moment the operator leaves the cabin.
