CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Truck
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Truck
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Truck
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Truck

CDD500-R1200

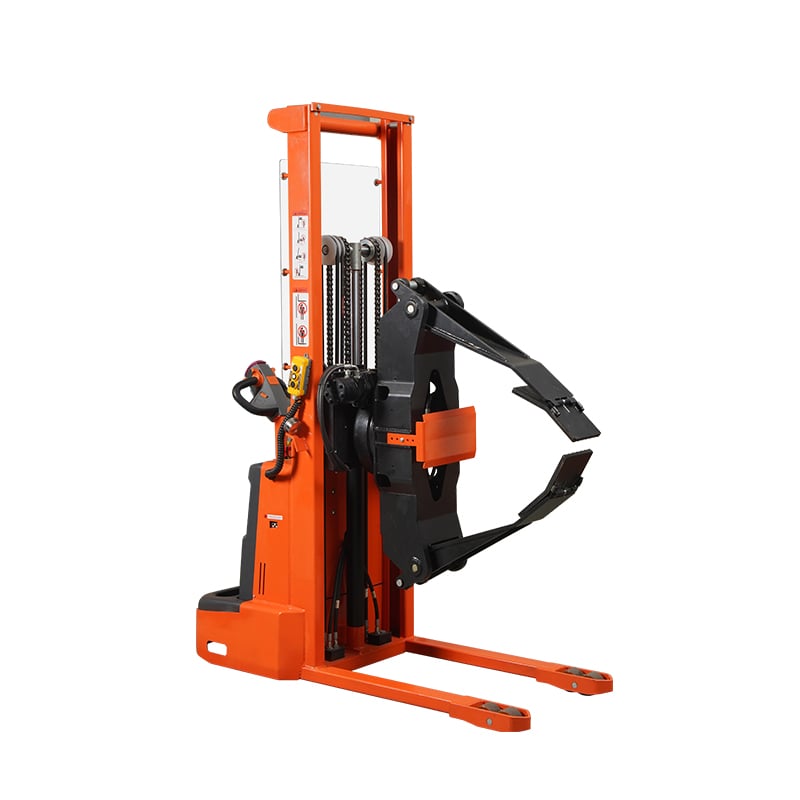

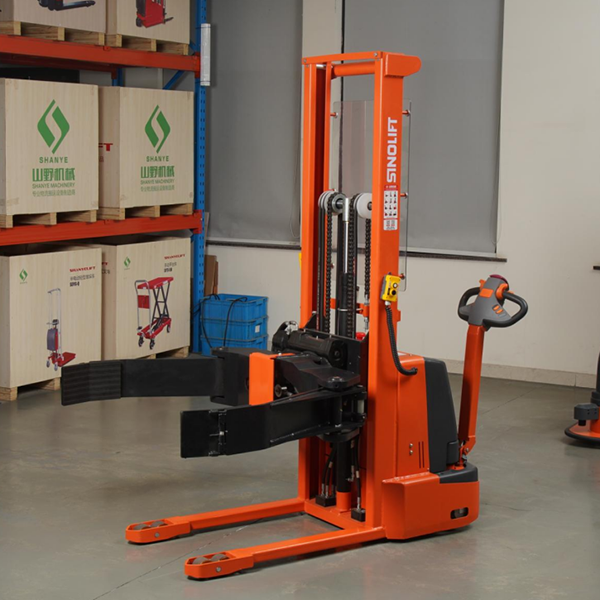

CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Truck

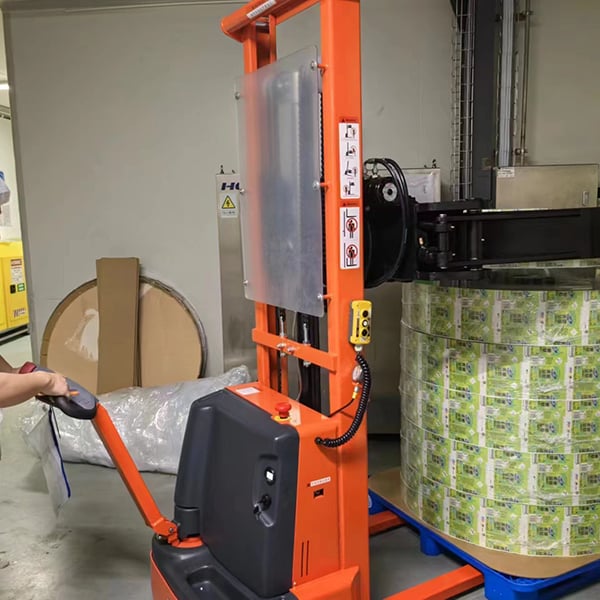

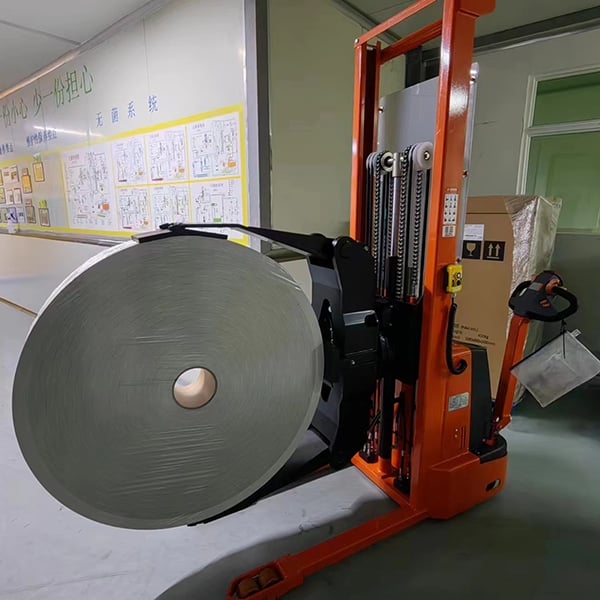

Designed for the printing and packaging industry, the CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Truck ensures safe and efficient handling of delicate coils (e.g., paper rolls). Its standout feature—automatic pressure adjustment—prevents slippage or damage by dynamically adapting clamping force based on coil diameter. With full electric operation for transport, lifting, rotation, and clamping, it streamlines workflows while enhancing precision. Ideal for feeding coils into machinery from ground or pallet positions, this solution combines intelligence with reliability for demanding production environments.

Bize Ulaşın
İndirmek

Özellikler

Intelligent Pressure Adjustment: An automated system dynamically regulates clamping force based on coil diameter, ensuring a secure grip that protects delicate materials like paper rolls from damage or deformation.

Programmable Precision: Features customizable, electro-hydraulic rotation with programmable angles, allowing for perfect alignment and feeding into various production machinery via wireless remote control.

Enhanced Safety Mechanisms: Incorporates critical safeguards including a heavy-load safety lock, rotation inhibitors below a set height, and non-marking rubber pads to ensure operator and load safety.

Versatile Material Handling: Capable of efficiently lifting coils from both pallets and directly from the floor, offering flexibility in warehouse and production line layouts.

Robust & Low-Maintenance Design: Powered by dual maintenance-free batteries for extended operation and utilizes an oil-free chain lifting system, minimizing routine upkeep and leakage risks.

Parametreler

Parameter Unit Value/Description
Örnek CDD500-R1200
Operation Pedestrian-controlled
Lifting Type Elektrik
Speed Adjustment Available
Yük Kapasitesi kilogram 500
Dingil açıklığı mm Rear/Front: 475/560
Coil Diameter Range (3-point) mm 800-1200
Coil Diameter Range (2-point) mm 400-1200
Min. Height (Clamp Arm) mm 220

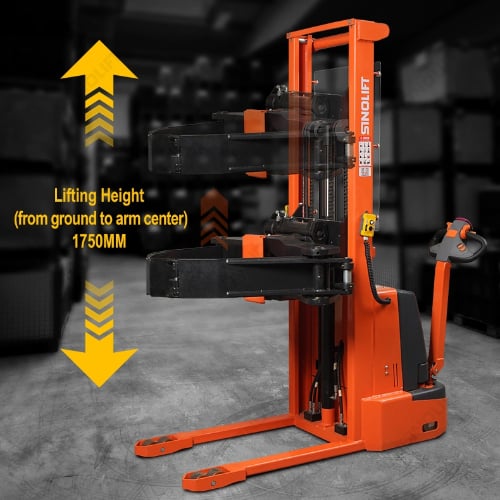

Kaldırma Yüksekliği mm 1750 (arm center to ground)
Genel Uzunluk mm 1800
Max. Width (Arms Extended) mm 1350
Min. Width (Arms Retracted) mm 1150
Genel Yükseklik mm 2180
Outrigger Width mm 666
Dönüş Yarıçapı mm 1500
Yerden yükseklik mm 30
Aisle Width mm 2360 (coil-dependent)
Front Caster Wheels PU Ø80×60
Rear Drive Wheels PU Ø210×75
Stabilizer Wheel PU Ø150×50
Drive Motor Power kW 0.75
Max. Travel Speed km/saat Loaded/Unloaded: 3.5/4.0
Battery Specification V/Ah 2×12/120
Pil Ağırlığı kilogram 2×28
Şarj cihazı V/A 24/20
Max. Lift Speed mm/s Loaded/Unloaded: 70/100
Max. Lowering Speed mm/s Loaded/Unloaded: 60/70
Gradeability % Loaded/Unloaded: 3.5/4.0
Net ağırlığı kilogram 670



Ürün Detayları

Adjustable Electro-Hydraulic Control

Adjustable Electro-Hydraulic Control

This system features electro-hydraulic lifting, clamping, and rotation functions, enabling faster loading and unloading while significantly improving operational efficiency.

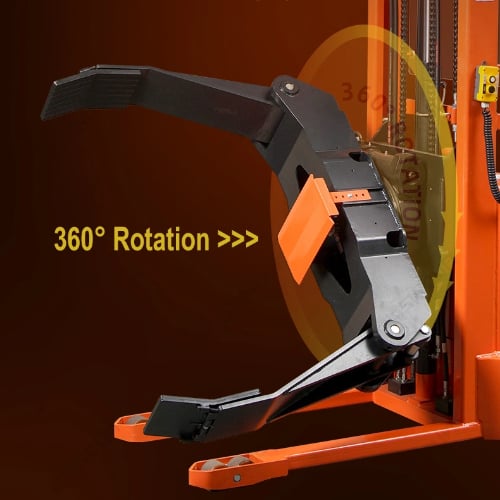

Intelligent Rotation Angle Control

Intelligent Rotation Angle Control

The clamp supports 360° left/right arc rotation with a 90° tilt lock function. Rotation is prohibited below 825mm for safety, and electric models allow programmable rotation angles.

Rubber-Coated Clamping Pads

Rubber-Coated Clamping Pads

Arms are equipped with rubber-coated pads that provide a strong yet gentle grip, protecting coil surfaces from damage while ensuring secure handling.

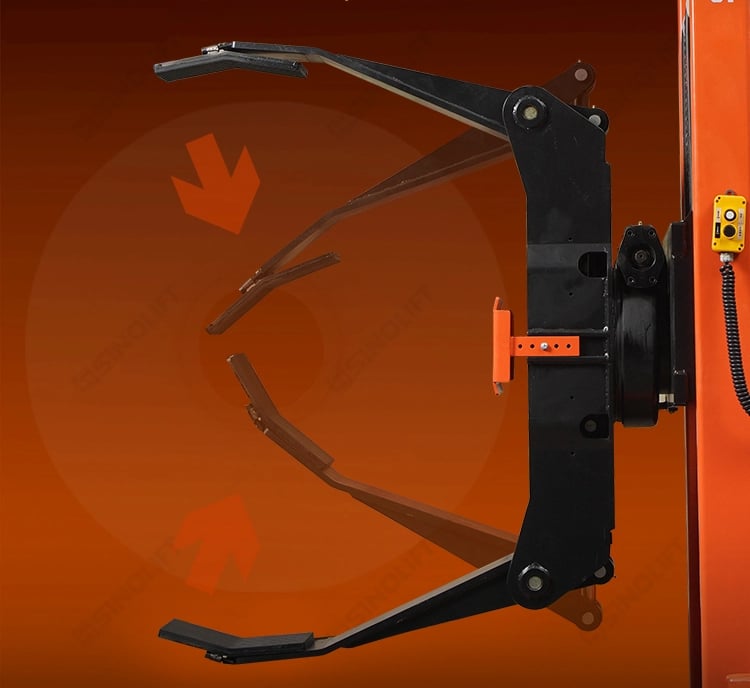

Automatic Pressure Adjustment

Automatic Pressure Adjustment

The system intelligently adjusts clamping force based on coil diameter, effectively preventing both slippage and deformation during operation.

Medya Galerisi

SSS

  • Q1: What types of coils can this clamp truck handle?

    A: It is engineered for handling various coil types, especially those used in printing and packaging, such as paper, film, and foil rolls. The clamping pressure automatically adjusts to suit different diameters and materials, ensuring secure and damage-free transport.

  • Q2: Can the rotation angle be customized?

    A: Yes, the rotation angle is programmable and can be customized according to your operational needs. This allows precise feeding into machinery for optimized workflow efficiency.

  • Q3: How is the clamp truck operated?

    A: It comes with an intuitive wireless remote control that allows operators to easily manage lifting, clamping, and rotation functions. The "hold-to-move" design ensures smooth and responsive handling.

  • Q4: What safety features does this machine offer?

    A: It includes multiple safety mechanisms such as anti-slip rubber clamp pads, accidental opening prevention, and a safety lock that only releases heavy coils when supported. These features protect both the operator and the load.

  • Q5: Is this machine suitable for use in cold environments?

    A: Yes, it is equipped with special low-temperature lubricant and has been tested to perform reliably in temperatures as low as -10°C, making it suitable for cold storage or winter conditions.

İsteğe bağlı ekstralar

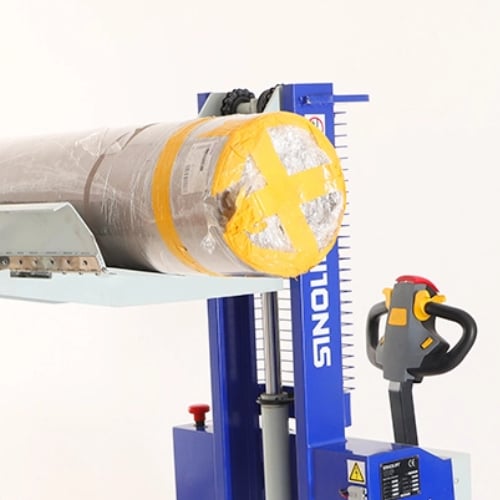

Different lifting heights We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.

Different lifting heights

We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.

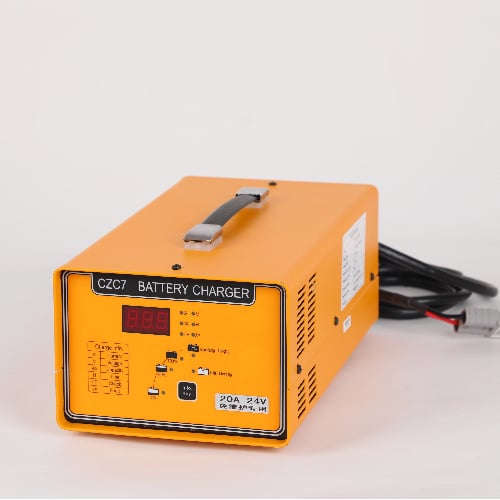

Industrial Smart Charger (Optional)
This advanced charging system features automatic self-recovery function and real-time LED status monitoring. Multi-color indicator lights clearly display charging progress and fault alerts for 24V battery packs.

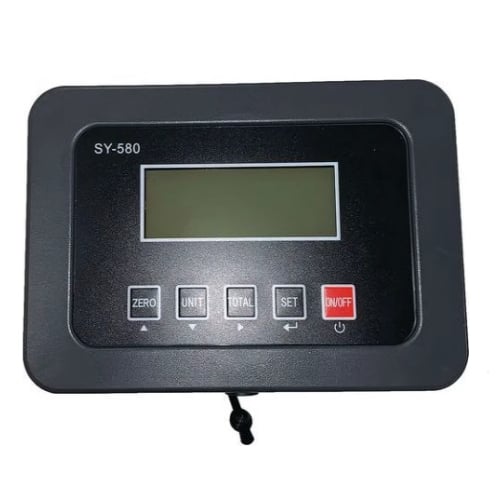

Integrated Digital Scale Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.

Integrated Digital Scale

Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.

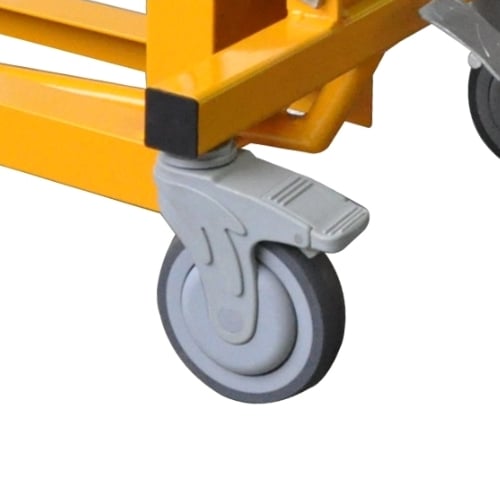

Silent Caster Kit

Upgrade to our ultra-quiet rolling system featuring noise-dampened polyurethane treads and precision ball bearings, reducing operational noise below 50dB. Ideal for hospital, laboratory, and office environments where noise control is critical.

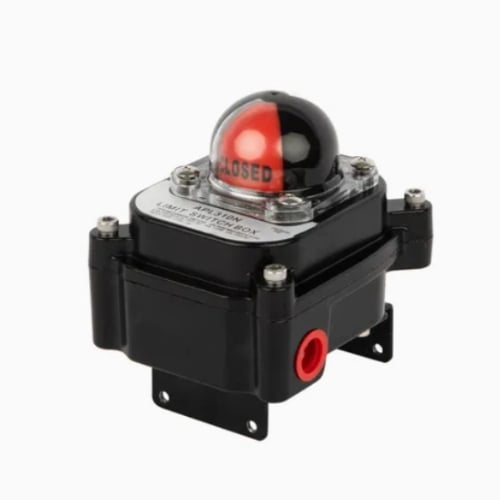

Reel Presence Limit Switch (Optional) Ensure operational safety with our industrial-grade limit switch, featuring non-contact magnetic sensing for reliable reel position detection. The IP67-rated housing with dual-color LED indicators provides instant visual status feedback during loading/unloading cycles.

Reel Presence Limit Switch (Optional)
Ensure operational safety with our industrial-grade limit switch, featuring non-contact magnetic sensing for reliable reel position detection. The IP67-rated housing with dual-color LED indicators provides instant visual status feedback during loading/unloading cycles.

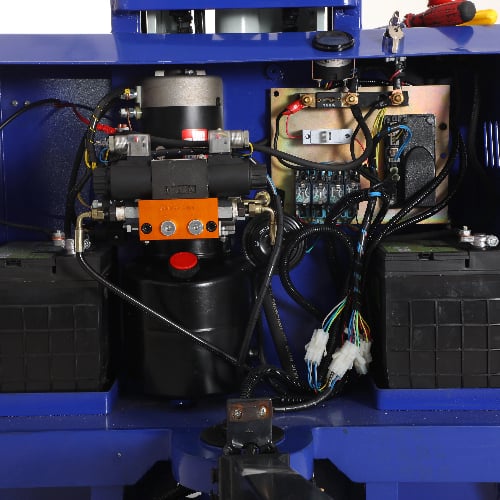

24-Volt D.C. power lift, AC powered lift, pneumatic lift or air over hydraulic lift

24-Volt D.C. power lift

AC powered lift, pneumatic lift or air over hydraulic lift

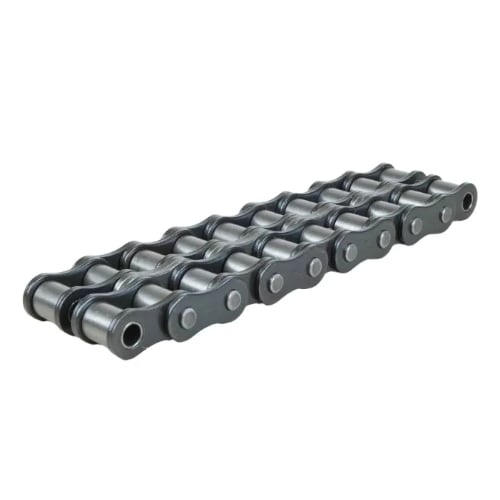

Duplex Twin Chain Drive This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.

Duplex Twin Chain Drive
This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.

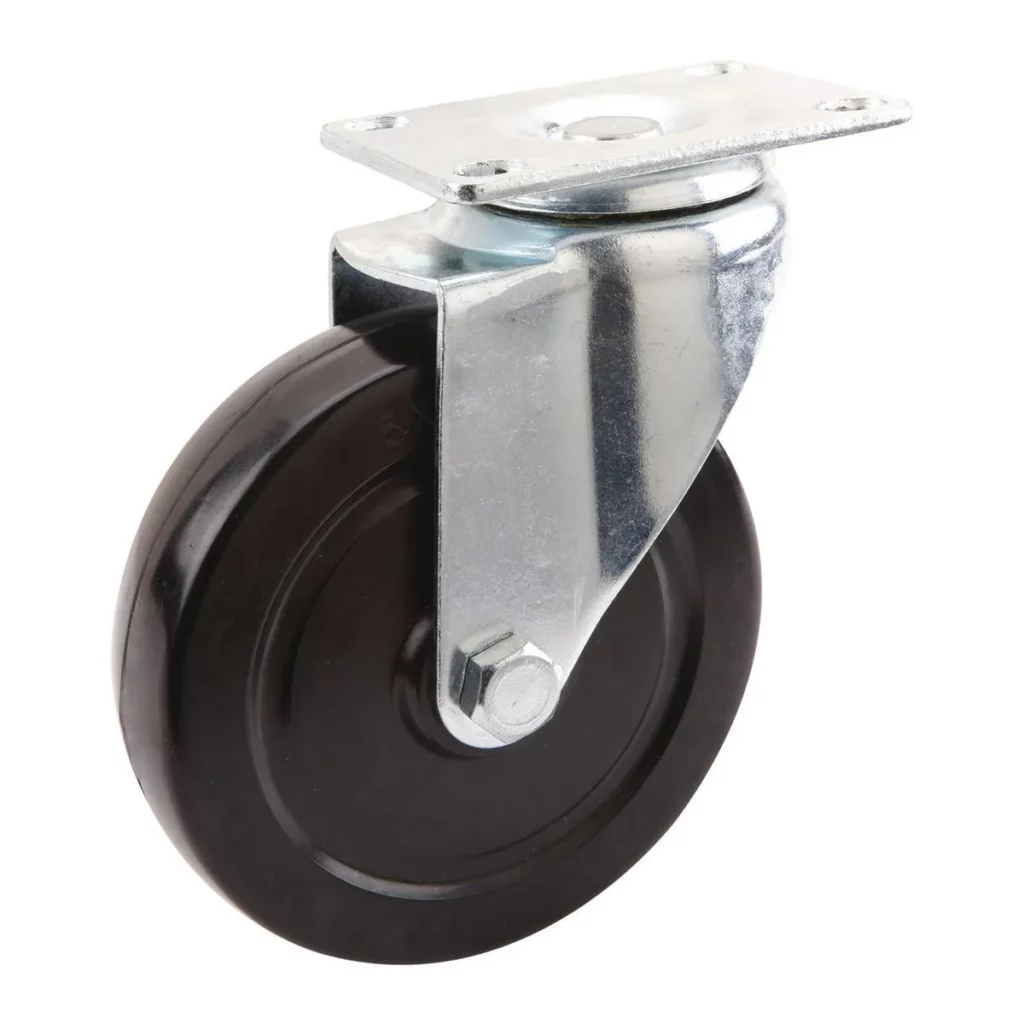

Front Swivel Casters Upgrade your roll lifter with heavy-duty front swivel casters for effortless 360° maneuverability in tight spaces. These lockable casters provide smooth mobility during transport while ensuring stability when positioned. Perfect for navigating narrow aisles in print shops or warehouses.

Front Swivel Casters

Upgrade your roll lifter with heavy-duty front swivel casters for effortless 360° maneuverability in tight spaces. These lockable casters provide smooth mobility during transport while ensuring stability when positioned. Perfect for navigating narrow aisles in print shops or warehouses.
