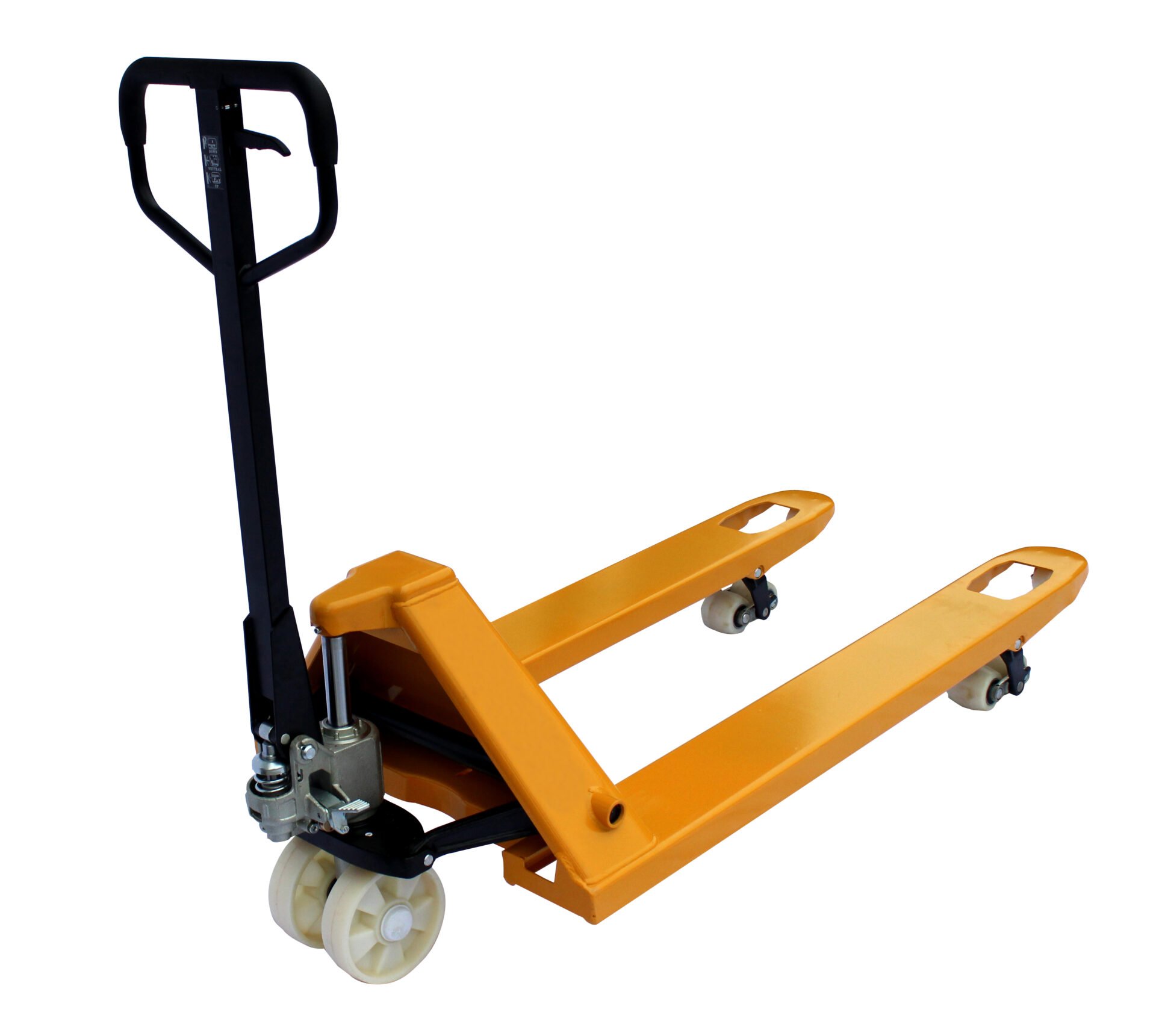

BF sereis Hand Pallet Truck

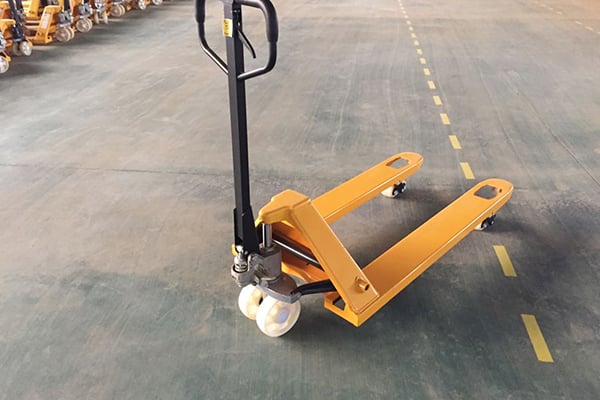

BF sereis Hand Pallet Truck - Görsel 2
BF sereis Hand Pallet Truck - Görsel 3

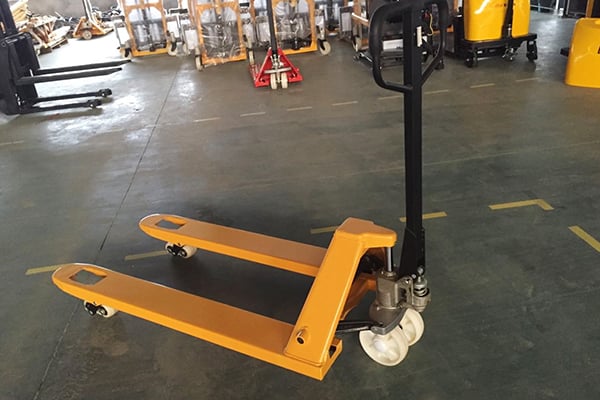

BF sereis Hand Pallet Truck - Görsel 4

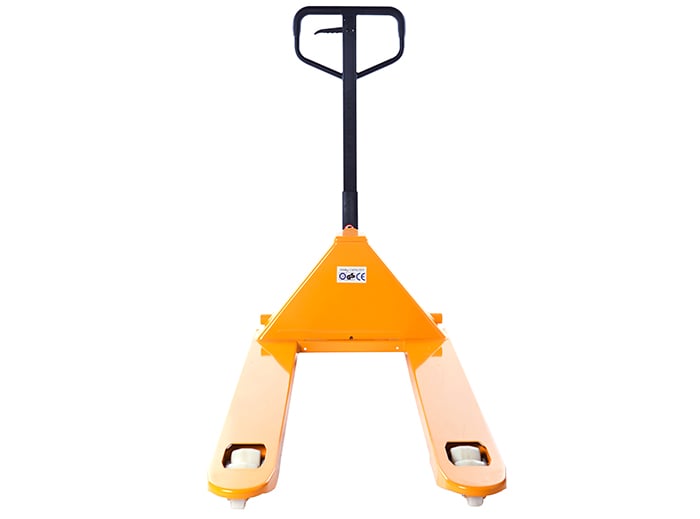

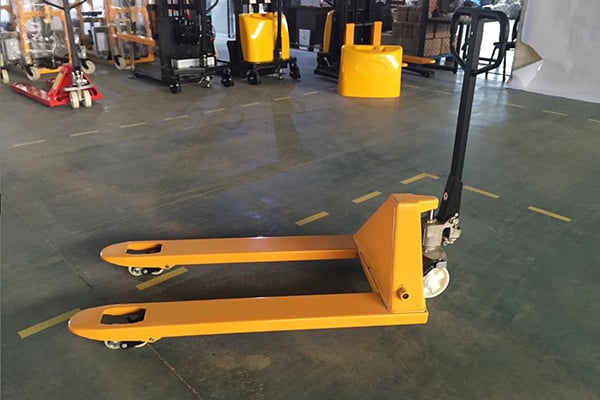

BF sereis Hand Pallet Truck

Hand Pallet Truck 3000kg Capacity – Heavy Duty Manual Pallet Jack with Reinforced Chassis/CE Certified

BF Hand Pallet Truck is a top-selling, heavy-duty solution designed for lifelong reliability in demanding environments. With a robust 3000kg capacity and reinforced chassis, it excels in warehouses, factories, and logistics hubs. Its maintenance-free rollers, ergonomic handle, and versatile brake options ensure effortless operation and safety. Available in multiple fork widths (520mm/685mm) and lengths (1100mm/1150mm/1220mm), it adapts to diverse loads. CE-certified and built for endurance, this truck combines strength with compliance for seamless material handling.

Bize Ulaşın
İndirmek

Özellikler

The Hand Pallet Truck with 3000kg capacity is a durable and high-performance manual pallet jack built for heavy-duty applications. Engineered with a reinforced chassis, it delivers outstanding strength and stability, making it ideal for use in warehouses, factories, and logistics centers. This model is CE certified, ensuring compliance with international safety and quality standards.

Designed for user comfort and operational ease, the truck features an ergonomic handle and maintenance-free rollers that provide smooth and effortless movement, even under full load. Its optional brake system enhances control and safety during operation. With multiple fork sizes available—widths of 520mm or 685mm and lengths of 1100mm, 1150mm, or 1220mm—the pallet truck can accommodate a wide range of pallet sizes and load types.

Built for long-term reliability, this manual pallet jack is the go-to choice for professionals seeking a rugged yet efficient material handling tool. Whether you’re transporting goods across a factory floor or managing inventory in a warehouse, this heavy-duty hand pallet truck ensures dependable performance and adaptability in any industrial setting.

Parametreler

Örnek BF
Kapasite Q(kg) 2500 / 3000
Lowered fork height h13(mm) 85 75
Direksiyon mm Φ200 Φ180
Fork roller single mm Φ80*93 Φ74*93
Fork roller tandem mm Φ80*70 Φ74*70
Max. lift height h3(mm) 200 190
Total height h14(mm) 1224 1214
Toplam uzunluk 11(mm) 1483 / 1533 / 1603
Çatal uzunluğu l(mm) 1100 / 1150 / 1220
Width overall forks b5(mm) 520 / 550 / 685
Yerden yükseklik, dingil mesafesinin merkezi m2(mm) 40 30
Aisle width for pallets 1000*1200 Ast(mm) 1683 / 1733 / 1803
Aisle width for pallets 800*1200 Ast(mm) 1783 / 1783 / 1803
Dönüş yarıçapı Ne kadar (mm) 1216 / 1266 / 1336
Hizmet ağırlığı kilogram 63 – 75

Ürün Detayları

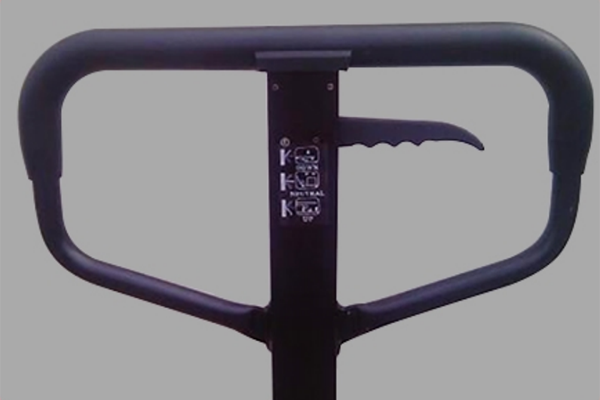

Halletmek

Halletmek

Ergonomic handle ensures the user a relaxed hold. Cushion handle with rubbergripHand & foot release design, Can be marked with name/department.

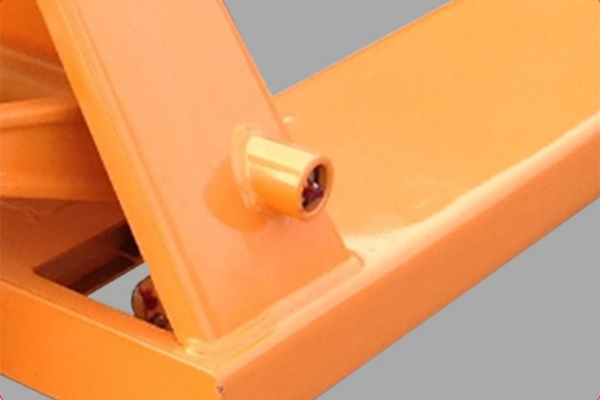

Painting

Painting

The untreated parts of the chassis and the forks are coated with an epoxyat 250°C: This very high quality finishincreases the service life of the pallettruck.

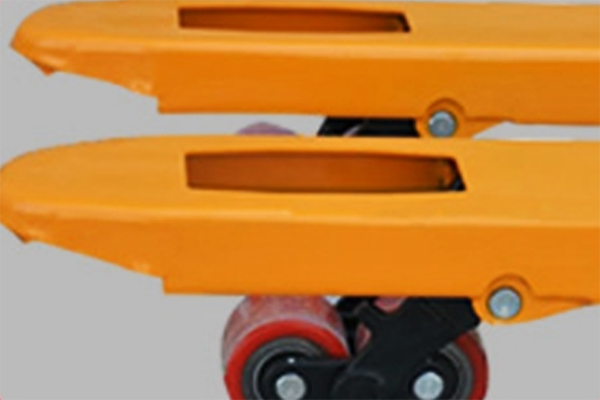

Çatallar

Çatallar

Heavy duty frame constructed of one-piece formed channel forks.

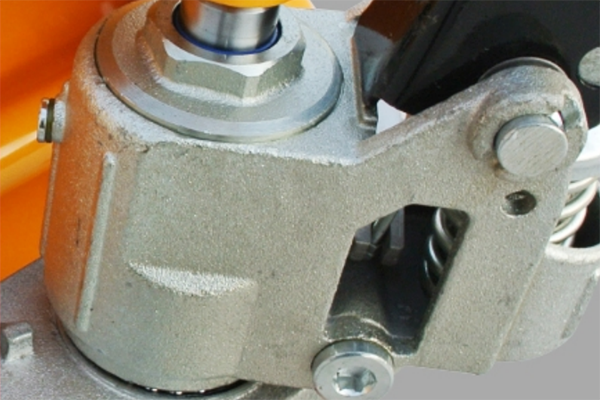

Hydraulics

Hydraulics

Galvanized hydraulic pump includes an overload relief valve and lowering canbe actuated by either hand or foot pedal release.

Medya Galerisi

SSS

  • How do I properly operate a hand pallet truck?

    To properly operate a hand pallet truck, first, ensure the control lever is in the neutral position. Approach the pallet squarely and insert the forks fully into the pallet openings. Move the lever to the "down" (or pump) position and pump the handle to lift the load off the floor. Once the load is clear, return the lever to neutral for maneuvering. To lower the load, pull and hold the lever in the "up" position. Always operate at a controllable speed and avoid sudden stops.

  • What are the basic steps for lifting and lowering a pallet?

    Lifting: With the forks inserted and the control lever in the "down" position, pump the handle until the pallet is raised clear of the floor. Lowering: With the pallet at the desired location and the truck stopped, pull and hold the control lever in the "up" position to lower the forks and load to the ground.

  • How do I check and add hydraulic fluid to a hand pallet truck?

    Lower the forks completely. Locate the hydraulic reservoir cap or screw, usually near the pump. Clean the area around the cap before opening it to prevent contamination. Remove the cap/screw and check the fluid level. Add the recommended hydraulic fluid using a funnel until it reaches the proper level (usually specified in the manual, often to the bottom of the filler opening). Replace the cap/screw securely.

  • How do I bleed air from the hydraulic system of a hand pallet truck?

    With the forks unloaded and fully lowered, repeatedly pump the handle through its full stroke (15-20 times is often recommended). This helps circulate the fluid and expel trapped air. Some models may have a bleed valve that can be opened briefly while pumping.

  • Where can I find replacement parts for my hand pallet truck?

    You can find replacement parts for your hand pallet truck through the manufacturer, authorized dealers, material handling equipment suppliers, or online retailers specializing in pallet jack parts. Having the make, model, and serial number of your truck will help in your search. For expert assistance, you may also consult SINOLIFT's professional advisors.

İsteğe bağlı ekstralar

Nylon

Nylon
Choose nylon pallet truck steer wheels for low rolling resistance, long life, and cost-effectiveness. Ideal for smooth surfaces and light to medium-duty applications.

Poliüretan
Choose polyurethane treaded pallet truck steer wheels for quiet operation, excellent grip, and resistance to wear. Suitable for indoor use on smooth or slightly uneven surfaces.

Steel
Choose steel steer wheels for durability in harsh working environments, such as metalworking areas or heavy-duty industrial settings. They are resistant to impact and can handle heavy loads.

Lastik
Choose solid rubber treaded steer wheels for quiet operation and smooth rolling over uneven or rough surfaces. They provide excellent shock absorption and are ideal for environments where floor protection is a priority.

Tiller

Choose a tiller that suits your habits and preferences

Adjustable Fork

The adjustable fork enables stepless width/length adjustment, allowing one pallet truck to handle all pallet types effortlessly. Eliminating the need for multiple equipment, it significantly improves mixed-pallet handling efficiency and precision – an intelligent solution for modern logistics.

Backrest

This option provides additional protection when transporting lightweight or slippery loads. The sturdy backrest design effectively prevents cargo from tipping or sliding backward, and straps can be used for added security when needed. The foldable feature ensures unimpeded operation when empty, making it an ideal accessory for enhanced stability and efficiency in material handling.

Ayak freni

The foot brake option is a rear-wheel-mounted braking device that provides instant locking through pedal operation. When the pallet truck comes to a stop, simply stepping on the pedal activates the brake, effectively preventing load shifting or unintended vehicle movement. This eliminates risks of cargo damage and enhances operator safety during material handling operations.

Hand Brake

The hand brake option provides secure stopping control for slopes and inclines, preventing unintended rolling to protect both operator and cargo. Its ergonomic lever enables quick, one-handed operation for reliable braking when needed. This safety-focused upgrade is ideal for warehouses, ramps, or uneven surfaces.

Nose Pallet Truck

This option is specifically engineered for dense stacking operations. Its unique set-back fork design enables precise single-pallet handling. The special clearance between fork tips and front rollers ensures individual pallet pickup, allowing tight inline positioning – perfect for high-density warehousing, production line logistics and other applications requiring exact stacking accuracy.
