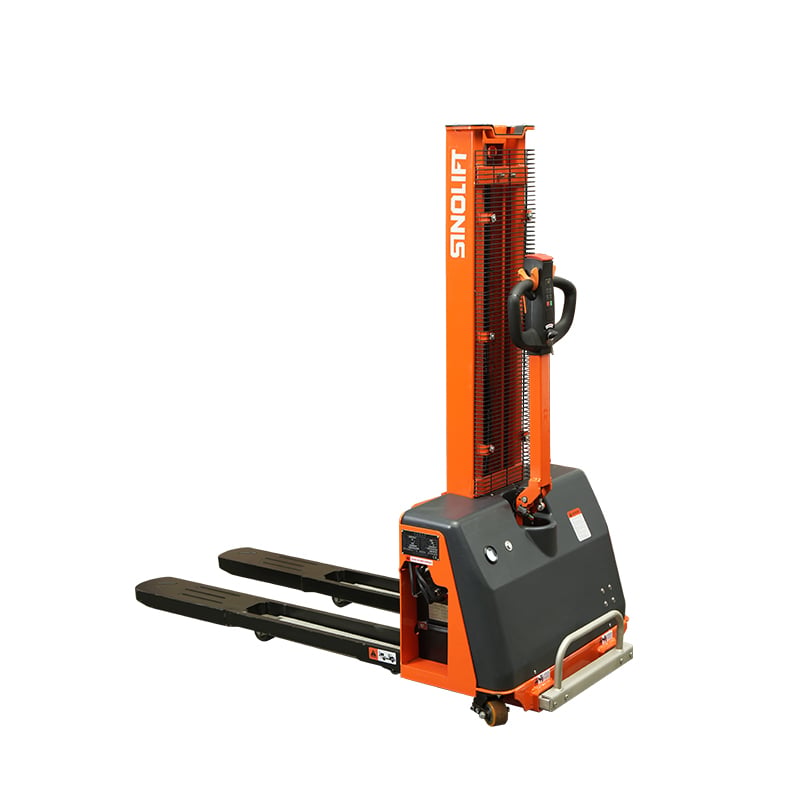

CDDYG-Z Fully Electric Self-Loading Pallet Stacker for Trucks and Vans - Imagem 2
CDDYG-Z Fully Electric Self-Loading Pallet Stacker for Trucks and Vans - Imagem 3

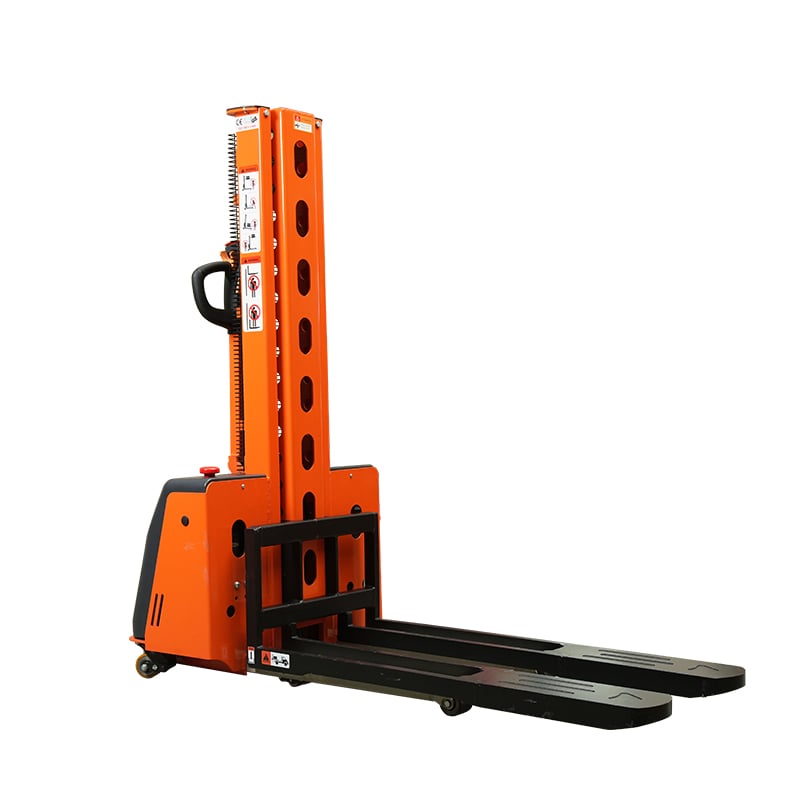

CDDYG-Z Fully Electric Self-Loading Pallet Stacker for Trucks and Vans - Imagem 4
CDDYG-Z Fully Electric Self-Loading Pallet Stacker for Trucks and Vans - Imagem 5
CDDYG-Z Fully Electric Self-Loading Pallet Stacker for Trucks and Vans - Imagem 6

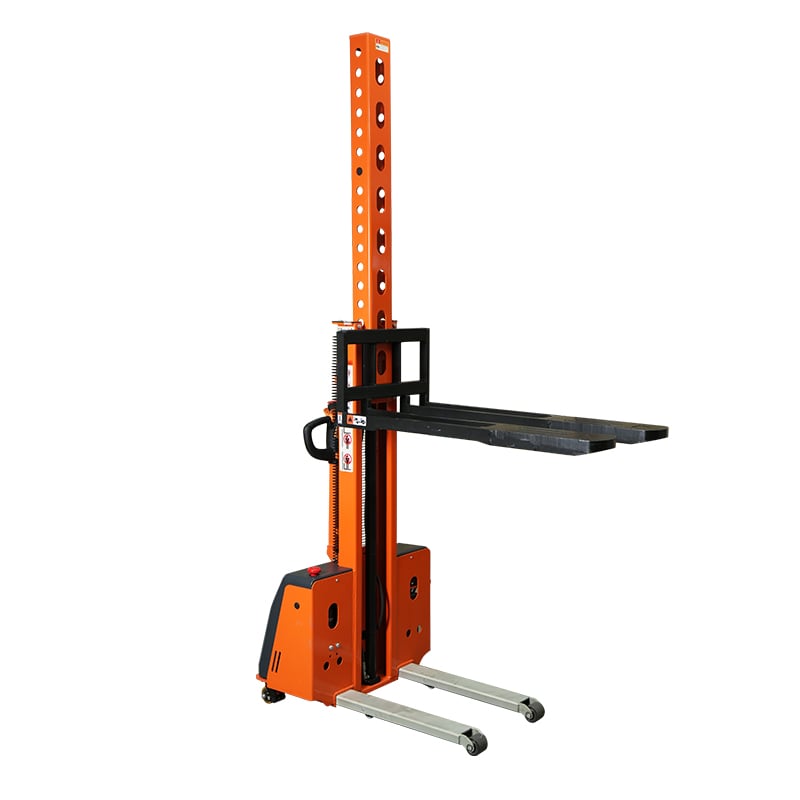

CDDYG-Z Fully Electric Self-Loading Pallet Stacker for Trucks and Vans - Imagem 7

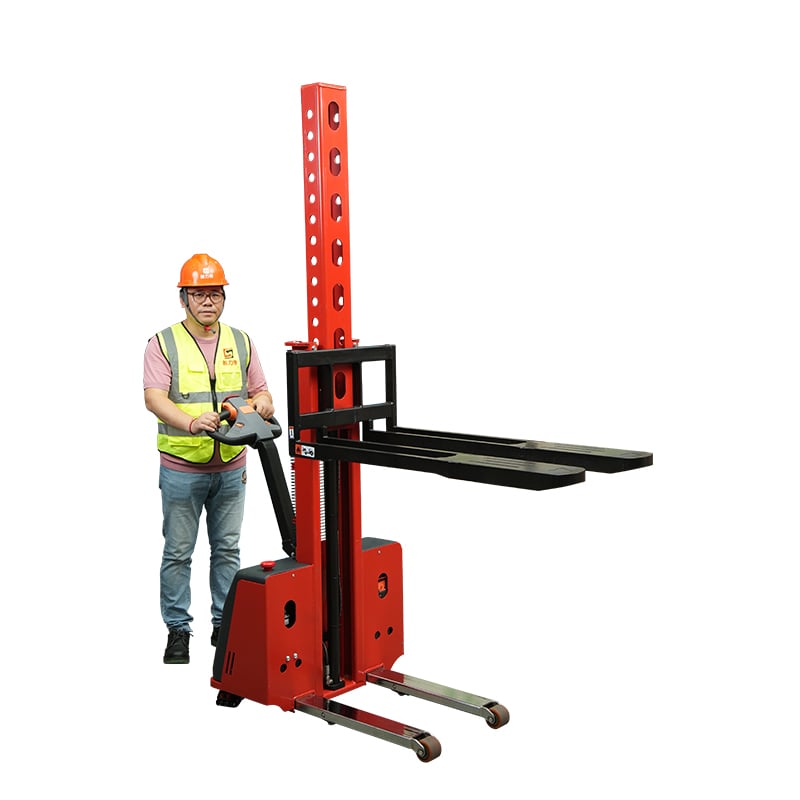

CDDYG-Z Fully Electric Self-Loading Pallet Stacker for Trucks and Vans - Imagem 8

CDDYG-Z Fully Electric Self-Loading Pallet Stacker for Trucks and Vans

CDDYG-Z Fully Electric Self-Loading Pallet Stacker for Trucks and Vans | 500-1,000 kg

Designed for delivery teams that need to move palletized loads where a dock, tail lift or on-site forklift is not always available, the CDDYG-Z travels with the vehicle and helps complete loading, unloading and short-distance transfer at the destination. Powered travel and electric-hydraulic lifting reduce pushing and pumping during frequent handling cycles. Its sliding support-leg system enables the stacker to raise its own chassis to a compatible truck or van bed, while the compact 800 mm body and 1,160 mm turning radius support maneuvering in limited space. Capacity options up to 1,000 kg and lift configurations up to 1,500 mm suit delivery, warehouse, factory and retail-receiving work. It is a practical choice for operators who want one mobile machine for both vehicle access and pallet handling.

Contate-nos
Download

Características

Designed for efficient truck loading and material handling, the CDDYG-Z Fully Electric Self-Loading Pallet Stacker combines electric driving, powered lifting, and an innovative self-loading mechanism in one compact machine. Its sliding support legs allow the stacker to lift itself onto compatible trucks without requiring an additional forklift. Built with a reinforced steel structure and sturdy mast, it delivers reliable performance for daily operations. The ergonomic control handle and tight turning radius make maneuvering easy in confined spaces, while the lithium battery provides dependable power. With customizable configurations, the CDDYG-Z offers a practical and flexible solution for warehouses, logistics centers, and delivery operations requiring frequent loading and unloading.

Parâmetros

ModeloUnitCDDYG-Z0511CDDYG-Z0513CDDYG-Z0515CDDYG-Z1011CDDYG-Z1013CDDYG-Z1015
Capacidade Nominalkg500500500100010001000
Centro de Cargamilímetros400400400400400400
Distância entre eixosmilímetros935935935935935935
Load Wheel SizemilímetrosΦ70×60Φ70×60Φ70×60Φ70×60Φ70×60Φ70×60
Tamanho da roda motrizmilímetrosΦ210×75Φ210×75Φ210×75Φ210×75Φ210×75Φ210×75
Minimum Fork Heightmilímetros606060606060
Maximum Fork Heightmilímetros110013001500110013001500
Fork Outside Widthmilímetros581581581581581581
Comprimento do garfomilímetros122012201220122012201220
Single Fork Sizemilímetros171/60171/60171/60171/60171/60171/60
Comprimento totalmilímetros173017301730173017301730
Largura totalmilímetros800800800800800800
Altura totalmilímetros148016801880148016801880
Minimum Turning Radiusmilímetros116011601160116011601160
Hydraulic System Working PressureMPa101010161616
Maximum Lifting Speed, Laden/Unladenmm/s80/10080/10080/10080/10080/10080/100
Maximum Lowering Speed, Laden/Unladenmm/s80/9080/9080/9080/9080/9080/90
Motor de elevaçãokW/V0.8/240.8/240.8/240.8/240.8/240.8/24
Motor de acionamentokW/V0.75/240.75/240.75/240.75/240.75/240.75/24
Lithium Battery CapacityV/Ah24/4024/4024/4024/4024/4024/40
Lithium Battery Weightkg151515151515
Peso líquidokg340360380350370390

Detalhes do produto

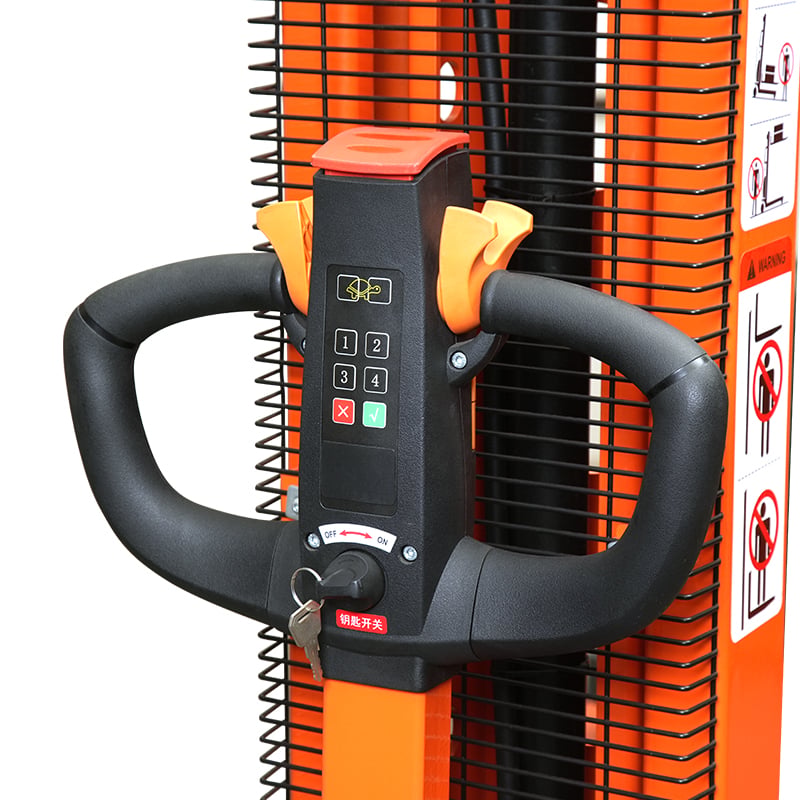

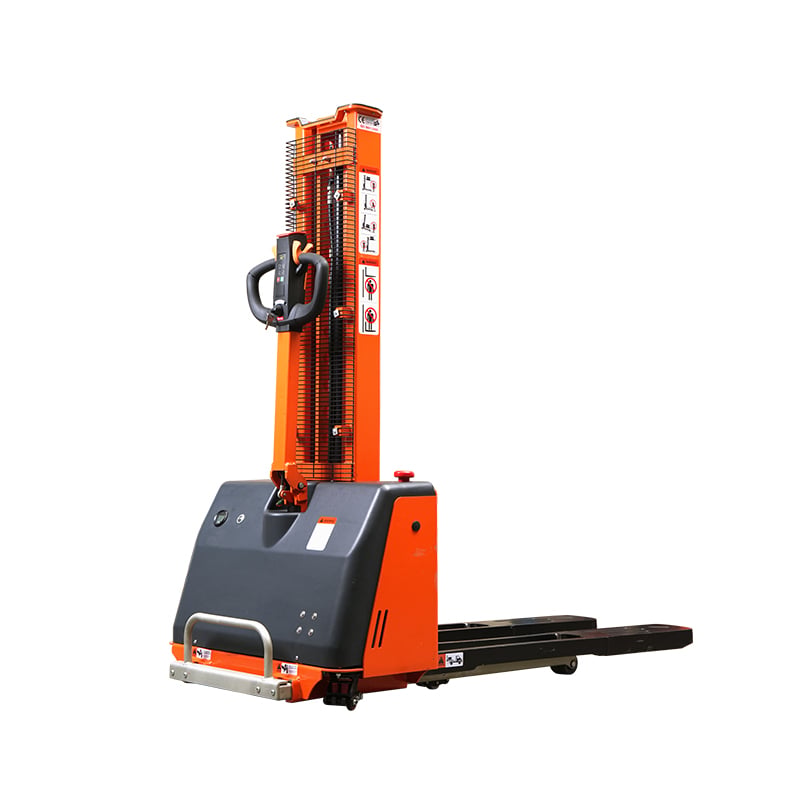

The ergonomic tiller groups forward, reverse, lift, lower, horn and creep-speed functions within easy reach. A key switch and emergency stop help the operator control access and respond quickly during operation.

Operator-Focused Electric Controls

The ergonomic tiller groups forward, reverse, lift, lower, horn and creep-speed functions within easy reach. A key switch and emergency stop help the operator control access and respond quickly during operation.

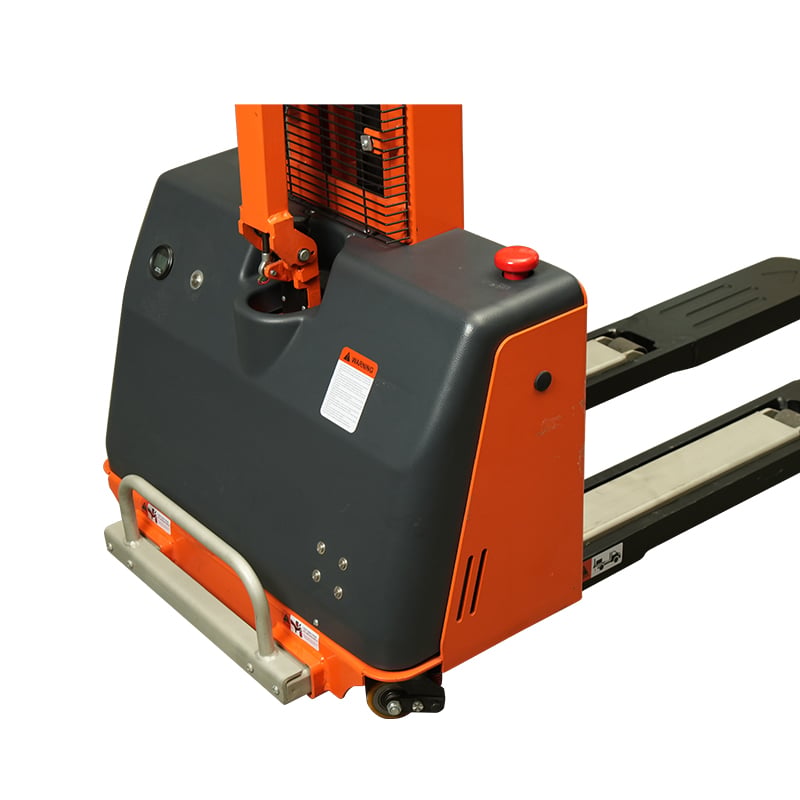

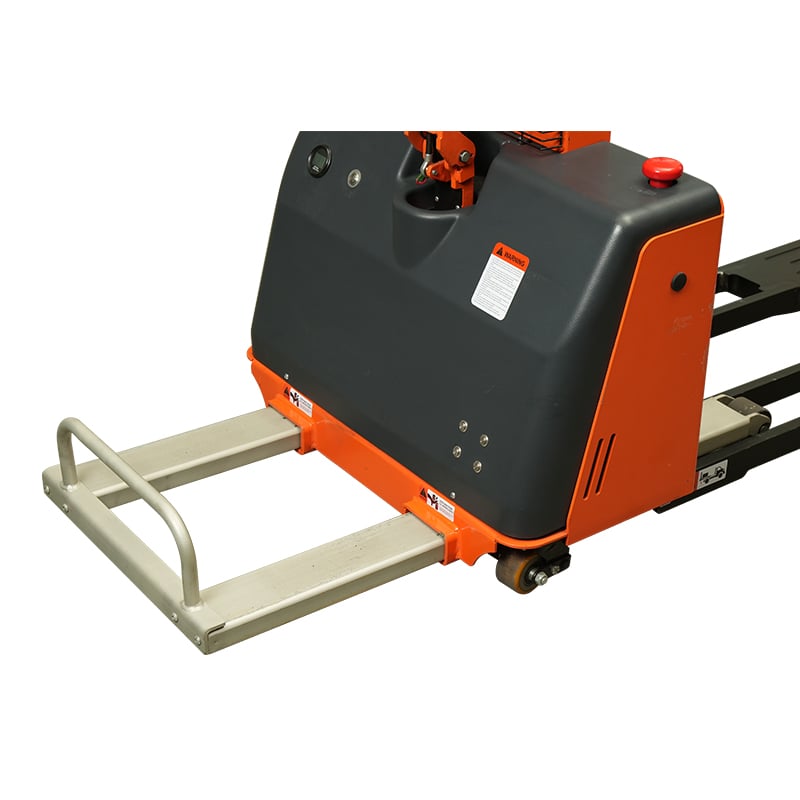

The 800 mm-wide chassis is easy to position in restricted loading areas, while support rollers and an anti-tip balance wheel improve stability. Its 1,160 mm minimum turning radius supports vehicle-side work and short transfers in compact facilities.

Stable Compact Chassis

The 800 mm-wide chassis is easy to position in restricted loading areas, while support rollers and an anti-tip balance wheel improve stability. Its 1,160 mm minimum turning radius supports vehicle-side work and short transfers in compact facilities.

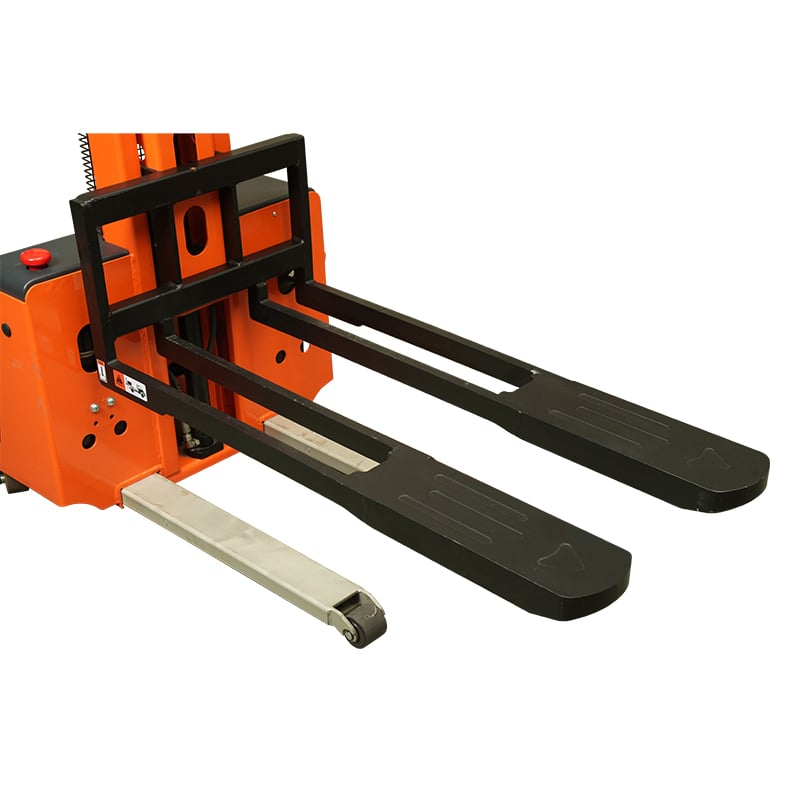

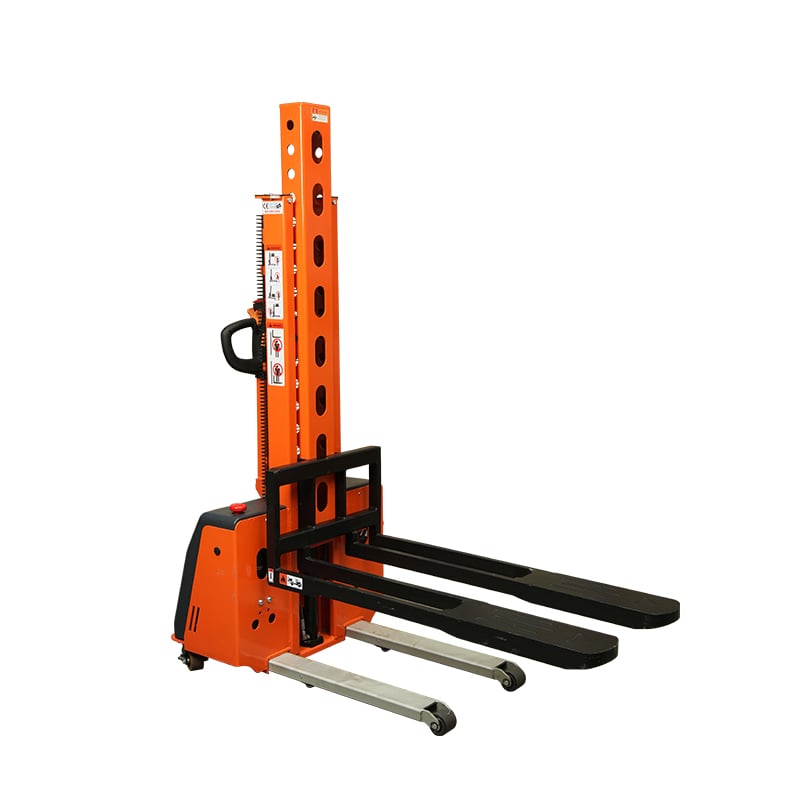

Extend and brace the support legs before raising the chassis to the compatible truck or van bed. The relative movement between the forks and supports lets the machine transfer between ground level and the vehicle without a second lifting machine.

Sliding Support-Leg Self-Loading System

Extend and brace the support legs before raising the chassis to the compatible truck or van bed. The relative movement between the forks and supports lets the machine transfer between ground level and the vehicle without a second lifting machine.

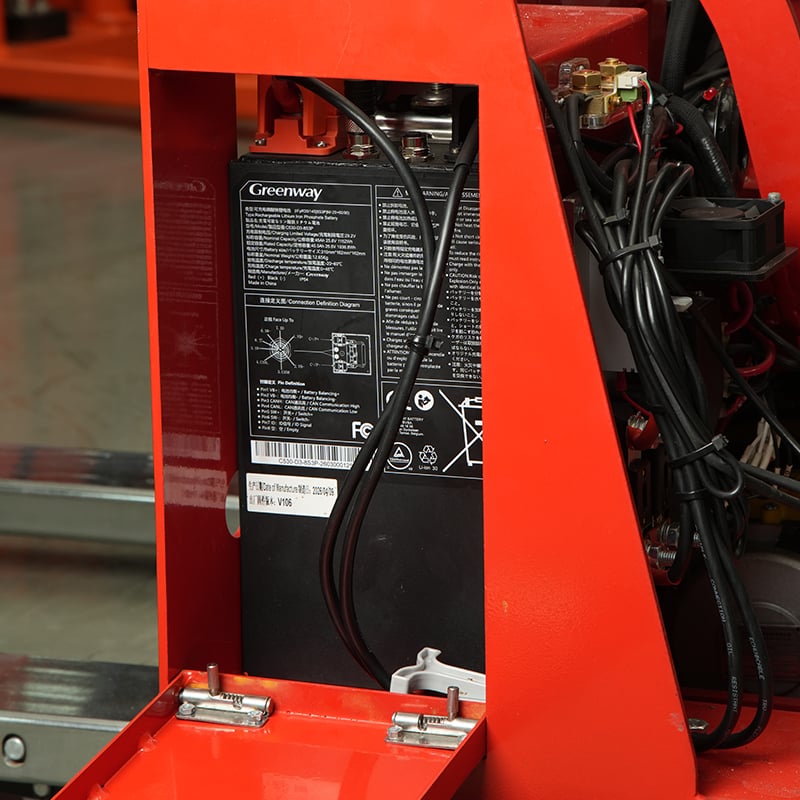

Equipped with a 24V/40Ah lithium battery, the CDDYG-Z delivers stable and reliable power for extended operation. Combined with a branded controller and efficient drive motor, the system ensures consistent performance during lifting and travel, even under heavy loads, while reducing the need for frequent recharging.

High-Capacity Lithium Battery

Equipped with a 24V/40Ah lithium battery, the CDDYG-Z delivers stable and reliable power for extended operation. Combined with a branded controller and efficient drive motor, the system ensures consistent performance during lifting and travel, even under heavy loads, while reducing the need for frequent recharging.

Galeria de mídia

Perguntas frequentes

  • Q1: Can the CDDYG-Z load itself onto any truck or van?

    A1: It is designed to self-load onto compatible vehicles, but it is not universal for every cargo bed. Confirm the bed height, doorway clearance, floor strength, usable cargo space and safe support-leg contact points before selecting a model.

  • Q2: Does the stacker require a loading dock, tail lift or another forklift?

    A2: For a compatible vehicle and operating surface, the self-loading structure can reduce the need for a fixed dock, tail lift or separate forklift at the destination. A level operating area, correct loading sequence and trained operator are still required; the feature does not replace a site-specific safety assessment.

  • Q3: Which capacity and lift height should I choose?

    A3: CDDYG-Z models are available with rated capacities of 500 kg or 1,000 kg at a 400 mm load center, with maximum fork heights of 1,100, 1,300 or 1,500 mm. Select the model using the heaviest actual load, load-center position, pallet dimensions and required vehicle-bed or working height, not nominal load weight alone.

  • Q4: What does fully electric mean on this model?

    A4: CDDYG-Z uses powered travel and an electric motor to drive the hydraulic lifting system, so normal movement and lifting do not depend on manual pumping. The listed configuration uses a 24 V / 40 Ah lithium battery; actual operating time varies with load, travel distance, lift frequency, floor conditions and temperature.

  • Q5: How is CDDYG-Z different from the PV model?

    A5: CDDYG-Z is the fully electric version, with powered travel and electric-hydraulic lifting. PV is the manual-hydraulic model, so CDDYG-Z motor, battery and fully electric performance claims must not be copied to a PV product page.
