Custom CDD15M Electric Roll Handling Truck for Large Rolls
Custom CDD15M Electric Roll Handling Truck for Large Rolls

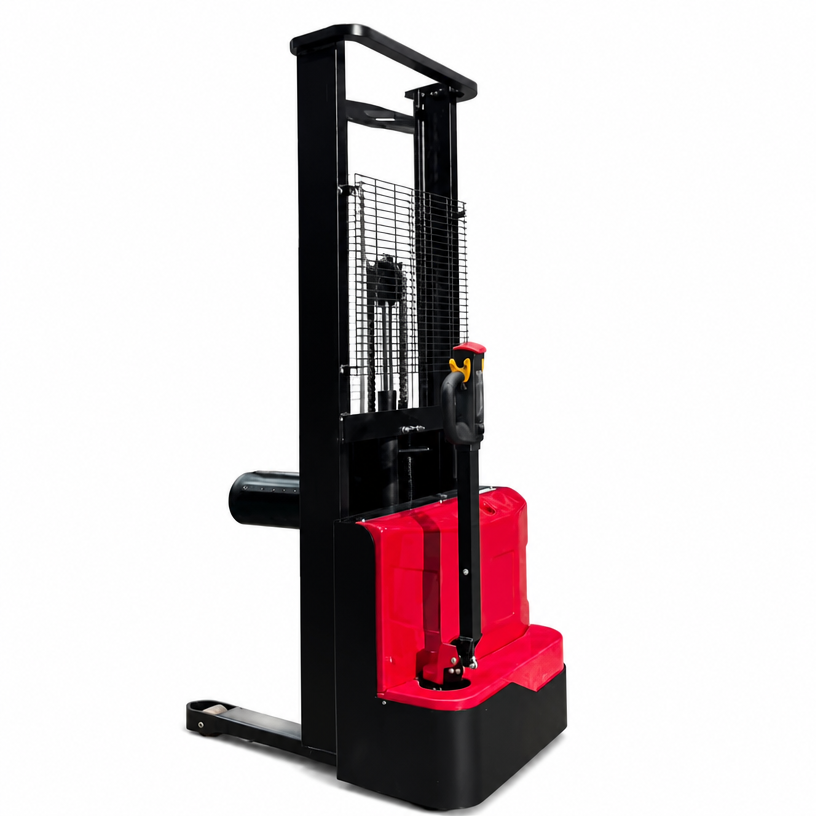

The Custom CDD15M Electric Roll Handling Truck is designed to move and lift large cylindrical materials that cannot be handled safely or efficiently with standard pallet forks. Built on SINOLIFT’s proven CDD15M electric stacker platform, it combines powered travel, electric lifting, and a dedicated roll-core positioning shaft to support stable and controlled handling. It is particularly suitable for transporting battery electrode rolls between coating, calendering, slitting, winding, and other lithium battery production processes. The compact walk-behind design also makes it practical for handling paper rolls, plastic film rolls, packaging rolls, and textile rolls in production areas and warehouses. Each truck can be customized according to the customer’s roll weight, outside diameter, width, core dimensions, lifting height, machine interface, and working environment.
Características
The Custom CDD15M Electric Roll Handling Truck provides a safe and efficient solution for transporting and lifting large cylindrical materials. Its fully electric travel and lifting systems reduce manual effort, while adjustable speeds of up to 5 km/h support both efficient transportation and precise positioning. A dedicated roll-core shaft and positioning device keep the load stable throughout handling. Powered by a lithium battery, the truck also features a battery-level display, key switch, emergency stop, PU wheels, and anti-impact protection. It is ideal for battery electrode rolls, paper rolls, film rolls, and textile rolls, and can be customized to match specific roll dimensions, lifting heights, machine interfaces, and operating environments.
Parâmetros
| Parameter | 8-inch Single Arm Roll Truck (600mm Roll Length) | 8-inch Single Arm Roll Truck (370mm Roll Length) |
| Capacidade Nominal | ≥800 kg | ≥400 kg |
| Suitable Roll Diameter | ≥900 mm | ≥900 mm |
| Roll Length | 600 mm | 370 mm |
| Roll Inner Diameter | 203.7 mm | 203.7 mm |
| Altura de elevação | 270-1850 mm | 270-1850 mm |
| Roll Core Positioning Shaft | Ø100 mm, Depth 30 mm | Ø100 mm, Depth 30 mm |
| Driving System | Electric traveling | Electric traveling |
| Velocidade de viagem | 0-5 km/h, variable speed control | 0-5 km/h, variable speed control |
| Material da roda | PU | PU |
| Tipo de Bateria | Bateria de lítio | Bateria de lítio |
| Battery Voltage | 24V | 24V |
| Battery Capacity | ≥200Ah (modified to 105Ah) | ≥200Ah (modified to 105Ah) |
| Carregador | 220V / 35A | 220V / 35A |
Detalhes do produto
1.Ergonomic Multi-Function Control Handle
The ergonomic control handle puts the truck’s essential travel and lifting functions within easy reach of the operator. Its intuitive layout supports comfortable operation, controlled maneuvering, and accurate positioning
2.Clear and Accessible Control Console
The control console integrates an electricity meter, key switch, and emergency stop button in one clearly arranged operating area. Operators can quickly check the remaining battery power, control access to the truck, and stop the machine immediately if an unsafe condition occurs.
3.Dedicated Roll-Core Positioning Shaft
The purpose-built positioning shaft supports cylindrical materials through the center of the roll core, keeping the load stable during lifting and transportation. Its dimensions and retaining structure can be customized according to the roll width, core diameter, load weight, and machine-loading requirements.
4.Service-Friendly Internal Layout
The accessible internal layout allows technicians to inspect the electrical, hydraulic, and drive-related components more conveniently during scheduled maintenance. An organized component arrangement simplifies routine servicing and helps reduce unnecessary downtime in demanding production environments.
Galeria de mídia
Perguntas frequentes
1. What roll information is required before customizing the CDD15M Electric Roll Handling Truck?
Please provide the maximum and minimum roll weight, outside diameter, roll width, core inner diameter, core material, and core wall thickness. We also need the pickup height, maximum loading height, roll orientation, aisle dimensions, floor condition, and details of the machine or rack receiving the roll. This information allows our engineers to determine the correct positioning shaft, mast configuration, load center, chassis arrangement, and safety devices. A roll drawing, core sample, workstation drawing, or operating video can make the evaluation more accurate.2. Can this truck handle every roll with a diameter of 900 mm or more?
Not automatically. Roll diameter is only one factor, while roll weight, width, core strength, load center, lifting height, and operating environment also affect equipment selection and stability. SINOLIFT evaluates each application using the customer’s actual load data. Rolls with the same outside diameter may require different shaft lengths, chassis configurations, or rated capacities if their widths and weights are different.3. How does the roll positioning shaft prevent the load from moving?
The shaft is customized to enter and support the roll through its central core. A dedicated positioning or retaining device limits unwanted axial movement so that the roll remains correctly located during lifting and transportation. The exact design depends on the roll core and transfer process. For applications requiring stronger internal engagement, an expanding mandrel or another customized core-gripping mechanism may be considered after technical evaluation.4. Can the truck load rolls directly onto production machines?
Yes, it can be designed for roll loading and unloading when the machine interface is compatible with a horizontal positioning shaft. The required shaft centerline, insertion clearance, loading height, surrounding guards, and withdrawal space must be confirmed before production. Customers should provide drawings or accurate measurements of the receiving machine. SINOLIFT can then match the lifting range and shaft structure to the actual loading position, reducing the risk of misalignment during installation and operation.5. Is the CDD15M model always able to carry a 1,500 kg roll?
The CDD15M platform has a nominal model capacity, but the safe capacity of a customized roll-handling truck must be verified at the actual load center and lifting height. A wide roll or a long positioning shaft moves the center of gravity farther away from the mast and can reduce the permissible load. For this reason, customers should not select the truck only from the model number. SINOLIFT will calculate the customized configuration according to the roll’s weight, dimensions, center of gravity, shaft extension, lifting height, and working conditions before confirming the final rated capacity.
Extras opcionais
- Cold store protection
Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in low-temperature conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.
2. 24V/80Ah Li-ion battery
Lithium-ion batteries are a game-changer in material handling equipment, offering high energy density, lightweight design, and fast charging capabilities. Compared to traditional lead-acid batteries, they provide up to 30% more efficiency, longer lifespan, and require minimal maintenance. Ideal for multi-shift operations, they support fast charging without the need for battery swaps, reducing downtime. With superior performance, compact size, and eco-friendly benefits, lithium-ion batteries are the perfect choice for modern warehouses and logistics, ensuring productivity and cost savings.
3. Height of Frames with Different Specifications
With customizable frame heights, this option ensures the stacker can fit into different working environments. Whether for narrow aisles or low-clearance spaces, it improves maneuverability and operational efficiency. This flexibility allows the stacker to work in various settings, meeting specific space constraints and ensuring optimal performance in diverse warehouse layouts.
4. Alarm euamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.
5. Various Battery Connectors
With multiple types of battery connectors, this feature ensures compatibility with different battery models and brands. It makes battery replacement and charging more flexible, supporting both standard lead-acid and lithium-ion batteries. This helps simplify maintenance and reduce downtime, keeping operations running smoothly.
