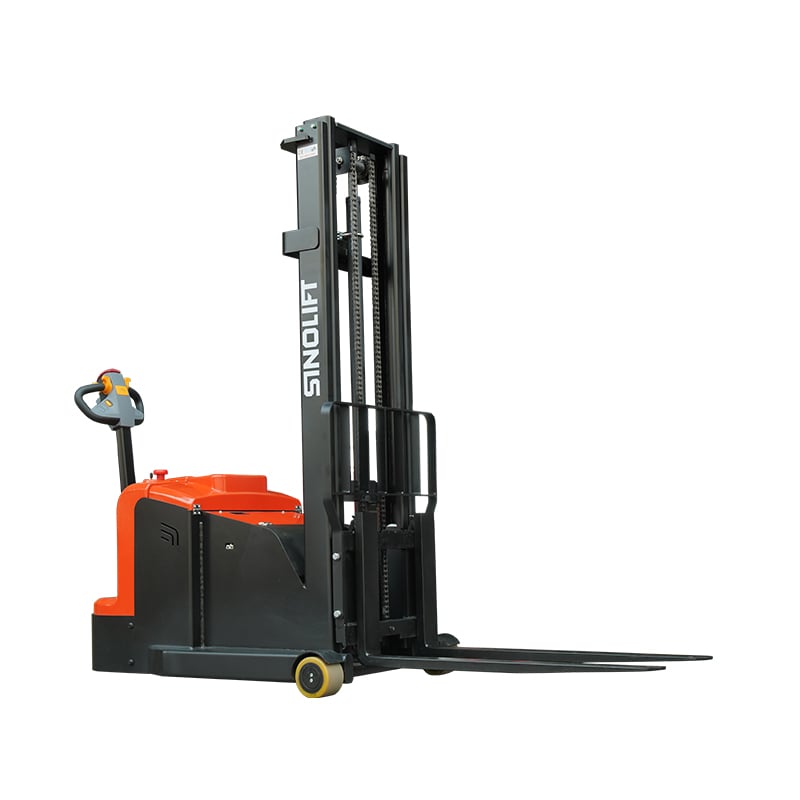

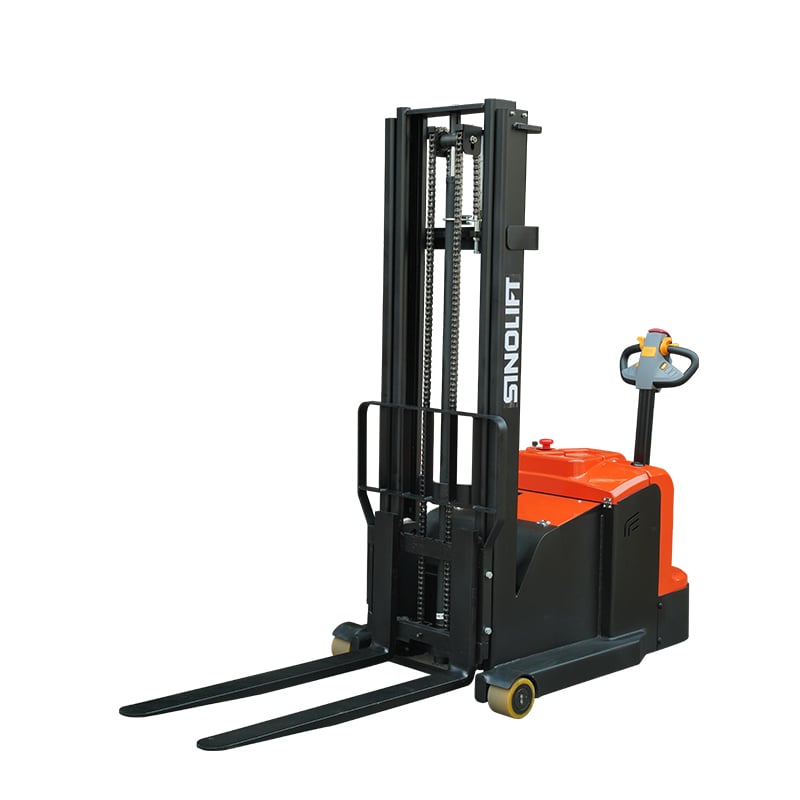

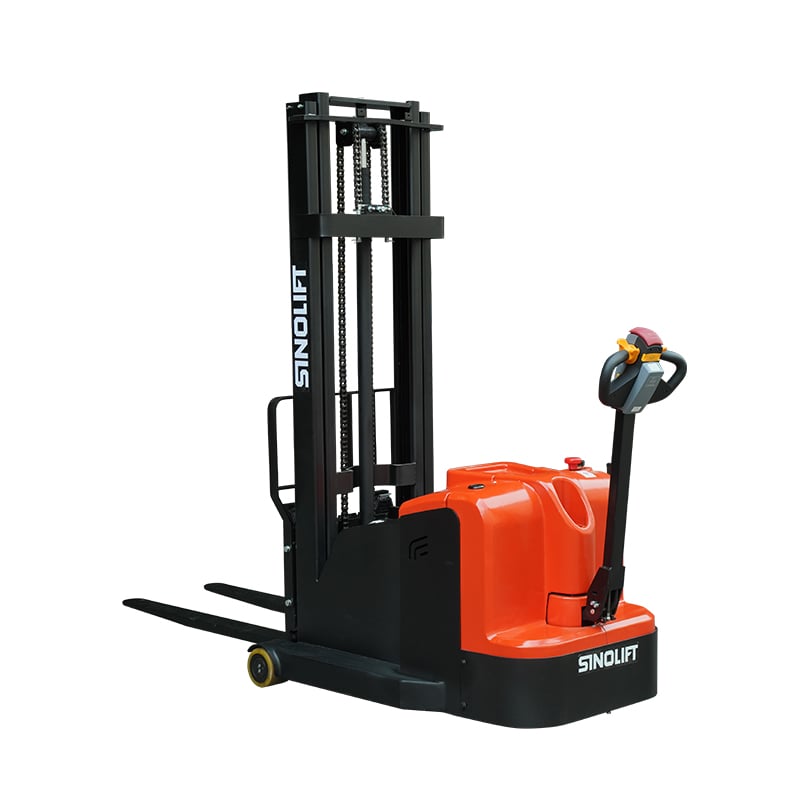

CPDW10 / CPDW12 Electric Counterbalanced Stacker for All Pallet Types, Walkie Pallet Stacker
SINOLIFT CPDW10 / CPDW12 Electric Counterbalanced Walkie Pallet Stacker for All Pallet Types
Engineered to overcome the limitations of standard straddle stackers, the CPDW series counterbalanced electric stacker is explicitly designed to handle absolutely any pallet type without front leg interference. This highly versatile solution combines a powerful AC drive system with intuitive ergonomic controls, ensuring effortless and efficient material handling for your operators. Advanced features like the dedicated creep-speed button and high-visibility mast maximize safety and precision, even when navigating the tightest spaces. Whether you are working in narrow-aisle warehouses, maneuvering on loading docks, or driving directly into trailers, this compact stacker delivers reliable dock-to-stock performance. With both economical lead-acid and fast-charging Lithium-ion power options available, it provides the flexible, heavy-duty productivity your daily operations demand.
Características
Discover the ultimate solution for versatile material handling with the SINOLIFT CPDW Series Counterbalance Walkie Stacker. Engineered without restrictive front legs, it effortlessly handles any pallet type—including closed-bottom and perimeter-base designs. This robust stacker features a powerful AC drive motor and a high-strength steel mast, allowing you to securely lift loads up to 1.2 tonnes as high as 3.5 meters. Designed for confined spaces, it offers a remarkably tight 1,257 mm turning radius and an intuitive smart handle with a creep-speed button for precise, safe maneuvering. Available with standard lead-acid or fast-charging Li-ion battery options, the CPDW series delivers reliable power, minimal maintenance, and maximum productivity for your daily warehouse operations.
Parâmetros
| Fabricante | SINOLIFT | |||||
| Modelo | CPDW10 | CPDW10-Li | CPDW12 | CPDW12-Li | ||
| Power unit (battery, diesel, petrol, LPG, manual) | Elétrico | Elétrico | Elétrico | Elétrico | ||
| Operator type (manual, pedestrian, standing, order-picking) | Pedestre | Pedestre | Pedestre | Pedestre | ||
| Capacidade nominal | Pq | kg | 1000 | 1000 | 1200 | 1200 |
| Distância do centro de carga | C | milímetros | 500 | 500 | 500 | 500 |
| Load distance, centre of drive axle to fork | X | milímetros | 71 | 71 | 85 | 85 |
| Distância entre eixos | E | milímetros | 1340 | 1340 | 1312 | 1312 |
| Service weight (incl. battery) | kg | 1320 | 1320 | 1480 | 1480 | |
| Tyre type, front/rear | Poliuretano | Poliuretano | Poliuretano | Poliuretano | ||
| Tamanho do pneu dianteiro | ∅×w | milímetros | Φ140×100 | Φ140×100 | Φ210×85 | Φ210×85 |
| Tamanho do pneu traseiro | ∅×w | milímetros | Φ210×70 | Φ210×70 | Φ250×80 | Φ250×80 |
| Track width, front | b2 | milímetros | 816 | 816 | 801 | 801 |
| Height of mast, lowered | H1 | milímetros | 2065 | 2065 | 2115 | 2115 |
| Free lift | h2 | milímetros | 0 | 0 | 0 | 0 |
| Altura de elevação | E | milímetros | 3000 | 3000 | 3000 | 3000 |
| Height of mast, extended (with load backrest) | H2 | milímetros | 3913 | 3913 | 3913 | 3913 |
| Height of fork arms lowered | H3 | milímetros | 35 | 35 | 35 | 35 |
| Length to face of forks / Overall length | eu | milímetros | 1652/2573 | 1652/2573 | 1684/2612 | 1684/2612 |
| Largura total | b1 | milímetros | 916 | 916 | 886 | 886 |
| Dimensões do garfo | s/e/l | milímetros | 920*100*35 | 920*100*35 | 1070*100*35 | 1070*100*35 |
| Distance between fork-arms (outside) | b5 | milímetros | 200-580 | 200-580 | 200-580 | 200-580 |
| Distância ao solo, centro da distância entre eixos | m2 | milímetros | 40 | 40 | 72 | 72 |
| Aisle width for pallets 1000 × 1200 crossways | Ast | milímetros | 2956 | 2956 | 2846 | 2846 |
| Aisle width for pallets 1000 × 1200 lengthways | Ast | milímetros | 3094 | 3094 | 3083 | 3083 |
| Raio de giro | Uau | milímetros | 1528 | 1528 | 1480 | 1480 |
| Travel speed, unladen/laden | km/h | 4.0/3.5 | 4.0/3.5 | 4.0/3.5 | 4.0/3.5 | |
| Lift speed, unladen/laden | EM | 0.215/0.130 | 0.215/0.130 | 0.215/0.130 | 0.215/0.130 | |
| Lowering speed, unladen/laden | EM | 0.105/0.130 | 0.105/0.130 | 0.105/0.130 | 0.105/0.130 | |
| Max. gradeability, unladen/laden | ％ | 5.0/4.0 | 5.0/4.0 | 5.0/4.0 | 5.0/4.0 | |
| Freio de serviço | Eletromagnético | Eletromagnético | Eletromagnético | Eletromagnético | ||
| Classificação do motor de acionamento | kWh | 0.75 | 0.75 | 1.5 | 1.5 | |
| Lift motor rating | kWh | 2.2 | 2.2 | 2.2 | 2.2 | |
| Tipo de Bateria | Bateria de chumbo-ácido | Lithium-ion battery | Gel lead-acid battery | Lithium-ion battery | ||
| Tensão da bateria/capacidade nominal | V/Ah | 24/100 | 24/50 | 24/150 | 24/150 | |
| Battery charger | V/A | 24 V/10 A | 24V/30A | 24V/20A | 24V/50A | |
| Tipo de controle de acionamento | CC | CC | CA | CA | ||
| Sound pressure level at the driver’s ear acc. to EN 12053 | dB(A) | 70 | 70 | 70 | 70 | |
Detalhes do produto
Front and Rear PU Wheels
The counterbalanced electric lift truck, equipped with a rider platform, features poly-on-steel steer and load wheels. These wheels are engineered to deliver exceptional maneuverability and stable traction across a wide range of terrains, ensuring smooth operation even in demanding industrial environments.
Controles
All travel, lift, lower, and tilt functions are conveniently integrated into the ergonomic operator handle, which is designed for ambidextrous use. Standard features include a wrap-around guard, a reversing switch, thumb-controlled actuation, and a horn, all contributing to enhanced safety and ease of operation.

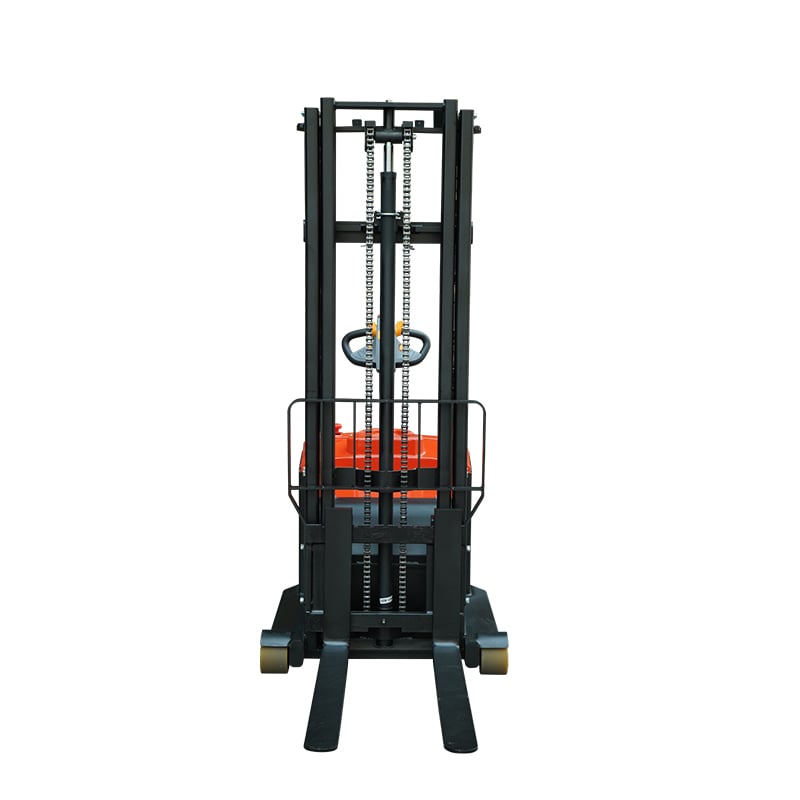

Frame and Mast
The truck is built with a bolt-on, high-visibility H-beam mast structure, with lift cylinders positioned inside the outer H-beam for improved protection and strength. Dual lifting chains, a Class II ITA fork carriage, and a 36-inch tall load backrest come as standard, providing robust load support and excellent forward visibility for the operator.
Intelligent Control and Advanced Drive Technology
A modern 3-phase AC drive motor delivers superior performance while significantly reducing operating costs through high efficiency and optimized energy management. This system enables powerful acceleration, rapid direction changes, roll-back protection on gradients, and load-dependent speed and steering adjustments, ensuring both productivity and safety in varied operating conditions.
Galeria de mídia
Perguntas frequentes
Q1: Why should I choose a counterbalanced stacker over a standard straddle stacker for my warehouse?
A1: Unlike standard stackers with front support legs, a counterbalanced design eliminates bottom-leg interference entirely. This allows you to handle virtually any pallet type, including closed-bottom and perimeter-base pallets, while easily navigating dock plates or loading directly into trailers.Q2: How do I decide between the standard lead-acid battery and the Lithium-ion (Li-ion) upgrade for my operations?
A2: The standard 24V/100Ah maintenance-free lead-acid battery is highly cost-effective and perfectly suited for single-shift daily operations. If your facility runs multi-shift schedules or requires opportunity charging during short breaks without long downtimes, the Li-ion upgrade will provide significantly higher uptime and an extended overall lifespan.Q3: What safety features are integrated into this stacker to protect operators in narrow warehouse aisles?
A3: The stacker is equipped with a dedicated creep-speed button that instantly reduces travel speed for precise, slow-motion maneuvering in tight spaces. Additionally, it features an emergency reverse button on the tiller head, automatic braking upon control release, and anti-roll-back protection to ensure maximum safety on gradients and ramps.Q4: How does the 3-phase AC drive motor and intelligent management system benefit my long-term operating costs?
A4: The modern AC traction motor delivers powerful acceleration and high efficiency without the need to replace wearable carbon brushes, significantly reducing your routine maintenance costs. Combined with the CANbus electronics and MOSFET controller, it optimizes energy consumption and incorporates regenerative braking to extend your working hours per charge.Q5: How easy is it for our maintenance team to service and troubleshoot the CPDW stacker series?
A5: We designed this stacker with a no-tools-required service door to provide instant, hassle-free access to all major internal components. Furthermore, the built-in Driver Diagnostic Interface (DDI) and CANbus system provide real-time status updates and early warnings for preventive maintenance, which greatly reduces unexpected downtime.
Extras opcionais
Side Shift
The side shift mechanism allows the operator to laterally adjust the fork position without having to move the entire truck. This feature enables precise load placement onto high racks or vehicles, significantly speeding up the stacking process.
Protection for Cold Storage
This specialized conditioning protects critical hydraulic and electronic components from freezing temperatures and condensation. It guarantees reliable, uninterrupted performance in cold rooms, freezers, and harsh refrigerated environments.
Traction Drive Tire
This specialized tire provides enhanced grip and stability on uneven, slippery, or ramped surfaces. It ensures consistent power delivery and prevents wheel spin, improving overall safety and performance during transport.
Power Steering
The electronic power steering system significantly reduces the physical effort required to maneuver the stacker. It allows for smooth, precise control in tight warehouse spaces, thereby minimizing operator fatigue during long shifts.
Travel Alarm
This audible warning system automatically sounds when the stacker is in motion, alerting nearby pedestrians to its presence. It is an essential safety feature for busy warehouses and blind corners, drastically reducing the risk of workplace collisions.
Extra Wide Carriage
An expanded carriage width offers superior stability when handling oversized or unusually shaped loads. It provides a wider base for the forks, ensuring the secure transport of extra-wide materials without the risk of tipping.
Extra Long or Short Forks
Customize your fork length to perfectly match the specific dimensions of your unique pallets or load requirements. Shorter forks improve maneuverability in confined aisles, while longer forks enable the safe handling of extended or dual pallets.
