Solving Your Web Handling Pains: The Ultimate Roll Lifter with Core Gripper Case Study

Are you struggling with operator fatigue and material damage while handling heavy industrial rolls? You are likely facing a constant, daily battle on your factory floor. Moving 150 kg material rolls by hand is highly dangerous. It severely risks immediate operator injury. It also damages extremely expensive material surfaces. You are actively searching for a reliable Roll Lifter with Core Gripper right now. You need a safe, precise, and highly efficient handling solution. You want to eliminate costly material waste. You want to speed up your complex machine loading times.

We understand your exact daily struggles perfectly. At SINOLIFT, we engineer custom solutions for these exact material handling bottlenecks. Our specialized equipment grips heavy rolls from the inside out. This intelligent design completely prevents external material crushing. It allows for seamless, stress-free machine loading. We recently built the perfect tailored unit for this exact demanding job.

A Transformative Partnership in South Korean High-Tech Manufacturing

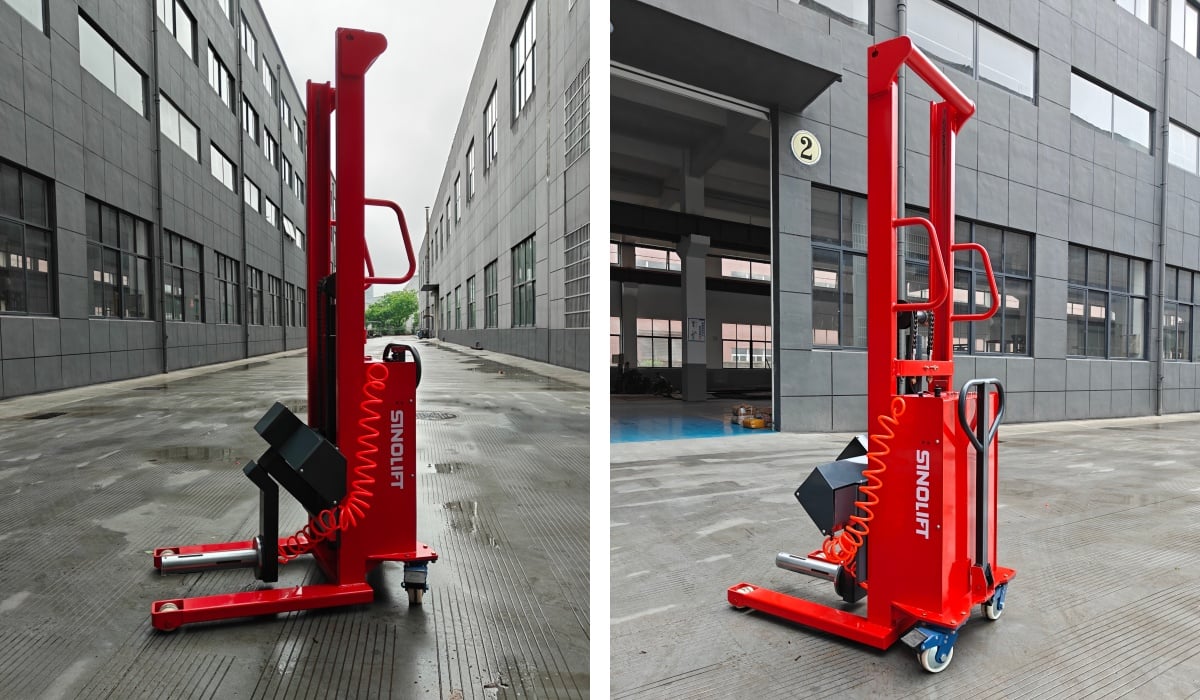

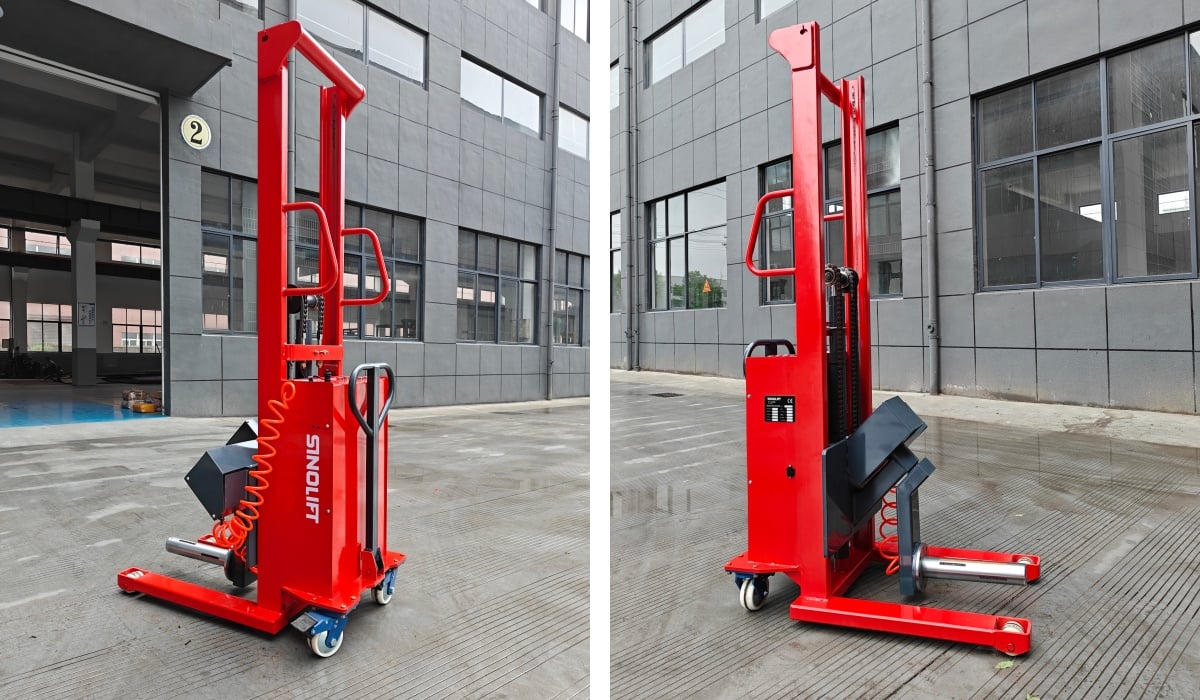

Recently, we partnered with a highly valued client located in South Korea. They are esteemed leaders in a demanding high-tech manufacturing sector. They faced strict material handling requirements on their active production lines. They came to SINOLIFT looking for a specialized, reliable solution. We designed a custom machine specifically for their factory layout. We proudly delivered a customized SINOLIFT Custom Semi-Electric 360° Rotating Roll Lifter with Core Gripper. This single unit changed their daily workflow entirely.

The Critical Bottlenecks of Manual Roll Handling

What were the Korean customer’s primary daily challenges? The client constantly handles highly sensitive, delicate materials. They process extremely expensive films and thin metallic foils. Their material rolls weigh up to 150 kg each. Manual lifting was simply no longer a viable option. It was far too slow. It posed massive safety risks to their dedicated workers.

Furthermore, standard external clamping devices failed them completely. Clamping the outside of a tight roll causes severe compression damage. It instantly ruins multiple layers of expensive lithium battery separator film or coated copper foils. They also struggled constantly with precise machine alignment. Their complex production machines have spindles positioned at various heights. Operators found it incredibly difficult to perfectly align a heavy roll onto a machine shaft. They needed to take a raw roll from a vertical position resting on a pallet. Then, they had to flip it smoothly into a horizontal orientation. Finally, they had to carefully slide it onto a machine spindle up to 1600 mm high. This multi-step loading process was an absolute nightmare. A standard warehouse forklift could not perform this delicate task. They urgently needed a dedicated, precision-engineered Roll Lifter with Core Gripper.



Engineering the Ultimate Solution: Core Specifications

We engineered the perfect non-standard, tailor-made Air Shaft Trolley for them. It is built strictly for demanding roll handling applications. It delivers precision, durability, and unmatched efficiency in every operation. This is a highly versatile semi-electric unit. It seamlessly combines manual mobility with powerful electric lifting and pneumatic gripping.

Let us look closely at the core machine specifications. The machine boasts a maximum load capacity of 150 kg. This capacity is perfectly ideal for handling light to medium-duty web materials. The uplift maximum reaches an impressive height of 1600 mm. The core gripping mechanism utilizes a precise 74 mm diameter bobbin. This specific size perfectly targets the global industrial standard 3-inch paper or plastic core. It operates on a highly reliable 12V / 85Ah battery system. The overall frame size is a very compact 2080 × 500 mm. The total machine weight without the battery is 276 kg. The battery mass adds merely 24 kg to the unit. The crucial load center sits safely at 500 mm. The serial number for this specific project is 260428079. This bespoke unit is another reliable custom solution completed by Sinolift.

Defining Features That Outperform Standard Equipment

This machine is engineered for performance, stability, and total operator comfort. Our engineering team focused heavily on solving real-world factory problems. Here are the distinct advantages of this specialized equipment:

• Zero-Damage Internal Grasping:The unit utilizes an advanced expanding air shaft mechanism. This pneumatic spindle enters the hollow core of the heavy roll. It expands outward to grip the roll firmly from the inside out. This completely eliminates any harmful pressure on the delicate outer layers of your costly material.
• Unrestricted Orientation Control:The smooth-rotating air expanding shaft offers maximum flexibility with full 360° articulation. Operators can safely pick up a vertically stacked roll straight from a standard shipping pallet. They can then rotate it smoothly into a perfectly horizontal position for immediate machine loading.
• Unmatched Under-Load Stability:Heavy rolls drastically shift a machine’s center of gravity. We engineered this unit with a reinforced wide-leg base. This wide stance ensures superior stability under load while lifting 150 kg materials to maximum heights.
• Fatigue-Free Operator Experience:We designed this equipment specifically with human operators in mind. The unit features ergonomic dual C-shaped heavy-duty handles. These specialized handles provide excellent mechanical leverage and effortless control during manual factory floor transit.
• High-Visibility Safety Finish:Industrial production environments are constantly busy and inherently dangerous. We coated this rugged machine in a high-visibility industrial red powder-coated finish. This ensures the unit is instantly seen by other forklift operators and floor workers.
• Perfect Docking Heights:The 1600 mm maximum lifting height is a meticulously chosen parameter. This exact lift height perfectly matches the standard spindles of most industrial printing presses, slitters, and packaging machines.

Unlocking Efficiency Across High-Stakes Industries

Where does this customized machine truly excel? Its precise design points directly to highly specific modern industries. It handles light-to-medium rolls perfectly. It is the absolute ultimate tool for unpacking, rotating, and loading materials. Here are the primary manufacturing sectors that benefit deeply from this Roll Lifter with Core Gripper.

Precision in Lithium Battery and New Energy

This specific sector directly mirrors our South Korean client’s manufacturing background. South Korea is an undisputed global powerhouse in advanced lithium battery manufacturing. These massive companies handle extremely sensitive internal battery materials daily. They constantly move heavy rolls of positive and negative electrode materials. These include highly delicate copper foils and specialized aluminum foils. They also handle fragile battery separator films. These critical materials are incredibly expensive. Their outer surfaces must remain absolutely flawless at all times. External clamping is strictly forbidden in these plants. Our specialized Roll Lifter with Core Gripper is the perfect match here. The 74 mm air shaft grips the 3-inch material cores perfectly. It docks seamlessly with precision coating machines. It aligns perfectly with heavy roller presses and automated slitting machines.

Mastering Flexible Packaging and High-Speed Printing

The global printing industry constantly moves massive rolls of media. Factory operators handle large plastic films like PE, BOPP, and PET constantly. They move heavy continuous rolls of industrial adhesive labels. They transport large, bulky rolls of commercial printing paper. A 150 kg roll is simply too heavy for one person to manage. It is also incredibly hard to align manually without causing damage. Our specialized lifter solves this exact bottleneck. An operator can confidently take a film roll directly from a wooden pallet. They rotate it effortlessly to a horizontal machine orientation. Then, they feed it accurately into a massive commercial printing press. They load it swiftly onto an industrial laminating machine. They supply a high-speed bag-making machine without delay. One single person does this entire job alone. It radically saves daily labor costs. It prevents severe workplace back injuries entirely.

Dominating the Material Converting Process

The fast-paced converting industry relies completely on continuous web handling. Operators work dangerously close to high-speed slitter rewinders. They must load massive master rolls quickly. They must safely unload multiple finished slit rolls efficiently. These products might be specialized industrial adhesive tapes. They might be high-tech optical films for electronics. They could be specialized silicone release liners. The Roll Lifter with Core Gripper drastically speeds up this constant exchange. It carefully removes finished product rolls from the rewinder shafts quickly. It safely transports them directly to the final packaging area. Expensive machine downtime is drastically reduced.

Maintaining Purity in Pharmaceutical and Food Packaging

Strict hygiene is absolutely critical in these tightly regulated sectors. Medical clean rooms have strict, unforgiving equipment regulations. Standard internal combustion factory forklifts are completely banned. Messy, unpredictable hydraulic oil leaks are totally unacceptable. Our customized, clean-running unit fits perfectly into these environments. It gently handles delicate pharmaceutical aluminum foil rolls. It moves massive food-grade composite packaging films safely and cleanly. The semi-electric design runs quietly and cleanly on 12V battery power. The smart pneumatic core expansion avoids complex, leak-prone hydraulic clamping lines entirely. The custom anti-rust powder coating ensures long-term machine cleanliness. It meets the incredibly stringent hygiene demands of these controlled, sterile environments.

Elevating Textile and Non-Woven Fabric Lines

Modern textile mills move massive, heavy spools of material daily. Factory operators transport high-end, delicate fabric rolls constantly. They handle bulk industrial non-woven materials frequently. This critical category includes raw materials for essential medical masks. It heavily includes raw rolls for protective hazmat clothing. The Custom Semi-Electric 360° Rotating Roll Lifter with Core Gripper makes this process totally effortless. It takes these heavy, awkward fabric rolls straight to the automated laser cutting machines. It feeds continuous, high-speed production lines without a single delay. The internal pneumatic grip ensures that absolutely no fabric crushing occurs during transit.

The Operational Impact of Smart Lifting Technology

The physical act of handling web materials dictates your factory’s overall output speed. By adopting this tailored technology, you immediately protect your workforce. You eliminate the agonizing physical strain placed on factory floor workers. You empower a single operator to safely move 150 kg loads alone. You protect your highly valuable raw materials from senseless handling destruction. The 74 mm internal bobbin is pure engineering brilliance. It guarantees a universal, secure fit for the standard 3-inch cores used worldwide. The reinforced wide-leg base guarantees that the 2080 × 500 mm frame glides securely across your floors. The 12V / 85Ah battery ensures your team has continuous lifting power. By upgrading to the SINOLIFT Custom Semi-Electric 360° Rotating Roll Lifter with Core Gripper, you actively transform a hazardous daily chore into a perfectly streamlined, profitable operation.

To discover more about our complete range of solutions, explore the full SINOLIFT Roll Lifter series today.
