RTT12 Rough Terrain Pallet Truck
RTT12 Rough Terrain Pallet Truck - Imagen 2
RTT12 Rough Terrain Pallet Truck - Imagen 3
RTT12 Rough Terrain Pallet Truck - Imagen 4
RTT12 Rough Terrain Pallet Truck - Imagen 5

RTT12 Rough Terrain Pallet Truck

RTT12 Heavy-Duty Rough Terrain Pallet Truck – 1250kg Capacity, Pneumatic Wheels for Construction Sites, Farms & Uneven Ground

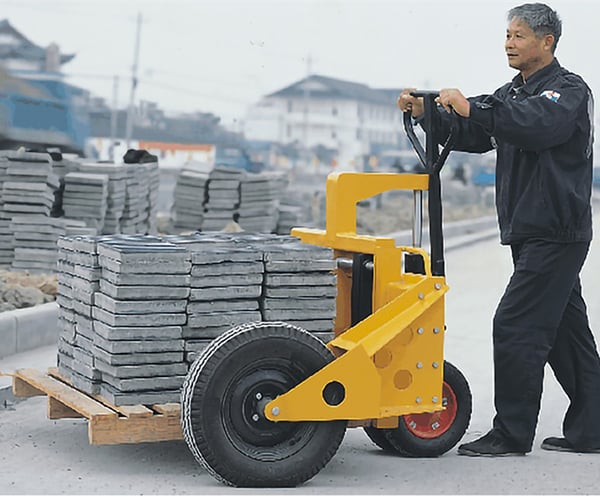

 The RTT12 Rough Terrain Pallet Truck is engineered to handle tough outdoor conditions, effortlessly moving pallets over uneven surfaces like construction sites, farms, and nurseries. Its large pneumatic wheels and straddle fork design absorb shocks, ensuring smooth transport of loads up to 1250kg on rough ground. The reinforced steel frame and pressure release valve enhance durability and safety, while the ergonomic design reduces operator strain. Ideal for rooftops, earthworks, and areas inaccessible to standard pallet jacks or forklifts, its high-visibility yellow powder coating adds extra protection and visibility.

Contáctenos
Descargar

Características

Parámetros

Modelo RTT12
Capacidad Q kg/lbs 1200/2640
Centro de carga do kg/lbs 450/17.7″
Altura de la horquilla bajada h mm/inch 63/2.5″
Fork raised height yo mm/inch 233/9.2″
Longitud de la horquilla L1 mm/inch 860/34″
Overall fork spead width w1-w2 mm/inch 228-735/9″-29″
Size of individual fork s*e mm/inch 100*50/4″x2″
Usable width between outriggers w3 mm/inch 1277/50.3″
Distancia entre ejes mm/inch 973/38.3″
Radio de giro R mm/inch 1500/59″
Longitud total yo mm/inch 1375/54″
Ancho total Yo mm/inch 1605/63″
Altura total yo mm/inch 1200/47″
Load wheel mm/inch Ø550×132/Ø21.6″x5.2″
Volante de dirección mm/inch Ø265×80/Ø10.4″x3.1″
Peso neto kg/lbs 225/495

Detalles del producto

Adjustable Forks

Adjustable Forks

Straddle leg forks can adjust the width of forks by moving right or left to adapt to the different sizes of pallets. The adjustable range is from 216/256mm to 680mm. The ground clearance is 70mm to carry goods easily

Upgraded and Rubberized Handle

Upgraded and Rubberized Handle

Ergonomic design. Improves comfort, labor-saving, and efficiency. The speed of lowering is controllable for safety.

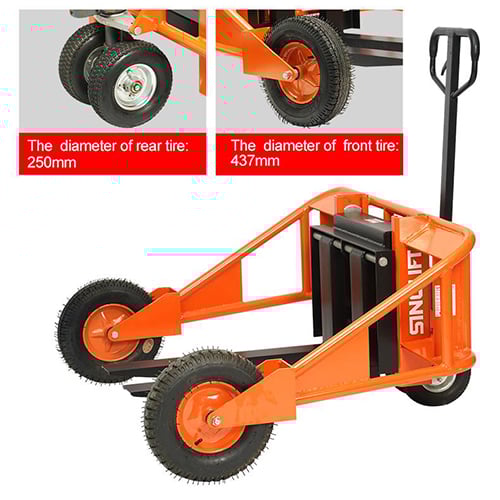

High Load Tire

High Load Tire

Equipped with four high-quality load tires: the front wheel is a pneumatic tire, and the rear wheel is a solid tire. It is suitable for rugged ordinary roads and is fully equipped with the abrasion resistance of engineering and agricultural tires.

Welded Oil Pump | High-Quality Hydraulic Oil Pump

Welded Oil Pump | High-Quality Hydraulic Oil Pump

The overall sealed oil pump can lift goods steadily with no oil leakage, improving the safety performance of the whole truck. Operation is simple and durable.

Galería de medios

Preguntas frecuentes

  • What is a Rough Terrain Pallet Truck, and where is it used?

    A Rough Terrain Pallet Truck is a heavy-duty manual or powered handling equipment designed to move palletized loads over uneven, rough, or outdoor surfaces like construction sites, gravel paths, garden centers, and rooftops. Unlike standard warehouse pallet trucks, it features large pneumatic tires and higher ground clearance for better stability on challenging terrain.

  • Can Rough Terrain Pallet Trucks be used on slopes or inclines?

    Manual rough terrain pallet trucks are generally not recommended for use on steep gradients due to safety risks, as the load may become unstable. Some powered models may have braking systems for better slope control. Always check the manufacturer’s guidelines before use on inclines.

  • What are the key features that differentiate Rough Terrain Pallet Trucks from standard pallet trucks?

    Large pneumatic tires for better traction on uneven ground. Higher ground clearance to avoid obstacles. Wider straddle legs for improved stability. Stronger, lightweight frames (often tubular steel) for durability.

  • What maintenance is required for Rough Terrain Pallet Trucks?

    These trucks are designed for minimal maintenance, but key checks include: Tire pressure (for pneumatic wheels). Lubrication of moving parts (if not self-lubricating). Inspecting hydraulic systems for leaks or wear. Checking bearings and axles for smooth operation. Regular maintenance ensures longevity and safe operation in tough conditions.
