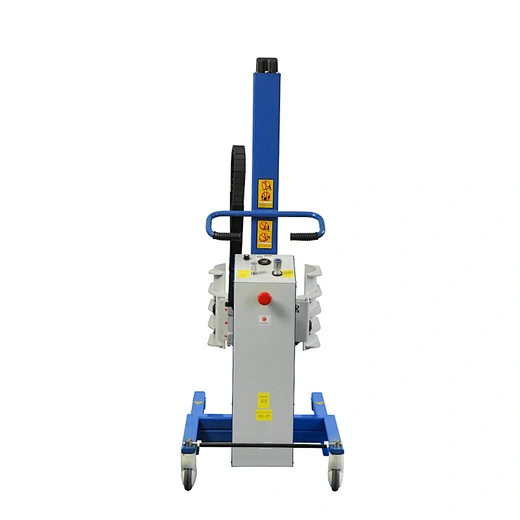

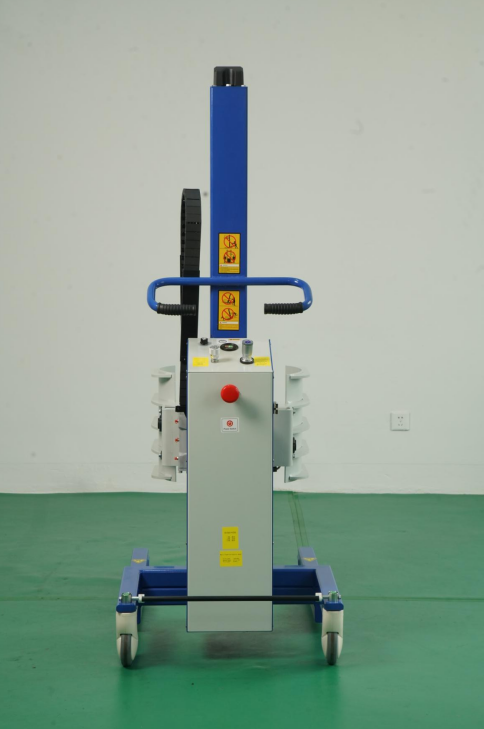

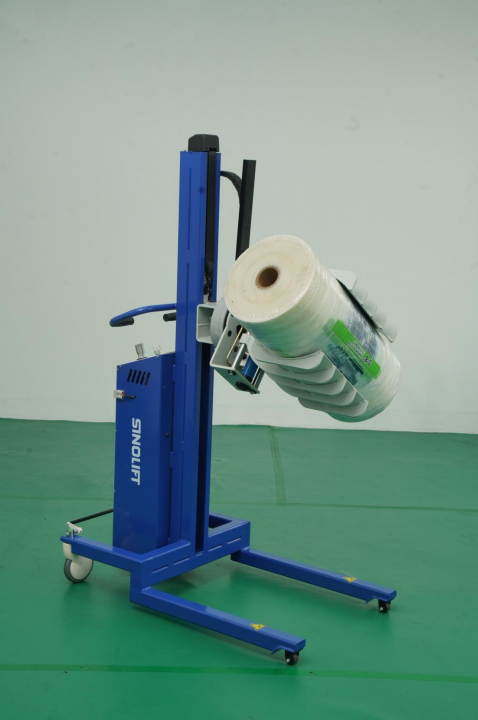

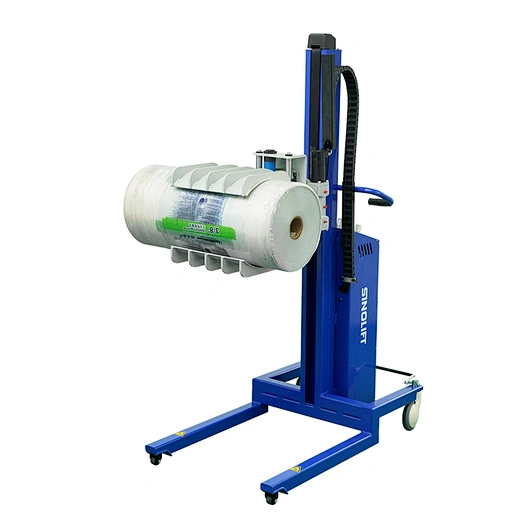

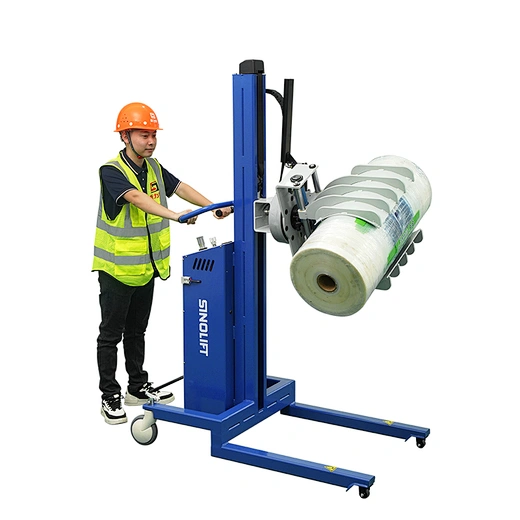

ESR150 series Electric Clamp Roll Lifter

ESR series Electric Clamp Roll Lifter

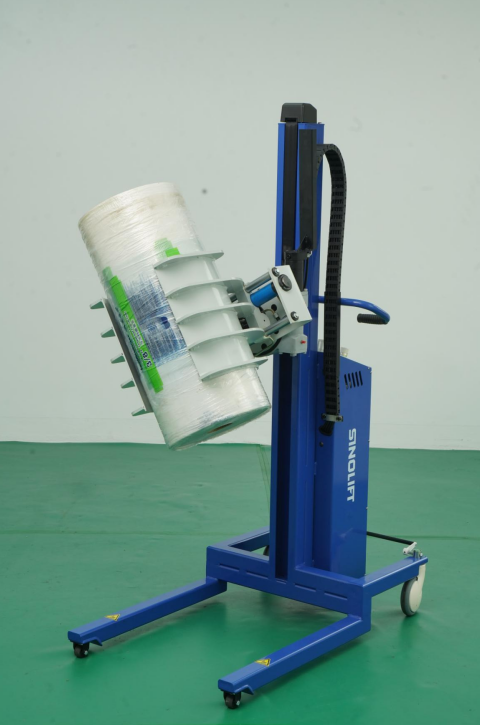

ESR150 Electric Clamp Roll Lifter is designed to safely and efficiently handle heavy and awkward rolls in industries such as paper, packaging, printing, and textiles. Its innovative 360° rotating clamp allows smooth lifting, moving, and turning of loads with precision control. The robust high-strength steel frame and column lift design ensure durability and operator safety, while the electric raise/lower system enhances ease of use. Ideal for improving workflow and reducing manual effort, this lifter offers a reliable solution for material handling challenges.

Liên hệ với chúng tôi
Tải về

Đặc trưng

Enhanced Safety & Stability

Equipped with a reinforced steel frame, fall arrest straps, and a four-wheel braking system, it ensures secure handling of heavy loads while prioritizing operator safety.

360° Rotation Capability

The rotating clamp allows precise positioning of rolls without machine repositioning, improving efficiency and minimizing product damage.

Electric Power & Remote Control

With a 24V/45AH battery and dual 750W motors, it offers strong performance. Remote control enables convenient operation in confined spaces.

Adaptability to Various Environments

Its compact design and customizable attachments make it suitable for diverse roll sizes and materials across industries like packaging and textiles.

Ergonomic and User-Friendly Design

Features like column lift structure and intelligent control panel reduce physical strain and simplify operation, boosting productivity.

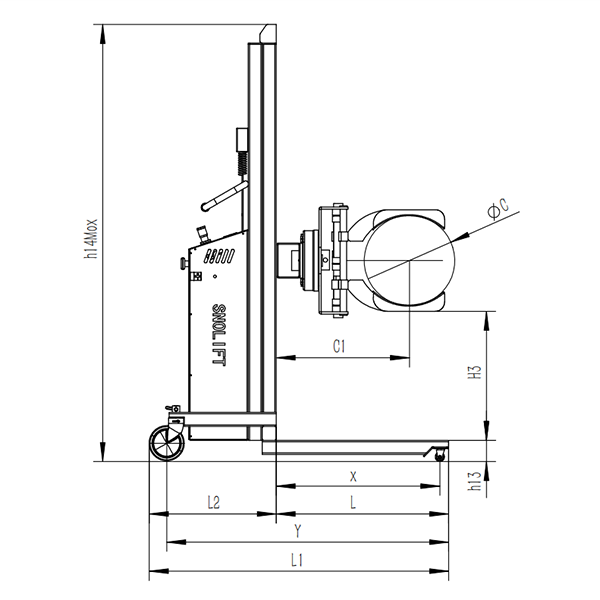

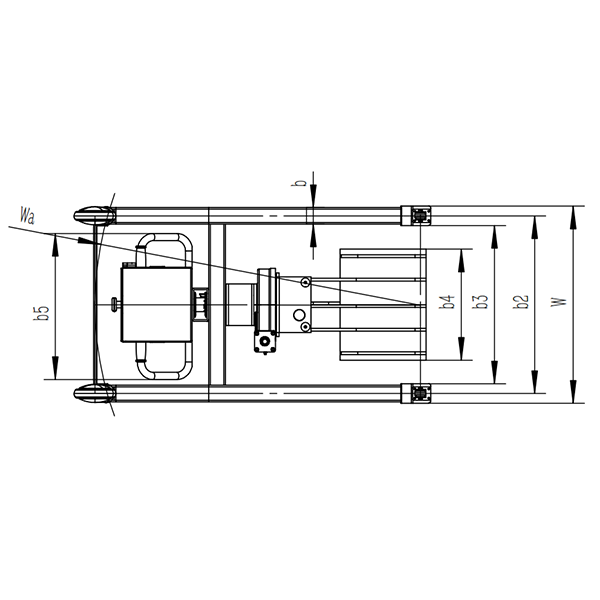

Các tham số

Model Number ESR150
Dung tích kg 150
Chiều cao nâng mm 300/1450
Ắc quy 24/45
Thù lao 24/20
Chiều dài tổng thể mm 1285
Chiều rộng tổng thể mm 710
Chiều cao tổng thể mm 1860
Roll Diameter mm 350-450
Roll length mm 200-1200
Cân nặng kg 200
Bán kính quay vòng mm 1170



Chi tiết sản phẩm

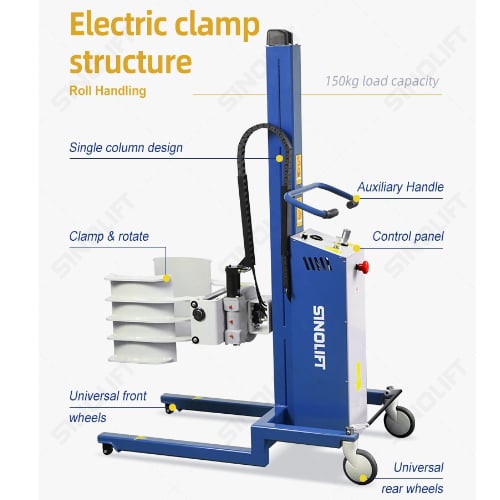

1.Structure

Structure

The lifter features a smooth and solid frame with a column lift design, ensuring stability and reliable performance during operation.

2.Electric Raise/Lower

Electric Raise/Lower

The clever design makes lifting and rotating heavy rolls very safe and easy, improving both efficiency and operator comfort.

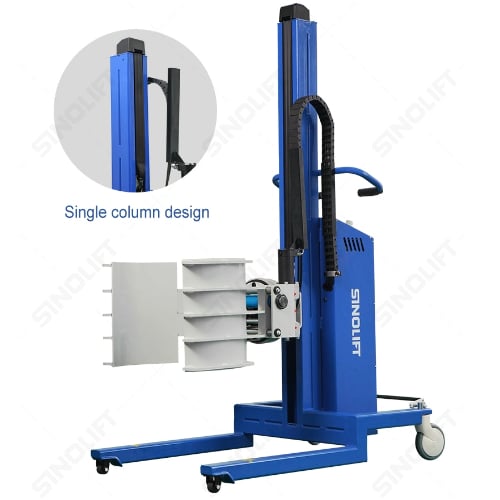

4.Smooth and Solid Frame | Column Lift Design

Smooth and Solid Frame | Column Lift Design

Constructed with high-quality steel that is reinforced and thickened, the frame offers durability and corrosion resistance.

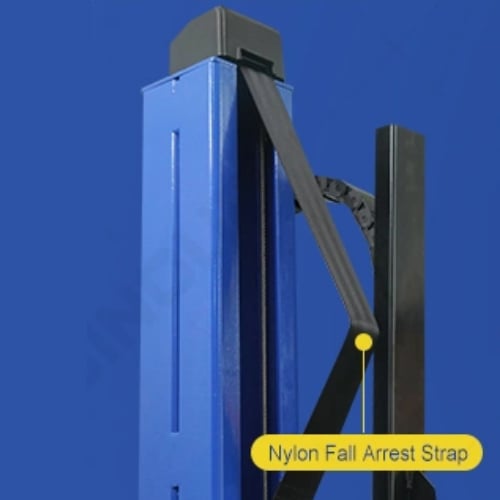

5.Nylon Fall Arrest Strap

Nylon Fall Arrest Strap

Fall arrest belts are equipped to securely prevent goods from falling during handling.

Thư viện phương tiện truyền thông

Câu hỏi thường gặp

  • Q1: What types of materials can the ESR150 Electric Clamp Roll Lifter handle?

    A: The ESR150 is designed to handle a wide range of cylindrical materials, including paper, plastic, textile, and metal rolls. Its adjustable clamping mechanism and customizable attachments make it suitable for various weights and sizes. The lifter is ideal for industries like packaging, printing, and textiles where heavy, awkward rolls need to be moved safely.

  • Q2: How does the 360° rotation feature improve workflow efficiency?

    A: The 360° rotating clamp allows operators to precisely position rolls without needing to reposition the entire machine. This saves time and reduces physical strain, especially in tight spaces. The feature also minimizes the risk of product damage during handling by enabling smooth, controlled rotations.

  • Q3: Is the ESR150 suitable for use in small or crowded workspaces?

    A: Yes, its compact design and four-wheel balanced structure with braking function allow flexible movement even in limited spaces. The remote control operation further enhances usability where direct access is restricted. The machine’s stability ensures safety when maneuvering around obstacles.

  • Q4: What safety features does the ESR150 offer to prevent accidents?

    A: The lifter includes a nylon fall arrest strap to secure loads during transport, reinforced steel construction for durability, and a reliable braking system. The protective frame around the operator area helps prevent hand injuries. These features meet essential safety standards for heavy load handling.

  • Q5: Can the ESR150 be customized for specific operational needs?

    A: Absolutely. The lifter supports customized attachments for different roll sizes, shapes, and materials. Businesses can also request specific control configurations or power options based on their workflow requirements. This flexibility makes it adaptable to unique industrial environments.

Các tùy chọn bổ sung

Different lifting heights We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.

Different lifting heights

We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.

Industrial Smart Charger (Optional)
This advanced charging system features automatic self-recovery function and real-time LED status monitoring. Multi-color indicator lights clearly display charging progress and fault alerts for 24V battery packs.

Integrated Digital Scale Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.

Integrated Digital Scale

Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.

Silent Caster Kit

Upgrade to our ultra-quiet rolling system featuring noise-dampened polyurethane treads and precision ball bearings, reducing operational noise below 50dB. Ideal for hospital, laboratory, and office environments where noise control is critical.

Reel Presence Limit Switch (Optional) Ensure operational safety with our industrial-grade limit switch, featuring non-contact magnetic sensing for reliable reel position detection. The IP67-rated housing with dual-color LED indicators provides instant visual status feedback during loading/unloading cycles.

Reel Presence Limit Switch (Optional)
Ensure operational safety with our industrial-grade limit switch, featuring non-contact magnetic sensing for reliable reel position detection. The IP67-rated housing with dual-color LED indicators provides instant visual status feedback during loading/unloading cycles.

24-Volt D.C. power lift, AC powered lift, pneumatic lift or air over hydraulic lift

24-Volt D.C. power lift

AC powered lift, pneumatic lift or air over hydraulic lift

Duplex Twin Chain Drive This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.

Duplex Twin Chain Drive
This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.

Front Swivel Casters Upgrade your roll lifter with heavy-duty front swivel casters for effortless 360° maneuverability in tight spaces. These lockable casters provide smooth mobility during transport while ensuring stability when positioned. Perfect for navigating narrow aisles in print shops or warehouses.

Front Swivel Casters

Upgrade your roll lifter with heavy-duty front swivel casters for effortless 360° maneuverability in tight spaces. These lockable casters provide smooth mobility during transport while ensuring stability when positioned. Perfect for navigating narrow aisles in print shops or warehouses.
