CTD1000-M700 Roll & Reel Hydraulic Stacker

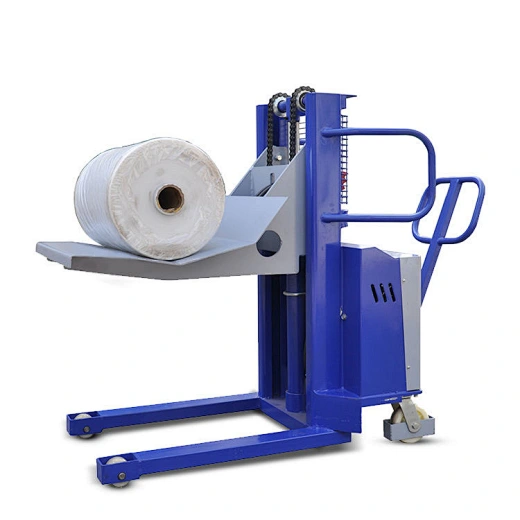

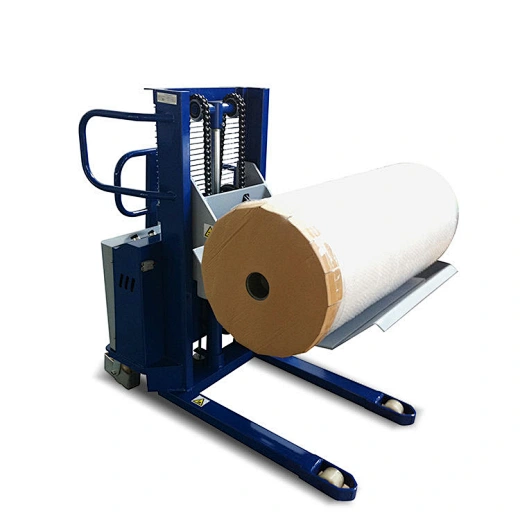

CTD1000-M700 Semi-Electric Paper Roll Lifter for Paper, Textile & Packaging Industries

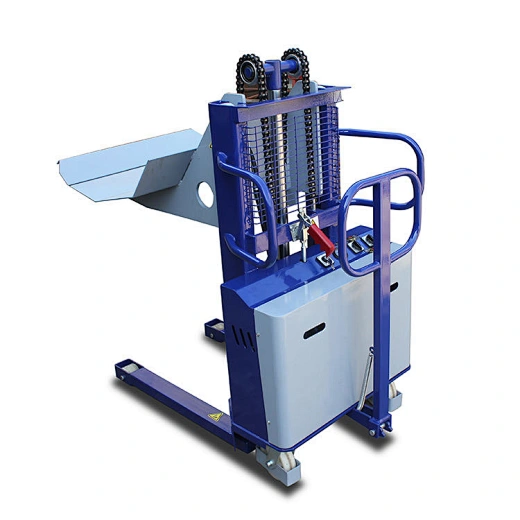

The CTD1000-M700 semi-electric paper roll lifter is specially designed for safe and efficient handling of cylindrical loads like paper rolls, yarn, and film. Its innovative electronic lock-and-protect function prevents cargo rolling, while the weight shifter replaces traditional rollers—saving labor, reducing noise, and enhancing safety. Ideal for warehouses in paper, textile, chemical, and pharmaceutical industries, it meets EU/US safety standards with anti-collision buffers and emergency switches. Compact yet robust, it operates smoothly even in narrow spaces.
Đặc trưng
Durable Coating – Safety blue polyester or FDA-approved epoxy powder coating for corrosion resistance.
Smooth Mobility – Ergonomic casters (2 swivel + 2 rigid) with double ball bearings for easy maneuvering.
Safety Brake – Step-down foot brake secures the lifter during operations.
Reliable Chain – Reinforced chain tested for 5x load capacity to prevent sudden drops.
Ergonomic Handle – Inverted double ‘U’-shape for comfortable push-pull control.
Secure Cradles – Hydraulic V-Pan/roll post with auto-lifting lip for stable reel handling.
Powerful Hydraulics – 1300W 12V engine with precision speed control for smooth lifting/lowering.

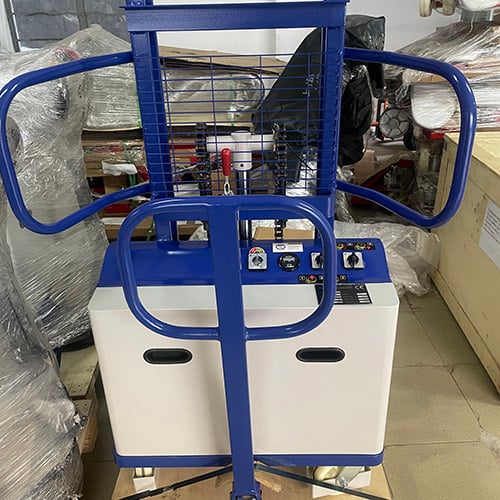

User-Friendly – Intuitive control panel for effortless operation.
Các tham số

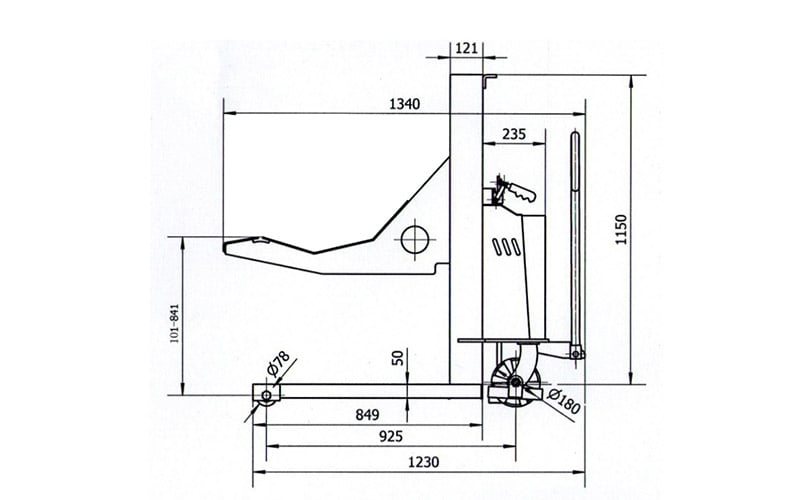

| Người mẫu | CTD1000-M700 | |
| Sức chứa tải | kg | 1000 |
| Max Lift of the Plate. | mm | 841 |
| Barycentre | mm | 500 |
| Min. Steering Range | mm | 1160 |
| Max. Diam. Bobine | mm | 1000 |
| Max. Width Bobine | mm | 1500 |
| Frame Height | mm | 1230 |
| Frame Width | mm | 720 |
| Frame Length | mm | 1310 |
| Chiều dài cơ sở | mm | 925 |
| Front Wheels | mm | 78×70 |
| Rear Wheels | mm | 180×50 |
| Cân nặng | kg | 285 |
Chi tiết sản phẩm
Paint

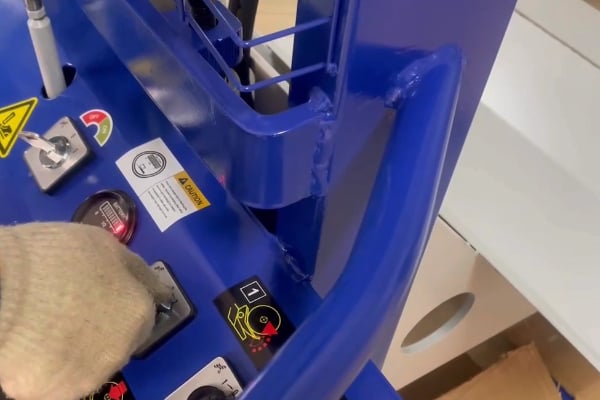

Safety blue polyester powder coating or FDA-approved epoxy powder coating for durability. The surface is protected with high-quality powder coatings, offering corrosion resistance and compliance with food safety standards (FDA) where required.
Wheels

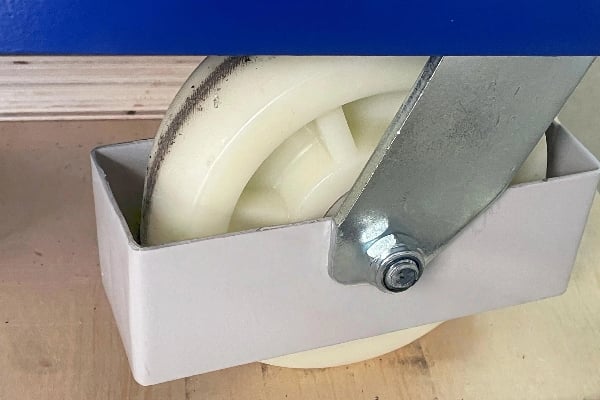

Ergonomic casters: (2) swivel at rear and (2) rigid at front, all with double ball bearings for smooth movement. Designed for effortless maneuverability, the heavy-duty casters ensure stability and easy steering in tight spaces.
Foot Brake
Step-down foot floor lock for added safety. Provides secure braking to prevent unintended movement during loading/unloading operations.

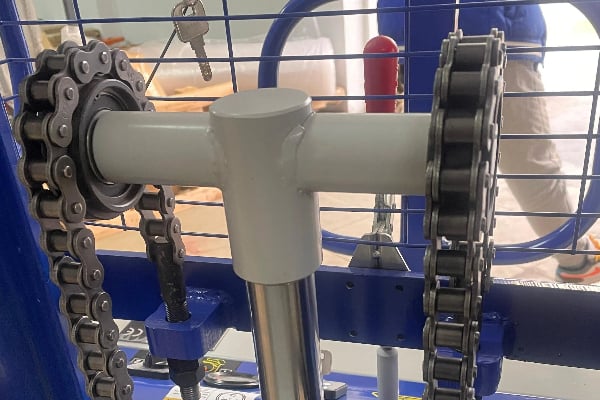

Bold Chain
Chain tested 5x under pull stress, ensuring load-bearing reliability and preventing sudden drops. Reinforced chain mechanism guarantees safe lifting without failure of forks or cargo.
Thư viện phương tiện truyền thông
Câu hỏi thường gặp
-
1.What is a Roll Lifter?
A roll lifter is a specialized material handling equipment designed to safely transport, lift, and position heavy cylindrical loads such as paper rolls, metal coils, plastic rolls, and textiles. It typically features: • Hydraulic or manual lifting mechanism for controlled vertical movement • Adjustable forks/clamps to securely grip different roll diameters • Sturdy mast & base for stability under heavy loads • Maneuverable wheels/casters for easy movement in warehouses or production floors Common in printing, packaging, paper mills, and metalworking industries, roll lifters improve workplace safety by eliminating manual rolling or crane dependency. -
2.What industries commonly use roll lifters?
Roll lifters are essential in industries handling heavy cylindrical materials. They are widely used in paper mills for transporting large paper rolls, printing facilities for loading presses, and steel plants for moving metal coils. The textile and packaging industries also rely on them to handle fabric rolls and plastic films efficiently. Their versatility makes them ideal for any environment where cylindrical loads need safe lifting and positioning. -
3.How does the CTY1000-M700 prevent damage to delicate paper rolls during handling?
The lifter features nylon-coated fork surfaces that eliminate metal-to-paper contact, preventing surface abrasions. Its precision hydraulic control allows gradual acceleration/deceleration, avoiding sudden movements that could deform rolls. The balanced mast design maintains stability even at full extension, preventing tip-related damage. -
4.What maintenance routines ensure long-term reliability of the hydraulic system?
Monthly inspection of cylinder seals prevents fluid leaks that could contaminate paper products. Using ISO VG 32 hydraulic oil maintains optimal viscosity across operating temperatures. The system's bleed valves allow easy air removal, ensuring consistent lifting performance year-round. -
5.Can operators easily maneuver the lifter in narrow paper mill aisles?
The 800mm narrow body width fits standard 1m warehouse aisles with clearance. The 150mm front nylon wheels pivot smoothly while rear load rollers provide stability when carrying heavy rolls. Operators report the bal
Các tùy chọn bổ sung
Different lifting heights
We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.
Industrial Smart Charger (Optional)
This advanced charging system features automatic self-recovery function and real-time LED status monitoring. Multi-color indicator lights clearly display charging progress and fault alerts for 24V battery packs.
Integrated Digital Scale
Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.
Silent Caster Kit
Upgrade to our ultra-quiet rolling system featuring noise-dampened polyurethane treads and precision ball bearings, reducing operational noise below 50dB. Ideal for hospital, laboratory, and office environments where noise control is critical.
Reel Presence Limit Switch (Optional)
Ensure operational safety with our industrial-grade limit switch, featuring non-contact magnetic sensing for reliable reel position detection. The IP67-rated housing with dual-color LED indicators provides instant visual status feedback during loading/unloading cycles.
24-Volt D.C. power lift
AC powered lift, pneumatic lift or air over hydraulic lift
Duplex Twin Chain Drive
This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.
Front Swivel Casters
Upgrade your roll lifter with heavy-duty front swivel casters for effortless 360° maneuverability in tight spaces. These lockable casters provide smooth mobility during transport while ensuring stability when positioned. Perfect for navigating narrow aisles in print shops or warehouses.
