CTY0210 & FTD0416 Roll Clamp Stacker

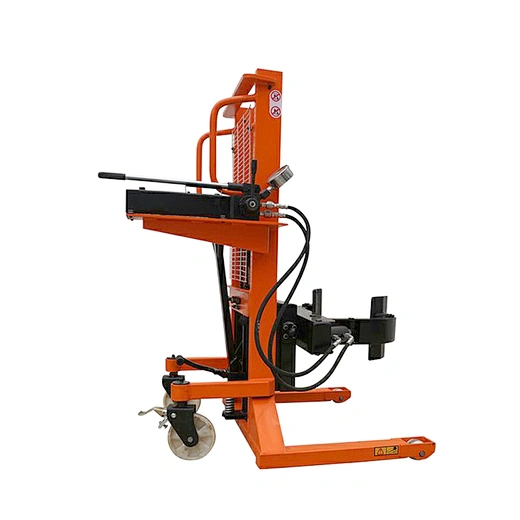

SINOLIFT CTY0210 FTD0416 series Roll Clamp Stacker

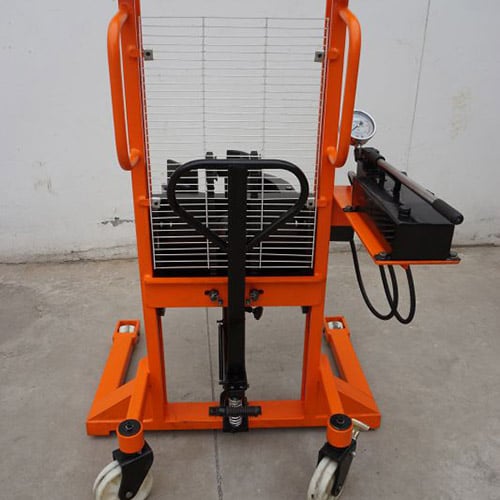

This Roll Clamp Stacker is uniquely designed to handle paper rolls from pallets or trucks with ease and precision. Its innovative clamping mechanism allows operators to securely lift horizontally placed rolls and rotate them vertically for storage or transport. Equipped with a manual pump and real-time pressure display, it ensures safe and controlled clamping force every time. The ultra-quiet belt brake keeps the stacker stationary during operation, enhancing operator safety. Ideal for paper, printing, and warehousing industries, this stacker offers both foot and manual hydraulic control for reduced operator fatigue.

Liên hệ với chúng tôi
Tải về

Đặc trưng

SINOLIFT remains a leader in the industry, with all products certified to CE, ISO9001, and ISO14001 standards, backed by a 12- or 24-month warranty. Our dedicated team of engineers and technical experts ensures cutting-edge design and production techniques, delivering specialized solutions with rigorous testing and readily available spare parts. We provide over 1,000 products to meet diverse applications.

Our facilities include a factory in Shanghai’s Pudong New Area and a partner factory in Anhui Province, spanning 290,942 sqm, staffed by 150+ engineers and 2,000+ skilled workers. This enables us to deliver customized solutions efficiently, tailored to each customer’s requirements.

We provide free shipping within Shanghai and mainland China, with regular global shipments. Contact us for international quotes.

Các tham số

Model number CTY0210-500 FTD0416-500 CTY0216-500 FTD0416-1000
Tải trọng định mức kg 200 400 200 400
Maximum lift mm 1000 1600 1600 1600
Clamp width mm 700-790 635-950 635-950 1135-1450
Clamp down after high mm 300 490 490 520
Clip length mm 820 820 820 1220
Roll diameter mm Ø300-390mm Ø200-500mm Ø200-500mm Ø300-1000mm
Trung tâm tải mm 200 350 350 700
Cân nặng kg 300 366 348 395
Overall dimension mm 1500*1060*1400 1500*950*2000 1500*950*2000 1900*1450*2000
Channel requirement mm 1600 1600 1600 2000
Walking channel mm 1100 1000 1000 1500
rear-wheel mm 2*Ø180*50
Bánh xe phía trước mm 2*Ø80*700



Chi tiết sản phẩm

Roll Clamp

Roll Clamp

Manual clamp leveling prevents rolls from clamp marks. This design ensures safe and damage-free handling of delicate paper or material surfaces.

Manual Operating Lever

Manual Operating Lever

Precise manual control without electricity. The lever offers responsive operation, allowing smooth lifting, lowering, and directional movement with minimal effort.

Nylon Wheel

Nylon Wheel

Wear-resistant, smooth rotation. These wheels provide long-lasting performance and reduce rolling resistance, ensuring easy maneuverability across different floor surfaces.

Raw Material

Raw Material

High quality steel, durable in use. The robust construction enhances structural integrity and supports heavy-duty applications in industrial environments.

Thư viện phương tiện truyền thông

Câu hỏi thường gặp

  • Q1: What is the SINOLIFT Roll Clamp Stacker mainly used for?

    A: It is primarily designed for safely and efficiently handling, rotating, and transporting paper rolls, cylindrical barrels, and other similar materials. Its unique clamping design allows it to pick up horizontally placed rolls from pallets or trucks and rotate them into a vertical position. This makes it an indispensable auxiliary tool in warehousing, printing, paper, and manufacturing industries.

  • Q2: How does the clamping function work, and is it safe?

    A: The clamp features a manual hydraulic pump equipped with a real-time pressure gauge, allowing operators to monitor and control the clamping force precisely for secure lifting. The wide base legs are designed to be larger than the diameter of most rolls, providing extra stability during operation. Combined with the ultra-quiet belt brake system, the stacker remains stationary when stopped, ensuring a safe workflow.

  • Q3: Can anyone operate this roll clamp stacker easily?

    A: Yes, it is designed for user-friendly operation by all operators. The ergonomic handle with a soft-grip cover and clearly marked control levers allows intuitive lifting, lowering, and direction handling. Both manual and foot hydraulic options are available to reduce operator effort and fatigue, making the entire process lightweight and comfortable.

  • Q4: What are the key features that ensure durability and long service life?

    A: The stacker is constructed with anti-torsional steel framework and high-strength forks for heavy-duty performance. Its hydraulic system features a hardened lifting cylinder, chrome-plated chamber, and overload protection valve for reliability under frequent use. Durable wear-resistant nylon wheels with sealed bearings ensure smooth movement with minimal rolling resistance over time.

  • Q5: In which environments or industries is this machine most suitable?

    A: This stacker is ideal for warehouses, printing houses, paper processing facilities, and any industry that requires movement of cylindrical loads. Its ability to handle materials from floors, pallets, or trucks makes it highly versatile. The combination of safety, ergonomics, and reliability makes it a essential handling tool for improving operational efficiency.

Các tùy chọn bổ sung

Different lifting heights We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.

Different lifting heights

We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.

Industrial Smart Charger (Optional)
This advanced charging system features automatic self-recovery function and real-time LED status monitoring. Multi-color indicator lights clearly display charging progress and fault alerts for 24V battery packs.

Integrated Digital Scale Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.

Integrated Digital Scale

Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.

Silent Caster Kit

Upgrade to our ultra-quiet rolling system featuring noise-dampened polyurethane treads and precision ball bearings, reducing operational noise below 50dB. Ideal for hospital, laboratory, and office environments where noise control is critical.

Reel Presence Limit Switch (Optional) Ensure operational safety with our industrial-grade limit switch, featuring non-contact magnetic sensing for reliable reel position detection. The IP67-rated housing with dual-color LED indicators provides instant visual status feedback during loading/unloading cycles.

Reel Presence Limit Switch (Optional)
Ensure operational safety with our industrial-grade limit switch, featuring non-contact magnetic sensing for reliable reel position detection. The IP67-rated housing with dual-color LED indicators provides instant visual status feedback during loading/unloading cycles.

24-Volt D.C. power lift, AC powered lift, pneumatic lift or air over hydraulic lift

24-Volt D.C. power lift

AC powered lift, pneumatic lift or air over hydraulic lift

Duplex Twin Chain Drive This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.

Duplex Twin Chain Drive
This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.

Front Swivel Casters Upgrade your roll lifter with heavy-duty front swivel casters for effortless 360° maneuverability in tight spaces. These lockable casters provide smooth mobility during transport while ensuring stability when positioned. Perfect for navigating narrow aisles in print shops or warehouses.

Front Swivel Casters

Upgrade your roll lifter with heavy-duty front swivel casters for effortless 360° maneuverability in tight spaces. These lockable casters provide smooth mobility during transport while ensuring stability when positioned. Perfect for navigating narrow aisles in print shops or warehouses.
