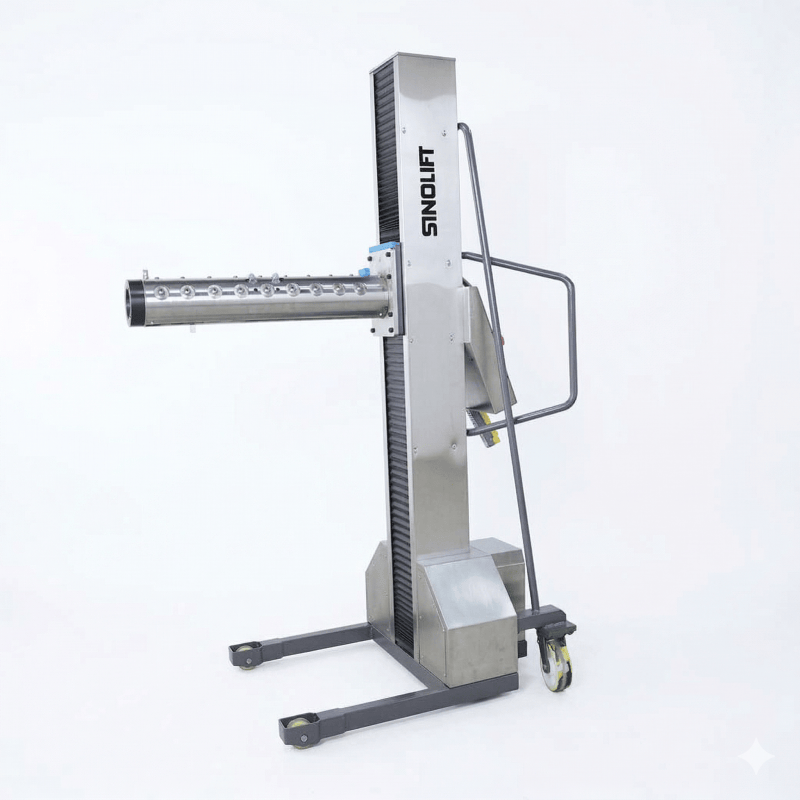

GLXJC800A Intelligent Lithium Battery Electrode Roll Lifter
GLXJC800A Intelligent Lithium Battery Electrode Roll Lifter
The GLXJC800A is engineered for efficient material handling in new energy battery production processes like coating, slitting, and winding. Its standout features include automated lifting with multi-point positioning and camera-assisted alignment for precision operations. The ergonomic design with a rotating radius under 2 meters allows flexible maneuverability in compact workshop spaces. Equipped with anti-slip expansion rods and push-out mechanisms, it ensures secure transport of rolls while preventing surface damage. This lifter streamlines workflow between production stations with its combination of robust 800kg capacity and intuitive remote-control operation.
Đặc trưng
Fundamental Semi-Finished Product: It is a crucial intermediate material produced after coating and calendaring, serving as the direct feedstock for cell assembly (winding or stacking).
Composite Structure: Consists of a metal foil current collector (aluminum for cathode, copper for anode) coated with a precise layer of active materials, binders, and conductive agents.
Continuous Web Form: Supplied as a long, uninterrupted strip wound onto large reels, enabling high-speed, automated battery manufacturing.
Performance-Defining Quality: Its properties—including coating uniformity, thickness consistency, surface integrity, and tension control—are paramount for the final battery’s energy density, power output, safety, and cycle life.
Process-Specific Ứng dụng: Used directly in winding machines for cylindrical/prismatic cells or slit and die-cut into individual sheets for pouch cells using a stacking process.
Các tham số
| Người mẫu | GLXJC800A |
| Sức chứa tải | 800kg |
| Frame Width | 800mm |
| The length of roll | 720mm |
| Chiều cao nâng | 500-2000mm |
| Min. Height of boom | 500mm |
| Max. Height of boom | 1900mm |
| Lifting Function | Automatic lifting, Multi-point positioning |
| Supported Roll Length Range | Customizable length |
| Control | Camera-assisted positioning, Remote handle |
| Mandrel System | Auto-tensioning to prevent material slippage / Electric pushing |
| Mobility | Manual pushing |
Chi tiết sản phẩm

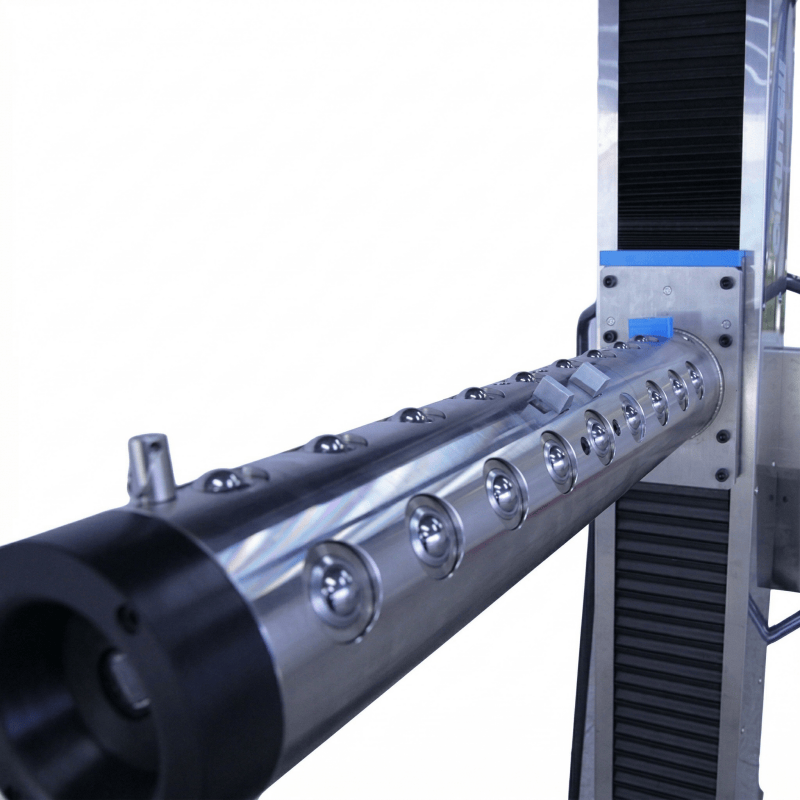

Specialized String Rod Design
The string rod is specially designed for lithium battery cell pole rolls. It offers excellent performance, is labor-saving and efficient, and ensures easy and safe operation.
Convenient and Efficient Operation
This equipment is convenient, efficient, and widely used. It can be operated by just one person for easy and fast work, featuring a rear universal wheel for better directional control.
Seamless and Silent Casters
The trolley uses seamless casters that are silent and wear-resistant. The caster design allows for flexible turnover and light travel with low resistance, and the rear wheel includes a convenient foot brake function.

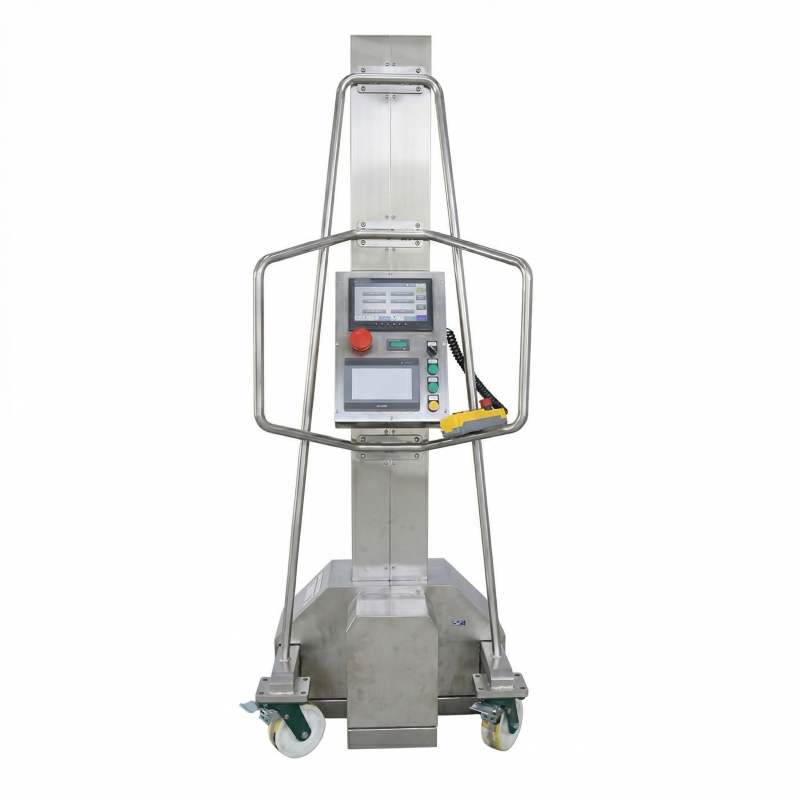

Intelligent Touch Panel & Visual Display
The system features a touch panel visual display. It is equipped with current height position memory and automatic correction functions, enabling it to automatically identify its position and reach the loading/unloading point.
Thư viện phương tiện truyền thông
Câu hỏi thường gặp
Q1: What are the key advantages of using your electrode rolls over competitors?
A: Our electrode rolls are manufactured with an unwavering focus on absolute consistency in coating uniformity and calendaring density. This translates directly to higher energy density, longer cycle life, and improved safety in the final battery cells. Furthermore, our rigorous quality control processes ensure that every meter of the roll is free from defects, minimizing production downtime and scrap rates for our clients.Q2: How do you ensure the quality and consistency of your electrode rolls during production and delivery?
A: We employ advanced real-time monitoring systems throughout the coating and calendaring processes to detect any microscopic deviations instantly. Each finished roll undergoes a 100% surface scan to identify any imperfections like pinholes or scratches. Finally, the rolls are carefully wound under controlled tension and packaged in clean, dry, and vacuum-sealed materials to prevent contamination or damage during transit.Q3: What is your typical lead time, and can you handle large, urgent orders?
A: Our standard lead time is clearly communicated upon order confirmation, and we are committed to meeting these deadlines reliably. For urgent and large-volume orders, we have a dedicated rapid-response manufacturing line and a flexible supply chain strategy to accommodate such requests. We recommend contacting our sales team early to discuss your specific timeline, allowing us to develop the most efficient production plan for you.Q4: Can you provide custom electrode rolls for our specific battery design or chemistry?
A: Yes, we specialize in developing custom electrode roll solutions tailored to unique customer requirements. Whether you need adjustments in specific capacitance, are working with a novel active material, or require a unique width, our R&D team can collaborate with you. We can manage the entire process from formulation to pilot production, ensuring the final product perfectly aligns with your application.Q5: What kind of technical support do you offer after the sale?
A: We provide comprehensive post-sale technical support, starting with assistance on optimal storage and handling procedures to preserve electrode performance. Our engineering team is available to troubleshoot any issues you may encounter during the unwinding or cell assembly process. Furthermore, we offer valuable insights and data to help you optimize your own manufacturing parameters for the best possible results with our materials.
