Sinolift China heavy-duty NA hydraulic hand pallet Jack or truck

The NA pallet jack is designed for efficient material handling in warehouses, factories, and logistics centers, featuring a fully sealed hydraulic system with a load limiter to prevent overloading and ensure durability. Its specially engineered lowering valve provides smooth and controlled operation for heavy loads, while the leak-proof design protects against moisture and extends service life. Ideal for industrial environments, this pallet jack combines reliability and ease of use to enhance productivity.

Contact Us
Download

Features

Parameters

Model Capacity Fork Width Fork Length Min. Height Max. Height Steer Wheel Load Wheel Weight
kg/lbs mm/inch mm/inch mm/inch mm/inch (mm) (mm) kg/lbs
W1 L1 H2 H1 A B
NA15-48 1500/3300 460/18″ 810/32″ 80/3.15″ 200/7.9″ φ180*62 φ78*100 (single) 66/145
NA15-49 460/18″ 980/38.5″ 70/154
NA15-58 520/20.5″ 810/32″ 66/145
NA15-59 520/20.5″ 980/38.5″ 70/154
NA15-510 520/20.5″ 1070/42″ 71/156
NA15-511 520/20.5″ 1150/43.3″ 73/160
NA15-610 600/23.5″ 1070/42″ 77/169
NA15-76 685/48″ 650/25.6″ 68/149
NA15-710 685/27″ 1070/42″ 76/167
NA15-712 685/27″ 1220/48″ 79/173
NA25-58 2500/5500 520/20.5″ 810/32″ 80/3.15″ 200/7.9″ φ180*62 φ78100 (single) or φ7870 (tandem) 67/147
NA25-59 685/27″ 980/38.5″ 71/156
NA25-510 685/27″ 1070/42″ 72/158
NA25-511 520/20.5″ 1150/43.3″ 75/165
NA25-712 685/27″ 1220/48″ 80/176
NA30-510 3000/6600 520/20.5″ 1070/42″ 80/3.15″ 200/7.9″ φ180*62 φ78100 (single) or φ7870 (tandem) 84/184
NA30-511 520/20.5″ 1150/43.3″ 90/198
NA30-712 685/27″ 1220/48″ 100/220

Structural Drawings

Structural Drawings

Structural Drawings

Product Details

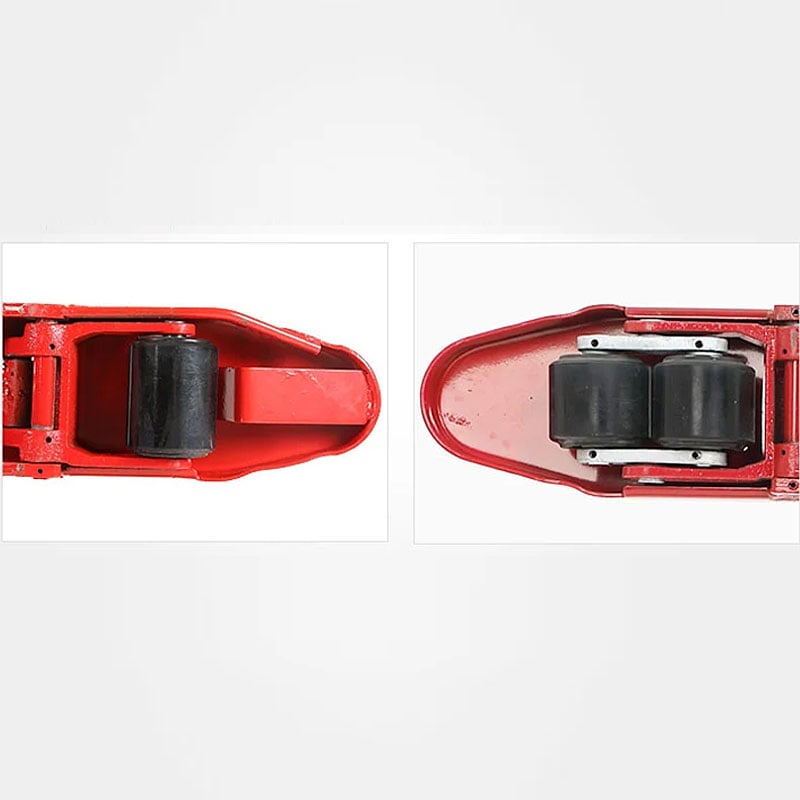

Optional load-bearing wheels，standard single or double wheel

Excellent sealed cylinder，effectively prevent the cylinder oil leakage

Streamlined truck body design

Thickened steel plate

Media Gallery

FAQ

  • How do you ensure product quality?

    Our products are CE certified, and we follow a five-step inspection process before shipment: 1.Raw materials are inspected according to ISO9001 standards. 2.Thorough inspections are conducted throughout the production process. 3.A load limit test is performed once assembly is complete. 4.Each product undergoes a 100% rigorous inspection before shipment. Additional inspection by the buyer can be arranged if required.

  • What is the duration of the quality guarantee?

    All our products come with a one-year warranty.

  • What are the safety guidelines for using pallet trucks?

    1.Inspection: Check the wheels, handle, and lifting mechanism for any damage or signs of wear before use. 2.Loading: Ensure the forks are positioned evenly and fully inserted under the pallet. Do not exceed the truck's specified weight limit to avoid overloading. 3.Lifting: Use the handle to pump the forks and lift the load smoothly.

Optional Extras

Nylon

Nylon
Choose nylon pallet truck steer wheels for low rolling resistance, long life, and cost-effectiveness. Ideal for smooth surfaces and light to medium-duty applications.

Polyurethane
Choose polyurethane treaded pallet truck steer wheels for quiet operation, excellent grip, and resistance to wear. Suitable for indoor use on smooth or slightly uneven surfaces.

Steel
Choose steel steer wheels for durability in harsh working environments, such as metalworking areas or heavy-duty industrial settings. They are resistant to impact and can handle heavy loads.

Rubber
Choose solid rubber treaded steer wheels for quiet operation and smooth rolling over uneven or rough surfaces. They provide excellent shock absorption and are ideal for environments where floor protection is a priority.

Tiller

Choose a tiller that suits your habits and preferences

zinc or hot-galvanized type

The galvanized hand pallet truck is designed with a protective zinc coating, providing exceptional resistance to corrosion. It is an ideal choice for wet or humid environments, ensuring durability and reliable performance in challenging conditions.

Stainless steeltype

The stainless steel hand pallet truck is crafted from high-quality stainless steel, offering superior corrosion resistance and hygiene. Perfect for environments requiring strict cleanliness standards, such as food processing or pharmaceutical industries, it combines strength with easy maintenance.

equipped with scale

This handy tool combines a manual pallet truck with a built-in weighing scale, letting you move and weigh loads at the same time. Perfect for warehouses or logistics, it saves time and boosts efficiency by handling and measuring in one go.

Heavy duty type

For even heavier demands, this upgraded pallet truck offers a 5-tonne capacity and a reinforced 8mm steel frame, making it stronger and more robust than standard models. Designed for demanding environments like warehouses and logistics, it handles heavier loads with ease while ensuring durability and safety. Perfect for industrial-grade challenges!

load bracket

It’s an essential accessory designed to secure and stabilize loads during transport. It ensures safe and efficient handling of goods, making it ideal for moving irregular or unstable items with ease.
