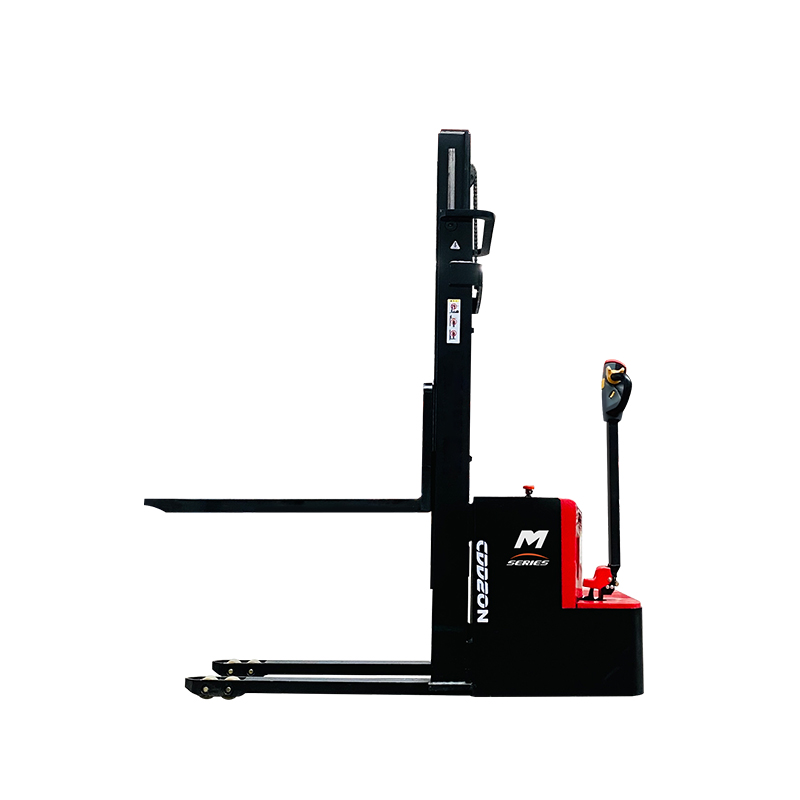

CDD20N

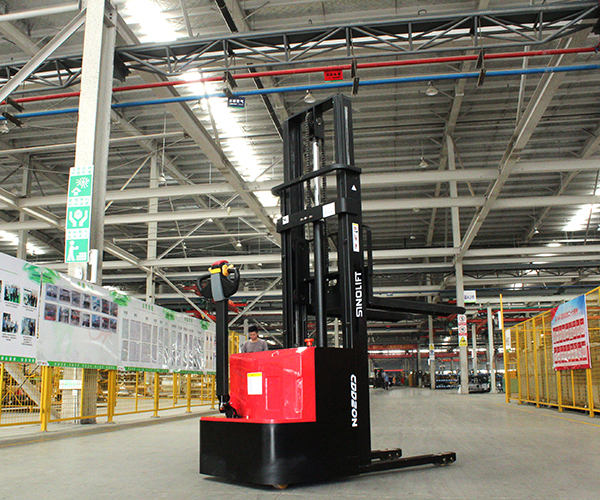

Sinolift CDD20N full electric pallet  stacker truck smooth lifting and lowering

The Sinolift CDD20N full electric stacker is a versatile and efficient solution for lifting, stacking, and transporting heavy loads in warehouses, factories, and industrial environments. Designed for seamless operation, it combines the functionalities of a pedestrian pallet truck and stacker, making it ideal for tasks such as loading/unloading HGVs and stacking pallets up to 3500mm. Key features include articulating polyurethane load wheels for durability, regenerative braking, an AC motor for energy efficiency, and a multifunction tiller arm for intuitive control. Its compact design and advanced features ensure improved productivity, safety, and operational efficiency.

Contact Us
Download

Features

  1. Optimized four-wheel design ensures a stable and safe chassis.
  2. High-rigidity C-shaped gantry alloy steel, 30% stronger than standard carbon steel.
  3. Maintenance-free high-energy sealed battery, no liquid or water needed throughout its lifespan.
  4. Stepless speed control adapts to different driving rhythms.
  5. Thoughtful component and pipeline layout allows easy and hassle-free maintenance.
  6. Sleek and elegant vehicle design.
  7. Automatic cut-off prevents deep battery discharge, extending battery life.
  8. Reliable components from trusted suppliers ensure durability and performance.
  9. Safety reverse button automatically moves the unit away from the operator.
  10. Emergency stop button instantly cuts power and engages the electromagnetic brake.

Parameters

Model CDD20N
Driving type Electric
Operating type Pedestrain
Capacity kg 2000
Load center distance mm 600
Wheel base mm 1535
Service weight kg 995
Overall length mm 2080
Overall width mm 880
Fork dimension mm 1150*170*60
Fork width mm 560/685
Height, Fork Lowered mm 85
Ground Clearance mm 30
Turning Radius mm 1760
Aisle Width, with pallet 1000×1200 mm 2600
Aisle Width, with pallet 800×1200 mm 2525
Wheel type PU
Wheel dimension, front mm Φ85*70
Wheel dimension, rear mm Φ250*80
Traveling speed, full load/no-load km/h 4
Lifting speed, full load/no-load mm/s 85/130
Descending speed, full load/no-load mm/s 100/85
Driving Motor Power AC kw 1.5
Lifting Motor Power DC kw 3
Battery V/Ah 24/150
Mast Size Lifting Height(h1) Machine Height with Mast Lowered(h2) Machine Height with Mast Extended(h4) Load Capacity
mm mm mm kg
Single Mast 1600 2150 2150 2000
Duplex Mast 2000 1580 2550 2000
2500 1830 3050 2000
3000 2080 3550 2000
3500 2330 4050 1600

Structural Drawings

Structural Drawings

Product Details

Small turning radius ≈1760mm

Passage width required for this vehicle，schematic diagram of three-dimensional warehouse channel

Multifunctional control panel，composite ergonomic design with simple emergency stop button a

High quality maintenance free battery

Media Gallery

FAQ

  • What is a Full Electric Stacker, and how does it work?

    A Full Electric Stacker is a material-handling device powered entirely by electricity. It uses an electric motor for both lifting/lowering and movement, eliminating the need for manual effort. The operator uses intuitive controls to maneuver the stacker and adjust the forks' height, making it ideal for heavy-duty lifting and stacking tasks in warehouses and factories.

  • What are the key benefits of using a Full Electric Stacker?

    Increased Efficiency: Fully powered operations reduce handling time and improve productivity. Ease of Use: Minimal physical effort is required, reducing operator fatigue. High Load Capacity: Can handle loads ranging from 1,000kg to 2,500kg or more, depending on the model. Safety Features: Equipped with brakes, overload protection, and ergonomic controls. Eco-Friendly: Battery-powered with no direct emissions.

  • What types of batteries are used in Full Electric Stackers, and how long do they last?

    Most Full Electric Stackers use lead-acid batteries or lithium-ion batteries. Lead-Acid Batteries: oMore affordable. oRequires regular maintenance (water refilling). oLifespan: ~3-5 years with proper care. Lithium-Ion Batteries: oHigher upfront cost but longer lifespan. oMaintenance-free with faster charging times. oLifespan: ~5-7 years or more.

  • Where can a Full Electric Stacker be used?

    Warehouses: For stacking goods in high racks or narrow aisles. Logistics Centers: Loading and unloading trucks or containers. Retail: Moving and organizing inventory in large stores. Manufacturing: Transporting raw materials or finished products. Cold Storage: With specialized models designed for low-temperature environments.

  • What maintenance is required for a Full Electric Stacker?

    Battery Care: Regularly charge and avoid over-discharging; for lead-acid batteries, ensure water levels are maintained. Tires and Wheels: Check for wear and ensure proper alignment. Hydraulic System: Inspect for leaks and maintain fluid levels. Electrical Components: Periodically check wiring and connections for any issues. General Cleaning: Keep the stacker clean to prevent dust or debris buildup.

Optional Extras

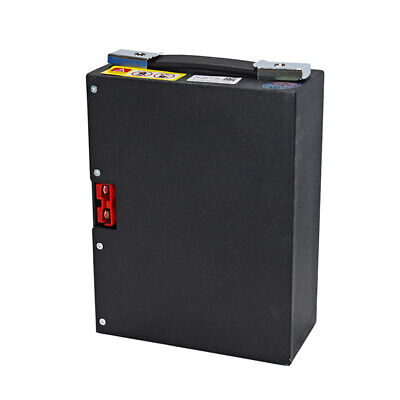

Lithium-ion Battery

Lithium-ion batteries are a game-changer in material handling equipment, offering high energy density, lightweight design, and fast charging capabilities. Compared to traditional lead-acid batteries, they provide up to 30% more efficiency, longer lifespan, and require minimal maintenance. Ideal for multi-shift operations, they support fast charging without the need for battery swaps, reducing downtime. With superior performance, compact size, and eco-friendly benefits, lithium-ion batteries are the perfect choice for modern warehouses and logistics, ensuring productivity and cost savings.

Sideway battery extraction

Designed for multi-shift operations, the high-capacity battery features a sideway extraction system on rollers, enabling quick and effortless battery changes. This ensures minimal downtime and maximizes productivity in demanding work environments.

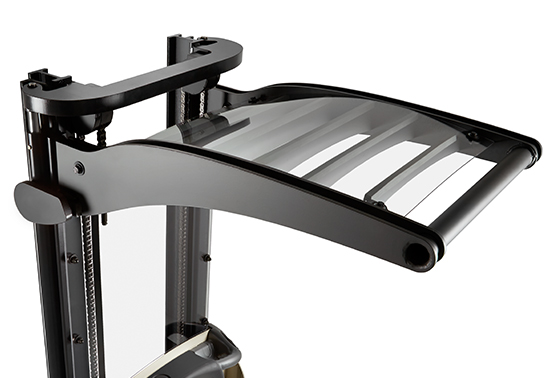

Load backrest

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

Cold store protection

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in low-temperature conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

Battery Changing Trolley
The battery changing trolley simplifies the process of replacing or maintaining the stacker’s battery. With this feature, operators can easily and safely move the battery in and out of the stacker, reducing downtime and improving maintenance efficiency. This option is ideal for environments where frequent battery changes are necessary, ensuring minimal disruption to operations.

Height of Frames with Different Specifications
With customizable frame heights, this option ensures the stacker can fit into different working environments. Whether for narrow aisles or low-clearance spaces, it improves maneuverability and operational efficiency. This flexibility allows the stacker to work in various settings, meeting specific space constraints and ensuring optimal performance in diverse warehouse layouts.

Lead-Acid Batteries of Different Capacities
This option allows you to choose lead-acid batteries of varying capacities to suit your specific needs. Larger capacity batteries are ideal for intensive use, providing longer operational times, while smaller batteries are perfect for lighter tasks, reducing weight and space requirements. This flexibility ensures efficient power usage and helps optimize cost-effectiveness based on varying workload demands.

Alarm Lamp

With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.

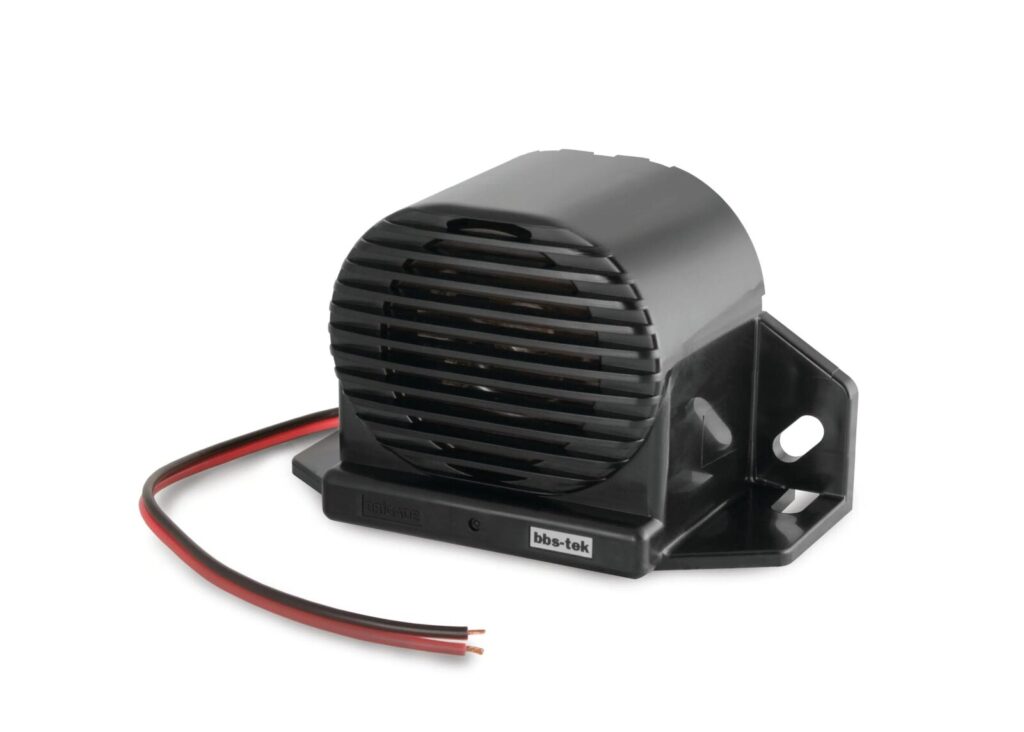

Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.

Forklift Wireless Cameras

Forklift wireless cameras enhance safety and efficiency by providing real-time visual feedback to operators. These cameras offer a clear view of blind spots, load positioning, and surrounding areas, reducing the risk of accidents and improving load handling accuracy. Easy to install and compatible with most forklifts, they are ideal for busy warehouses, tight spaces, and high-traffic environments. With durable designs and wireless connectivity, they ensure reliable performance and seamless integration into your operations.
