ML1500L ML2000L ML3000L Pedestrian Electric Tugger
ML1500L ML2000L ML3000L Pedestrian Electric Tugger

ML1500L ML2000L ML3000L Pedestrian Electric Tugger

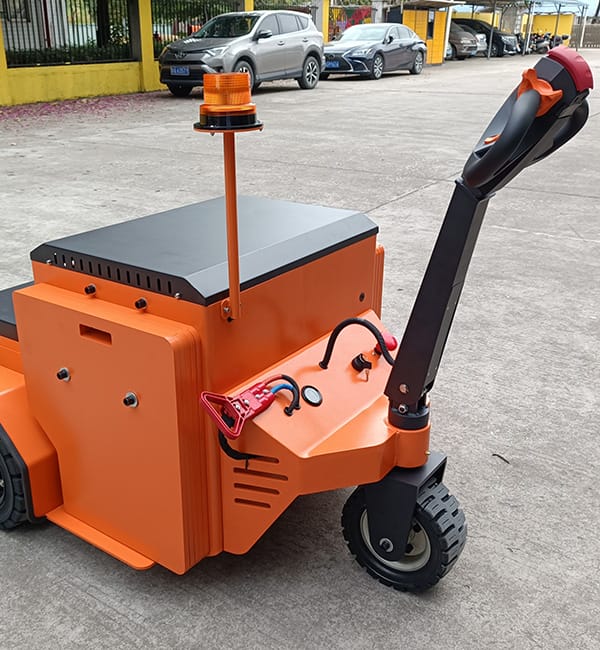

The ML3000L TOW is simple and easy to use offering towing capabilities of up to 30,000 kg. A single operator can safely maneuver and connect securely to any load in seconds without the need for an operator license.

Ergonomically designed, the ML3000L TOW improves both safety and efficiency across a number of working environments and terrains.

The ML3000L TOW is a versatile and compact electric tug, which can be fully customized and built to perform at its best in your workplace environment. Various couplings, additional safety features and machine options are also available.

Contact Us
Download

Features

The tug is an outstanding piece of equipment that offers high-quality traction for towing loads with minimal effort. Its compact and self-weighted design makes it easy to use and attach to any load with a draw bar, towing eye, or ball hitch fitting.
Whether you need to move loads inside or outside, on sloping surfaces or uneven terrain, this tug is up for the task. Its superior traction and maneuverability make it an excellent choice for all your load towing needs, regardless of the job’s complexity.

Parameters

ModelML1500LML2000LML3000L
Rated Traction Loadkg150002000030000
Rated Traction ForceN600070009000
Wheelbasemm980980980
Weight (including battery)kg100012001350
Battery Weightkg400400400
Drive Wheel Size (Diameter x Width)mm2XФ375X1152XФ375X1152XФ400X150
Load Wheel Size (Diameter x Width)mmФ280X127Ф280X127Ф280X127
Number of Drive/Load Wheels (X = Drive Wheels)mm2X/12X/12X/1
Front Track, Drive Endmm460460460
Overall Heightmm122512251225
Handle Height at Operating Positionmm950/1200950/1200950/1200
Coupler Height Rangemm260/360/720260/360/720260/360/720
Overall Lengthmm156015601560
Overall Widthmm104010401040
Minimum Ground Clearancemm100100100
Turning Radiusmm132013201320
Travel Speed, Loaded/Unloadedkm/h2~32~32~3
Maximum Traction ForceN90001000012000
Drive Motor Rated Power (5260 min)V/kw48/4.048/5.048/6.0
Charger (External)V/A48/3048/3048/30
Battery Voltage/Nominal Capacity (K20)V/Ah48/21048/21048/210
Battery Weightkg400400400
Drive Control TypeACACAC
Noise LeveldB(A)<70<70<70



Product Details

Lead-acid battery

Lead-acid battery

The Heavy Duty Tow Tractor is powered by a reliable and long-lasting lead-acid battery, ensuring it can operate for extended periods of time without interruption.

Intelligent control panel

Intelligent control panel

The intelligent control panel provides the operator with real-time information about the machine's performance, including battery level, speed, and other metrics, ensuring efficient and reliable operation.

Ergonomic handle

Ergonomic handle

The ergonomic handle provides the operator with a comfortable and secure grip, allowing for smooth and precise control over the machine.

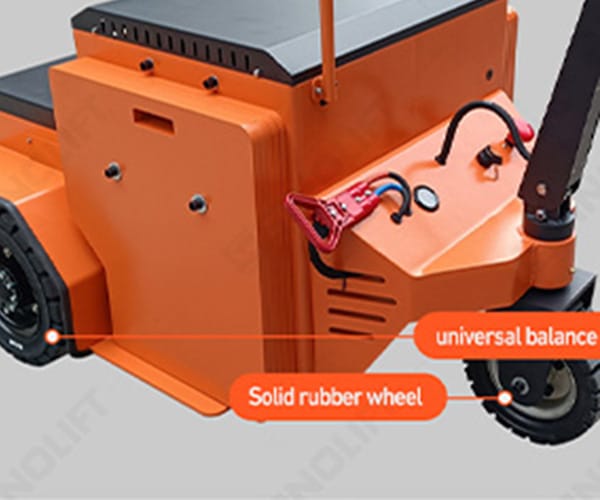

Wear-resistant solid rubber wheels

Wear-resistant solid rubber wheels

The wear-resistant solid rubber wheels provide good traction and stability, ensuring efficient and smooth movement over various terrain types, including smooth surfaces and inclined planes.

Media Gallery

FAQ

  • 1. What is an Electric Tug?

    Electric Tugs, which are also referred to as electric tows, electric pushers, pedestrian tugs, electric tuggers, tow tugs, powered tugs, electric tow tractors and load movers, are battery-powered machines that are specifically designed to move heavy loads. This usually involves the transportation of raw materials, high-value equipment and other items within industrial environments.

  • 2. How Do Electric Tugs Work?

    These machines work by securely connecting to the wheeled load that needs to be moved. They are pedestrian operated typically but can also be used remotely with a wireless transmitter, which offers benefits such as the operator being able to move away from the load and take up an ideal vantage point.Connection is possible to a wide range of items and long trains such as trailers, carts, dollies, or large platforms carrying loads, to make movement easy and efficient. Hydraulic systems are often used to maximise connection and load security. Autonomous Electric Tugs also form part of the MasterMover range, and they work by using sensors to detect hazards, and navigation systems to manage movement between locations.

  • 3. What’s the difference between an Electric Tug and a Forklift?

    A forklift truck is a well-known piece of equipment for moving loads, but is designed to lift and move packets and pallets, not pull or push wheeled loads. This is where pedestrian tugs – or more technologically advanced options – come in, moving loads at larger sizes and weights.

Optional Extras

  1. Industrial Pin:
    This heavy-duty pin is equipped with an r-clip, ensuring the secure movement of all types of loads and trollies. It is the ideal choice if your loads come with a hitching eye.
  1. Tow Ball:
    Our tow balls are designed to be attached to your mover, enabling the use of standard trailer hitches fitted onto your loads.
  1. Adjustable Double Sided Hook-ADSH:
    Our double-sided hook, adjustable to meet the standards of the user, comes with a simple channel and pin attachment. It is constructed with durability in mind for long-term use. Adjustable width tension placements and precise height adjustment ensure customized use.
  1. Rubber Bumper Attachment-RPB19:
    The rubber bumper attachment transforms the capabilities of our electric-powered tugger. It can be easily converted between a tugger and pusher, maximizing workplace utility. The bolt-on design makes it simple to remove or install, and the panel pattern style provides impact resistance when pushing heavy, large items. An extended mounting plate and wide rectangular design with pre-drilled mounting holes and installation hardware are included.
  1. Steel Spring Loaded Manual Channel Lift-MCLA:
    The easily attachable spring loaded channel lift comes with multiple ports, enabling the user to customize height and length and adapt to a variety of needs. Its robust construction ensures long-term use and it is adaptable to a range of heights.
  1. Steel Multi Mover-MM:
    Designed to manoeuvre products from area to area, the steel multi-mover attachment features a multiple length design that offers a range of uses. It can be easily attached to help push or pull items, and its simple channel and pin attachment, adjustable width tension placements, and precise height adjustment make it easy to use and customize.
  1. Steel Adjustable Single Side Hook Double Ball Hitch-SABH:
    This attachable ball hitch enables the user to utilize the electric-powered tug with a currently hitched item. Our durable, compact design includes a simple and easy placement process, ensuring maximum productivity with easy transfer. Its robust construction ensures long-term use in a variety of settings.
