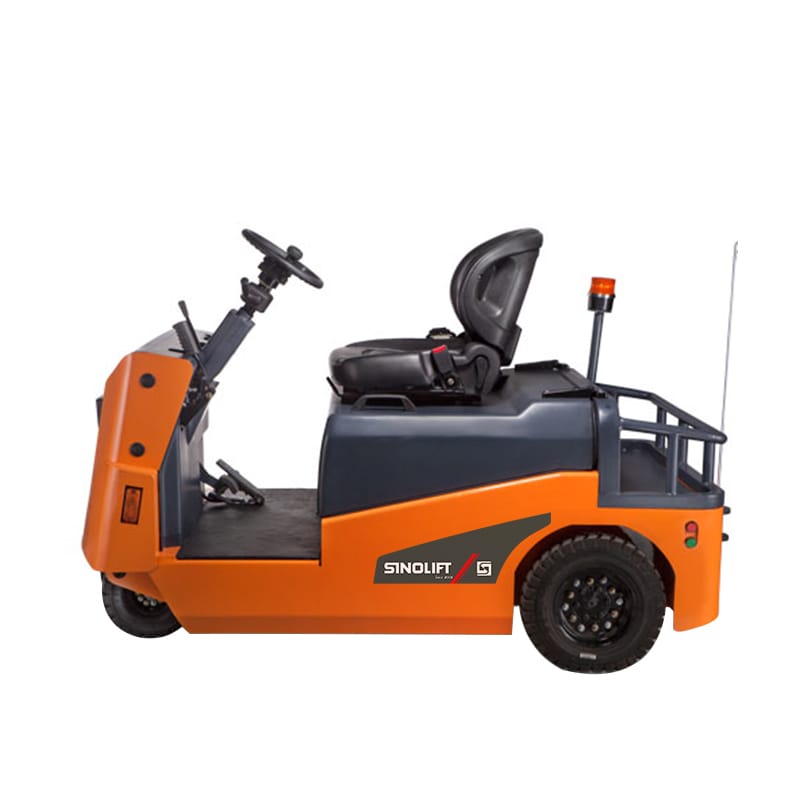

QD-40XT Rider Electric Tow Tractor

The SINOLIFT QDXT40 4-ton tow tractor is an incredibly versatile and maneuverable vehicle suitable for a range of industrial settings. It is an ideal choice for applications that require rapid and efficient transfer of multiple trailer loads.

This electric tow tractor is primarily used for towing and order packing, particularly for goods that move in continuous flow. With a loading capacity of up to 4,000kgs, the QDXT40 is a powerful towing tractor. Its advanced integrated drive and control system ensures reliable performance and high efficiency.

Contact Us
Download

Features

Operability & Performance:

  1. Transistor control system offers smooth acceleration, as well as improves battery efficiency.
  2. Three-wheel construction and a short wheelbase provide a tight turning radius for maximum maneuverability and control in confined work environments.
  3. Cargo rack allows operators to securely place packages onto the rear of the vehicle.
  4. Transversely mounted drive motor provides excellent power and grade ability.
  5. Center pin mounted front axle provides a smoother ride.

Parameters

1.1ManufacturerSINOLIFT
1.2Manufacturer’s type designationQD-40XT
1.3DriveBattery
1.4Operator type: hand, pedestrian, stand-on, seat-on, order-pickerSeat-on
1.5Load capacity/rated loadQ (t)4
1.7Rated drawbar pullF (N)≥F1000
1.9Wheelbasey (mm)±1%1231
2.1Dead weightkg±3%783
2.3Axle loading, unladen front/rearkg±3%279/504
3.1TyresPneumatic tire
3.2Tyre size, frontØ x w(mm)3.50-5-6PR
3.3Tyre size, rearØ x w(mm)4.00-8-6PR
3.5Wheels, number front/rear (x = driven wheels)1/2x
3.6Tread , frontb10 (mm)±2%245
3.7Tread , rearb11 (mm)±2%744
4.7Height of overhead guard(cabin)h6 (mm)±1%1232
4.8Seat height relating to SIP/stand heighth7 (mm)816/412
4.12Coupling heighth10 (mm)±2%283/333/358/408
4.19Overall lengthl1 (mm)±1%1876
4.21Overall widthb1/b2 (mm)±1%860
4.32Ground clearance, centre of wheelbasem2 (mm)-5%92
4.33Load dimension b 12 × l 6 crosswaysb 12 × l 6 (mm)1447
4.35Turning radiusWa (mm)≤Wa1590
5.1Travel speed, laden/unladenkm/h± 10 %7/13
5.5Drawbar pull,laden/unladenN1000
5.6Max. drawbar pull, laden/unladenN4000
5.7Gradeability, laden/unladen%5.6/14
5.1Service brakeHydraulic
6.1Drive motor ratingkW4
6.3Battery according to DIN 43531/35/36 A,B,C,noSpecial case
6.4Battery voltage/nominal capacityV/Ah24/280
6.5Battery weightkg285
8.1Type of drive controlAC
10.7NoisedB (A)< 70



Structural Drawings

Structural Drawings

Product Details

Traction mechanism

Traction mechanism

The drivers can operate the traction mechanism without getting off the tugger, thus improving working efficiency.

Side loading and unloading of storage battery

Storage battery

Side loading and unloading of storage battery can effectively reduce the changing time of batteries so that the maintenance and changing of batteries can be more convenient.

Regenerative braking

Regenerative braking

This tugger adopts regenerative braking which can generate highly efficient and powerful braking force, thus shortening braking length of the tugger. This can be a compensation of poor braking effect caused by brake pad wear of pure mechanical brake.

suspension seat

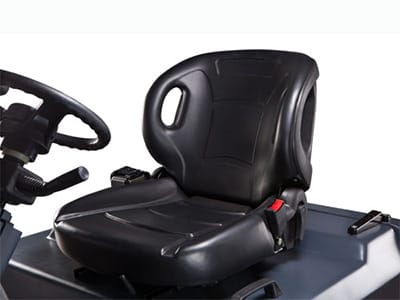

Suspension seat

Heavy duty suspension seat with arms, multi-angle back support, sliding base and safety belt contribute to the improvement of overall comfort and safety of operator.

Media Gallery

FAQ

  • 1. How to select the ideal pallet jack battery

    Selecting the right pallet jack battery can prove to be a daunting task. The process involves taking into account numerous factors that could significantly impact your business's bottom line. These factors include battery options available, the size and shape of the battery, budget, and differences between top brands, cycle life, and charging speed. Choosing the wrong battery can result in financial losses and decreased efficiency. It is, therefore, crucial to comprehend the factors that directly influence your business operations and streamline them to improve productivity while reducing labor costs.

  • 2. What battery type does your pallet jack require?

    Powered pallet jacks are often used in warehouses to lift single or stacked heavy pallets easily. These jacks feature a throttle that navigates the jack forwards and backward with forks to move around massive and weighty items. Powered pallet jacks usually run on 24 volts and require high-powered batteries that guarantee efficient functioning while minimizing downtimes.

  • 3. How long does a pallet jack battery last?

    Typically, a pallet jack battery can last for about 3-5 years.

Optional Extras

Customizable cabins:

Seated Tow Tuggers often have customizable cabins, with options such as a semi-closed cabin, fully-enclosed driver’s cabin, cabin with heater or air conditioner, and more, depending on the specific application.

Lithium battery:

Seated Tow Tuggers are often equipped with a powerful lithium battery, which provides long-lasting power and faster charging times than traditional lead-acid batteries.

Inching switch:

The machine has an inching switch that enables the operator to move the machine slowly and precisely, which is especially useful when maneuvering in tight spaces.

Battery side roll-out:

Seated Tow Tuggers have batteries that can be easily removed from the side of the machine, which makes maintenance and replacement quick and easy.

Reflecting mirror:

The machine has a reflecting mirror that provides the operator with a clear view of the towing area, enhancing safety.

Alarm lamp:

Seated Tow Tuggers often have an alarm lamp that alerts others in the area of its presence, enhancing safety.
