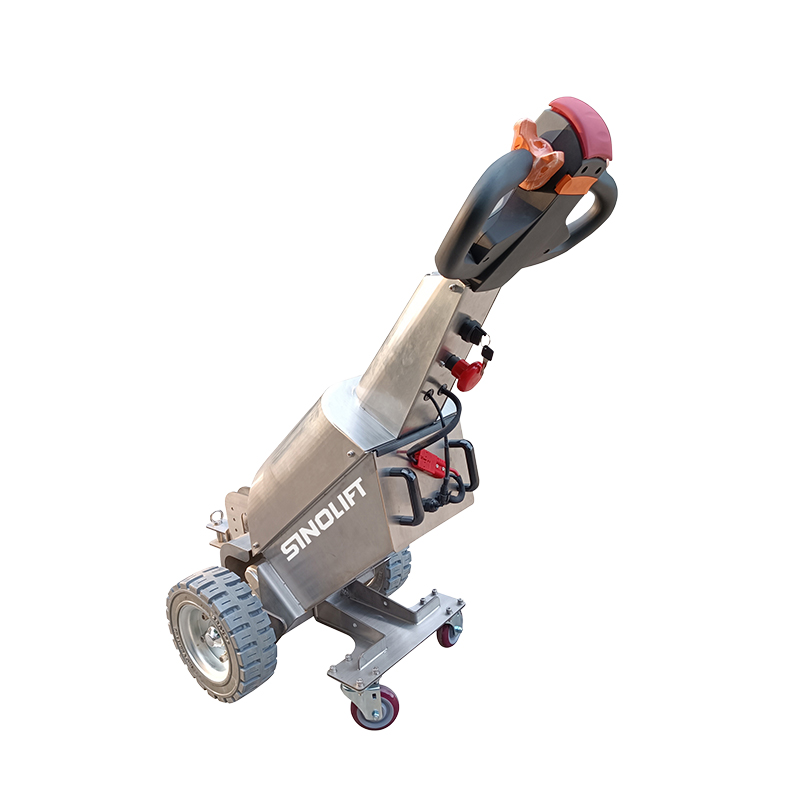

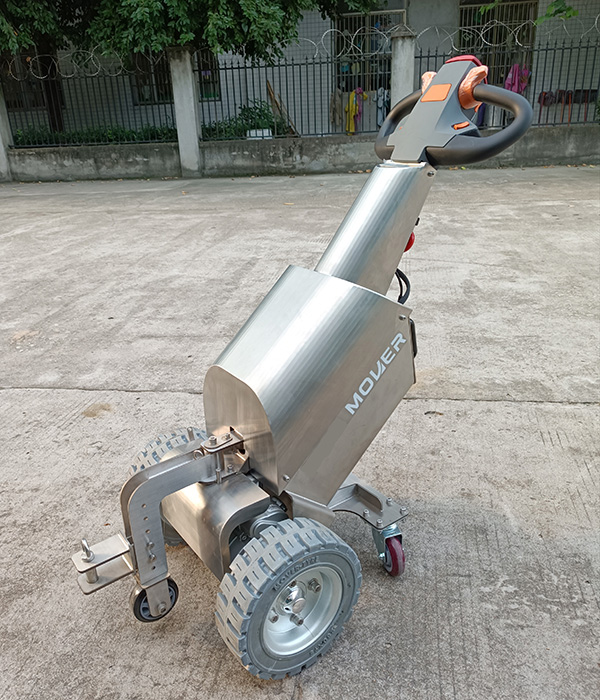

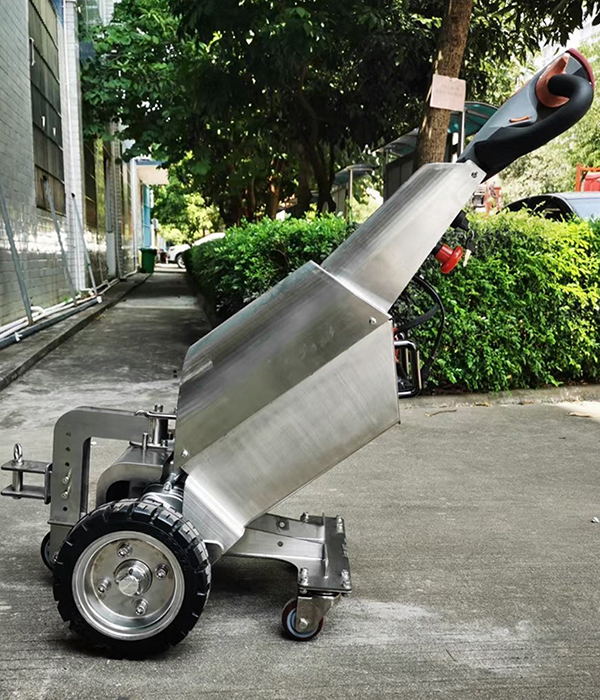

ML100S ML150S Mini Walkie Electric Tugger
Enhance your company’s efficiency and maintain strict hygiene requirements by utilizing the ML100S and ML150S Basic clean-room electric tugs. These user-friendly and effortless tools make moving heavy trolleys a breeze.
With their durable stainless steel construction, they provide reliable and long-lasting service in environments that are prone to corrosion. Not only do they reduce the strain on employees, but they also promote a healthier and more productive work environment. Upgrade your business today with the ML100S and ML150S Hygienic stainless steel powered tug.
Features
Parameters
| Max traction weight | kg | 1000 | 1500 |
| Rated pulling force | N | 300 | 500 |
| Truck weight（with battery） | kg | 105 | 115 |
| Battery weight | kg | 15 | 15 |
| Tire type,Drive wheel/Supporting wheel | Rubber/PU | Rubber/PU | |
| Overall height | mm | 1075 | 1075 |
| Height of tiller in drive position | mm | 1010 | 1010 |
| Hook height | mm | 170/290 | 170/290 |
| Overall length | mm | 1080 | 1080 |
| Overall width | mm | 510 | 680 |
| Ground clearance | mm | 100 | 100 |
| Turning radius | mm | 780 | 800 |
| Drive speed load/unload | km/h | 3～4 | 3～4 |
| Rated pulling force | N | 300 | 500 |
| Max pulling force | N | 500 | 750 |
| Max gradeability load/unload | % | 5 | 5 |
| Drive motor rating S2 60min | kw | 0.8 | 1 |

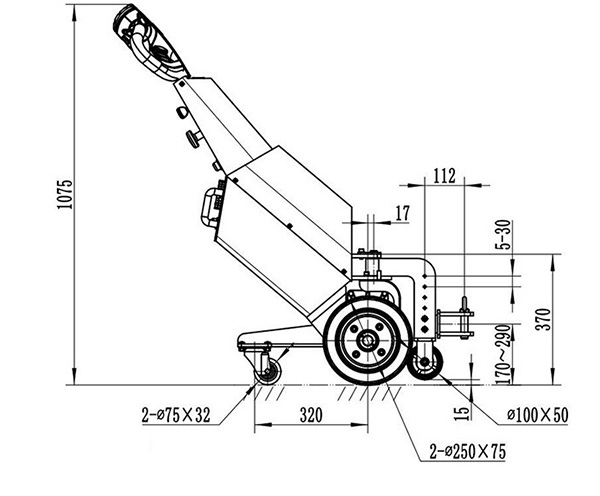

Structural Drawings

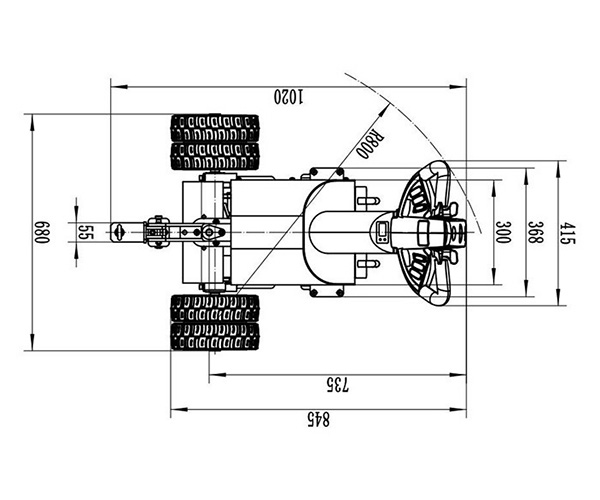

Structural Drawings
Product Details
Intelligent panel
The intelligent panel provides information about the machine's status and performance, including battery level, speed, and other metrics, ensuring efficient and reliable operation.
Multi-function control handle
The multi-function control handle allows the operator to control the movement of the machine with ease, including speed and direction, enhancing operator control and safety.
Durable solid rubber tire
The durable solid rubber tire provides good traction and stability, ensuring efficient and smooth movement over various terrain types, including smooth surfaces and inclined planes.
Media Gallery
FAQ
1. What is a stainless steel powered tug?
These powered tugs have the capability to transport up to 1 ton of weight, and they have been specifically designed to endure the humid and sanitised environment of a commercial bakery. Their tough, stainless steel construction also guarantees hygiene standards are met in food manufacturing facilities. Moreover, the tug has an ergonomic design, which ensures the operator has an unobstructed view of their surroundings to avoid collisions with equipment, staff, walls, or doorways.2. What are Electric Tow Tractors Not Designed For?
Forklifts are the go-to solution for vertical lifting and stacking tasks. Designed to handle loads at varying heights, forklifts are essential in warehouses, distribution centers, and construction sites. Their ability to lift heavy loads and place them on racks or shelves makes them a versatile tool in environments where space optimization is crucial.3. Why do we use Stainless Steel Push/Pull Tug ?
This tug has improved not only safety in the workplace but also efficiency. It can now be effortlessly operated by a single operator, as opposed to the 2-3 person effort required before. Additionally, the tug is fitted with a built-in rechargeable battery and an electric drive system. It also features solid tyres for enhanced durability and has a stainless steel finish, making it ideal for use in hygiene safe areas.
Optional Extras

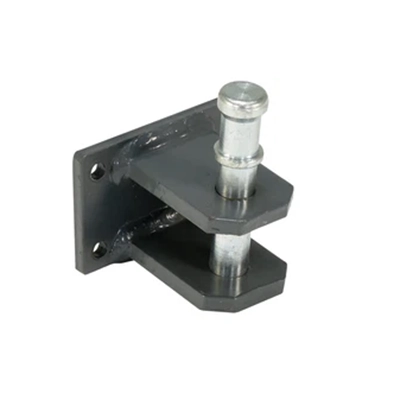

- Industrial Pin:
This heavy-duty pin is equipped with an r-clip, ensuring the secure movement of all types of loads and trollies. It is the ideal choice if your loads come with a hitching eye.

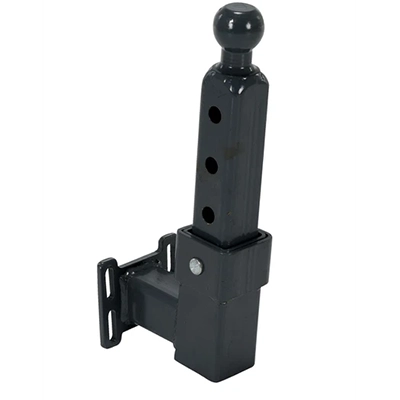

- Tow Ball:
Our tow balls are designed to be attached to your mover, enabling the use of standard trailer hitches fitted onto your loads.

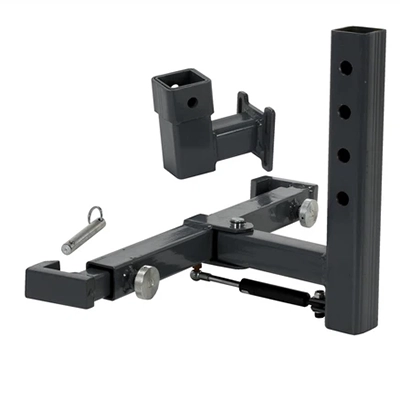

- Adjustable Double Sided Hook-ADSH:
Our double-sided hook, adjustable to meet the standards of the user, comes with a simple channel and pin attachment. It is constructed with durability in mind for long-term use. Adjustable width tension placements and precise height adjustment ensure customized use.

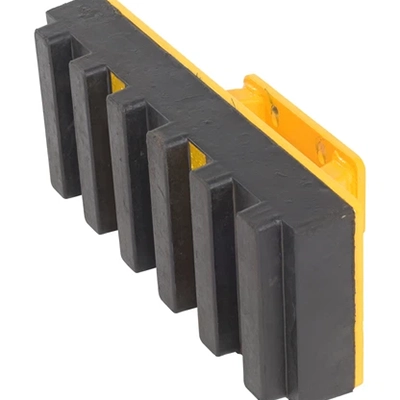

- Rubber Bumper Attachment-RPB19:
The rubber bumper attachment transforms the capabilities of our electric-powered tugger. It can be easily converted between a tugger and pusher, maximizing workplace utility. The bolt-on design makes it simple to remove or install, and the panel pattern style provides impact resistance when pushing heavy, large items. An extended mounting plate and wide rectangular design with pre-drilled mounting holes and installation hardware are included.

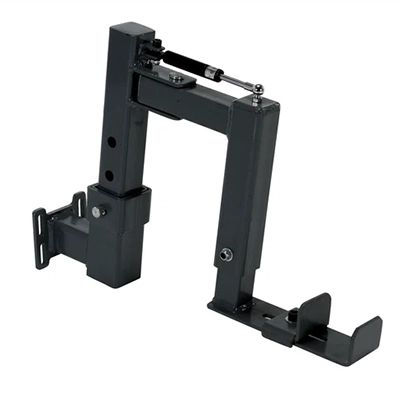

- Steel Spring Loaded Manual Channel Lift-MCLA:
The easily attachable spring loaded channel lift comes with multiple ports, enabling the user to customize height and length and adapt to a variety of needs. Its robust construction ensures long-term use and it is adaptable to a range of heights.

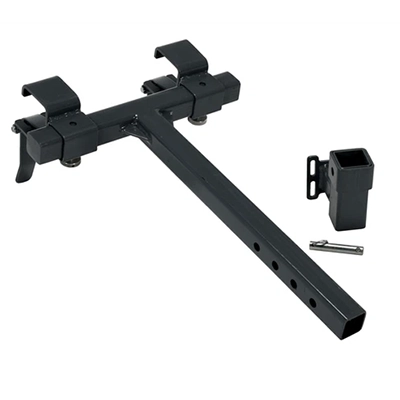

- Steel Multi Mover-MM:
Designed to manoeuvre products from area to area, the steel multi-mover attachment features a multiple length design that offers a range of uses. It can be easily attached to help push or pull items, and its simple channel and pin attachment, adjustable width tension placements, and precise height adjustment make it easy to use and customize.

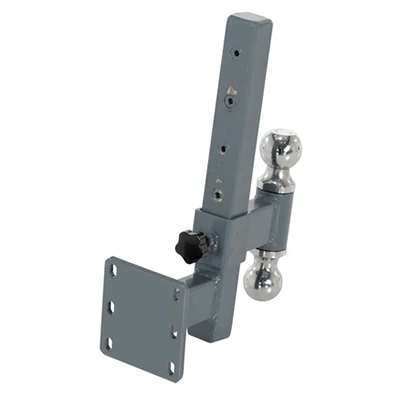

- Steel Adjustable Single Side Hook Double Ball Hitch-SABH:
This attachable ball hitch enables the user to utilize the electric-powered tug with a currently hitched item. Our durable, compact design includes a simple and easy placement process, ensuring maximum productivity with easy transfer. Its robust construction ensures long-term use in a variety of settings.
