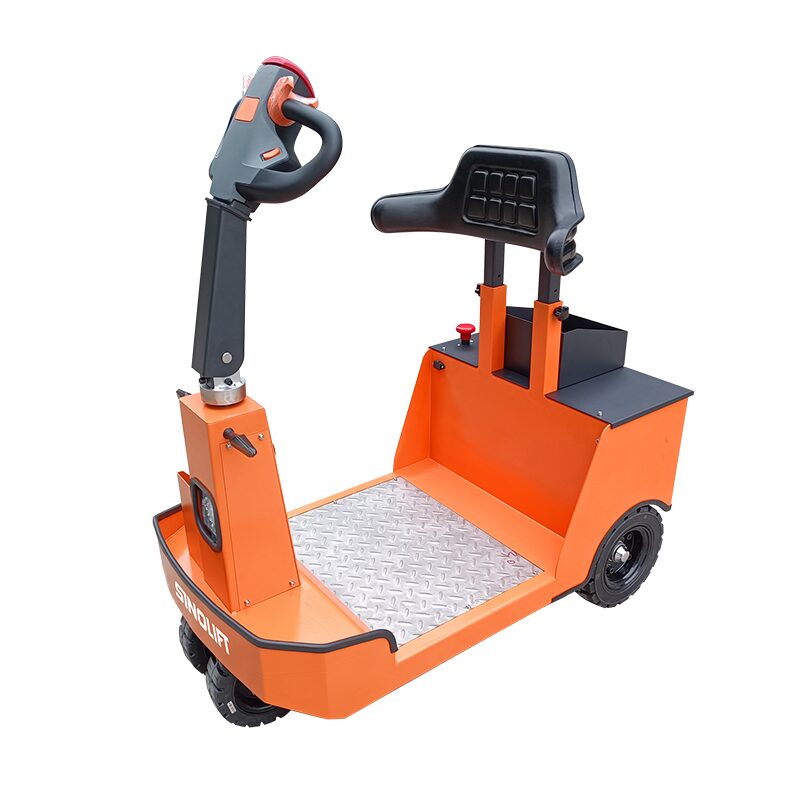

ML150B ML200B ML300B Stand-on Electric Tow Tractor
ML150B ML200B ML300B Stand-on Electric Tow Tractor
ML150B ML200B ML300B Stand-on Electric Tow Tractor

ML150B ML200B ML300B Stand-on Electric Tow Tractor

Designed for efficiency and versatility, these stand-on electric tow tractors handle loads ranging from 1500 to 3000 kg with ease. Their compact build and non-marking wheels make them ideal for indoor applications, ensuring floors stay spotless and free from scuffs.

For enhanced safety and precise control, an optional steering speed retarder is available. Additionally, a variety of standard and customizable hooks can be tailored to suit your specific requirements, making these tractors a reliable and adaptable choice for diverse towing tasks.

Contact Us
Download

Features

ML150B ML200B ML300B Stand-on Electric Tow Tractor

Capable of effortlessly handling loads up to 1500-3000 kg, these tractors offer unparalleled versatility and compactness. Featuring non-marking wheels, they are perfect for indoor use without leaving any unsightly scuff marks.

To ensure maximum safety and control, we’ve included the option of a steering speed retarder. Plus, with a wide range of standard or customizable hooks available upon request, you can customize your tractor to meet your unique needs.

Parameters

ModelML-150BML-200BML-350B
Capacitykg150020003500
Rated pulling forceN4507001100
Truck weight（with battery）mm240270330
Overall heightmm136013601360
Height of tiller in drive positionmm104010401040
Overall lengthmm136013601405
Overall widthmm720720790
Ground clearancemm150150150
Turning radiusmm120012001250
Drive speed load/unloadkm/h4/64/64/6
Charger (external)V/A24/1024/1024/15
BatteryV/Ah2*12/662*12/862*12/107

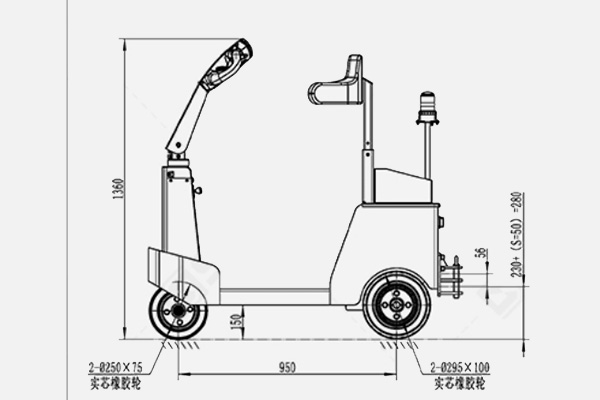

Structural Drawings

Structural Drawings

Structural Drawings

Structural Drawings

Product Details

Lead-acid battery

Lead-acid battery

The lead-acid battery provides reliable and long-lasting power to the machine, ensuring it can operate for extended periods of time without interruption.

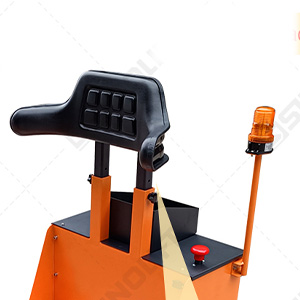

Ergonomic backrest

Ergonomic backrest

The ergonomic backrest provides the operator with a comfortable seating position, reducing strain and fatigue during long periods of operation.

Handle

Handle

The handle provides the operator with a comfortable and secure grip, allowing for smooth and precise control over the machine.

Intelligent panel

Intelligent panel

The intelligent panel provides the operator with real-time information about the machine's performance, including battery level, speed, and other critical metrics.

Media Gallery

FAQ

  • 1. What are the types of electric tow tractors?

    Electric tow tractors usually use a DC electric motor that draws energy from the battery and can be recharged. These vehicles usually have a maximum speed of less than 30km/h and their towing capacity ranges from 02 to 07 tons. However, there are some special electric tow tractors with towing capacity up to 40 tons.Electric tow tractors are designed for indoor use because they do not emit exhaust fumes. They are classified according to the driver’s driving position: pedestrian tow tractor, stand on tow tractor, seated tow tractor.

  • 2. What is the application of electric tow tractors?

    Tow tractors are designed for stable mobility on hard floors and even uneven surfaces, so they are the perfect solution for transporting equipment, goods, and materials effectively on the ground.Tractors are often used to tow trailers and wagons outside of the warehouse, factories,… Because warehouses and factories are often very large and full of goods and equipment, it will make transportation easier and more efficient.Some equipment, materials or goods are too large and too heavy to carry, creating difficulties in transportation. Electric tow tractors make transportation easier, thereby helping workers move goods and equipment more easily.

  • 3. What is the purpose of towing?

    Towing companies play a crucial role in rescuing stranded motorists, transporting disabled vehicles, and providing much-needed support in times of distress.

Optional Extras

Customizable cabins:

Seated Tow Tuggers often have customizable cabins, with options such as a semi-closed cabin, fully-enclosed driver’s cabin, cabin with heater or air conditioner, and more, depending on the specific application.

Lithium battery:

Seated Tow Tuggers are often equipped with a powerful lithium battery, which provides long-lasting power and faster charging times than traditional lead-acid batteries.

Inching switch:

The machine has an inching switch that enables the operator to move the machine slowly and precisely, which is especially useful when maneuvering in tight spaces.

Battery side roll-out:

Seated Tow Tuggers have batteries that can be easily removed from the side of the machine, which makes maintenance and replacement quick and easy.

Reflecting mirror:

The machine has a reflecting mirror that provides the operator with a clear view of the towing area, enhancing safety.

Alarm lamp:

Seated Tow Tuggers often have an alarm lamp that alerts others in the area of its presence, enhancing safety.
