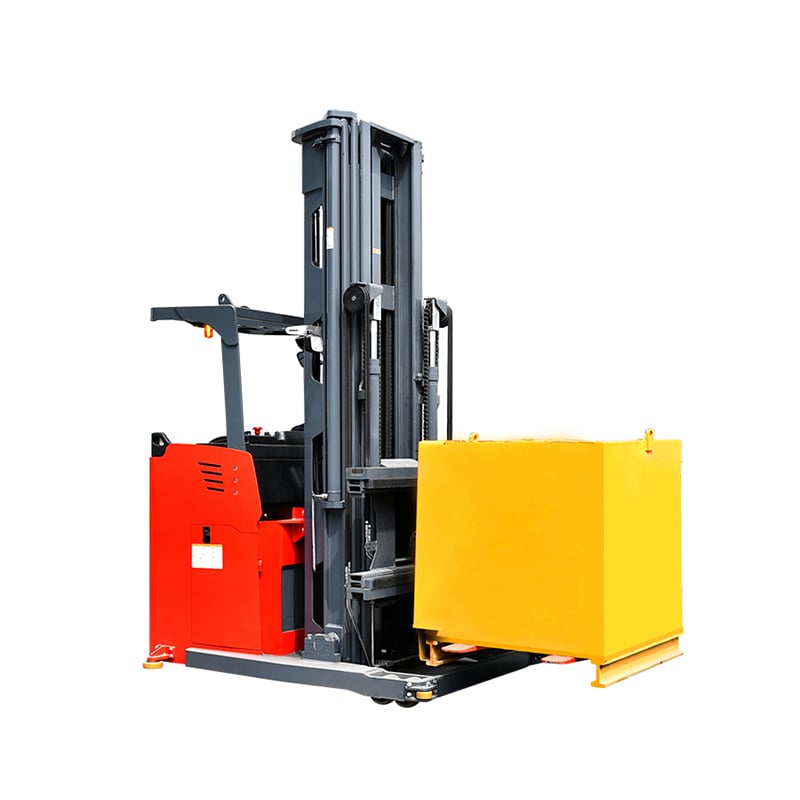

MC series 1.2-1.6 Ton 3-Way VNA Truck
The SINOLIFT MC Series Stand-on 3-Way Pallet Stacker is specifically engineered to maximize your warehouse capacity by operating efficiently in ultra-narrow aisles. Featuring an innovative 180-degree rotating and side-shifting fork design, it allows operators to stack and retrieve goods from both sides of the racking without ever needing to turn the vehicle. Supported by an impressive lifting height of up to 10 meters and a high-definition vision system, it ensures safe, precise, and stable handling even at extreme elevations. Combining ergonomic driving comfort with robust power, it is the ideal solution for inventory picking and dense storage management in mid-to-high level warehousing environments.
Features
Optimize your high-density storage with the SINOLIFT MC Series Stand-on VNA Turret Truck, expertly engineered to maximize warehouse capacity. Designed for ultra-narrow aisles as tight as 1.6 meters, this man-down 3-way stacker features an innovative 180-degree rotating and side-shifting fork mechanism. This allows operators to load and unload goods on both sides of the racking without turning the vehicle. Reaching an impressive 10-meter lift height with zero capacity loss up to 6 meters, it guarantees stability and robust power. A standard high-definition fork camera ensures precise, safe stacking at extreme elevations. Combined with intuitive controls and ergonomic body supports, it minimizes operator fatigue, delivering unparalleled efficiency for your demanding intralogistics operations.
Parameters
| Manufacturer | SINOLIFT | SINOLIFT | SINOLIFT | SINOLIFT | |
| Model | MC12 | MC12SQ | MC16 | MC16SQ | |
| Power Type | Battery | Battery | Battery | Battery | |
| Load capacity | Q(kg) | 1200 | 1200 | 1600 | 1600 |
| Load Center Distance | C(mm) | 550 | 550 | 600 | 600 |
| Overall length | l1(mm) | 2940 | 2940 | 3020 | 3020 |
| Overall width | b1(mm) | 1475[1] | 1475[1] | 1575[1] | 1575[1] |
| Fork dimensions | l/e/s(mm) | 1100/125/50 | 1100/125/50 | 1200/125/50 | 1200/125/50 |
| Turning radius | Wa(mm) | 1910 | 1910 | 1980 | 1980 |
| Main aisle width | Wa(mm) | ≥(3350+350)[3] | ≥(3350+350)[3] | ≥(3450+350)[3] | ≥(3450+350)[3] |
| Drive motor, rating S2=60 | kW | 5.5 AC | 5.5 AC | 5.5 AC | 5.5 AC |
| Lift motor, rating S3=15% | kW | 15 AC | 15 AC | 15 AC | 15 AC |
Product Details
01. 180° Rotating & Side-Shifting Forks
Featuring a 180-degree rotation and side-shift mechanism, the forks offer ultimate flexibility. Operators can seamlessly stack and unload goods on both sides of the racking without ever needing to steer the vehicle body within the narrow aisle.
02. High-Definition Vision System
A high-definition fork camera system comes equipped as a standard feature, providing a crystal-clear and expanded field of view. This visual aid ensures that high-elevation stacking operations remain both exceptionally safe and highly efficient.
03. Ergonomic Body Support
The truck features thoughtfully designed backrests, leg cushions, and armrests. This comprehensive ergonomic support minimizes physical strain, drastically reducing operator fatigue during demanding, long-duration shifts.
04. Intuitive Control Layout
All control levers, the dashboard, and operational switches are arranged according to strict ergonomic principles. This intuitive layout places everything right at the driver's fingertips, significantly enhancing both comfort and handling flexibility.
Media Gallery
FAQ
Q1: What are the floor surface requirements for operating this VNA turret truck effectively?
A1: To maximize safety and performance at high elevations, your warehouse floor must be exceptionally flat and level. Even minor floor variations can be magnified when the mast is fully extended to 10 meters, potentially causing instability. We highly recommend floors that meet the Super Flat (F-min) standards typical for VNA applications. This ensures smooth lateral movements and protects your racking infrastructure.Q2: Can the MC Series integrate with existing warehouse navigation or guidance systems?
A2: Yes, absolutely. The truck offers an optional magnetic navigation mode to keep the vehicle perfectly centered within ultra-narrow aisles. It automatically assumes steering control once engaged. This feature significantly reduces operator fatigue while minimizing the risk of accidental collisions with your expensive inventory.Q3: How steep is the learning curve for operators transitioning from standard counterbalance forklifts?
A3: Transitioning requires specialized training, but our ergonomic design makes it highly intuitive. Since the fork rotates independently, operators must unlearn the habit of turning the entire vehicle to stack pallets. Our high-definition vision system acts as a reliable guide during this critical learning phase. Ultimately, most experienced drivers adapt to the man-down turret operations within just a few days of focused practice.Q4: How demanding is the maintenance for the 180-degree rotating turret head?
A4: The turret head is robustly built. However, it does require more precise and regular maintenance than a conventional forklift mast. Routine lubrication of the rotation gears and careful inspection of the specialized hydraulic lines are critical to prevent sudden downtime. Thanks to the wide-opening engine hood and accessible modular components, your technical team can easily perform these routine checks without complex disassembly tools.Q5: Beyond just fitting into narrow aisles, how does this turret truck impact overall warehouse ROI?
A5: It fundamentally transforms your storage potential. By shrinking aisle widths down to just 1.6 meters, you can add significantly more pallet positions within your existing warehouse footprint. This eliminates the urgent need for costly building expansions or off-site storage rentals. Furthermore, the ability to pick and stack from both sides without repositioning the truck slashes handling times, delivering a remarkably fast return on your equipment investment.
Optional Extras
Auto-Guidance Aisle Mode
Activate this mode to automatically and precisely steer the forklift through extremely narrow aisles using advanced tracking sensors. By taking over the steering control, it minimizes the risk of rack collisions and allows the operator to focus entirely on productive lifting and pallet handling.
Height Preselection
This intelligent feature allows the operator to automatically raise or lower the forks to pre-programmed rack levels with pinpoint accuracy. It eliminates the need for manual, visual height adjustments, thereby accelerating cycle times and significantly reducing driver fatigue.
One-Touch Fork Synchronization
Streamline your material handling process with a single button that automatically coordinates the complex rotation and lateral traversing movements of the turret head. This seamless synchronization ensures swift, safe, and effortless pallet retrieval and storage in confined spaces.
Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.
Blue spot light
The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.
Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.
Forklift Wireless Cameras
Forklift wireless cameras enhance safety and efficiency by providing real-time visual feedback to operators. These cameras offer a clear view of blind spots, load positioning, and surrounding areas, reducing the risk of accidents and improving load handling accuracy. Easy to install and compatible with most forklifts, they are ideal for busy warehouses, tight spaces, and high-traffic environments. With durable designs and wireless connectivity, they ensure reliable performance and seamless integration into your operations.
Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.
Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.
Cold Store Modification and Cabin
Designed for extreme cold storage environments, this electric pallet truck features specialized cold-store oil, anti-slip platforms, and heated batteries to ensure reliable performance in low-temperature conditions. Enhanced with robust insulation and durable components, it maintains efficiency and durability even in harsh, freezing environments. The truck’s cabin is specifically built to withstand cold storage applications, offering improved operator comfort and safety while maximizing operational efficiency in demanding conditions.
Drive in rack overhead guard
The drive-in rack overhead guard is specifically designed for narrow aisle operations, providing protection and clearance when working in high-density storage environments. It ensures safety and maneuverability in tight spaces.
Fork weighing system
The fork weighing system provides real-time weight measurements of the load, ensuring safe handling and preventing overloading. It helps operators comply with safety standards and avoid equipment damage.
DC/DC converter
The DC/DC converter ensures stable power supply to auxiliary systems, enhancing the reliability and functionality of the truck’s additional features. It supports the seamless operation of electronic components.
