ECR Electric Hydraulic Roll Lifter
ECR Electric Hydraulic Roll Lifter for Wide Media Rolls for Printing/Textile Factories

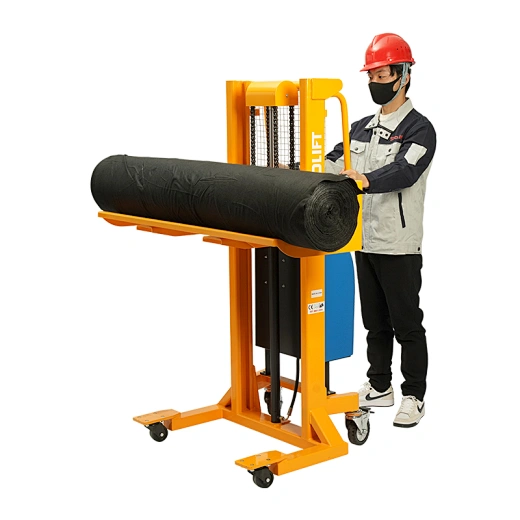

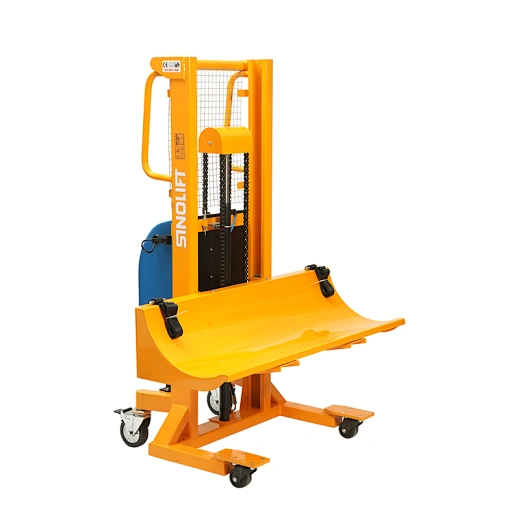

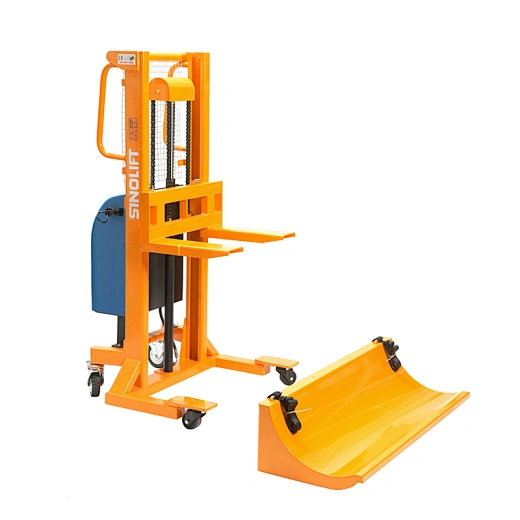

The Sinolift ECR Electric Hydraulic Roll Lifter is designed for effortless handling of large, heavy rolls (up to 450kg) in printing, packaging, and textile industries. Its 12V DC motor and electric hydraulic system ensure smooth, one-person operation, while high-resistance steel construction guarantees durability. The removable curved panels and nylon safety straps secure rolls (max. 500mm diameter, 5000mm width), preventing damage during transport. Ideal for workshops needing safe, efficient roll movement without manual strain.
Features
- Powerful 600kg Capacity
Handles heavy rolls up to 500mm diameter and 5000mm width with robust steel construction for industrial durability. - Effortless Electric Hydraulic Operation
12V DC motor enables smooth one-button lifting, eliminating manual labor and boosting productivity. - Enhanced Safety Features
Includes non-slip platform, locking brakes and safety straps for secure load handling. - Excellent Maneuverability
360° swivel casters allow easy movement and precise positioning in tight spaces. - Low-Maintenance Design
Sealed hydraulic system and maintenance-free battery ensure reliable operation with minimal upkeep.
Parameters
| Model | ECR6008 | ECR6015 | ECR6018 | ||
| Vendor export code | 63290 | 63292 | 63292 | ||
| Roll load capacity | kg(lbs) | 600(1320) | 600(1320) | 600(1320) | |
| Load center | C | mm(inch) | 395(15.55″) | 395(15.55″) | 395(15.55″) |
| Bottom fork clearance | H2 | mm(inch) | 110(4.33″) | 110(4.33″) | 110(4.33″) |
| Max. lifting height | H | mm(inch) | 850(33.5″) | 1500(58.95″) | 1800(70.87″) |
| Max. roll diameter | 2R | mm(inch) | 500(19.6″) | 500(19.6″) | 500(19.6″) |
| Max. roll width | m(ft’ inch”) | 5(16’5″) | 5(16’5″) | 5(16’5″) | |
| Width x depth | Wx L | mm(inch) | 1200(47.24″)x777(30.58″) | 1200(47.24″)x777(30.58″) | 1200(47.24″)x777(30.58″) |
| Machine height | H1 | mm(inch) | 1194(47″) | 1555(61.22″) | 1855(73″) |
| Load wheel | mm(inch) | Φ75×46(Φ3″x1.81″) | Φ75×46(Φ3″x1.81) | Φ75×46(Φ3″x1.81) | |
| Rear wheel | mm(inch) | Φ125X40(Φ5″x1.57″) | Φ125X40(Φ5″x1.57″) | Φ125X40(Φ5″x1.57″) | |
| Battery | V/ Ah | 12/60 | 12/60 | 12/60 | |
| Charger | V/A | 12/10 | 12/10 | 12/10 | |
| Weight | kg(lbs) | 140(308) | 170(375) | 200(440) |
Product Details
1. Roller Ball Tray
It is designed to allow operators to easily load rolls on/off the tray and feed rolls into their machines. The smooth-rolling ball bearings ensure effortless positioning of heavy media rolls for precise machine feeding.
2. Key-Controlled Power
With the push of a button, the power Jumbo easily lifts and lowers. This intuitive operation eliminates manual strain, enabling safe and efficient handling of heavy loads.
3. Built-in Charger
The powerful 12-volt DC motor makes lifting effortless, and the built-in charger allows the lifter to be charged easily. Convenient charging ensures uninterrupted workflow, keeping the lifter ready for continuous use.
4. Maintenance-Free Battery
The VARTA maintenance-free battery boasts exceptional performance that is both reliable and long-lasting. Designed for durability, it reduces downtime and eliminates the need for frequent battery upkeep.
Media Gallery
FAQ
1. What types of materials can the ECR Electric Hydraulic Roll Lifter handle?
The ECR lifter is designed to safely transport various rolled materials including paper, textiles, plastics, and thin metal foils. Its adjustable curved panels and nylon straps accommodate different material types without causing surface damage. This makes it ideal for printing, packaging, and manufacturing industries where delicate materials need careful handling.2. How does the electric hydraulic system improve work efficiency?
The 12V DC electric hydraulic system eliminates strenuous manual pumping required by traditional lifters. It provides smooth, controlled lifting and lowering at the push of a button, significantly reducing operator fatigue. This automation allows faster material handling while maintaining precision in positioning heavy rolls.3. What safety features does this roll lifter include?
The ECR lifter incorporates multiple safety features including step-on locking brakes, non-slip surfaces, and reinforced nylon safety straps. The low-center-of-gravity design prevents tipping during operation, while the maintenance-free battery eliminates acid leakage risks. These features combine to create a secure working environment when handling heavy loads.4. How easy is it to maneuver the lifter in tight workshop spaces?
Despite its robust construction, the ECR lifter features heavy-duty swivel casters with 360° rotation for excellent maneuverability. The compact design allows navigation through standard warehouse aisles, while the balanced weight distribution ensures stable movement. Operators can easily position loads within millimeter precision even in confined areas.5. What maintenance does the ECR Roll Lifter require?
The lifter is designed for minimal maintenance with its sealed hydraulic system and maintenance-free battery. Regular visual inspections of straps and casters, along with occasional cleaning of rolling components are recommended. The durable powder-coated finish resists corrosion, reducing long-term upkeep needs compared to traditional lifters.
Optional Extras
Different lifting heights
We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.
Industrial Smart Charger (Optional)
This advanced charging system features automatic self-recovery function and real-time LED status monitoring. Multi-color indicator lights clearly display charging progress and fault alerts for 24V battery packs.
Integrated Digital Scale
Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.
Silent Caster Kit
Upgrade to our ultra-quiet rolling system featuring noise-dampened polyurethane treads and precision ball bearings, reducing operational noise below 50dB. Ideal for hospital, laboratory, and office environments where noise control is critical.
Reel Presence Limit Switch (Optional)
Ensure operational safety with our industrial-grade limit switch, featuring non-contact magnetic sensing for reliable reel position detection. The IP67-rated housing with dual-color LED indicators provides instant visual status feedback during loading/unloading cycles.
24-Volt D.C. power lift
AC powered lift, pneumatic lift or air over hydraulic lift
Duplex Twin Chain Drive
This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.
Front Swivel Casters
Upgrade your roll lifter with heavy-duty front swivel casters for effortless 360° maneuverability in tight spaces. These lockable casters provide smooth mobility during transport while ensuring stability when positioned. Perfect for navigating narrow aisles in print shops or warehouses.
