EPT15R EPT20R EPT50R series Pedestrian Electric Roll Pallet Truck
EPT15R EPT20R EPT50R Pedestrian Electric Roll Pallet Truck

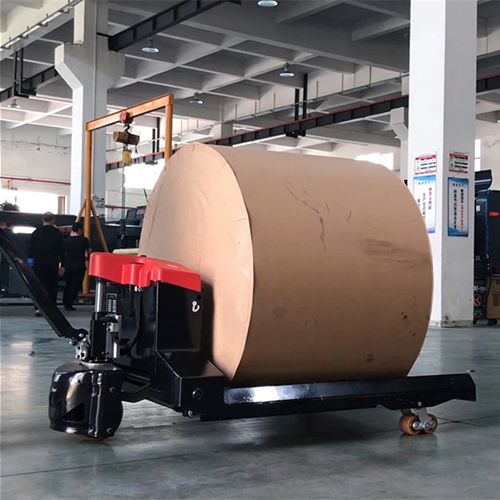

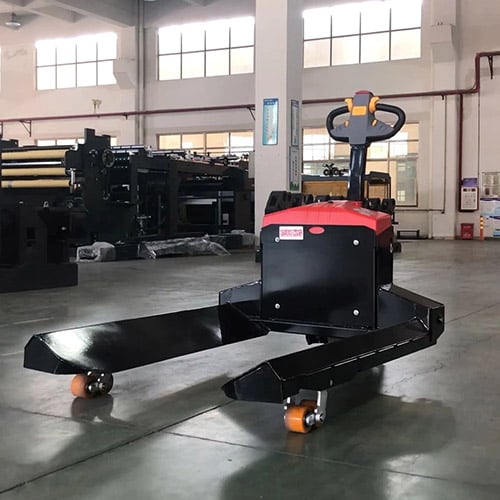

The EPT-R Series Electric Roll Pallet Truck (EPT15R/EPT20R/EPT50R) is designed for effortless and safe handling of heavy cylindrical loads like paper reels, textile rolls, polymer rolls, and carpets. Its ergonomic electric operation eliminates manual strain, while the robust steel construction ensures long-term durability in demanding environments. Ideal for warehouses, construction sites, and manufacturing plants, this truck offers the most cost-efficient roll-handling solution with precise control and smooth mobility. Certified for quality and performance, it simplifies transporting heavy materials like cement bags, bricks, or industrial rolls—boosting productivity with minimal effort.
Features
If you regularly handle paper rolls, textiles, carpets, or industrial reels, the EPT15R, EPT20R, and EPT50R Electric Roll Pallet Trucks can simplify your workflow. These trucks are designed to move heavy cylindrical loads safely and efficiently, reducing manual labor and minimizing damage to goods.
Key Benefits for Your Business:
Easier Loading/Unloading – Fits standard roll sizes, keeping them stable during transport.
Saves Labor & Time – Electric operation reduces physical strain on workers.
Compact & Maneuverable – Works well in tight warehouse or factory spaces.
Durable for Daily Use – Steel construction withstands heavy loads without frequent
Parameters
| Model | EPT-A | EPT-B | EPT-C | EPT-D | EPT-E | EPT-F | |
| Capacity | kg | 1500/2000/5000 | |||||

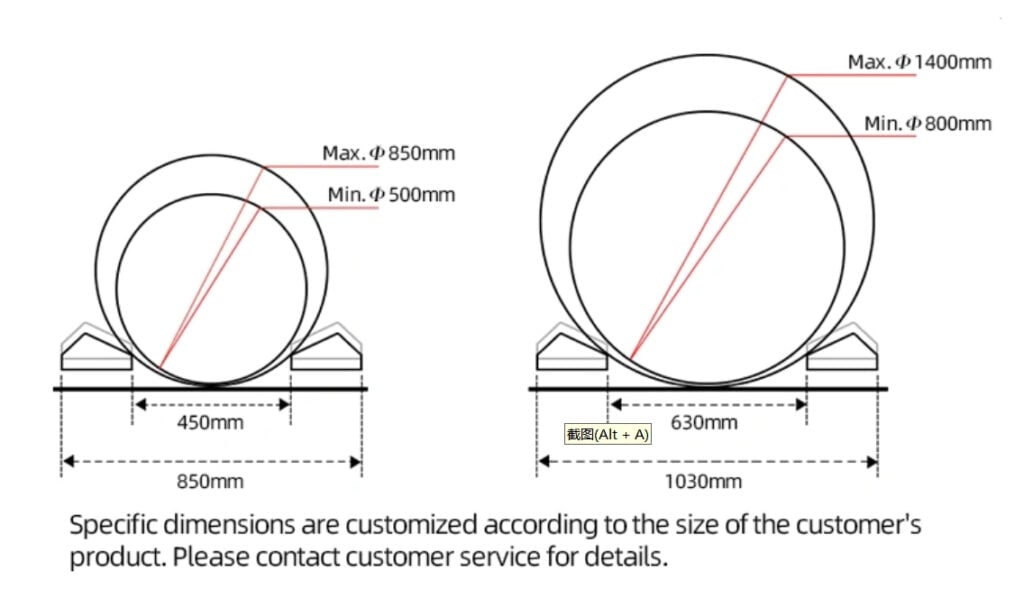

| Reel diameter (Min. ~ Max.) | mm | Ø400-Ø600 | Ø550-Ø800 | Ø700-Ø1100 | Ø900-Ø1450 | Ø1450-Ø2350 | Ø1900-Ø3150 |
| Width inner forks A | 320 | 400 | 500 | 800 | 800 | 950 | |
| Width overall forks B | mm | 720 | 800 | 900 | 1000 | 1200 | 1350 |
| Steering wheel | mm | Φ210×70 | |||||
| balanced wheel | mm | Φ80×17 | |||||
| Load wheel | mm | Φ84×70 | |||||
| Fork length l | mm | 800/900/1000/1100/1150/1220 until Max. 2000mm | |||||
Product Details

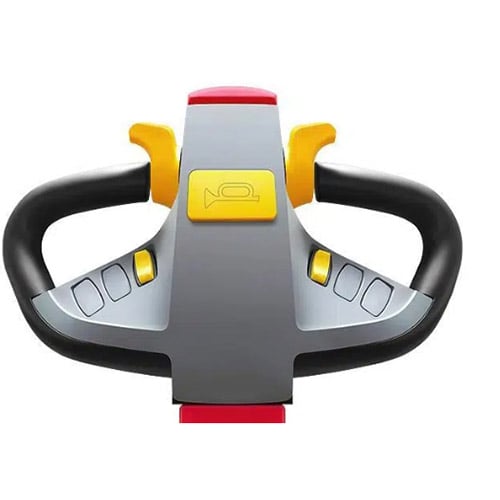

Ergonomic Smart Handle
Features a dual-sided thumb control switch and electric lift/lower buttons for intuitive operation, minimizing fatigue during extended use.
Polyurethane Wheels
Wear-resistant, quiet, and shock-absorbing—perfect for delicate surfaces like marble, epoxy, or painted floors.

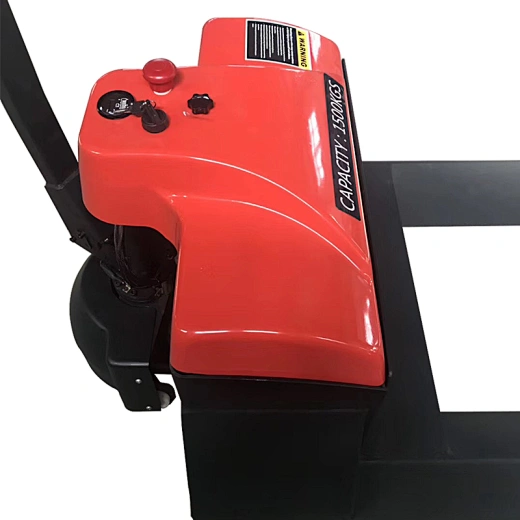

Emergency Stop Switch
Instantly cuts power for maximum safety, protecting operators and cargo in critical situations.
Safety Guard
Prevents foot injuries with a protective barrier during operation.
Media Gallery
FAQ
-
What is a Roll Pallet Truck?
A roll pallet truck is a specialized material handling equipment designed with a V-shaped center to securely hold and transport cylindrical loads like paper rolls, textile coils, and steel tubes in needed position, preventing them from rolling or shifting during movement. It is ideal for paper mills, printing plants, and warehouses where stable and efficient handling of rolled materials is essential. -
Can these trucks handle slopes or uneven floors?
Yes! The high-torque motor and polyurethane wheels provide stable climbing (up to 10% incline) and adapt to mild uneven surfaces. -
What’s the difference between brushed and brushless motors?
Brushed motors (like ours) offer higher torque for climbing at a lower cost, while brushless motors are quieter but more expensive. -
Do you need a licence for an electric pallet truck?
You don’t necessarily require a driving licence to operate a pallet. But depending on your location, you must have certification to operate electric pallet trucks. In the US, OSHA does not require certification for using electric pallet trucks. However, they recommend that companies establish a certification program for their employees. The individual certification will come upon completion of the course. Some courses may have an expiration date, so you might have to take the course again in the future. -
How to Maintain a Roll Pallet Truck
• Regular Inspections – Check the V-shaped forks, wheels, and hydraulic system for damage, leaks, or wear. • Lubrication – Apply grease to moving parts like pivot joints and wheel bearings to ensure smooth operation. • Cleanliness – Remove dirt and debris from wheels and load surfaces to prevent corrosion and malfunctions. • Proper Loading – Always stay within the rated capacity and center cylindrical loads securely in the V-frame. • Battery Care (if electric) – Keep batteries charged and clean terminals to avoid power issues.
Optional Extras

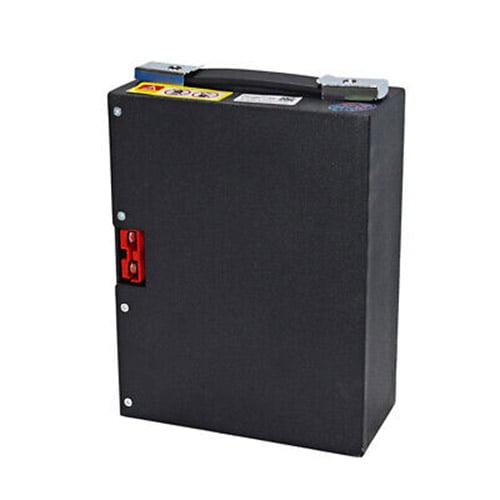

Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

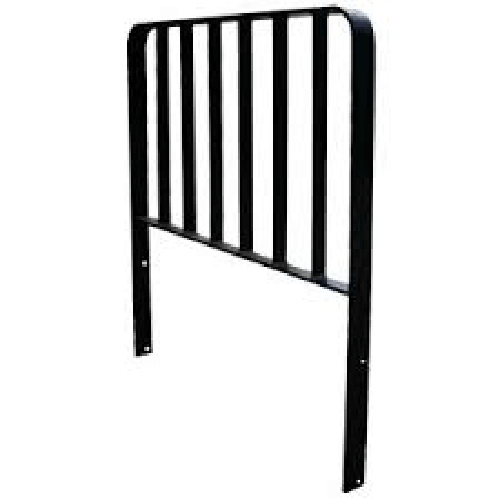

Load backrests
When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

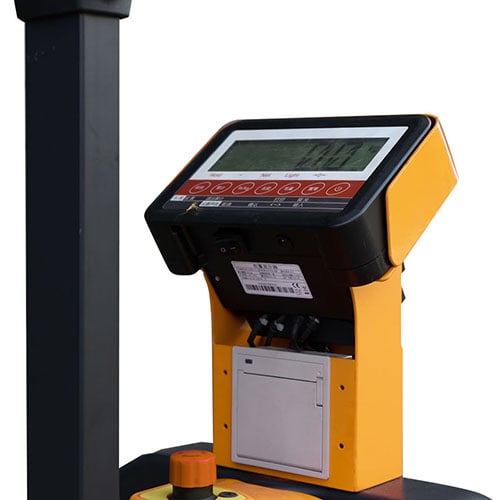

With scale (printer
Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.
Cold store version
Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

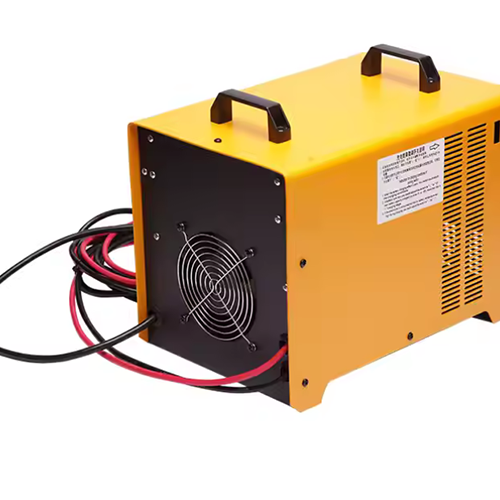

Smart Charger for Electric Pallet Trucks
This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.
Wheels

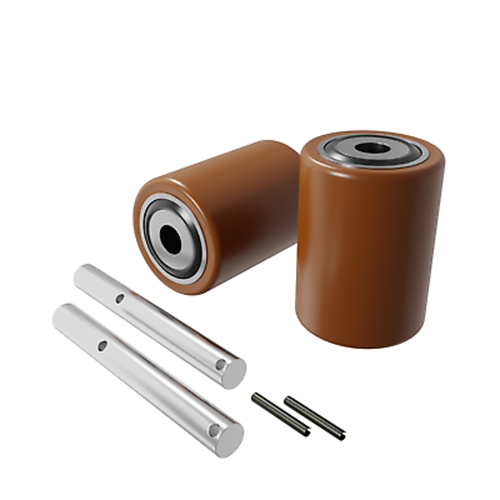

PU wheels
Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.
Nylon wheels
Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

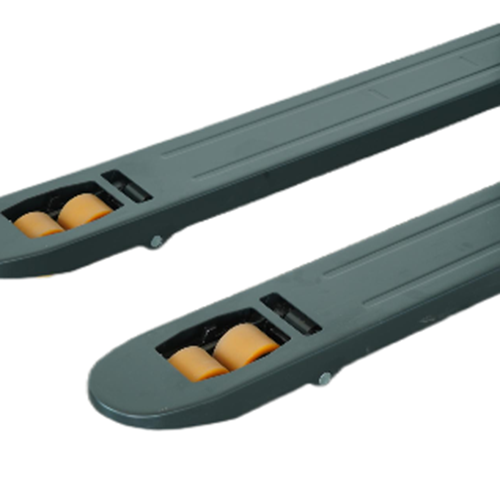

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

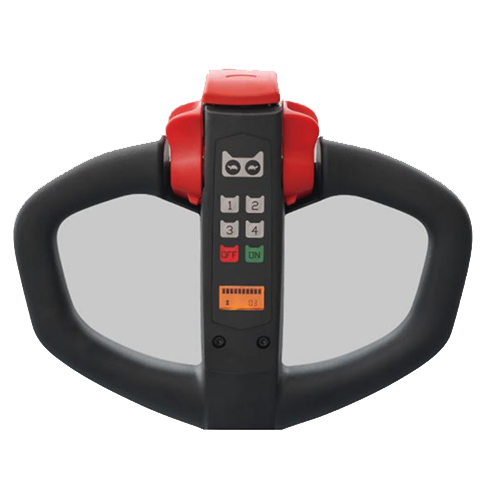

Pin-code handle
The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
Related products
-

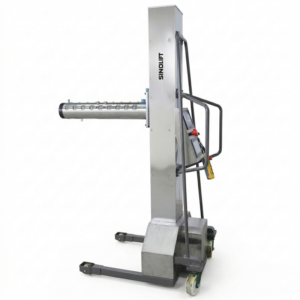

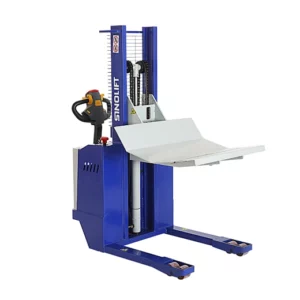

Roll Lifter
