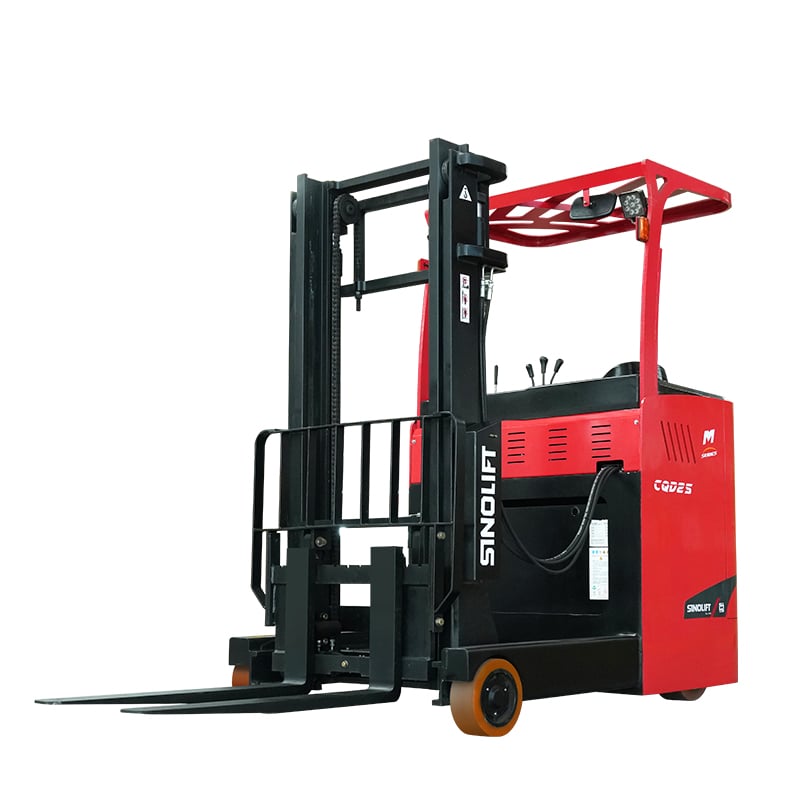

CQD15B CQD20B Stand-on Electric Reach Truck
Industrial electric reach trucks are designed for high-efficiency operations in warehouses and demanding work environments, offering exceptional lift heights and superior stability. Their compact design and small turn radius enable excellent maneuverability in narrow aisles, while the ergonomic cabin and controls enhance operator comfort and productivity. Featuring energy-efficient AC drive and hydraulic motors, these trucks reduce operating costs and are easy to service with removable components and quick battery access. Enhanced safety features and a low vibration suspension system ensure reliable performance, making them ideal for right-angle stacking and heavy-duty applications. Backed by an extensive dealer network and aftermarket support, these trucks are a practical and durable solution for modern industrial needs.
Features
- LED Front Working Lamp、LED Turning Signals
- Panoramic Mirrorcurved-surface mirror provides broad view of operator’s back side
- Strong Overhead Guardmeets EEC and ANSI regulations and protects the operator during hazardous work.
- Excellent Visibility for Safe Operation
- Improved Mast Rigidity
Reinforcement of outer mast to reduce mast swing.
- Easy-to-Read Vacuum Fluorescent Display Paneland easy access to maintenance information and settings.
- Emergency power off switchthe operator is able to quickly access the stop button and ensure their own safety and that of others within the vicinity.
- Anti-Slip Controlenable higher stability during travel on slippery road surface.
- Operator Friendly Steering Wheel and Levers
The steering wheel and the levers are oriented to ensure the comfortable posture during operation.
Parameters
Diagnostics Improve Reliability
The M series stand-on reach trucks integrate many easy-to-maintain features in the truck design The on-board intelligent system is capable of running self-diagnosis at key-on and any malfunctions are rapidly identified located and rectified within minutes Vital components such as the controller batteries and motors can be quickly accessed with simple tools thereby effectively reducing servicing and maintenance time
More Comfort Means Greater Productivity
The M series CQD15B CQD20B reach trucks cabin compartment is ergonomically designed to fit the operator so as to maintain the optimal driving posture There is a large waist pad adjustable according to the height of the operator Large knee pads are also installed as standard items The pads provide cushioning increase comfort level and reduce impact-stress injury Also a large brake pedal facilitates usage and enhances comfort and safety
Top of The Class Stability
The low centre of gravity increases the stability of the reach truck minimizing capacity degradation when lifting to higher racks The tendency to rollover during turning is countered by an intelligent suspension system Together with the low centre of gravity stability during movement is enhanced
Advanced Drive and Lift Performance with Proven Durability and Low Maintenance
The enclosed drive and pump motor with AC technology combine power high maintenance intervals and excellent durability The brushless AC motors offer high operator efficiency and very low maintenance cost
Added Operator Protection
A floating floor plate with foot switch cuts off hydraulic and transmission power if the operator leaves his operating position This advanced mast and travel interlock system helps protect the operator and load by initiating a series of protective actions The drive function is temporarily disengaged Power temporarily disconnects from the hydraulic lift functions
Improved Accessibility
Various electric parts including the controller are installed behind an easy access panel Especially integrated grease fitting prolongs equipment life and assists operator daily-checks
| Model | CQD15B | CQD20B | ||
| Power Type | Electric | Electric | ||
| Type of Operation | Stand-on | Stand-on | ||
| Steering Mode | Electric Power Steering | |||
| Load Capacity/Rated Load | Q | kg | 1500 | 2000 |
| Load Center Distance | c | mm | 500 | 500 |
| Load Distance. center of drive axle to fork | x | mm | 160 | 160 |
| Wheelbase | y | mm | 1375 | 1525 |
| Total Weight (with Battery) | kg | 2700 | 2900 | |
| Axle Load (laden):Drive side/Load-bearing Side | kg | / | / | |
| Axle Load (unladen):Drive side/Load-bearing Side | kg | / | / | |
| Overlength (Mast Reached/Mast Retracted) | L1/L2 | mm | 2820/2355 | 2970/2360 |
| Frame Length (Without Fork) | L | mm | 1760 | 1910 |
| Overall Width | W1 | mm | 1270 | 1270 |
| Height of Overhead Guard | h7 | mm | 2260 | 2260 |
| Lift Height | h1 | mm | 3000 | 3000 |
| Height with Mast Lowered | h2 | mm | 2100 | 2100 |
| Height with Mast Extended | h4 | mm | 3900 | 3900 |
| Free Lift Height | h5 | mm | L | L |
| Fork Dimension | I/e/s | mm | 1070/100/35 | 1070/122/40 |
| Type of Fork Carriage A, B Class | 2A | 2A | ||
| Fork Spread Width | b2 | mm | 225-820 | 250-820 |
| Fork Carriage Width | mm | 868 | 868 | |
| Fork Tilt (Forward/Backward) | a/B | ° | 3/5 | 3/5 |
| Distance of Straddle Leg | b3 | mm | 920 | 920 |
| Reach Distance | L3 | mm | 465 | 610 |
| Height of Straddle Leg | h6 | mm | 310 | 310 |
| Ground Clearance at The Center of Wheelbase (Min) | m1 | mm | 80 | 80 |
| Turning Radius | Wa | mm | 1675 | 1820 |
| Aisle Width for Pallets 1000 x 1200 | Ast | mm | 2860 | 2880 |
| Aisle Width for Pallets 800 x 1200 | Ast | mm | 2810 | 2825 |
| Tyre Type | Polyurethane | Polyurethane | ||
| Tyre Size (Front) | mm | Ø267X114 | Ø267X114 | |
| Tyre Size (Auxiliary Wheel) | mm | Ø180X55 | Ø180X55 | |
| Tyre Size (Driving Wheel) | mm | Ø343X135 | Ø343X135 | |
| Wheels Quantity, front/rear (x=Diving Wheels) | 2/1x+2 | 2/1x+2 | ||
| Traveling Speed (laden/unladen) | Km/h | 10/12 | 10/12 | |
| Llfting Speed (laden/unladen) | mm/s | 270/375 | 270/375 | |
| Lowering Speed(aden/unladen) | mm/s | 300/270 | 310/260 | |
| Max. Gradient Performance S2 5min (laden/unladen) | % | 10/15 | 10/15 | |
| Service BrakeType | Electromagnetic | Electromagnetic | ||
| Parking Brake Type | Electromagnetic | Electromagnetic | ||
| Drive Motor Rating (AC) S2-60min | kW | 6.5 | 6.5 | |
| Lift Motor Rating (AC)S3-15% | kw | 12 | 12 | |
| Battery Voltage/Capacity K5 | V/Ah | 48/350 | 48/400 | |
| Battery Weight | kg | 650 | 710 | |
| Controller Brand | CURTIS | CURTIS | ||
| Controller Model | 2-1234SE+1222 | 2-1234SE+1222 | ||
| Sound Level Driver’s Ear According to EN 12053 | dB | 70 | 70 | |
| Battery Change | Side Roll Out | Side Roll Out | ||
Product Details
SINOLIFT lithium iron-phosphate battery. Now available with Li-ION technology
Travel & load handling interlock
6000K Led Light LED
Front wheel brake Anti-skid control
Media Gallery
FAQ
Q:What is an electric reach truck used for?
A:Electric reach trucks are designed for lifting and storing goods in high racking systems, typically in warehouse or distribution center environments. They are ideal for navigating narrow aisles and are commonly used for stacking and retrieving pallets at significant heights.Q:What is the lifting capacity of an electric reach truck?
A:Electric reach trucks generally have a lifting capacity ranging from 1,000 kg to 2,500 kg, depending on the model. The specific capacity depends on the design and intended application, so it's essential to choose a truck that meets your operational needs.Q: How high can an electric reach truck lift?
A:The lifting height of an electric reach truck can vary by model, but most can lift loads to heights of 6 to 12 meters (approximately 20 to 40 feet). Some high-spec models may reach even higher, making them suitable for very tall racking systems.Q:Are electric reach trucks suitable for outdoor use?
A:Electric reach trucks are primarily designed for indoor use in warehouses with narrow aisles and high racks. While they can be used outdoors on smooth, level surfaces, they are not designed for rough terrain. For outdoor environments, a more robust electric or diesel forklift is recommended.Q:How long do the batteries last in an electric reach truck?
A:The battery life of an electric reach truck depends on usage, but under normal conditions, the battery can last a full shift (8 hours) on a single charge. Lithium-ion batteries, which are increasingly common, can be charged during breaks (opportunity charging) to extend operational time, reducing the need for long recharging periods.
Optional Extras
Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.
Blue spot light
The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.
Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.
Forklift Wireless Cameras
Forklift wireless cameras enhance safety and efficiency by providing real-time visual feedback to operators. These cameras offer a clear view of blind spots, load positioning, and surrounding areas, reducing the risk of accidents and improving load handling accuracy. Easy to install and compatible with most forklifts, they are ideal for busy warehouses, tight spaces, and high-traffic environments. With durable designs and wireless connectivity, they ensure reliable performance and seamless integration into your operations.
Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.
Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.
Cold Store Modification and Cabin
Designed for extreme cold storage environments, this electric pallet truck features specialized cold-store oil, anti-slip platforms, and heated batteries to ensure reliable performance in low-temperature conditions. Enhanced with robust insulation and durable components, it maintains efficiency and durability even in harsh, freezing environments. The truck’s cabin is specifically built to withstand cold storage applications, offering improved operator comfort and safety while maximizing operational efficiency in demanding conditions.
Drive in rack overhead guard
The drive-in rack overhead guard is specifically designed for narrow aisle operations, providing protection and clearance when working in high-density storage environments. It ensures safety and maneuverability in tight spaces.
Fork weighing system
The fork weighing system provides real-time weight measurements of the load, ensuring safe handling and preventing overloading. It helps operators comply with safety standards and avoid equipment damage.
DC/DC converter
The DC/DC converter ensures stable power supply to auxiliary systems, enhancing the reliability and functionality of the truck’s additional features. It supports the seamless operation of electronic components.
