PV Manual Hydraulic Roll Handling Stacker for Paper Rolls & Film Rolls
PV Manual Hydraulic Roll Handling Stacker for Paper Rolls & Film Rolls

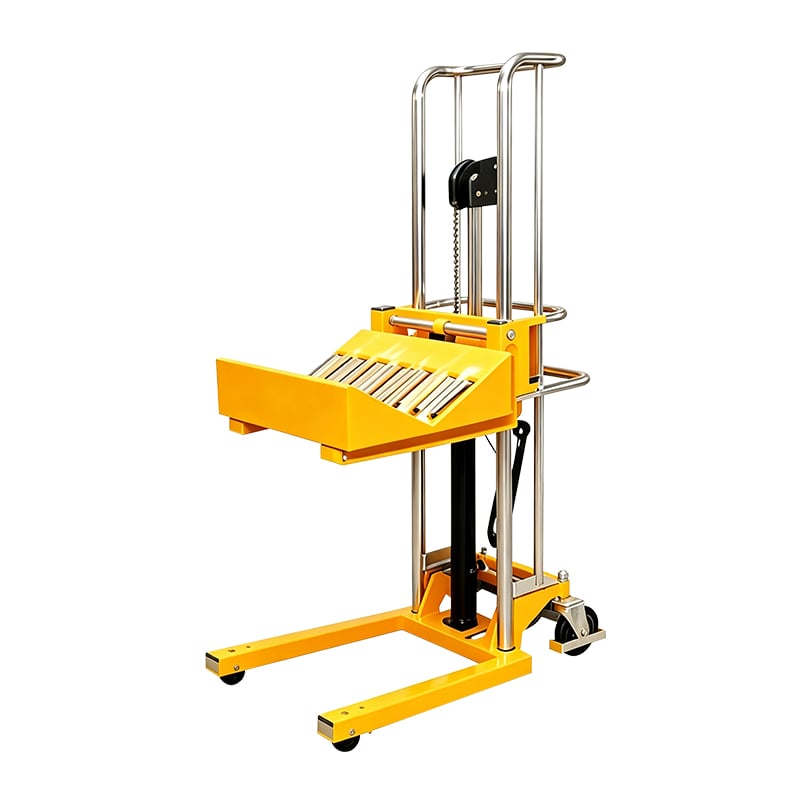

Các PV Manual Roll Handling Stacker is designed for safely lifting, positioning and transporting paper rolls, film rolls, roll stock and other cylindrical materials that are difficult to handle with standard flat-platform equipment. Its hydraulic foot-pedal lifting system, V-shaped roll support and compact maneuverable structure make daily roll handling easier and more stable in warehouses, printing plants, packaging facilities and production workshops.
As a customizable roll handling solution, the PV stacker can be configured according to the roll diameter, length, lifting height and actual handling requirements.
Đặc trưng
Các PV Manual Roll Handling Stacker is designed for safe, simple and efficient handling of paper rolls, film rolls and other cylindrical materials. Its V-shaped platform helps keep rolls stable during lifting and transport, while the manual hydraulic foot-pedal system provides smooth and controlled lifting without the need for electrical power. A chrome-plated mast, reinforced chain and durable hydraulic components support reliable daily operation. Compact dimensions and flexible casters make the stacker easy to maneuver in workshops, warehouses and production areas. As a customized roll-handling solution, the PV model can also be adapted to different roll sizes, lifting heights and specific operating requirements.
Các tham số
| Số hiệu mẫu | PV4085 | PV4011 | PV4013 | PV4015 | PV4017 | PV4018 | PV4020 | |
| Operation | Thủ công | |||||||
| Sức chứa tải | (kg) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Chiều cao nâng | (mm) | 850 | 1100 | 1300 | 1500 | 1700 | 1800 | 2000 |
| Max.width of reel/roll | (mm) | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Min.- Max.diameter of reel/roll | (mm) | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 |
| Reel V-Tray Wdith x Length | (mm) | 620×1050 | 620×1050 | 620×1050 | 620×1050 | 620×1050 | 620×1050 | 620×1050 |
| Chiều dài tổng thể | (mm) | 880 | 880 | 880 | 880 | 880 | 880 | 880 |
| Overall Wdith | (mm) | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Chiều cao tổng thể | (mm) | 1100 | 1360 | 1560 | 1730 | 1960 | 2060 | 2600 |
Chi tiết sản phẩm
Chrome-Plated Mast & Reinforced Chain
The smooth chrome-plated mast helps reduce friction for quieter and more stable lifting. Combined with a reinforced load chain, it provides reliable support and smoother vertical movement during daily roll handling.
Durable Casters with Rear Foot Brakes
Wear-resistant polyurethane wheels provide smooth and flexible movement in warehouses and workshops. Fixed front wheels improve directional stability, while swivel rear casters with foot brakes make positioning and parking safer.
Leak-Resistant Hydraulic Cylinder
The thickened hydraulic cylinder features a smooth internal bore and dual sealing structure to help reduce oil leakage. Its durable construction supports reliable lifting performance and longer service life.
Extended Foot Pedal
An extended, wide rubber-coated foot pedal makes hydraulic lifting easier while helping prevent slipping during operation.
Thư viện phương tiện truyền thông
Câu hỏi thường gặp
Q1. What information is required to customize the PV Manual Roll Handling Stacker?
Please provide the roll weight, outer diameter, roll length or width, required lifting height, loading/unloading method and any space limitations at your site. If the stacker must interface with a specific machine, pallet, rack or production line, drawings or photos are also helpful so the platform dimensions and overall truck geometry can be matched to the application.Q2. How do I know whether a V-shaped platform is suitable for my roll?
A V-shaped platform is commonly used when the load is cylindrical and needs stable support from below rather than clamping from the sides. The roll diameter, surface material, center of gravity and whether the roll must rotate or transfer onto another machine should all be considered when selecting the platform angle, width and roller configuration.Q3. What is the difference between this manual hydraulic model and an electric lifting model?
The PV manual hydraulic version is lifted by foot pedal and moved by hand, so it does not depend on a traction battery or electric lifting motor. It is generally better suited to moderate handling frequency, shorter travel distances and users who prefer a simpler, lower-maintenance solution; higher-frequency lifting may be better served by an electric model.Q4. How should the correct load capacity and lifting height be selected?
The selected rated capacity should be higher than the actual maximum roll weight, with sufficient safety margin for real operating conditions. Lifting height should be based on the highest required loading or unloading position, while also checking roll dimensions, mast height, doorway clearance, floor condition and the operator’s available maneuvering space.Q5. What maintenance is recommended for a manual hydraulic roll stacker?
Regularly inspect the hydraulic cylinder for oil leakage, check the lifting chain and moving joints for abnormal wear, and make sure the wheels and brakes operate smoothly. Keep the mast and roller surfaces clean, follow the lubrication requirements for mechanical parts, and stop using the truck if lifting becomes uneven, pressure cannot be maintained or structural damage is found.
