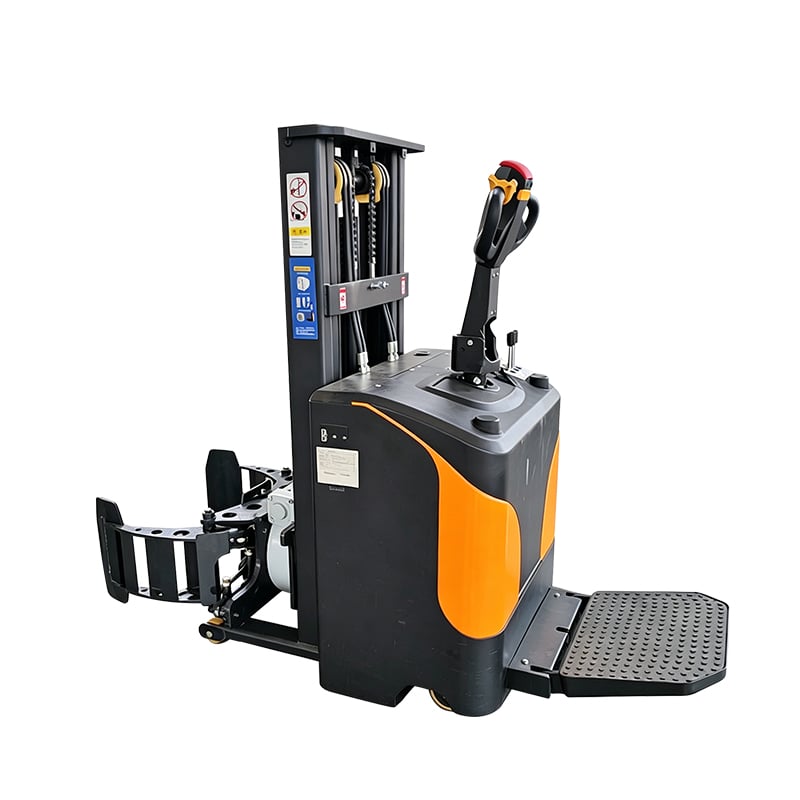

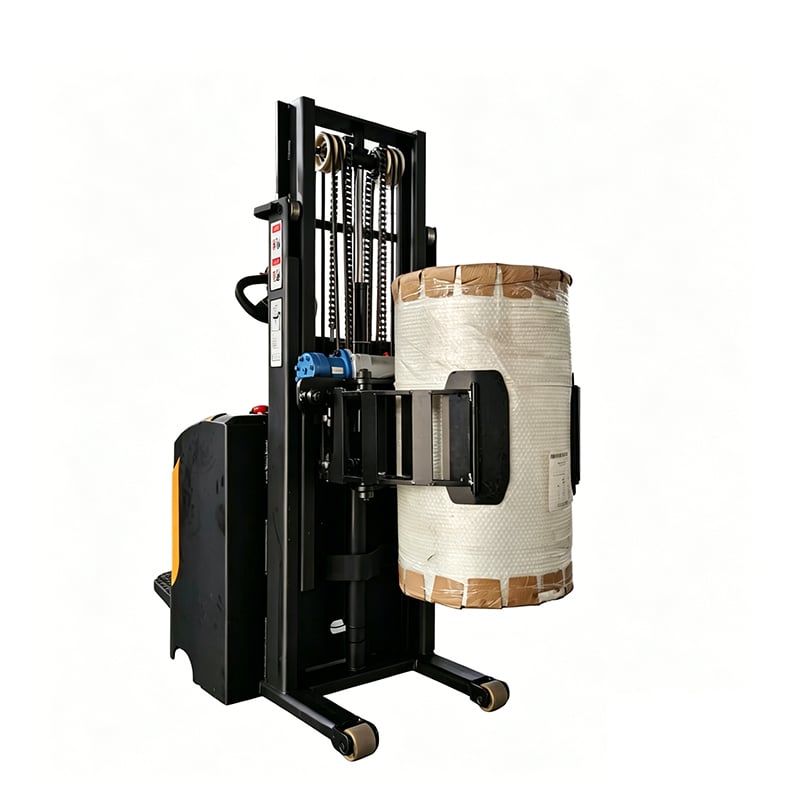

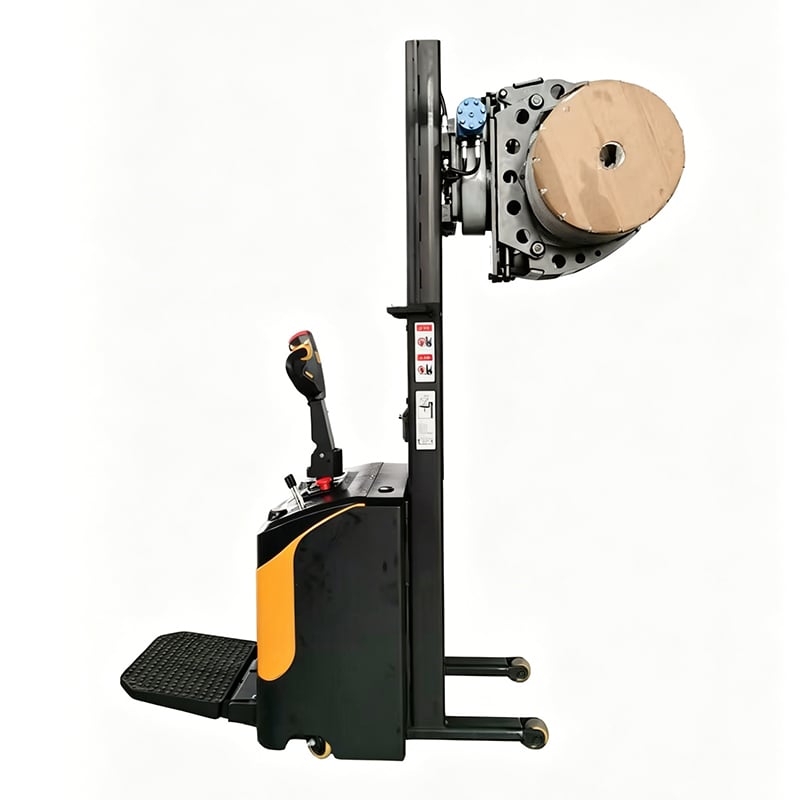

CDD500-2.0-R720 Electric Roll Handling Truck with 360° Rotating Clamp
CDD500-2.0-R720 Electric Roll Handling Truck with 360° Rotating Clamp
Designed specifically for the printing, packaging, and chemical industries, this electric roll handling truck provides an all-in-one solution for transporting, lifting, and rotating heavy cylindrical materials. It features a specialized 360° rotating clamp that securely grips paper rolls, film rolls, and drums, ensuring a firm hold without causing slippage or surface damage. With its fully electric lifting system and ergonomic stand-on design, operators can effortlessly maneuver and align materials with pinpoint precision, drastically reducing manual labor. The ability to smoothly tilt and lock loads at 90 degrees makes it exceptionally ideal for safely feeding rolls directly into production machinery. Built to boost workflow efficiency across various demanding warehouse environments, this versatile truck can also be fully customized to meet your specific operational requirements.
Đặc trưng
Transform your material handling with the SINOLIFT Stand-On Electric Roll Clamp Truck. Engineered for the printing, packaging, and chemical industries, this powerful 3-in-1 solution effortlessly combines transporting, stacking, and rotating into one streamlined operation.
Its standout feature is the intelligent 360° rotating circular clamp, which securely grips heavy paper rolls, film rolls, and drums without causing slippage or surface damage. Featuring a fully electric lifting system and an ergonomic intelligent console, operators can easily maneuver the truck, lock a 90° tilt, and precisely align heavy loads directly into production machinery. Built with a sturdy C-channel mast and upgraded sealed cylinders, this durable, labor-saving stacker maximizes your daily workflow efficiency and can be fully customized to meet your specific operational needs.
Các tham số
| Người mẫu | CTD350-R720 | CDD500-2.0-R720 | CDD500-3.0-R720 | CPD500-R720 | |
| Overall Dimensions (LWH) | mm | 1300*950*1900 | 1800*800*1600 | 1800*800*1800 | 1900*850*1550 |
| Coil Diameter Range | mm | 360-720 | 360-720 | 360-720 | 360-720 |
| Battery Capacity | V/À | 12V/80Ah | — | — | — |
| Điện áp | V | — | 24V | 24V | 24V |
| Chiều cao nâng | mm | 1500 | 2000 | 3000 | 2000 |
| Sức chứa tải | kg | 350 | 500 | 500 | 500 |
| Rotation Angle | ° | 360 | 360 | 360 | 360 |
| Đơn vị điện | V/W | 24/1600 | 24/1600 | 24/1600 | 24/1600 |
Chi tiết sản phẩm

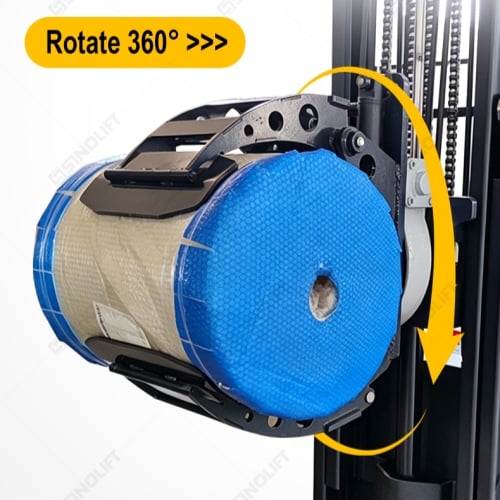

Intelligent 360° Rotating Clamp

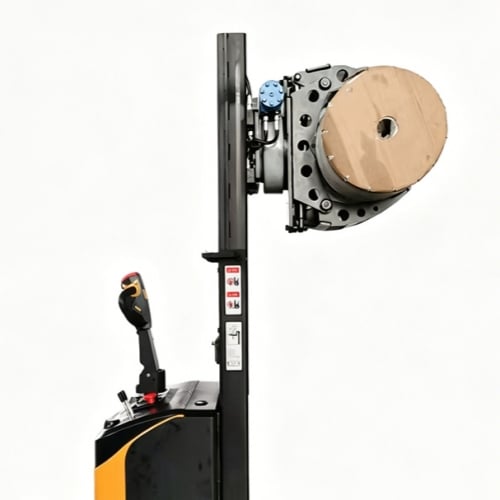

This system provides intelligent control over the rotation angle, allowing for a full 360-degree rotation of the circular clamp. Additionally, it features a 90° lockable tilt, giving operators the flexibility to position materials with absolute precision.

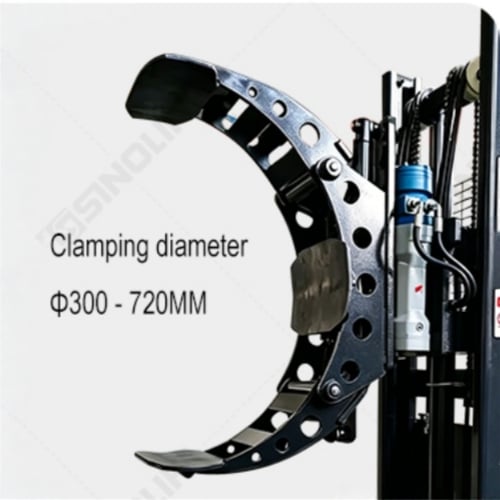

Specialized Circular Clamping Design
Engineered to accommodate a clamping diameter ranging from 300mm to 720mm, this specialized design fits drums and rolls perfectly. It ensures a secure, non-slip grip that handles your valuable materials smoothly and leaves them completely damage-free.

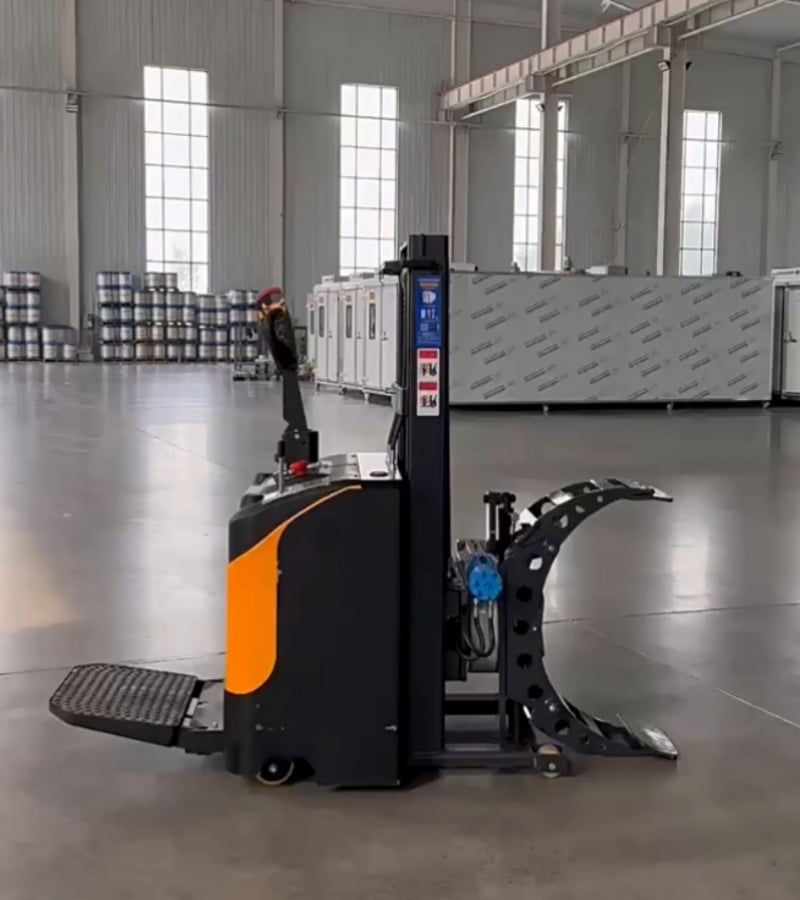

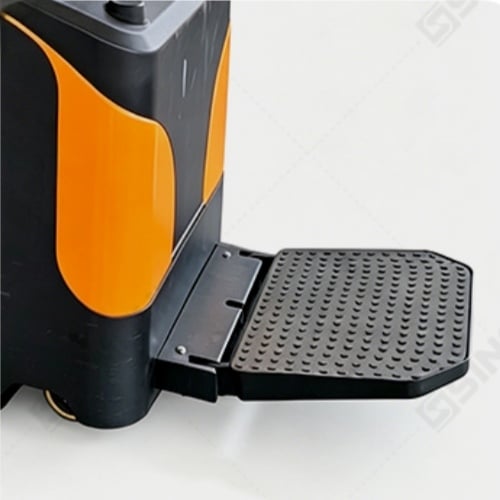

Anti-Slip and Shock-Absorbing Pedal
Designed for operator comfort and safety, the pedal surface utilizes granular rubber technology for superior shock absorption and slip resistance. For added convenience and safety in tight workspaces, the pedal can be easily retracted into the vehicle body to prevent collisions.

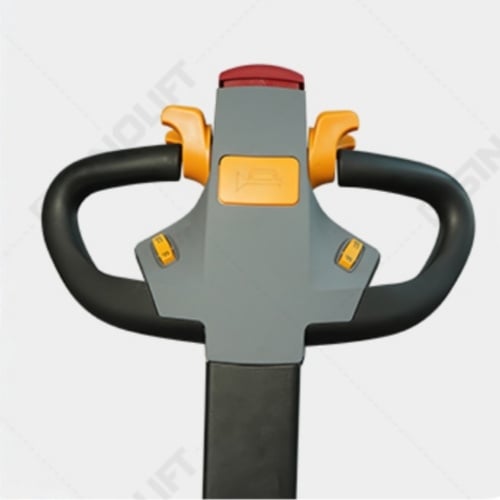

Multifunctional Intelligent Handle
The ergonomic intelligent handle puts total control right at the operator's fingertips for maximum convenience. It seamlessly integrates essential functions, including lifting, traveling, the horn, and the emergency stop, into one simple-to-use interface.
Thư viện phương tiện truyền thông
Câu hỏi thường gặp
-
Q1: Can this electric clamping truck be customized to handle non-standard rolls or specific factory conditions?
A1: Yes, this product is heavily oriented toward non-standard customization to meet your exact operational requirements. Our engineering team can adjust the mast height, chassis design, and clamping mechanism based on the specific material, weight, and dimensions of the cylinders you need to handle. Please communicate your exact workflow conditions with our sales staff so we can provide a fully tailored solution. -
Q2: Since both CDD and CPD models are listed, what is the primary operational difference between the Stand-on Stacker (CDD) and the Counterbalance Truck (CPD)?
A2: The CDD series is designed with front support legs, making the chassis highly compact and ideal for navigating standard, narrow warehouse aisles. The CPD counterbalance series lacks these front legs, which allows it to directly approach closed-bottom pallets, complex printing machinery, or loading docks without any under-clearance restrictions, offering superior versatility in complex workstations. -
Q3: What type of maintenance is required for the battery and the hydraulic lifting system?
A3: The truck is equipped with a built-in 12V/80AH high-performance, maintenance-free battery, eliminating the need for routine distilled water top-ups. Furthermore, the hydraulic system utilizes an upgraded welded sealed oil cylinder combined with a composite chain, which provides a long service life and completely prevents oil leakage, significantly reducing your daily maintenance workload. -
Q4: How does the equipment ensure the safety of fragile or highly valuable materials during the clamping process?
A4: The clamping mechanism is engineered to distribute pressure evenly across the entire surface of the cylinder rather than focusing force on a single point. This precise hydraulic pressure control ensures a steadfast grip during lifting and rotation, guaranteeing that delicate materials like soft paper rolls or coated films will not suffer from deformation, surface damage, or slippage. -
Q5: What is the main advantage of upgrading to a stand-on fully electric model compared to a standard walk-behind stacker?
A5: Upgrading to a stand-on fully electric model drastically reduces operator fatigue, especially during long shifts or when transporting heavy loads across large factory floors. With a powerful 1600W drive motor and an ergonomic standing platform, operators can achieve significantly faster travel and lifting speeds, which translates directly to higher productivity and lower labor costs for your facility.
Các tùy chọn bổ sung

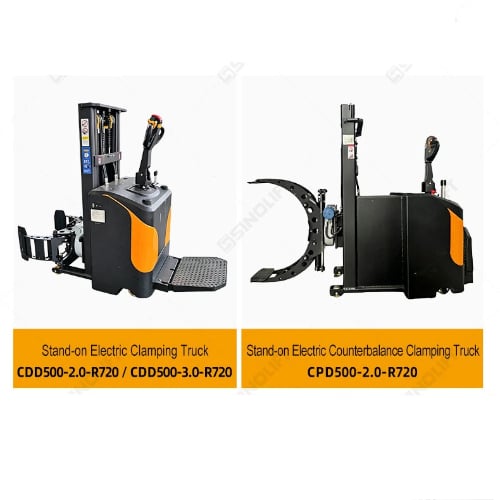

Counterbalance Model (CPD Series)
Available as a custom option, the CPD counterbalance design eliminates front support legs to provide unrestricted under-clearance access. This highly versatile configuration is ideal for directly approaching closed-bottom pallets, complex printing machinery, and loading docks without any spatial limitations.
Different lifting heights
We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.

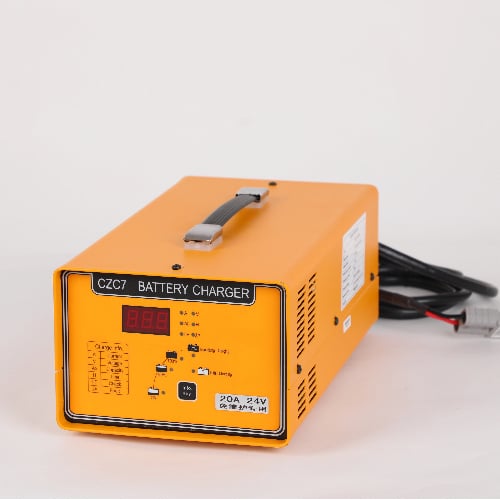

Industrial Smart Charger (Optional)
This advanced charging system features automatic self-recovery function and real-time LED status monitoring. Multi-color indicator lights clearly display charging progress and fault alerts for 24V battery packs.

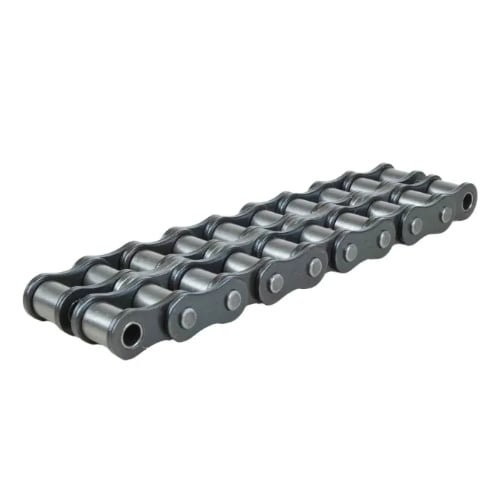

Duplex Twin Chain Drive
This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.

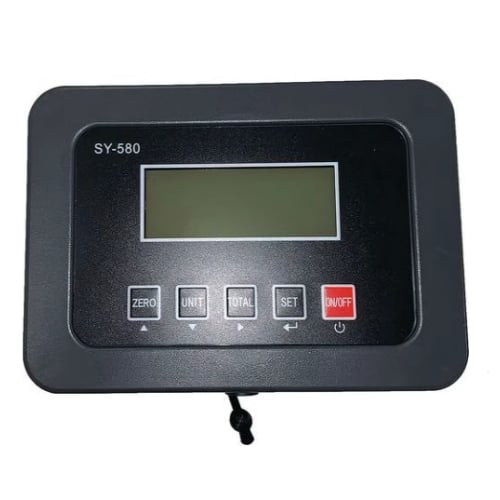

Integrated Digital Scale
Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.
