PFV4085 PFV4120 PFV4150 PFV4180 Roll & Reel Hydraulic Stacker
PFV4085 PFV4120 PFV4150 PFV4180 Roll & Reel Hydraulic Stacker
PFV4085 PFV4120 PFV4150 PFV4180 Roll & Reel Hydraulic Stacker
PFV4085 PFV4120 PFV4150 PFV4180 Roll & Reel Hydraulic Stacker

PFV4085 PFV4120 PFV4150 PFV4180 Roll & Reel Hydraulic Stacker

PFV4085 PFV4120 PFV4150 PFV4180 Roll & Reel Hydraulic Stacker

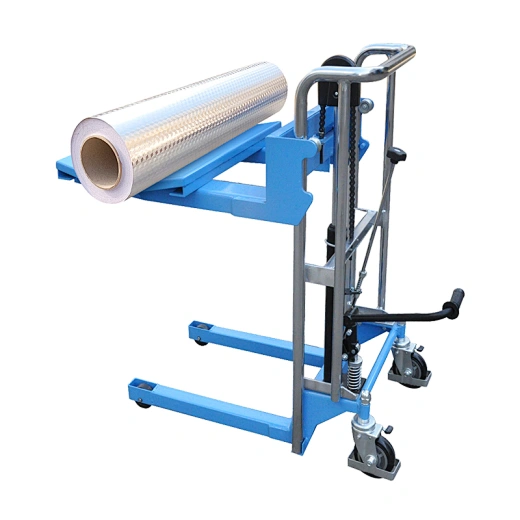

The Hydraulic Roll Lifter Stacker (PFV Series) is a robust and versatile solution for safely lifting and transporting heavy rolls, reels, and coils in industrial settings. Designed with a high-strength steel frame and V-type platform, it ensures stability and adaptability for various load sizes. The ergonomic hydraulic system allows smooth operation, while heavy-duty PU wheels enable easy mobility. Ideal for printing, steel, and manufacturing industries, it combines durability, efficiency, and customization options to streamline material handling.

Связаться с нами
Скачать

Функции

Durable Construction – Made of high-resistance steel and chrome-plated seamless pipes for strength and rust-proof durability.

Efficient Roll Handling – V-type platform design adapts to various roll sizes (diameter/length) for easy transport of heavy materials.

Hydraulic Power – Manual or electric pump options provide effortless lifting with a long-sealed, leak-proof system.

User-Friendly – Features a lengthened foot pedal and rotary pressure relief valve for smooth operation and quick descent.

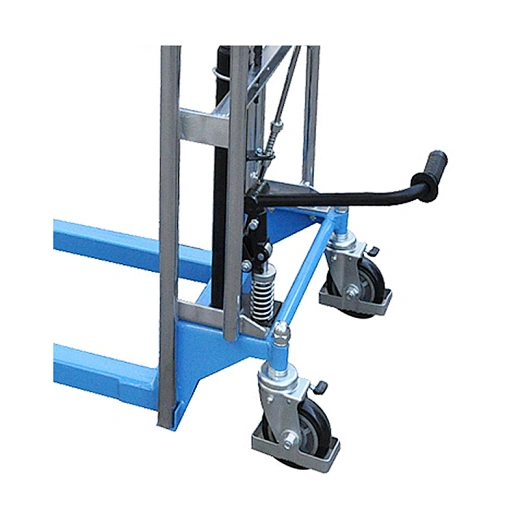

Mobility  – Equipped with silent PU wheels and heavy-duty casters for easy movement in tight spaces.

Customizable – Optional accessories (roller platforms, V-forks, etc.) and adjustable dimensions meet diverse industrial needs.

Параметры

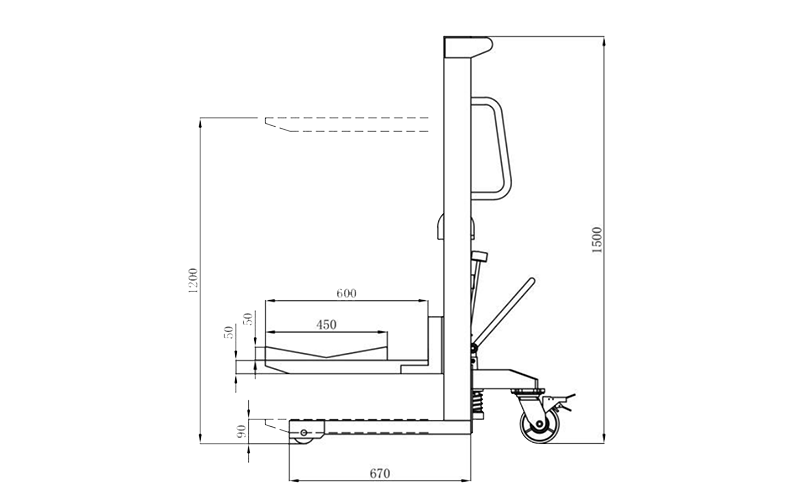

Модель ПФВ4085 ПФВ4120 ПФВ4150 ПФВ4180
Rated Load Capacity кг 400
Fork Lifting Height мм 850 1200 1500 1800
Pedal Strokes / Pumping Cycles 35 50 65 75
Общая высота мм 1060 1430 1730 2030
Overall Length × Width мм 1240×590
V-Board Ground Clearance мм 185
V-Board Length мм 650
V-Board Width мм 550
Front Wheel Diameter мм 75
Rear Wheel Diameter мм 125
Вес нетто кг 76 81 85 92

Подробная информация о продукте

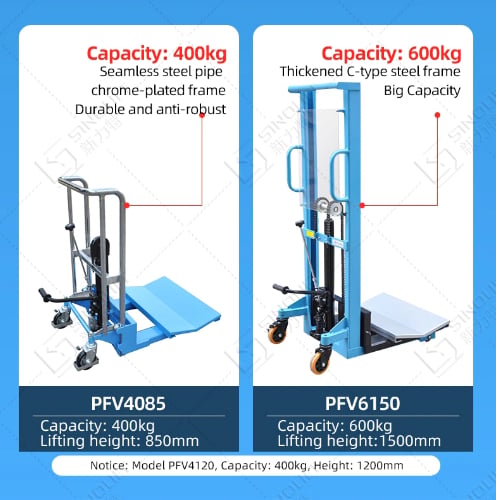

Various types Meet your need

Various types Meet your need

Wide Application

Wide Application

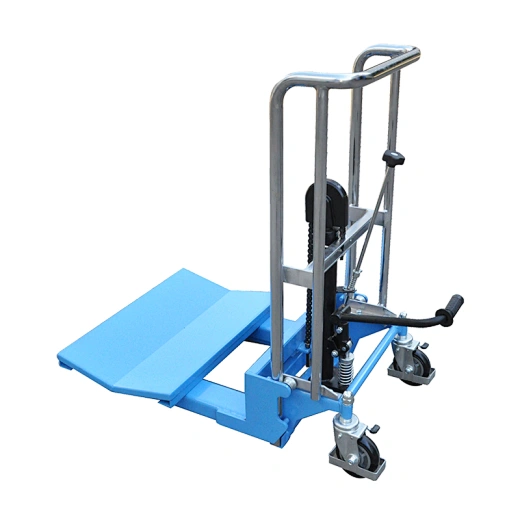

V-Type Platform Design

V-Type Platform Design

Suitable for roll handling. According to the diameter and length of roll, you can customize the V-type platform.

Seamless Steel Pipe & Chrome-Plated Frame

Seamless Steel Pipe & Chrome-Plated Frame

Made of high-quality cold-rolled seamless steel tubes with multi-channel chrome-plated treatment, durable and non-rusting.

Медиа Галерея

Часто задаваемые вопросы

  • 1.What types of materials can the Hydraulic Roll Lifter Stacker handle?

    The Hydraulic Roll Lifter Stacker is designed to safely lift and transport heavy rolls, reels, and coils commonly used in industries like printing, steel manufacturing, and mold production. Its V-type platform provides stable support for cylindrical loads, while the adjustable design accommodates different diameters and lengths. Whether you're handling paper rolls, metal coils, or plastic reels, this stacker ensures secure and efficient material movement.

  • 2.How does the hydraulic system ensure smooth and safe operation?

    The stacker features a high-quality, long-sealed hydraulic pump that delivers stable performance without oil leakage, ensuring consistent lifting power. The rotary pressure relief valve allows for easy operation and controlled descending, reducing the risk of sudden drops. Additionally, the ergonomic foot pedal minimizes operator effort while maintaining precision during load handling.

  • 3.Can this stacker maneuver easily in tight workshop spaces?

    Yes, the heavy-duty PU wheels are designed for silent and smooth movement, even in narrow passages or through standard doorways. The rotating casters provide excellent maneuverability, allowing operators to navigate crowded workspaces effortlessly. Its compact design further enhances accessibility without compromising load capacity or stability.

  • 4.What makes the frame construction durable for industrial use?

    The frame is built with cold-rolled seamless steel tubes and features multi-channel chrome plating, offering superior resistance to rust and wear. This heavy-duty construction withstands daily industrial demands while maintaining structural integrity over time. The chrome finish also adds an extra layer of protection against corrosion in humid or harsh environments.

  • 5.Are there customization options available for specific handling needs?

    Absolutely, the V-type platform can be customized to fit various roll diameters and lengths, ensuring optimal support for your specific materials. Optional accessories like roller platforms, adjustable forks, and rubber rollers further enhance versatility.

Дополнительные опции

Different lifting heights We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.

Different lifting heights

We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.

Industrial Smart Charger (Optional)
This advanced charging system features automatic self-recovery function and real-time LED status monitoring. Multi-color indicator lights clearly display charging progress and fault alerts for 24V battery packs.

Integrated Digital Scale Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.

Integrated Digital Scale

Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.

Silent Caster Kit

Upgrade to our ultra-quiet rolling system featuring noise-dampened polyurethane treads and precision ball bearings, reducing operational noise below 50dB. Ideal for hospital, laboratory, and office environments where noise control is critical.

Reel Presence Limit Switch (Optional) Ensure operational safety with our industrial-grade limit switch, featuring non-contact magnetic sensing for reliable reel position detection. The IP67-rated housing with dual-color LED indicators provides instant visual status feedback during loading/unloading cycles.

Reel Presence Limit Switch (Optional)
Ensure operational safety with our industrial-grade limit switch, featuring non-contact magnetic sensing for reliable reel position detection. The IP67-rated housing with dual-color LED indicators provides instant visual status feedback during loading/unloading cycles.

24-Volt D.C. power lift, AC powered lift, pneumatic lift or air over hydraulic lift

24-Volt D.C. power lift

AC powered lift, pneumatic lift or air over hydraulic lift

Duplex Twin Chain Drive This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.

Duplex Twin Chain Drive
This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.

Front Swivel Casters Upgrade your roll lifter with heavy-duty front swivel casters for effortless 360° maneuverability in tight spaces. These lockable casters provide smooth mobility during transport while ensuring stability when positioned. Perfect for navigating narrow aisles in print shops or warehouses.

Front Swivel Casters

Upgrade your roll lifter with heavy-duty front swivel casters for effortless 360° maneuverability in tight spaces. These lockable casters provide smooth mobility during transport while ensuring stability when positioned. Perfect for navigating narrow aisles in print shops or warehouses.
