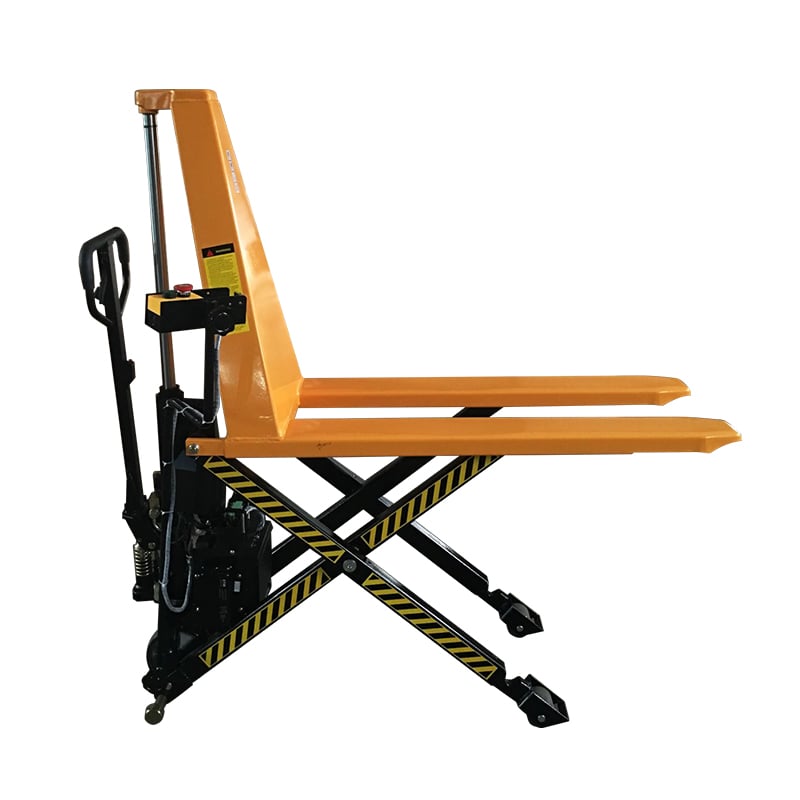

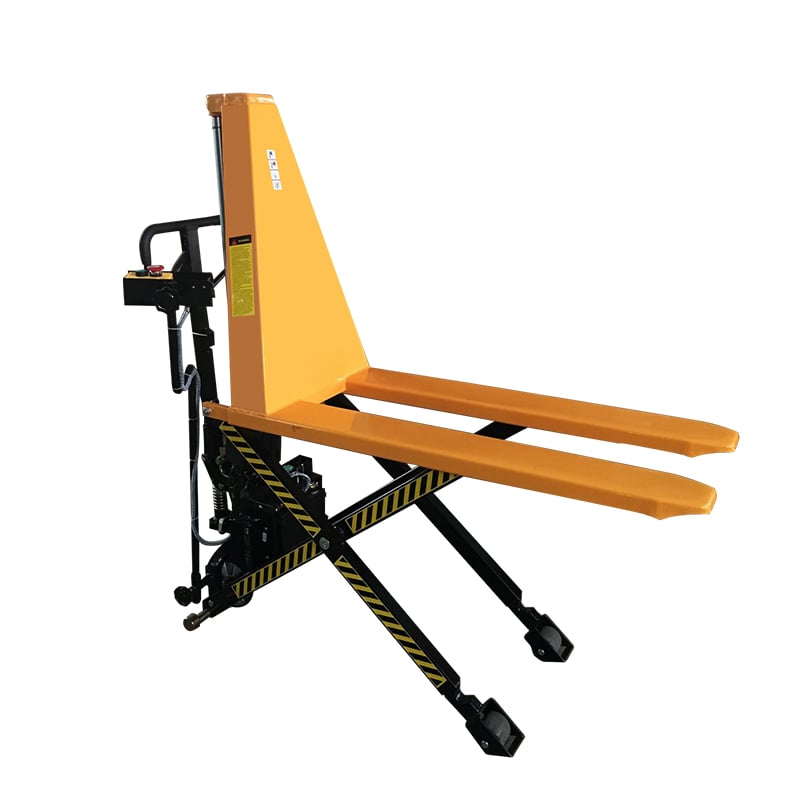

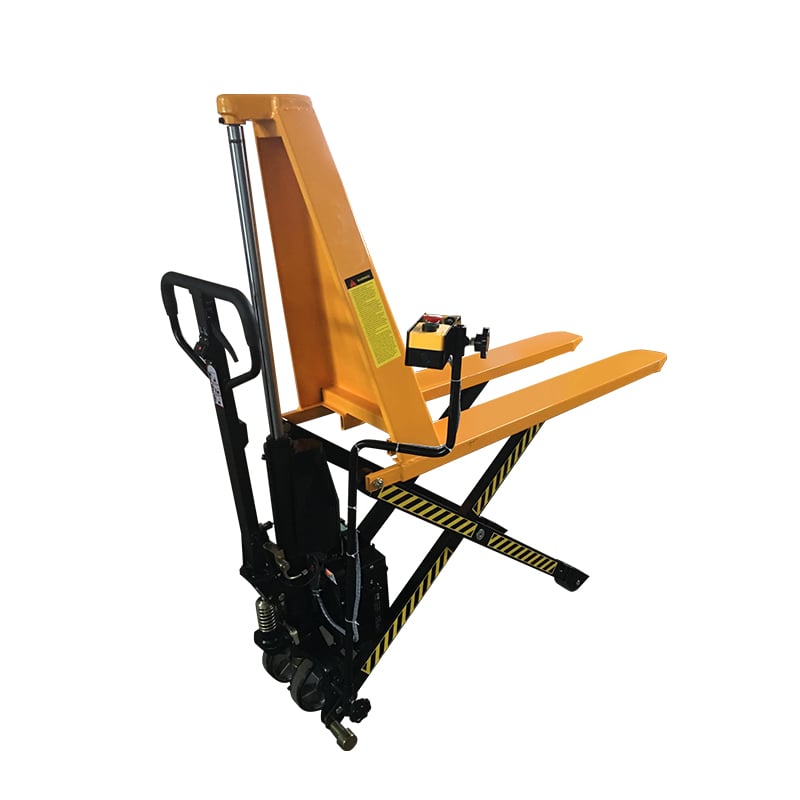

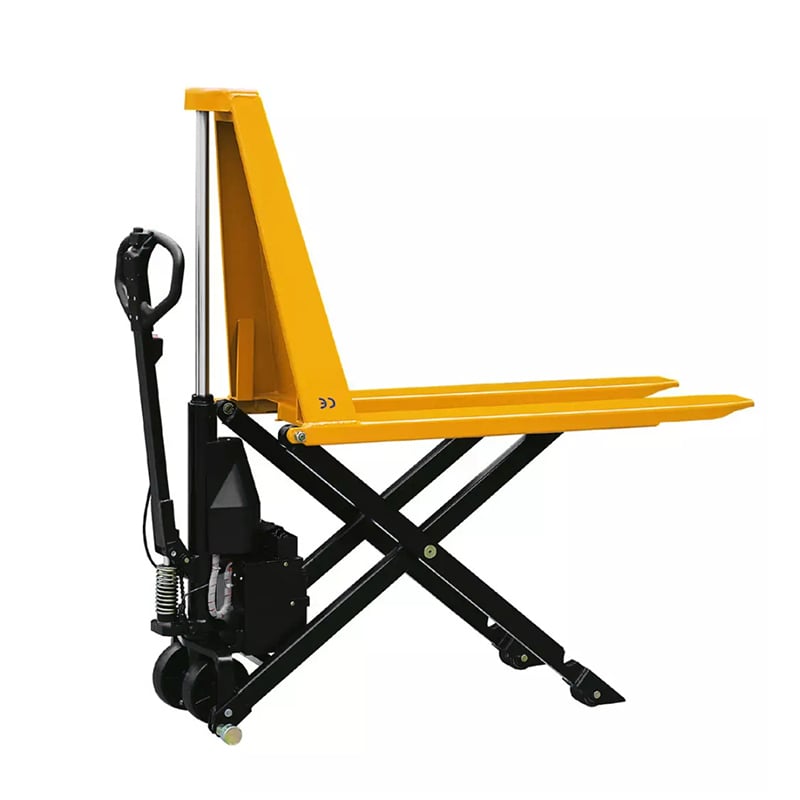

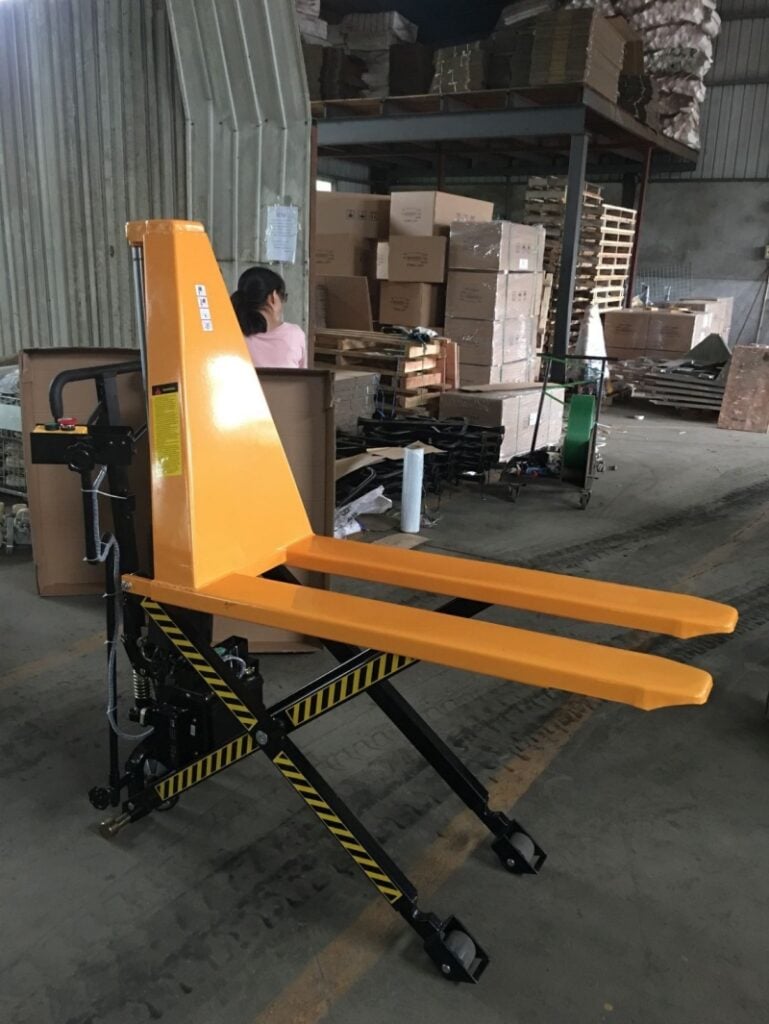

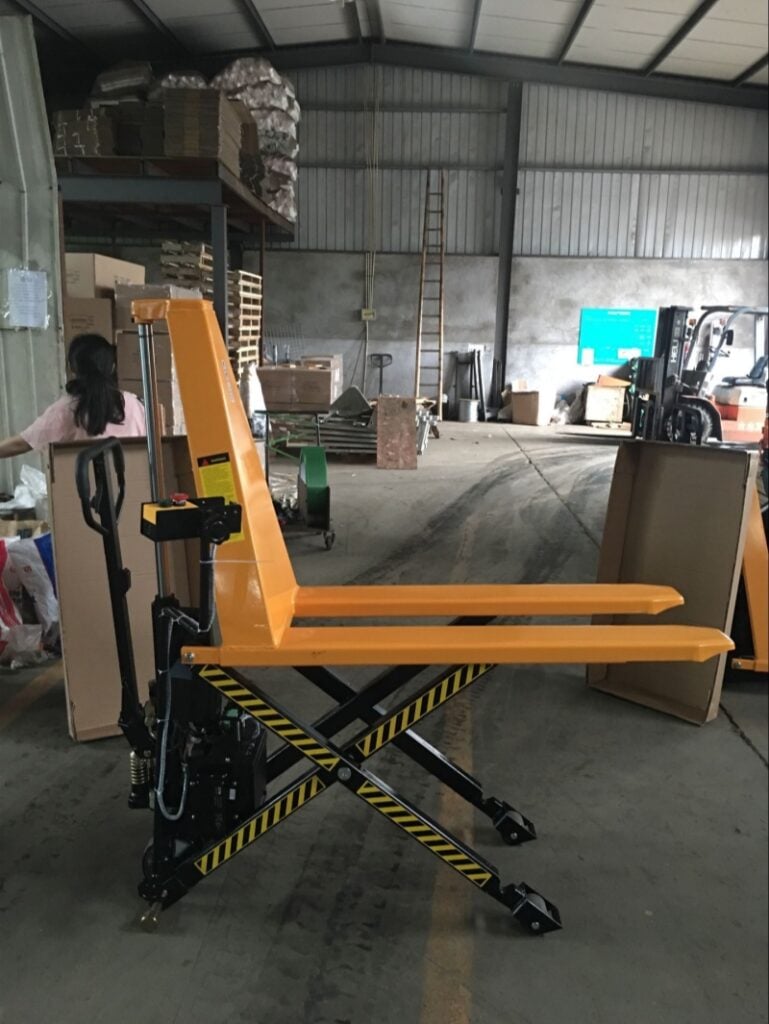

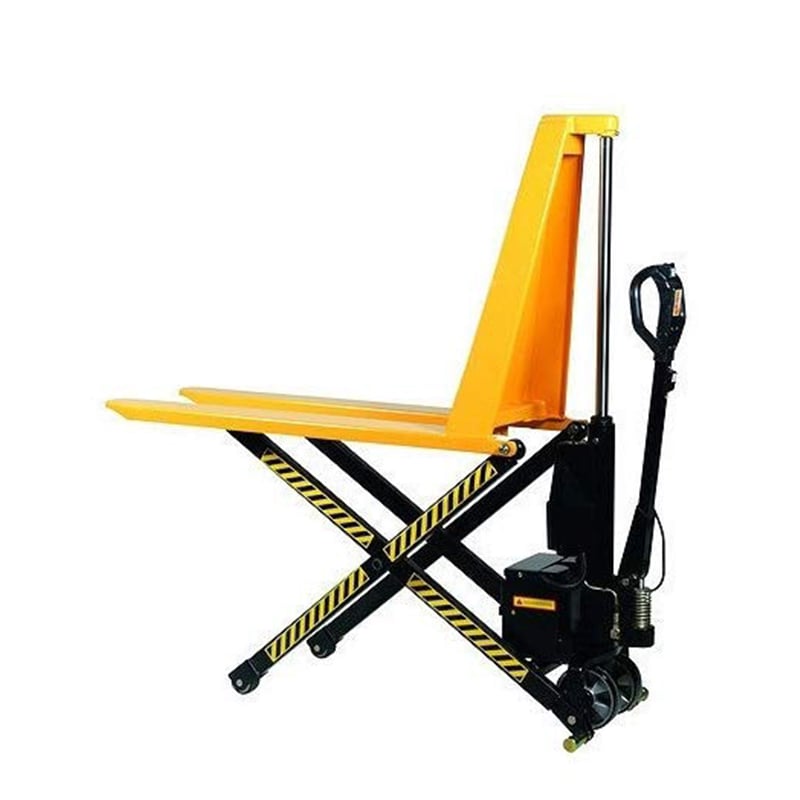

NPHE-1 Electric High Lift Scissor Pallet Jack
NPHE-1 Electric High Lift Scissor Pallet Jack — изображение 2
NPHE-1 Electric High Lift Scissor Pallet Jack — изображение 3
NPHE-1 Electric High Lift Scissor Pallet Jack — изображение 4
NPHE-1 Electric High Lift Scissor Pallet Jack — изображение 5
NPHE-1 Electric High Lift Scissor Pallet Jack — изображение 6

NPHE-1 Electric High Lift Scissor Pallet Jack

NPHE-1 Electric High Lift Scissor Pallet Jack

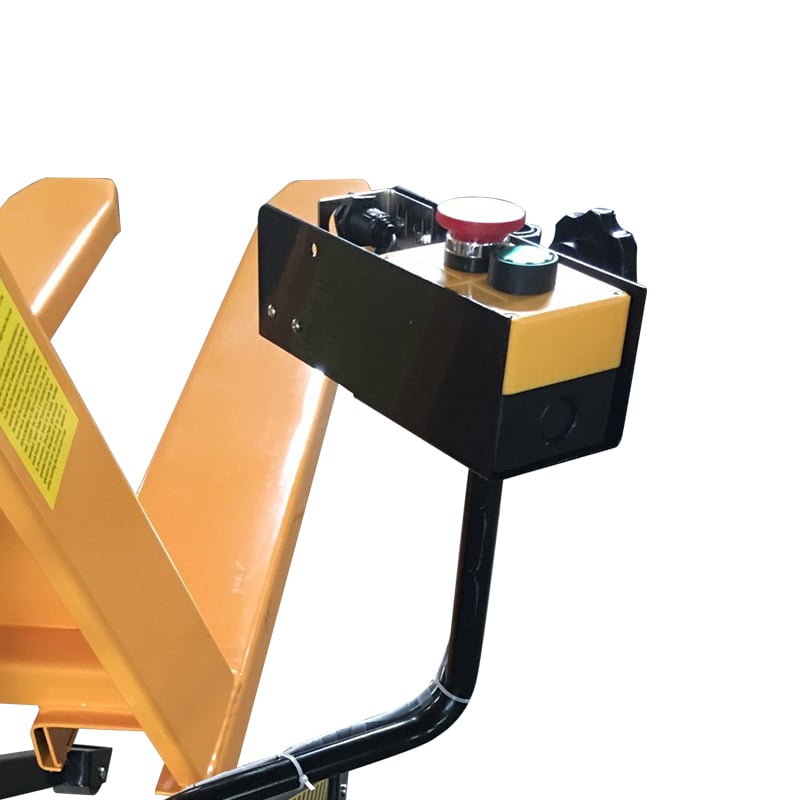

Designed to reduce operator fatigue and streamline workflow, the SINOLIFT NPHE-1 Scissor Pallet Jack seamlessly combines the flexible mobility of a manual pallet jack with the ergonomic convenience of an elevated workbench. Equipped with a highly reliable single-stage hydraulic system and one-touch electric lifting, it delivers smooth, effortless elevation for loads up to 1,000 kg. The reinforced scissor frame provides rock-solid stability without wobble, while its simplified, low-maintenance design ensures long-lasting durability. Highly versatile and easy to maneuver, it is the ideal material handling solution for busy warehouses, manufacturing lines, packaging stations, and retail backrooms.

Связаться с нами
Скачать

Функции

Параметры

Модель NPHE-1(540) NPHE-1(680)
Rated Load Capacity кг 1000 1000
Cylinder Type Single-stage Single-stage
Maximum Fork Height мм 800 800
Minimum Fork Height мм 85 85
Длина вилки мм 1150 1150
Ширина вилки мм 540 680
Drive Wheel Dimensions мм φ180×50 φ180×50
Fork Wheel Dimensions мм φ74×50 φ74×50
Аккумулятор В/Ач 12/75 12/75
Вес нетто кг 165 170

Подробная информация о продукте

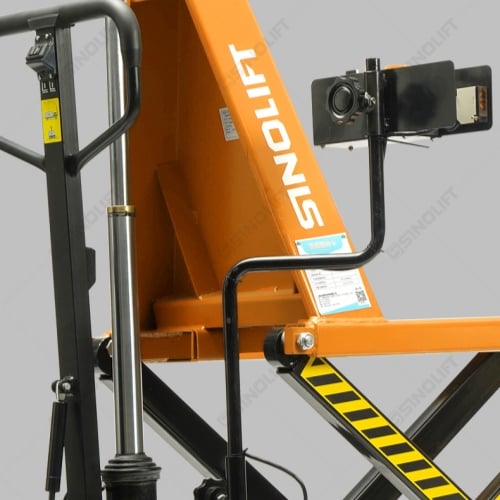

Single-Stage Hydraulic System: Simplified, Stronger, Smarter

Single-Stage Hydraulic System: Simplified, Stronger, Smarter

Equipped with a single-stage cylinder, this system ensures direct and stable lifting performance. It provides the operator with much smoother control, especially when maneuvering at mid-range heights.

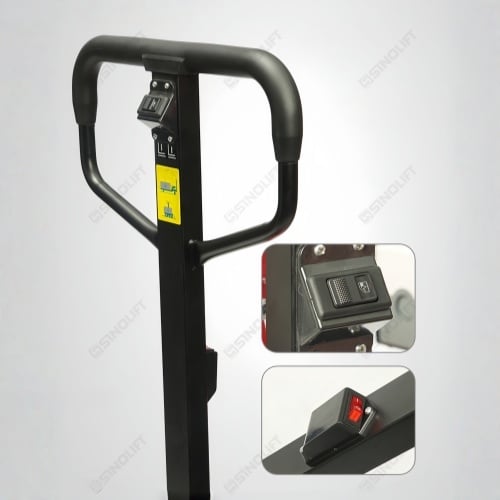

Ergonomic Handle for Comfortable Operation

Ergonomic Handle for Comfortable Operation

The rubber-coated handle provides a soft, anti-slip, and heat-insulating grip for the operator. It is ergonomically shaped to significantly reduce strain and fatigue on the wrists and hands during daily use.

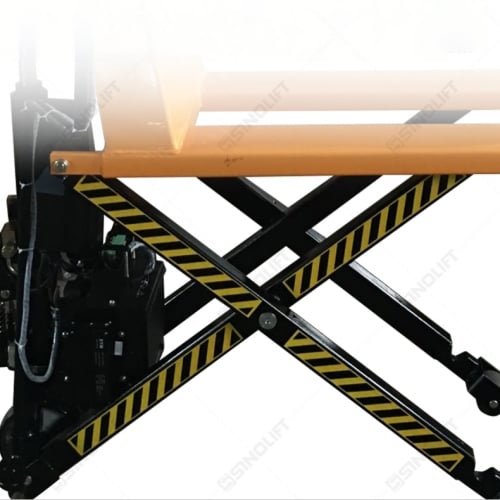

Scissor-Lift Stability That Goes the Distance

Scissor-Lift Stability That Goes the Distance

The reinforced scissor frame effectively resists torsional stress under full capacity, easily lifting loads up to 1,000 kg (2,200 lbs). Its high-rigidity platform reduces wobble during elevated positioning, making it perfect for use as a temporary workbench or an order picking station.

Maintenance Advantages and Durability

Maintenance Advantages and Durability

The simplified single-cylinder design requires fewer hydraulic connection points, which directly translates to a lower risk of failure. Additionally, the modular wheel sets allow for fast field replacement, while the anti-corrosion coated frame ensures long-lasting performance.

Медиа Галерея

Часто задаваемые вопросы

  • Q1: Can I use this high lift pallet jack with any type of pallet?

    A1: Not exactly. Because of the scissor-lift structure, this jack is designed specifically for open-bottom pallets (often called Euro pallets) or skids. It cannot be used with closed-bottom pallets, as the scissor legs will crush the bottom boards when elevating. Please verify your facility's pallet type before purchasing.

  • Q2: What are the power requirements for charging the battery, and how long does it take?

    A2: The built-in smart charger is highly adaptable. It plugs directly into a standard 110V or 220V wall outlet, eliminating the need for complex industrial wiring. A complete charging cycle typically takes about 6 to 8 hours. If your facility runs continuous multi-shift operations, we highly recommend selecting the fast-charging lithium battery option to minimize downtime.

  • Q3: Is it safe to operate the NPHE-1 on inclines or uneven factory floors?

    A3: No, it is not recommended. For safety reasons, electric high lift pallet jacks must only be operated on smooth, flat, and solid indoor surfaces. Using the equipment on ramps, slopes, or rough terrain greatly increases the risk of the load tipping. Keep operations on level ground to ensure maximum stability and worker safety.

  • Q4: Can the fork dimensions be customized to fit our specific manufacturing equipment?

    A4: Absolutely. We know that standard sizes do not fit every unique industrial application. While we offer industry-standard fork lengths and widths, our engineering team can customize the dimensions to perfectly match your specific machinery or specialized cargo. Just reach out to our sales team with your exact measurements to get a tailored quote.

  • Q5: What kind of warranty covers this equipment, and are spare parts easily available?

    A5: The SINOLIFT NPHE-1 comes with a standard one-year warranty covering all major structural and hydraulic components. We understand that equipment downtime costs money. Therefore, we maintain a comprehensive global inventory of spare parts, ensuring fast shipping directly to your facility if replacements are ever needed.
