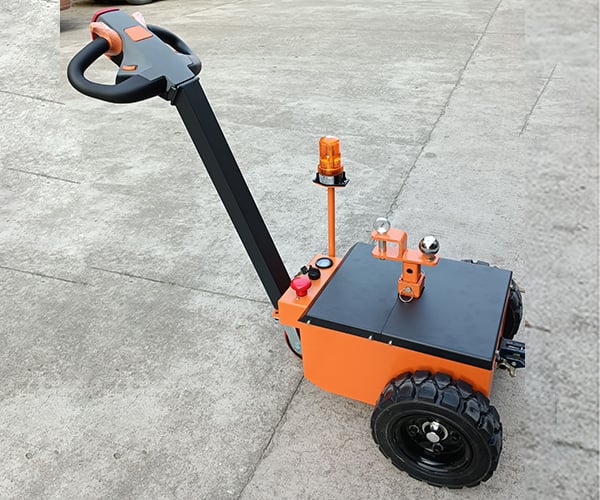

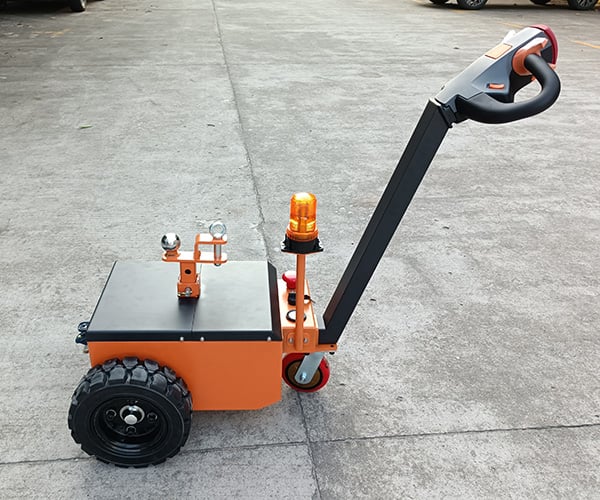

ZT-160 ZT-300 Mini Walkie Electric Tugger
Our ZT-160MINI and ZT-300MINI electric tugs are an impeccable choice for your towing needs. Our tugs boast a remarkable strength, enabling them to manage the towing task of 3000kg of goods on a slope of 3% degrees. Their flexibility is unmatched, thanks to their minimal volume and light self-weight of 150kg. The application of differential mechanisms further enhances their flexibility and makes them easier to operate.
Safety is our top priority, and that’s why we’ve incorporated a pneumatic tire into the design to guarantee stability in operation and excellent passability. In addition, the height of the tiller is adjustable to ensure your comfort while operating the tug.
Features
Parameters
| Model | ZT-160Mini | ZT-300Mini | |
| Capacity | kg | 1600 | 3000 |
| Rated pulling force | N | 500 | 700 |
| Truck weight（with battery） | mm | 115 | 150 |
| Overall height | mm | 1030 | 1030 |
| Height of tiller in drive position | mm | 965 | 965 |
| Overall length | mm | 1135 | 1150 |
| Overall width | mm | 595 | 655 |
| Ground clearance | mm | 100 | 100 |
| Turning radius | mm | 1025 | 1050 |
| Drive speed load/unload | km/h | 3/5 | 3/5 |
| Charger (external) | V/A | 24/10 | 24/10 |
| Battery | V/Ah | 2*12/66 | 2*12/86 |
Product Details

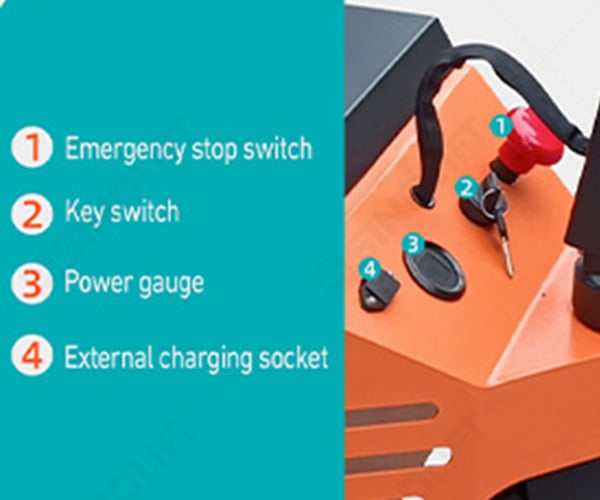

Intelligent control panel
The intelligent control panel provides information about the machine's status and performance, including battery level, speed, and other metrics, ensuring efficient and reliable operation.
Ergonomic handle
The ergonomic handle provides the operator with a comfortable and secure grip, allowing for smooth and precise control over the machine, reducing strain and fatigue.
Solid rubber wheels
The solid rubber wheels provide excellent traction and stability, ensuring the machine can tow heavy loads over various terrain types, including smooth surfaces and inclined planes.
Warning light
The warning light provides enhanced safety features by alerting others in the area of the machine's presence, reducing the risk of accidents or collisions.
Media Gallery
FAQ
-
1. What is a Walkie Tugger?
This solution may be compact, but it packs a powerful punch. With a towing capacity of up to 1500kgs., the walkie tugger may seem like a modest solution at first glance. However, it is equipped with a range of tow hitch options and caster wheels that ensure you reach maximum productivity when transporting loads. -
2. What are Electric Tow Tractors Not Designed For?
Forklifts are the go-to solution for vertical lifting and stacking tasks. Designed to handle loads at varying heights, forklifts are essential in warehouses, distribution centers, and construction sites. Their ability to lift heavy loads and place them on racks or shelves makes them a versatile tool in environments where space optimization is crucial. -
3. Is an Industrial Tow Tractor Right for You?
When it comes to heavy duty towing, Toyota’s Industrial Tow Tractor is the right solution for the job. This versatile piece of equipment is applicable in a variety of industries, such as general manufacturing, warehousing, or the beverage industry. on level surfaces, this high-capacity tugger can easily tow even the heaviest of loads. With its power steering capability, you can seamlessly transport items from point A to point B, so you never have to worry about getting the job done.
Optional Extras
- Industrial Pin:
This heavy-duty pin is equipped with an r-clip, ensuring the secure movement of all types of loads and trollies. It is the ideal choice if your loads come with a hitching eye.
- Tow Ball:
Our tow balls are designed to be attached to your mover, enabling the use of standard trailer hitches fitted onto your loads.
- Adjustable Double Sided Hook-ADSH:
Our double-sided hook, adjustable to meet the standards of the user, comes with a simple channel and pin attachment. It is constructed with durability in mind for long-term use. Adjustable width tension placements and precise height adjustment ensure customized use.
- Rubber Bumper Attachment-RPB19:
The rubber bumper attachment transforms the capabilities of our electric-powered tugger. It can be easily converted between a tugger and pusher, maximizing workplace utility. The bolt-on design makes it simple to remove or install, and the panel pattern style provides impact resistance when pushing heavy, large items. An extended mounting plate and wide rectangular design with pre-drilled mounting holes and installation hardware are included.
- Steel Spring Loaded Manual Channel Lift-MCLA:
The easily attachable spring loaded channel lift comes with multiple ports, enabling the user to customize height and length and adapt to a variety of needs. Its robust construction ensures long-term use and it is adaptable to a range of heights.
- Steel Multi Mover-MM:
Designed to manoeuvre products from area to area, the steel multi-mover attachment features a multiple length design that offers a range of uses. It can be easily attached to help push or pull items, and its simple channel and pin attachment, adjustable width tension placements, and precise height adjustment make it easy to use and customize.
- Steel Adjustable Single Side Hook Double Ball Hitch-SABH:
This attachable ball hitch enables the user to utilize the electric-powered tug with a currently hitched item. Our durable, compact design includes a simple and easy placement process, ensuring maximum productivity with easy transfer. Its robust construction ensures long-term use in a variety of settings.
