T20
T20 Electric Pallet Truck – 2000kg Capacity, Lightweight (110kg) for Warehouses & Factories
The T20 Electric Pallet Truck is designed for efficient material handling in warehouses, factories, and distribution centers. Combining a lightweight 110 kg frame with a robust 2,000 kg load capacity, it delivers strength without compromising maneuverability. Its cost-effective components ensure reliable, durable performance for heavy-duty transport, while intuitive controls make it ideal for entry-level operators. Energy-efficient and easy to adopt, the T20 is perfect for businesses upgrading from manual equipment or seeking an affordable productivity boost.
Features

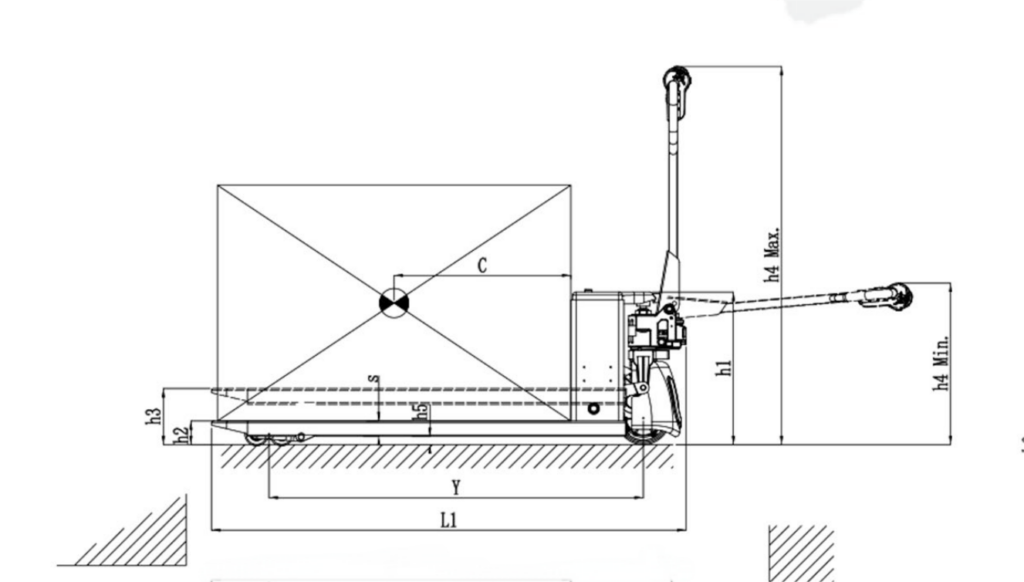

Parameters
| Manufacturer | SINOLIFT | |
| Model | T20 | |
| Drive type | electric/manual | |
| Lift type | manual | |
| Operator type | walkie | |
| Load capacity | 2000kgs | |
| Load center | 600mm | |
| Wheelbase | 1202/1272mm | |
| Service weight | 110/115kg | |
| Overall height | h1 | 522.5mm |
| Fork height(lowered) | h2 | 80mm |
| Lift height | h3 | 200mm |
| Tiller arm height | h4 | 560-1280mm |
| Ground clearance | h5 | 27mm |
| Overall length | L1 | 1546/1616mm |
| Overall width | b1 | 540/680mm |
| Fork size | L | 1150/1220mm |
| S | 52mm | |
| E | 160mm | |
| Turning radius(min.) | Wa | 1352/1422mm |
| Drive motor | 0.75kw | |
| Battery | 48V/10Ah | |
| Charger | 48V/5A |
Product Details
I-touch handle
I-touch handle brings you the best IOT (Internet of Things) experience Handle head design takes full consideration of ergonomics, the function buttons are all easy to operate. 2.5 inch touch screen Efficient and intuitive Interactive and customizable
Battery
Quick-change battery reduces downtime. Lithium ion lasts 4 times longer than traditional batteries. The advantages provided to you by lithium-ion batteries make them a superior solution for pallet jacks and other motive power applications. 48V15Ah larger battery available Compact and portable 2-3 hrs fast charge 80% capacity after 2000 cycles
Brushless motor
Higher efficiency Cost saving Brushless motor, higher efficiency and performance, free maintenance
Digital display
Digital display of mileage, battery status, travel speed, approx. load weight Brushless motor, higher efficiency and performance, free maintenance
FAQ
Do you need a licence for an electric pallet truck?
You don’t necessarily require a driving licence to operate a pallet. But depending on your location, you must have certification to operate electric pallet trucks. In the US, OSHA does not require certification for using electric pallet trucks. However, they recommend that companies establish a certification program for their employees. The individual certification will come upon completion of the course. Some courses may have an expiration date, so you might have to take the course again in the future.What is an electric pallet truck?
An electric pallet truck is a battery-powered material handling equipment designed to lift and transport palletized loads with minimal manual effort. It features a fork assembly to slide under pallets, powered lifting/lowering functions, and self-propelled movement for efficient warehouse operations.Can the T20 pallet truck switch between electric and manual modes?
Yes, the T20 features an innovative Electric/Manual mode switch that eliminates downtime. When battery power runs low or in emergency situations, operators can instantly switch to manual mode without interrupting workflow. This dual-mode design makes it ideal for continuous operations in busy warehouses and distribution centers.How does the I-TOUCH handle improve operational efficiency?
The advanced I-TOUCH handle features a 2.5-inch touchscreen display that provides real-time operational data including load weight, battery status, and travel speed. It also allows password protection to prevent unauthorized use and stores operational history for performance tracking. These smart features significantly reduce training time and improve overall productivity.What safety features are included for slope operations?
The T20 is equipped with multiple safety features for slope operations, including an emergency brake system and 8% maximum gradeability even at full 2,000kg load. The digital display shows real-time slope angle and automatically adjusts speed to ensure stable and safe operation on inclines.
Optional Extras

Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests
When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer
Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version
Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks
This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels
PU wheels
Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.
Nylon wheels
Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle
The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
