  5. 1.5ton 2 ton Narrow aisle CQD15B 20B Electric Reach stand Forklift Truck

T20 Li

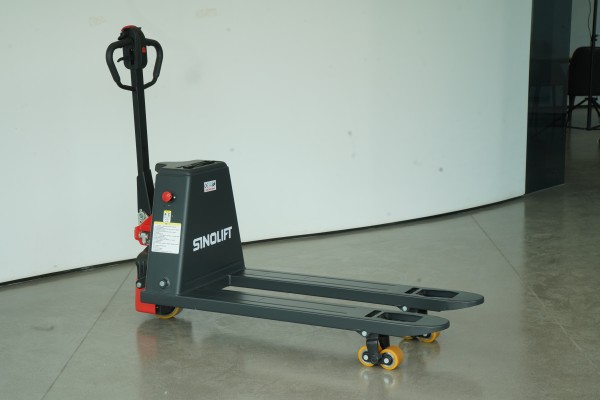

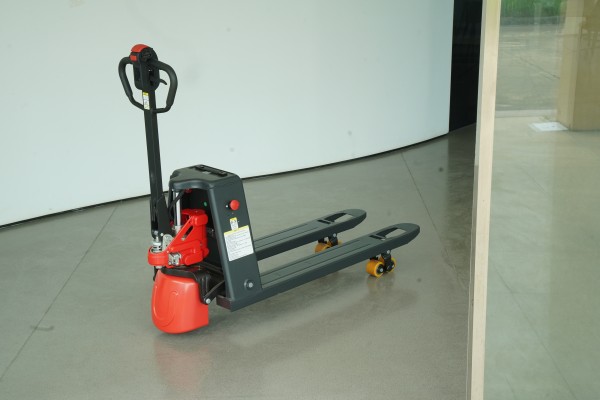

T20i Lithium-Ion Powered Pallet Jack

The SINOLIFT is a revolutionary Lithium-Ion powered pallet jack that brings a superior level of durability, maneuverability, and affordability to your operations. Featuring a sleek and compact design, along with motorized lift, lower, and travel capabilities, the SINOLIFT empowers operators to effortlessly handle loads up to 4,400 lbs. even in the most confined spaces. Moreover, its fast-charging and easy-to-change battery system adds to its convenience and enhances productivity, making it an ideal alternative to traditional manual hand pallet jacks. With SINOLIFT, superior performance and reliability are guaranteed, providing you with a solution that meets all your needs.

Electric/Manual mode switch features NO DOWNTIME

▶ 8 hrs non-stop working with a spare battery

▶ 8% max. gradeability (full load) refectes great performance

Features

Our 2000kgs fully electric pallet truck is perfect for retail or commercial floors where larger trucks could potentially cause damage. All models come with powerful Li-ion batteries, which can be charged during breaks, allowing for extended operating times and ideal for multi-shift usage.

Whether you require a pedestrian pallet truck or one with a driver’s platform for longer distances, SINOLIFT has the ideal model for your needs. Additionally, our electric pallet jacks are renowned for their precise maneuverability, particularly in space-critical areas such as storage zones and sales areas across various industries, including retail and logistics.

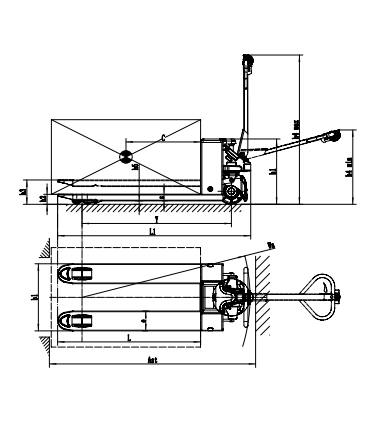

Parameters

ManufacturerSINOLIFT
ModelT20i
Drive typeelectric/manual
Lift typeelectric/manual
Operator typepedestrain
Load capacitykgs2000
Load centermm600
Wheelbasemm1202/1272
Service weightkg116/118
Overall heighth1mm587
Fork height(lowered)h2mm80
Lift heighth3mm200
Tiller arm heighth4mm560-1280
Ground clearanceh5mm27
Overall lengthL1mm1546/1616
Overall widthb1mm540/680
Fork sizeLmm1150/1220
Smm52
Emm160
Turning radius(min.)Wamm1352/1422
Drive motorkw0.75
BatteryAh48V/15
ChargerA48V/5



Product Details

Media Gallery

FAQ

  • How to select the ideal pallet jack battery

    Selecting the right pallet jack battery can prove to be a daunting task. The process involves taking into account numerous factors that could significantly impact your business's bottom line. These factors include battery options available, the size and shape of the battery, budget, and differences between top brands, cycle life, and charging speed. Choosing the wrong battery can result in financial losses and decreased efficiency. It is, therefore, crucial to comprehend the factors that directly influence your business operations and streamline them to improve productivity while reducing labor costs.
  • What battery type does your pallet jack require?

    Powered pallet jacks are often used in warehouses to lift single or stacked heavy pallets easily. These jacks feature a throttle that navigates the jack forwards and backward with forks to move around massive and weighty items. Powered pallet jacks usually run on 24 volts and require high-powered batteries that guarantee efficient functioning while minimizing downtimes.
  • How long does a pallet jack battery last?

    Typically, a pallet jack battery can last for about 3-5 years.
  • How long does it take to charge an electric jack?

    Generally, most jacks require around 8 to 12 hours for a complete charge. However, newer models equipped with fast-charging capabilities can achieve a full charge in as little as 4 hours. Always consult the manufacturer's recommendations for accurate charging durations.
  • How Do You Use an Electric Pallet Truck?

    1. Preparation — Conduct a quick inspection of the hydraulic system, battery and emergency stop switch.2. Initialization — Insert the key into the instrument panel and turn it on.3. Operation — Use the handle buttons to lift the forks and move the truck. The drive wheel will guide your direction.4. Handling — Once you’ve reached the desired location, lower the forks and disengage the truck.

Optional Extras

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer

Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks

This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels

PU wheels

Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.

Nylon wheels

Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle

The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
