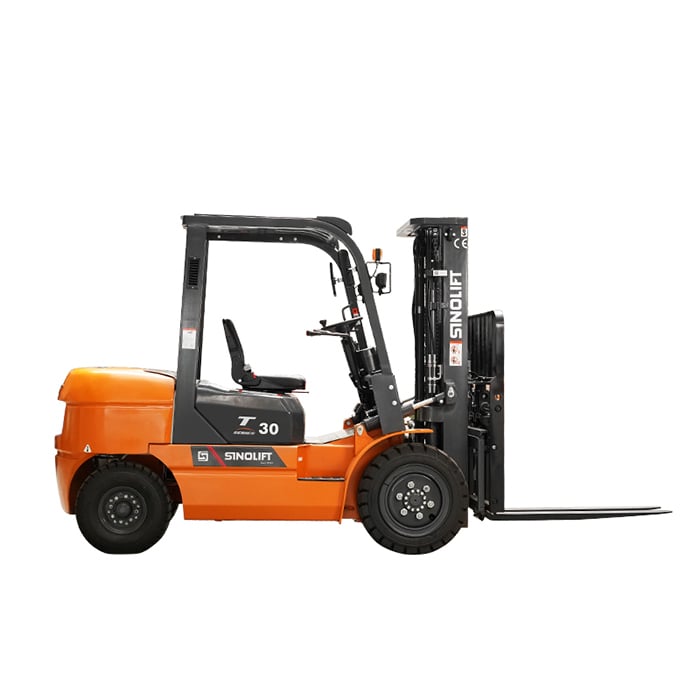

T1 Series 3.0-4.0 Ton Diesel Forklift
T1 Series 3.0-4.0 Ton Diesel Forklift - Image 2
T1 Series 3.0-4.0 Ton Diesel Forklift - Image 3

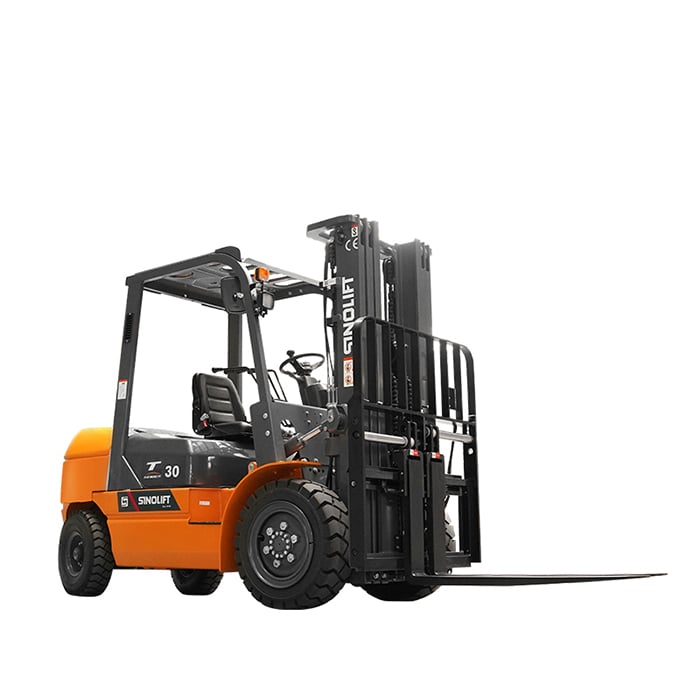

T1 Series 3.0-4.0 Ton Diesel Forklift - Image 4

T1 Series 3.0-4.0 Ton Diesel Forklift

The SINOLIFT T series 3.0-4.0T internal-combustion counterbalanced forklift is engineered for intensive outdoor material handling in demanding sectors like logistics, construction, ports, and manufacturing plants. It features an extremely compact design for a tight turning radius and superior maneuverability in confined spaces. Key highlights include exceptional operational comfort through ergonomic design and advanced noise suppression, along with robust durability from its high-strength mast and overhead guard. This versatile and reliable forklift meets stringent global emission standards, offering flexible engine options to ensure efficient and sustainable performance across various challenging applications.

Contact Us
Download

Features

key features of the SINOLIFT T-Series 3.0-4.0T forklift:

Unmatched Maneuverability: An extremely compact design ensures a tight turning radius, allowing for superior operation and navigation in confined spaces like busy warehouses or crowded yards.

Superior Operator Experience: The ergonomic cab, low-step entry, and advanced sound/vibration suppression technologies minimize fatigue, ensuring comfortable and productive shifts even during long hours of operation.

Enhanced Durability & Safety: Built with a 440-high-strength steel mast (35% stronger) and a robust overhead guard, it ensures reliable performance. The wide-view mast and high-fulcrum tilt cylinder significantly improve operational stability and safety.

Global Power & Compliance: Offering flexible, high-quality engine options from Japan and China, it meets stringent international emission standards (EPA Tier 4 Final / EU Stage V), balancing power, reliability, and environmental responsibility.

Low Maintenance Design: Features like a large-angle opening engine hood for easy access and tool-free removable floor panels simplify routine checks and servicing, reducing downtime and total cost of ownership.

Parameters

General Manufacture SINOLIFT
Model CP(C)D30T1 CP(C)D35T1 CP(C)D38T1 CP(C)D40T1
Power type Diesel
Rated capacity Q kg 3000 3500 3800 4000
Load center C mm 500
Dimensions Lift height H mm 3000
Free lift height H5 mm 125 90 90 90
Fork size LxWxT mm 1070x125x45 1070x125x50
Fork spread outside Min./Max. W5 mm 244/1060 244/1060 244/1060 244/1060
Mast tilt angle α/β deg 6/12 6/12 6/12 6/12
Front overhang L2 mm 480 505 505 505
Rear overhang L3 mm 500 550 550 495
Overall dimensions Length to face of fork L mm 2780 2835 2835 2890
Overall width W mm 1230 1230 1230 1410
Height of load backrest H6 mm 1225 1225 1225 1225
Mast lowered height H1 mm 2115 2150 2150 2195
Mast extended height H2 mm 4180 4180 4180 4180
Overhead guard height H3 mm 2110 2110 2110 2120
Turning radius r mm 2520 2570 2570 2700
Min. Intersecting aisle Ra mm 2580 2650 2650 2700
Min. Right angle stacking aisle width RASA mm 4270 4320 4320 4400
Performance Laden/Unladen Travel speed km/h 19/20 19/20 19/20 19/20
Lift speed mm/sec 510/550 440/480 430/480 320/480
Lowering speed mm/sec 600/300 600/300 600/300 600/300
Max. gradeability (Laden /Unladen) % 15/20 15/20 15/20 15/20
 Max. drawbar pull KN 20 20 20 20
Self weight kg 4150 4650 4850 5100
Wheel & Tire Tires Front 28×9-15-12PR 28×9-15-12PR 28×9-15-12PR 250-15-16PR
Rear 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR
Tread Front W1 mm 1000 1000 1000 1000
Rear W2 mm 970 970 970 1080
Wheelbase L4 mm 1800 1800 1800 1900
Min.ground clearance H4 mm 140 140 140 140
Operating pressure Mpa 17.5 17.5 17.5 17.5
Drive units & control Battery V/AH
Engine Model Isuzu C240PKJ-30 Xinchai A495BPG Xinchai A498BPG Isuzu 4JG2PE-01
Rated output kw/rpm 34.6/2500 42/2500 45/2500 46/2450
Rated torque N.m/rpm 139.2/1800 174/1800-2000 193/1800 186/1700-1800
No.of cylinder 4 4 4 4
Bore×stroke mm 86×102 95×105 98×105 95.4×107
Displacement cc 2369 2977 3170 3059
Emission Standard Stage II / EURO IIIA Stage II Stage III / EURO IIIA Stage II / EURO IIIA
Transmissions Type Mechanical/Hydraulic Mechanical/Hydraulic Mechanical/Hydraulic Mechanical/Hydraulic
Hydraulic System Working Pressure MpA 17.5 17.5 17.5 17.5

The SINOLIFT T Series 3.0–4.0T internal-combustion counterbalanced forklift is built for heavy-duty outdoor material handling in logistics, construction, ports, warehouses, and manufacturing facilities. With its compact body design and tight turning radius, it delivers excellent maneuverability even in narrow or busy working areas.

Designed with operator comfort and long-term durability in mind, the T Series features an ergonomic driving space, reduced noise levels, a high-strength mast, and a reinforced overhead guard. Multiple engine options are available to meet different working conditions and emission requirements, making it a reliable and efficient choice for demanding industrial applications.



Product Details

Robust and Stable Overhead Guard

Robust and Stable Overhead Guard

High-strength overhead guard with thickened columns for enhanced structural integrity.

· Ergonomically optimize the cab and reasonably layout the operating levers. The accelerator and brake pedal are arranged on the same plane to effectively alleviate driver fatigue. · Equipped with a small steering wheel to increase operating space.

Ergonomic Cab

· Ergonomically optimize the cab and reasonably layout the operating levers. The accelerator and brake pedal are arranged on the same plane to effectively alleviate driver fatigue. · Equipped with a small steering wheel to increase operating space.

Large Angle Opening of Engine Hood

Large Angle Opening of Engine Hood

The hood opens wide, allowing direct access to the battery, electric control, and motor after opening, which makes maintenance more convenient.

Steering Axle

Steering Axle

The steering axle angle is enlarged, the oil cylinder is thickened, and ordinary bearings are replaced with tapered roller bearings. This achieves high reliability, a small turning radius, and reduced tire wear.

Media Gallery

FAQ

  • Q1: What type of engine does the SINOLIFT T-Series forklift use?

    A1: The SINOLIFT T-Series offers flexible engine options, including high-quality engines sourced from both Japan and China. These engines are designed to meet stringent global emission standards such as EPA Tier 4 Final and EU Stage V, ensuring reliable performance and compliance across different regional markets.

  • Q2: How does the T-Series forklift perform in narrow working spaces?

    A2: With its extremely compact design, the T-Series features a tight turning radius that enables excellent maneuverability in confined areas. Combined with ergonomic features like a compact steering wheel and full hydrostatic steering, it allows operators to work efficiently even in tight warehouse aisles.

  • Q3: What durability features does the T-Series forklift have for long-term use?

    A3: The T-Series is built with enhanced durability including a 130mm ultra-wide rear column and a robust overhead guard with thickened supports. Its mast is constructed from 440 high-strength steel, providing 35% greater strength to withstand intensive operations and extend service life.

  • Q4: How does the design of the T-Series reduce operator fatigue?

    A4: The forklift incorporates an ergonomic cab layout with optimally positioned controls and pedals on the same plane. Advanced sound and vibration suppression technologies create a quieter working environment, significantly reducing operator fatigue during extended shifts.

  • Q5: What maintenance advantages does the T-Series forklift offer?

    A5: The T-Series is designed for easy maintenance with a large-angle opening engine hood that provides direct access to key components. Additionally, tool-free removable floor panels simplify routine inspections and maintenance tasks, helping to minimize downtime and operational costs.

Optional Extras

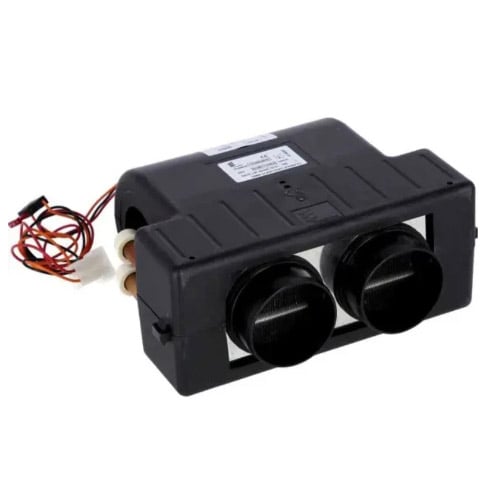

Cabin with Heater

Cabin with Heater

Stay productive through the cold seasons. The optional heated cabin provides a warm, comfortable environment for operators, ensuring safety and efficiency are maintained even in freezing outdoor conditions.

Cabin with Air Conditioner

Conquer the heat without losing momentum. The air-conditioned cabin option delivers a cool, controlled workspace that reduces operator fatigue and maintains peak performance during hot weather operations.

Special Forks

Optimize your material handling with our range of specialized forks. These attachments are designed to safely and efficiently handle unique loads, such as coils, drums, or blocks, enhancing both productivity and application versatility.

Weigher System
Keep track of load weight instantly and accurately with the integrated weighing system. This feature enhances operational safety and efficiency by preventing overloads and streamlining material handling workflows.

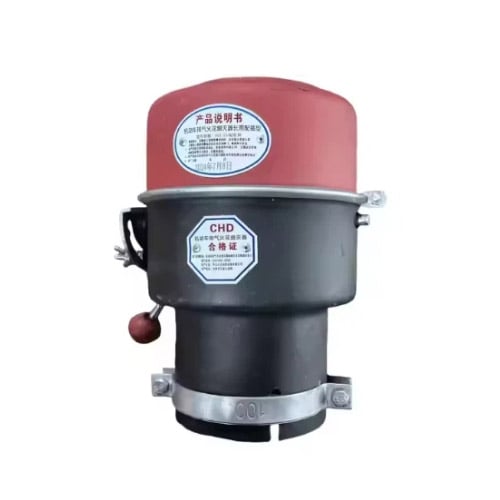

Spark Arrestor
Operate with confidence in sensitive environments. The spark arrestor effectively contains hot particles, significantly reducing fire risk when working near combustible materials or in dry, high-risk areas.

Blue spot light

The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.

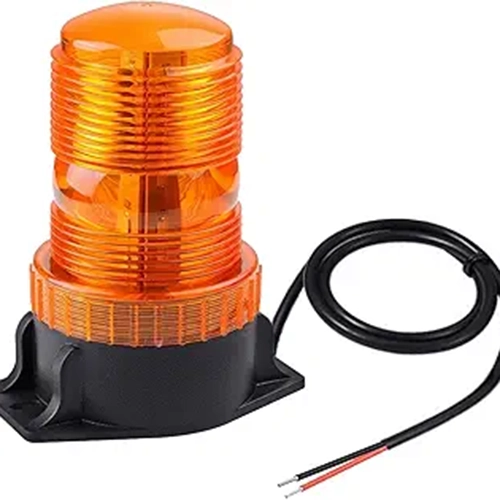

Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.

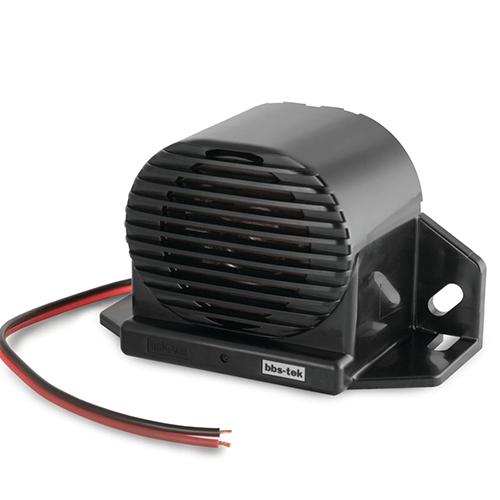

Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.

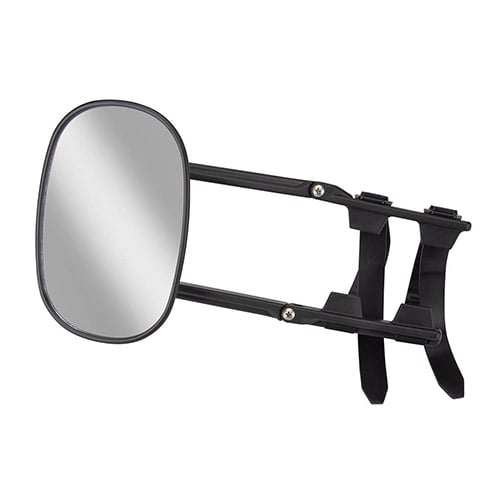

Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.

Cold store protection

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in low-temperature conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

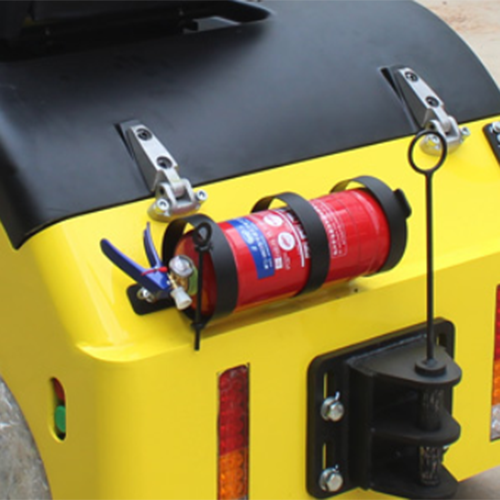

Fire Extinguisher
This quick-release, vehicle-mounted fire extinguisher is specifically designed for forklifts, featuring OSHA-compliant construction for industrial safety. Its easy-access mounting and instant activation ensure rapid response to engine, battery or electrical fires. The compact yet powerful system provides reliable protection for operators and equipment in critical situations. Vibration-resistant brackets keep the unit securely in place during all forklift operations.
