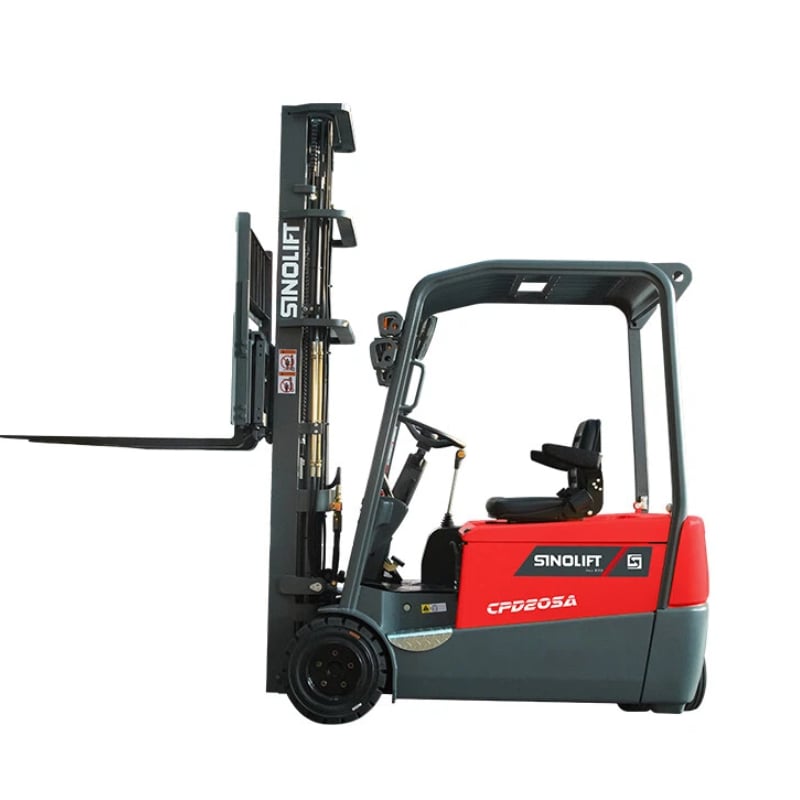

SA Series 1.6-2.0 Ton Three Wheel Electric Forklift
The Sinolift CPD20SA three-wheel electric forklift is a compact and highly efficient solution for material handling in confined spaces, narrow aisles, and indoor environments. With a lifting height ranging from 3000mm to 6500mm and a capacity of 1.6/1.8/2.0 tons, it excels in tight spaces thanks to its enhanced turning radius. Designed for power, reliability, and value, the CPD20SA series combines the stability of a larger forklift with the agility of a smaller model, making it ideal for warehouses, workshops, and other space-constrained applications.
Features
Safe & efficient & stable & flexible
- 100% AC technology traction and pump
- Best-in-class ergonomics reduces worker fatigue
- Designed for greater operator visibility
- Easy to read LED instrumental panel
- Easy access battery
- Low center of gravity for increased stability
- Double wheel independent dive system
- Tighter turning radius than 4-wheel models
- Rear wheel deive
- Easy to maintain and easy access and driving
Parameters
Enhanced Maneuverability & Compact Design
Rear wheel drive and tight turning radius for superior performance in confined spaces like containers, wagons, and narrow aisles.
Compact design ideal for indoor and enclosed environments.
User-Friendly Operation
Intuitive controls, ergonomic mechanical levers, and a small steering wheel for effortless operation.
Easy access to the driver’s seat with a wide step and long handgrip.
Easy Maintenance & Standardized Components
Quick and efficient maintenance with easy access to major components.
Standardized popular brand components for simplified spare parts management.
Safety & Compliance
Complies with ISO 3691 standards, including automatic cut-off of movements when the operator leaves the seat.
Equipped with a complete lights kit (front, rear, indicators, and flashing beacon) for enhanced visibility.
Advanced Technology & Stability
100% AC technology for traction and pump, ensuring high efficiency and low noise.
Low center of gravity and double-wheel independent drive system for increased stability and flexibility.
| Main technical parameters | ||||||
| Characteristics | 1.1 | Manufacturer(abbreviated) | SINOLIFT | SINOLIFT | SINOLIFT | |
| 1.2 | Type | CPD20SA-16 | CPD20SA-16Li | CPD20SA-18 | ||
| 1.3 | Driving model：Electric(Storage battery) | Electric Dual front driving wheel | Electric Dual front driving wheel | Electric Dual front driving wheel | ||
| 1.4 | Driving model（Manual, Walking, Stand driving, Seat driving ,Order picking） | Seating driving | Seating driving | Seating driving | ||
| 1.5 | Rated load | Q(kg) | 1600 | 1600 | 2000 | |
| 1.6 | Load center distance | c(mm) | 500 | 500 | 500 | |
| 1.8 | Front overhang | x(mm) | 358 | 358 | 358 | |
| 1.9 | Tread | Y(mm) | 1362 | 1362 | 1362 | |
| Weight | 2.1 | Service weight(with battery) | kg | 3220 | 3220 | 3280 |
| 2.2 | Axle load, front/rear, laden | kg | 3955/865 | 3955/865 | 4166/914 | |
| 2.3 | Axle load, front/rear, unladen | kg | 1425/1795 | 1425/1795 | 1455/1826 | |
| Wheel chassis | 3.1 | Wheels (rubber, high elasticity, pneumatic tyre, polyurethane wheel) | super elastic solid tires | super elastic solid tires | super elastic solid tires | |
| 3.2 | Wheel dimension, front | 18×7-8 | 18×7-8 | 200/50-10 | ||
| 3.3 | Wheel dimension, rear | 15 x4 1/2 -8 | 15 x4 1/2 -8 | 15 x4 1/2 -8 | ||
| 3.5 | Wheel number, front/rear （x = driving wheel） | 2x/2 | 2x/2 | 2x/2 | ||
| 3.6 | Tread, front | b10(mm) | 920 | 920 | 937 | |
| 3.7 | Tread, rear | b11(mm) | 165 | 165 | 165 | |
| Dimension | 4.1 | Mast /fork-front /caster angle | ° | 3/6 | 3/6 | 3/6 |
| 4.2 | Height of mast, lowered | h1(mm) | 2000-2660 | 2000-2660 | 2000-2660 | |
| 4.4 | Lift height | h3(mm) | 3000-6200 | 3000-6200 | 3000-6200 | |
| 4.5 | Max. height of mast, extended | h4(mm) | 4000-7200 | 4000-7200 | 4000-7200 | |
| 4.7 | Overhead guard height（cab） | h6(mm) | 2005 | 2005 | 2005 | |
| 4.8 | Seat height /standing | h7(mm) | 938 | 938 | 938 | |
| 4.12 | Traction bolt heiht | h10(mm) | 560 | 560 | 560 | |
| 4.19 | Overall length | l1(mm) | 2880 | 2880 | 3000 | |
| 4.2 | Length to fork face | l2(mm) | 1930 | 1930 | 1930 | |
| 4.21 | Overall width of truck body | b1(mm) | 1070 | 1070 | 1130 | |
| 4.22 | Fork dimension | s/e/l(mm) | 35/100/950 | 35/100/950 | 40/100/1070 | |
| 4.23 | Fork DIN 15 173，grade/typeA，B | 2A | 2A | 2A | ||
| 4.24 | Overall width of fork | b3(mm) | 1088 | 1088 | 1088 | |
| 4.31 | Ground clearance from lower mast | m1(mm) | 90 | 90 | 90 | |
| 4.32 | Ground clearance from load center | m2(mm) | 100 | 100 | 100 | |
| 4.33 | Aisle width, with pallet 1000×1200(1200 crosswise) | Ast(mm) | 3120 | 3120 | 3120 | |
| 4.34 | Aisle width, with pallet 800×1200(1200 lengthwise) | Ast(mm) | 3220 | 3220 | 3220 | |
| 4.35 | Turning radius | Wa(mm) | 1552 | 1552 | 1552 | |
| Performance Data | 5.1 | Traveling speed, laden/unladen | Km/h | 14/14 | 14/14 | 14/14 |
| 5.2 | Lifting speed, laden/unladen | m/s | 0.29/0.45 | 0.29/0.45 | 0.27/0.42 | |
| 5.3 | Descending speed, laden/ unladen | m/s | 0.45/0.43 | 0.45/0.43 | 0.45/0.43 | |
| 5.8 | Max. gradeability, laden/unladen | % | 15/20 | 15/20 | 15/20 | |
| Motor | 6.1 | Driving motor power | kW | 2*4.5(AC) | 2*4.5(AC) | 2*4.5(AC) |
| 6.2 | Lifting motor power | kW | 10(AC) | 10(AC) | 10(AC) | |
| 6.4 | Battery voltage/rated capacity | V/Ah | 48/420(490) | 48/300 | 48/490(560) | |
| 6.5 | Battery weight | kg | 720 | 720 | 760 | |
| Additional data | 8.4 | Noise level at operator’s ear, according to DIN12053 | dB(A) | 68 | 68 | 68 |
Product Details
Fully hydrostatic power steering for excellent maneuverability
Sinolift-tAC import control system,three fulcrum electric forklift truck with import drive bridgehree-wheel-electric-forklift-CPD20SA-03
Three speed modes to choose according to different needs: low speed, moderate speed and high speed.

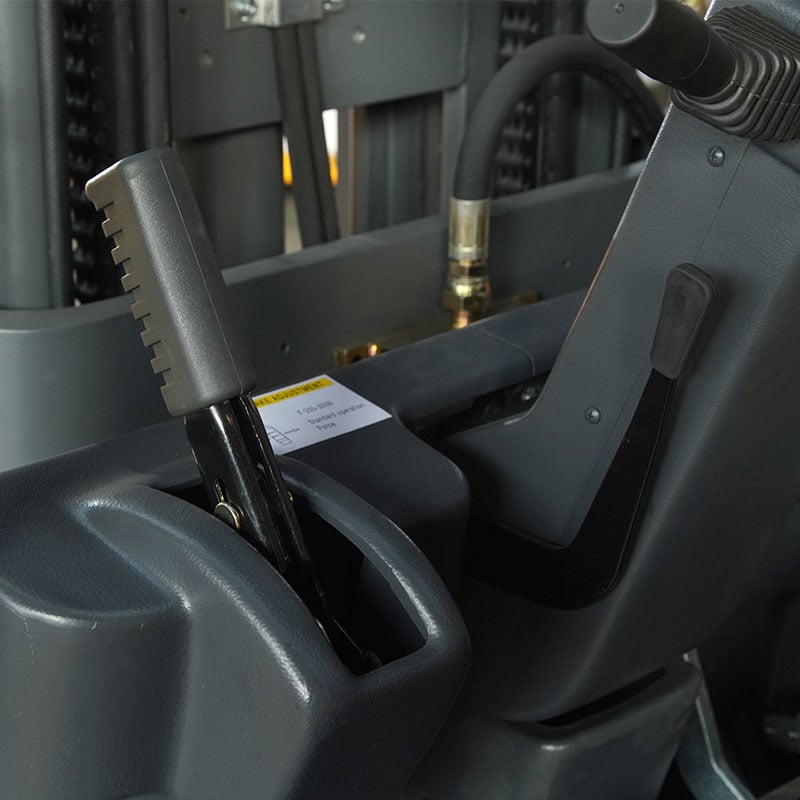

Wet butterfly brake
Media Gallery
FAQ
-
A: What are the main advantages of a three-wheel electric forklift?
Q:The three-wheel design offers a tight turning radius, making it highly maneuverable in confined spaces like narrow aisles and small warehouses. It also features zero emissions, low noise, and low operating costs, making it ideal for indoor and environmentally sensitive environments. -
A: What is the typical load capacity of a three-wheel electric forklift?
Q:Most three-wheel electric forklifts support load capacities ranging from 1.6 ton to 2.0 tons, depending on the model. Be sure to choose a forklift that meets your specific operational needs. -
A: Can three-wheel electric forklifts be used outdoors?
Q:Yes, they can be used outdoors on smooth, flat surfaces. However, they are not suitable for rough terrain or harsh weather conditions unless equipped with specialized tires or additional features. -
A: How does the battery maintenance work?
Q: Charge the battery when it reaches 20-30% capacity to prolong its lifespan. Regularly inspect the battery for damage or wear. For lead-acid batteries, check electrolyte levels and refill with distilled water if necessary. Store the forklift in a dry and well-ventilated area when not in use. -
A: What safety features are available in three-wheel electric forklifts?
Q:Common safety features include: Automatic braking systems for secure stopping. Anti-tip technology to enhance stability during sharp turns. Load sensors to prevent overloading. LED lights and alarms for better visibility and workplace awareness.
Optional Extras
Cabin with Heater
Stay productive through the cold seasons. The optional heated cabin provides a warm, comfortable environment for operators, ensuring safety and efficiency are maintained even in freezing outdoor conditions.
Cabin with Air Conditioner
Conquer the heat without losing momentum. The air-conditioned cabin option delivers a cool, controlled workspace that reduces operator fatigue and maintains peak performance during hot weather operations.
Special Forks
Optimize your material handling with our range of specialized forks. These attachments are designed to safely and efficiently handle unique loads, such as coils, drums, or blocks, enhancing both productivity and application versatility.
Weigher System
Keep track of load weight instantly and accurately with the integrated weighing system. This feature enhances operational safety and efficiency by preventing overloads and streamlining material handling workflows.
Spark Arrestor
Operate with confidence in sensitive environments. The spark arrestor effectively contains hot particles, significantly reducing fire risk when working near combustible materials or in dry, high-risk areas.
Blue spot light
The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.
Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.
Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.
Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.
Cold store protection
Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in low-temperature conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.
Fire Extinguisher
This quick-release, vehicle-mounted fire extinguisher is specifically designed for forklifts, featuring OSHA-compliant construction for industrial safety. Its easy-access mounting and instant activation ensure rapid response to engine, battery or electrical fires. The compact yet powerful system provides reliable protection for operators and equipment in critical situations. Vibration-resistant brackets keep the unit securely in place during all forklift operations.
