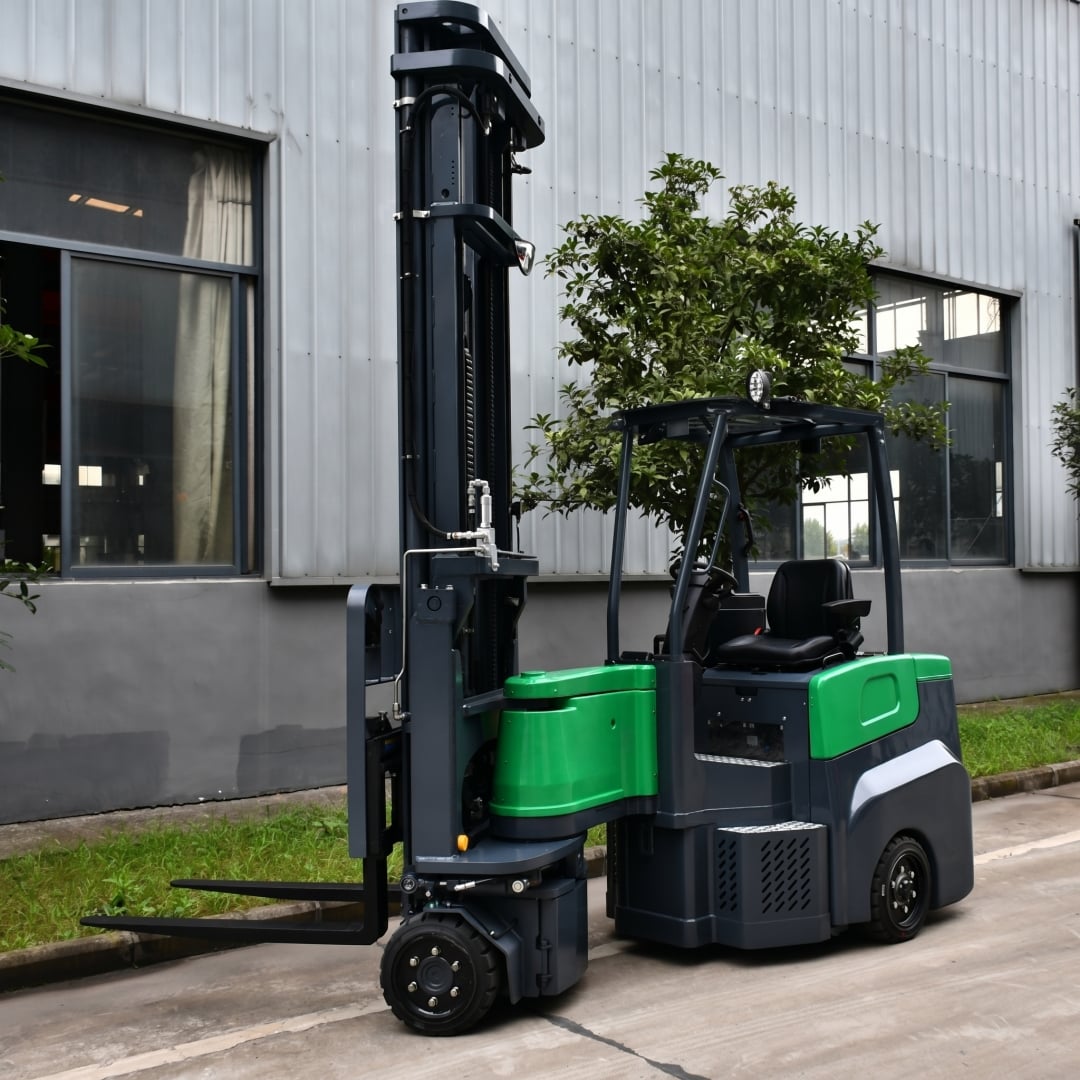

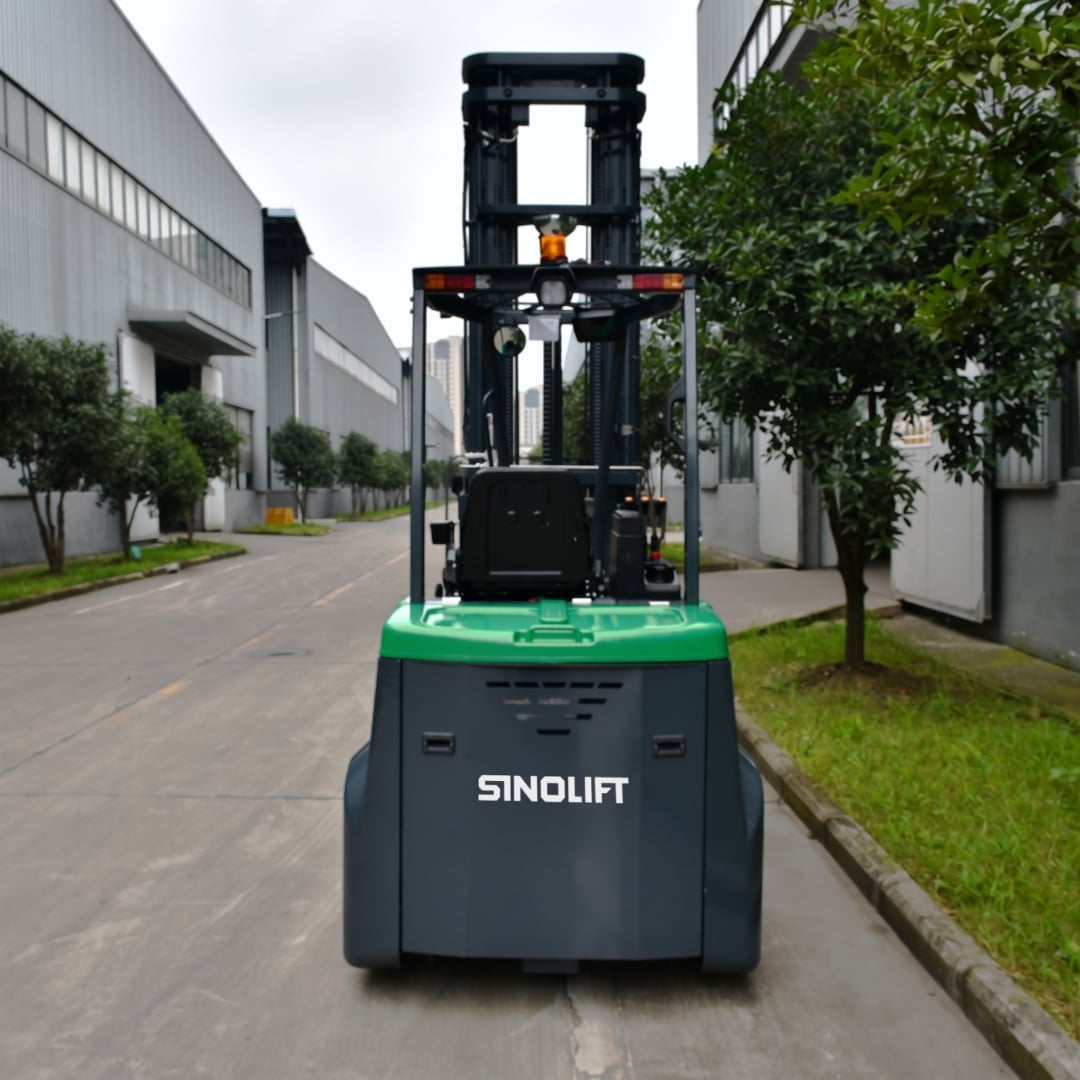

MJ Series 2.0 ton VNA Electric Articulated Forklift
The SINOLIFT MJ Series 2.0Ton Electric Articulated Forklift is purposefully engineered to maximize vertical storage and efficiency in high-density warehouse environments. Featuring an innovative 210-degree mast swing angle, it effortlessly navigates ultra-narrow aisles down to 1.9 meters, increasing your total storage capacity by up to 50%. Unlike traditional narrow-aisle models, its robust chassis and durable solid rubber tires offer seamless, one-stop material handling across both indoor racking and outdoor semi-rough terrains. It is the ideal high-performance solution for demanding application scenarios, including logistics centers, manufacturing facilities, and port operations. By combining heavy-duty load capabilities with exceptional maneuverability, the MJ Series eliminates the need for double handling and significantly boosts your operational productivity.
Features
Parameters
| Manufacturer | SINOLIFT | SINOLIFT | SINOLIFT | SINOLIFT | |
| Model | MJ20 | MJ20H | MJ20B | MJ20BH | |
| MJ21 | （wide body） | （narrow body） | （wide body） | ||
| Power type | MJ22 | battery | battery | battery | |
| Operation | MJ23 | Seated | Seated | Seated | |
| Load capacity | Q(kg) | MJ24 | 2000 | 2000 | 2000 |
| Service weight(incl. battery) | kg | MJ25 | 8140 | 7460 | 8140 |
| Lift height | h3(mm) | MJ26 | 4600～12500 | 4600～10000 | 4600～12500 |
| Overall length | L1(mm) | MJ27 | 3830 | 3830 | 3830 |
| Overall width | b1/b2(mm) | MJ28 | 980/1400 | 980/1260 | 980/1400 |
| Fork dimentions | l/e/s(mm) | MJ29 | 1100/100/50 | 1100/100/50 | 1100/100/50 |
| Fork outside spread | b5(mm) | MJ30 | 250～890 | 250～890 | 250～890 |
| Aisle width with pallet 800*1200mm, C=600mm | Ast(mm) | MJ31 | 2100 | 1900 | 2100 |
| Turning radius | Wa(mm) | MJ32 | 2200 | 2200 | 2200 |
| Travelling speed, laden/unladen | km/h | MJ33 | 13-Dec | 13-Dec | 13-Dec |
| Battery voltage/nominal capacity | V/Ah | MJ34 | 48/900 | 80/500 | 80/500 |
Product Details
Enhanced Safety
Equipped with a wireless high-definition camera system, providing operators with complete visual monitoring throughout the operation to ensure maximum safety.
Ergonomic Design
Features an adjustable steering wheel, alongside a fully customizable seat (fore/aft positioning and backrest tilt) with weight-based suspension tuning for optimal operator comfort (note: some features are optional).
High Operational Efficiency
Fitted with a line laser and a front crosshair laser for precise positioning and alignment guidance, significantly boosting overall productivity and operational efficiency.

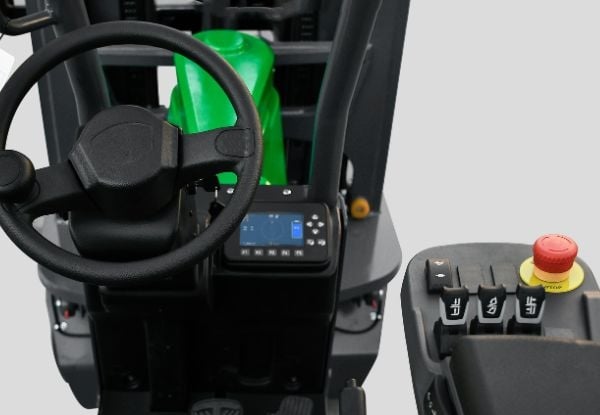

Intuitive Control Layout
All control levers, the dashboard, and operational switches are arranged according to strict ergonomic principles. This intuitive layout places everything right at the driver's fingertips, significantly enhancing both comfort and handling flexibility.
Media Gallery
FAQ
Q1: Do I need to modify my existing warehouse racking to accommodate the MJ Series articulated forklift?
A1: No structural modifications to your existing racking are typically required, as the MJ Series is designed to operate seamlessly in aisles as narrow as 1.9 meters. In fact, replacing a standard reach truck or counterbalance forklift with our articulated model allows you to shrink your aisle widths and add more racking, ultimately increasing your overall storage density by up to 50%.Q2: Do we need specialized "Superflat" warehouse floors to safely operate the MJ Series at its maximum lift heights?
A2: Unlike traditional VNA reach trucks that require strictly toleranced "Superflat" (F-min) floors to prevent dangerous mast sway, the MJ Series is far more forgiving due to its articulated chassis and large solid rubber tires. While a reasonably level surface is always recommended for maximum efficiency at 12.5 meters, its low center of gravity and advanced mast cushioning system allow it to operate safely and effectively on standard industrial concrete floors.Q3: What is the learning curve for operators transitioning from standard counterbalance forklifts to this articulated model?
A3: Operators who are familiar with standard counterbalance equipment typically adapt to the MJ Series within just a few shifts, thanks to its familiar seating position and intuitive automotive-style steering. The primary operational adjustment involves mastering the 210-degree mast articulation for narrow aisle entry, a process that is heavily supported by the vehicle’s highly responsive electronic steering and smooth MOSFET AC control system.Q4: As a piece of critical warehouse infrastructure, how accessible are replacement parts and diagnostic support for international operations?
A4: To ensure global serviceability and minimal downtime, the MJ Series is engineered using internationally recognized, top-tier components, such as the universally supported CURTIS AC controller system. This strategic design choice means that standard wear parts and electrical diagnostics can be easily managed by your local technicians, while our dedicated international support team provides rapid dispatch for specialized SINOLIFT hardware whenever required.Q5: What type of power system drives the MJ Series, and is it suitable for high-intensity, multi-shift operations?
A5: The MJ Series is powered by a high-performance Lithium-ion battery system that offers rapid opportunity charging and extended operational durability. Combined with our high-power dual drive motors (18.5KW and 16.3KW) and an advanced CURTIS AC controller, the forklift maintains optimal energy efficiency to easily support demanding, multi-shift warehouse schedules.
Optional Extras
Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.
Blue spot light
The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.
Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.
Forklift Wireless Cameras
Forklift wireless cameras enhance safety and efficiency by providing real-time visual feedback to operators. These cameras offer a clear view of blind spots, load positioning, and surrounding areas, reducing the risk of accidents and improving load handling accuracy. Easy to install and compatible with most forklifts, they are ideal for busy warehouses, tight spaces, and high-traffic environments. With durable designs and wireless connectivity, they ensure reliable performance and seamless integration into your operations.
Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.
Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.
Cold Store Modification and Cabin
Designed for extreme cold storage environments, this electric pallet truck features specialized cold-store oil, anti-slip platforms, and heated batteries to ensure reliable performance in low-temperature conditions. Enhanced with robust insulation and durable components, it maintains efficiency and durability even in harsh, freezing environments. The truck’s cabin is specifically built to withstand cold storage applications, offering improved operator comfort and safety while maximizing operational efficiency in demanding conditions.
Drive in rack overhead guard
The drive-in rack overhead guard is specifically designed for narrow aisle operations, providing protection and clearance when working in high-density storage environments. It ensures safety and maneuverability in tight spaces.
Fork weighing system
The fork weighing system provides real-time weight measurements of the load, ensuring safe handling and preventing overloading. It helps operators comply with safety standards and avoid equipment damage.
DC/DC converter
The DC/DC converter ensures stable power supply to auxiliary systems, enhancing the reliability and functionality of the truck’s additional features. It supports the seamless operation of electronic components.
