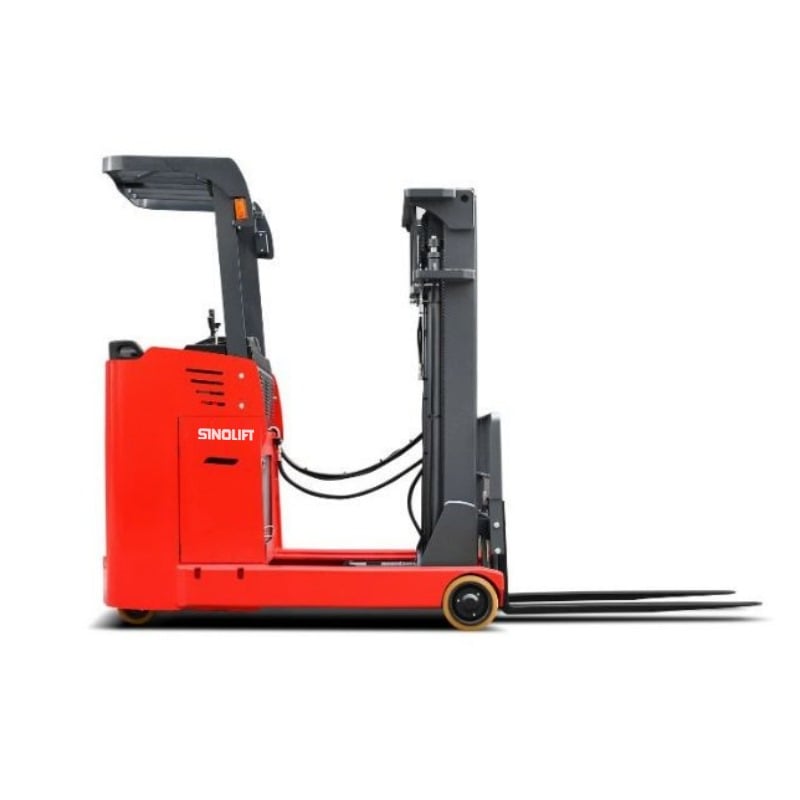

MF Series (MF20 MF20SQ MF25 MF25SQ MF30 MF30SQ) 48V Electric Reach Truck
The SINOLIFT MF series is a heavy-capacity stand-on electric reach truck range for demanding warehouse, manufacturing and distribution operations. It covers rated capacities from 2,000 to 3,000 kg, with duplex models for 3,000 mm lift and SQ triplex full-free-lift models for 4,500 mm lift. MF20 and MF20SQ use a 48V/300Ah battery, while the MF25, MF25SQ, MF30 and MF30SQ models use 48V/400Ah. Across the range, a compact reach-mast layout, side-pull battery access, electric power steering, PU wheels and AC drive technology help deliver controlled handling in rack aisles. The series is well suited to heavier pallets, higher throughput and applications that need the productivity of a reach truck with a stand-on operator compartment.
Features
Suggested video introduction:
2.0 to 3.0-Ton Capacity Range: Six model configurations cover heavier pallet handling in warehouses and production facilities.
Duplex or Triplex Mast: Choose a 3,000 mm duplex mast or an SQ triplex full-free-lift mast with 4,500 mm standard lift height.
48V Electric Power: MF20 uses 48V/300Ah, while MF25 and MF30 models use 48V/400Ah for higher-capacity work.
Responsive Reach Operation: Controlled travel, lift, reach and fork tilt functions support accurate rack-side pallet placement.
Safety-Focused Design: Curve deceleration, emergency power cut-off, anti-slip braking and an overhead guard support daily operation.
Parameters
| No. | Specification | Symbol | Unit | MF20 | MF20SQ | MF25 | MF25SQ | MF30 | MF30SQ |
| 1.1 | Model | MF20 | MF20SQ | MF25 | MF25SQ | MF30 | MF30SQ | ||
| 1.2 | Mast type | Duplex | Triplex full-free | Duplex | Triplex full-free | Duplex | Triplex full-free | ||
| 1.3 | Power type | Battery | Battery | Battery | Battery | Battery | Battery | ||
| 1.4 | Operation type | Stand on | Stand on | Stand on | Stand on | Stand on | Stand on | ||
| 1.5 | Rated capacity | Q | kg | 2000 | 2000 | 2500 | 2500 | 3000 | 3000 |
| 1.6 | Load center distance | C | mm | 500 | 500 | 500 | 500 | 500 | 500 |
| 1.7 | Front overhang | x | mm | 180 | 180 | 180 | 180 | 180 | 180 |
| 1.8 | Wheelbase | y | mm | 1545 | 1545 | 1720 | 1720 | 1920 | 1920 |
| 2.1 | Service weight (incl. battery) | kg | 2750 | 2950 | 3300 | 3580 | 3400 | 3680 | |
| 3.1 | Wheel type | PU | PU | PU | PU | PU | PU | ||
| 3.2 | Load wheel | mm | Ø254×104 | Ø254×104 | Ø267×135 | Ø267×135 | Ø267×135 | Ø267×135 | |
| 3.3 | Drive wheel | mm | Ø343×108 | Ø343×108 | Ø380×165 | Ø380×165 | Ø380×165 | Ø380×165 | |
| 3.4 | Auxiliary wheel | mm | Ø180×76 | Ø180×76 | Ø204×76 | Ø204×76 | Ø204×76 | Ø204×76 | |
| 3.5 | Number of wheels, front/rear (x=drive) | 2/1x+2 | 2/1x+2 | 2/1x+2 | 2/1x+2 | 2/1x+2 | 2/1x+2 | ||
| 3.6 | Wheel tread, drive side | b10 | mm | 680 | 680 | 725 | 725 | 725 | 725 |
| 3.7 | Wheel tread, load side | b11 | mm | 1064 | 1064 | 1135 | 1135 | 1135 | 1135 |
| 4.1 | Fork tilt, front/rear | α/β | ° | 3/5 | 3/5 | 3/5 | 2/6 | 3/5 | 2/6 |
| 4.2 | Mast closed height | h1 | mm | 2082 | 2142 | 2082 | 2292 | 2082 | 2292 |
| 4.3 | Free lift height | h2 | mm | 80 | 1542 | 80 | 1550 | 80 | 1550 |
| 4.4 | Lift height | h3 | mm | 3000 | 4500 | 3000 | 4500 | 3000 | 4500 |
| 4.5 | Mast extended height with load backrest | h4 | mm | 3960 | 5460 | 3960 | 5460 | 4050 | 5550 |
| 4.6 | Overhead guard height | h6 | mm | 2250 | 2250 | 2300 | 2300 | 2300 | 2300 |
| 4.7 | Stand board height | h7 | mm | 300 | 300 | 350 | 350 | 350 | 350 |
| 4.8 | Overall length | l1 | mm | 2299 | 2336 | 2387 | 2434 | 2487 | 2534 |
| 4.9 | Overall width | b1/b2 | mm | 1090/1170 | 1090/1170 | 1190/1270 | 1190/1270 | 1190/1270 | 1190/1270 |
| 4-10 | Fork dimensions | l/e/s | mm | 1070/122/40 | 1070/122/40 | 1070/122/40 | 1070/122/40 | 1070/125/45 | 1070/125/45 |
| 4.11 | Fork carriage width | b3 | mm | 1088 | 1088 | 1088 | 1088 | 1148 | 1148 |
| 4.12 | Fork outside width | b5 | mm | 244-772 | 244-772 | 244-772 | 244-772 | 250-750 | 250-750 |
| 4.13 | Inner leg width | b4 | mm | 856 | 856 | 892 | 892 | 892 | 892 |
| 4.14 | Reach stroke | l4 | mm | 717 | 677 | 825 | 775 | 925 | 875 |
| 4.15 | Mast ground clearance | m1 | mm | 82 | 82 | 82 | 82 | 82 | 82 |
| 4.16 | Aisle width for pallet 1000×1200 (C=500) | Ast | mm | 2746 | 2769 | 2894 | 2919 | 3045 | 3066 |
| 4.17 | Aisle width for pallet 800×1200 (C=600) | Ast | mm | 2764 | 2796 | 2882 | 2921 | 3000 | 3037 |
| 4.18 | Turning radius | Wa | mm | 1784 | 1784 | 1995 | 1995 | 2192 | 2192 |
| 5.1 | Driving speed, laden/unladen | km/h | 9/10 | 9/10 | 9/10 | 9/10 | 8/10 | 8/10 | |
| 5.2 | Lifting speed, laden/unladen | mm/s | 220/380 | 180/330 | 240/320 | 220/300 | 220/320 | 200/300 | |
| 5.3 | Lowering speed, laden/unladen | mm/s | 310/260 | 290/240 | 340/290 | 310/260 | 340/290 | 310/260 | |
| 5.4 | Max. gradeability, laden/unladen (S2-5min) | % | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | |
| 5.5 | Brake type | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | ||
| 6.1 | Driving motor (S2-60min) | kW | 4.5 | 4.5 | 5.5 | 5.5 | 5.5 | 5.5 | |
| 6.2 | Lifting motor (S3-15%) | kW | 7.5 | 7.5 | 8.6 | 8.6 | 8.6 | 8.6 | |
| 6.3 | Battery voltage/nominal capacity | V/Ah | 48/300 | 48/300 | 48/400 | 48/400 | 48/400 | 48/400 | |
| 6.4 | Battery weight | kg | 500 | 500 | 650 | 650 | 650 | 650 | |
| 6.5 | Steering system | EPS | EPS | EPS | EPS | EPS | EPS | ||
| 7.1 | Battery replacement type | Side pull | Side pull | Side pull | Side pull | Side pull | Side pull | ||
| 7.2 | Optional lithium battery voltage/capacity | V/Ah | 48/250 | 48/250 | 48/300 | 48/300 | 48/300 | 48/300 | |
| Notes: SQ denotes the triplex full-free-lift mast configuration. Values are organized from the supplied technical material and current model cross-checks. Contact SINOLIFT to confirm mast, battery, residual capacity and attachment requirements before publishing a quotation. | |||||||||
Product Details
Operator-Friendly Control Layout
Grouped hydraulic levers and a clear stand-on driving position keep the main functions close to the operator. The layout supports precise travel, lift and reach control during repetitive pallet handling.
Tilting Forks for Easier Load Handling
Fork tilt helps the operator engage, stack and withdraw pallets with greater control. It also helps separate the forks from the pallet during unloading and reduces the risk of load movement.
High-Performance Hydraulic System
The hydraulic system is designed for responsive lift and reach functions across the 2.0 to 3.0-ton range. Accessible component placement supports routine inspection and service.
Protected Electrical Components
Protected connectors and organized wiring help reduce electrical faults in daily warehouse use. The AC drive system provides controlled acceleration and lower routine motor maintenance.
Media Gallery
FAQ
Q1: Which capacities are available in the MF series?
A1: MF20 and MF20SQ are rated for 2,000 kg, MF25 and MF25SQ for 2,500 kg, and MF30 and MF30SQ for 3,000 kg. Capacity must always be confirmed at the required lift height and load center.Q2: What does the SQ suffix mean?
A2: SQ identifies the triplex full-free-lift mast version with a standard 4,500 mm lift height. The model without SQ uses a duplex mast with a standard 3,000 mm lift height.Q3: What battery sizes are used?
A3: MF20 and MF20SQ use 48V/300Ah. MF25, MF25SQ, MF30 and MF30SQ use 48V/400Ah. All listed models use a side-pull battery arrangement.Q4: How do I choose between MF20, MF25 and MF30?
A4: Choose according to maximum load weight, load center, required residual capacity, aisle width and lift height. Heavier models need more turning and aisle space, so site dimensions should be checked before selection.Q5: Are the trucks suitable for high-throughput work?
A5: The AC drive, stand-on compartment, side-pull battery and reach-mast layout are designed for frequent pallet movement. Shift duration and charging strategy should be confirmed for the actual duty cycle.Q6: What site information should be provided for a quotation?
A6: Provide load weight and dimensions, pallet type, lift height, aisle width, floor gradient, working hours, charging conditions and any required attachment. SINOLIFT can then confirm the appropriate model and mast.
Optional Extras
Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.
Blue spot light
The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.
Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.
Forklift Wireless Cameras
Forklift wireless cameras enhance safety and efficiency by providing real-time visual feedback to operators. These cameras offer a clear view of blind spots, load positioning, and surrounding areas, reducing the risk of accidents and improving load handling accuracy. Easy to install and compatible with most forklifts, they are ideal for busy warehouses, tight spaces, and high-traffic environments. With durable designs and wireless connectivity, they ensure reliable performance and seamless integration into your operations.
Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.
Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.
Cold Store Modification and Cabin
Designed for extreme cold storage environments, this electric pallet truck features specialized cold-store oil, anti-slip platforms, and heated batteries to ensure reliable performance in low-temperature conditions. Enhanced with robust insulation and durable components, it maintains efficiency and durability even in harsh, freezing environments. The truck’s cabin is specifically built to withstand cold storage applications, offering improved operator comfort and safety while maximizing operational efficiency in demanding conditions.
Drive in rack overhead guard
The drive-in rack overhead guard is specifically designed for narrow aisle operations, providing protection and clearance when working in high-density storage environments. It ensures safety and maneuverability in tight spaces.
Fork weighing system
The fork weighing system provides real-time weight measurements of the load, ensuring safe handling and preventing overloading. It helps operators comply with safety standards and avoid equipment damage.
DC/DC converter
The DC/DC converter ensures stable power supply to auxiliary systems, enhancing the reliability and functionality of the truck’s additional features. It supports the seamless operation of electronic components.
