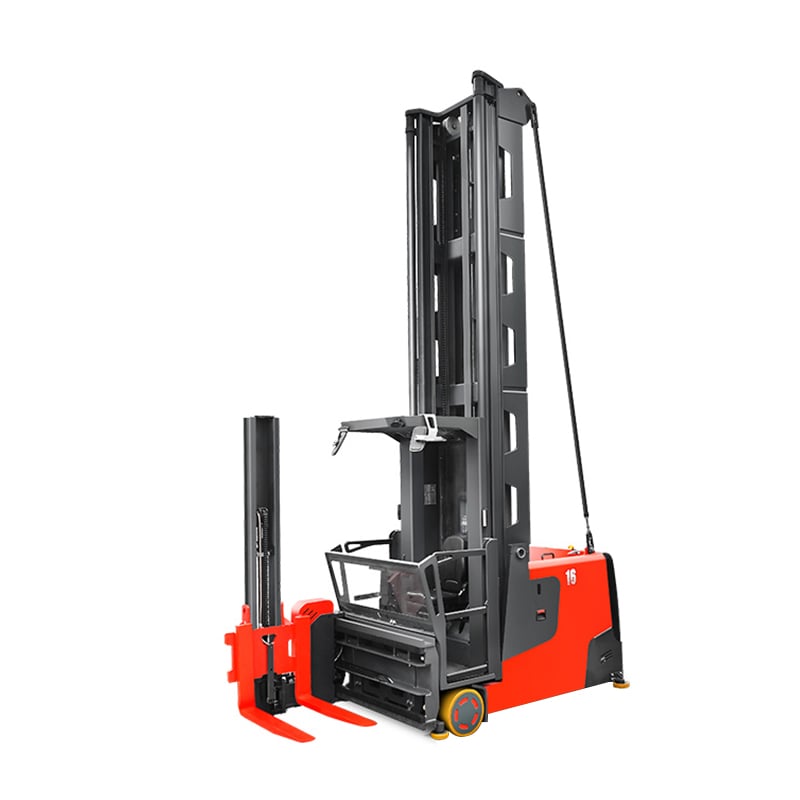

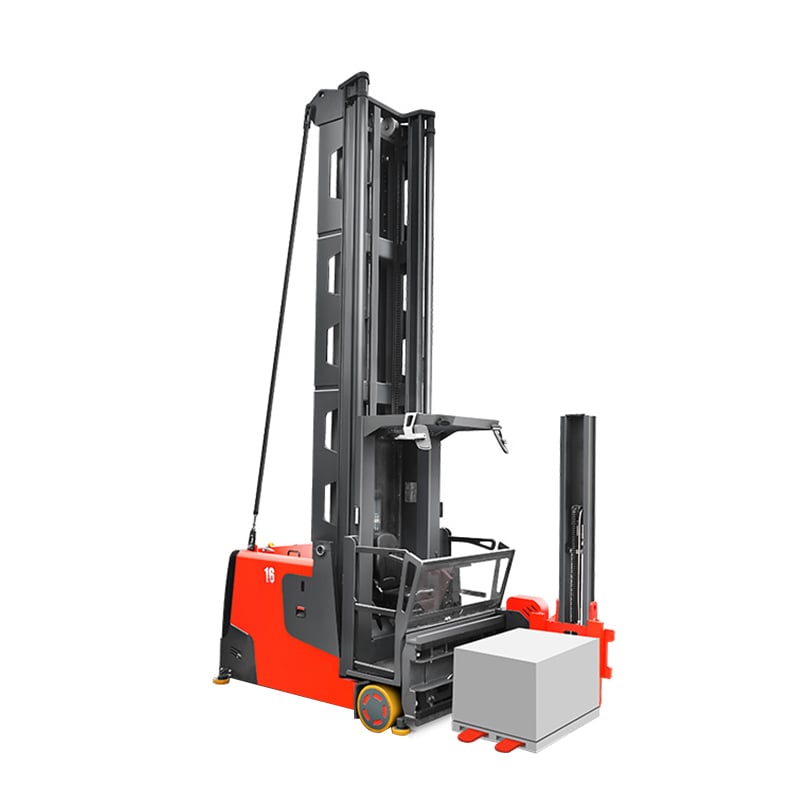

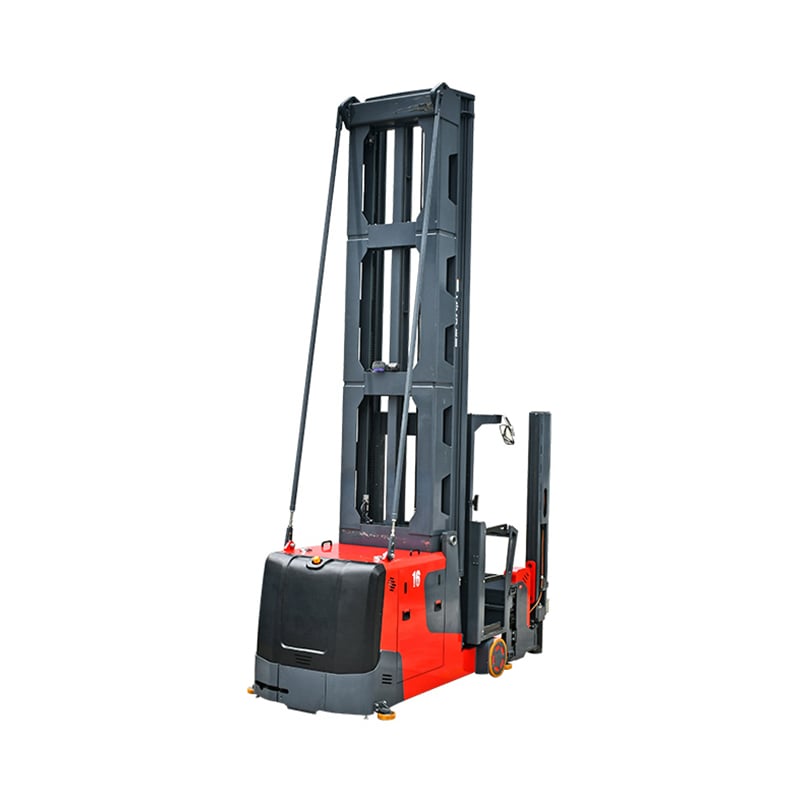

MCC16 1.6 Ton Man-up Turret Truck (Coldstore)
Engineered to solve the challenge of poorly utilized warehouse space, the SINOLIFT MCC16 Man-up Turret Truck maximizes vertical storage by lifting up to 14.2 meters within ultra-narrow aisles of just 1.65 meters. With a robust 1.6-ton load capacity and a 180° rotating, side-shifting fork system, it allows operators to stack and retrieve pallets efficiently without ever turning the vehicle. The innovative man-up cabin elevates the operator alongside the load, ensuring optimal visibility for precise high-level order picking. Furthermore, as a cold-store ready model, it performs reliably in demanding freezer environments. Ultimately, it is the perfect high-density storage solution to unlock your warehouse’s full spatial potential and streamline cold chain logistics.
Features
Optimize your high-density storage with the SINOLIFT MC Series Stand-on VNA Turret Truck, expertly engineered to maximize warehouse capacity. Designed for ultra-narrow aisles as tight as 1.6 meters, this man-down 3-way stacker features an innovative 180-degree rotating and side-shifting fork mechanism. This allows operators to load and unload goods on both sides of the racking without turning the vehicle. Reaching an impressive 10-meter lift height with zero capacity loss up to 6 meters, it guarantees stability and robust power. A standard high-definition fork camera ensures precise, safe stacking at extreme elevations. Combined with intuitive controls and ergonomic body supports, it minimizes operator fatigue, delivering unparalleled efficiency for your demanding intralogistics operations.
Parameters
| Model | MCC16 | MCC16SQ | MCC16H | |
| Power type | Battery | Battery | Battery | |
| Driving style | stand/seat（man-up） | stand/seat（man-up） | stand/seat（man-up） | |
| Rated load | Q(kg) | 1600 | 1600 | 1600 |
| Load center | C(mm) | 600 | 600 | 600 |
| Front overhang | X(mm) | 435 | 435 | 435 |
| Wheelbase | y(mm) | 1950 | 2025 | 2250 |
| Service weight(incl.battery） | kg | 7720 | 8375 | 10430 |
| Wheel type | PU | PU | PU | |
| Load wheel size | mm | φ380×192 | φ380×192 | φ380×192 |
| Drive wheel size | mm | φ400×160 | φ400×160 | φ400×160 |
| Number of wheels,front/rear(x=drive wheel) | 2 / 1X | 2 / 1X | 2 / 1X | |
| Wheel tread, load side | b11(mm) | 1310 | 1310 | 1460 |
| Mast closed height | h1(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| Free lift height | h2(mm) | / | 305 | 2205 |
| Lift height of Main mast | h3(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| Mast extended height | h4(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| Overhead guard height | h6(mm) | 2590 | 2590 | 2590 |
| Stand board height | h7(mm) | 445 | 445 | 445 |
| Auxiliary lifting height | h9(mm) | 1700 | 1700 | 1700 |
| Lift height of the station board from the ground | h12(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| Total lift height | h3+h9(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| Max. picking height | h12+1600(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| Overall length ( Forks 90°) | l1(mm) | 3690 | 3765 | 3990 |
| Overall length(Forks 0°, to the vertical surface of the forks) | l2(mm) | 3475 | 3550 | 3775 |
| Overall width | b1/ b2(mm) | 1244/1502 | 1244/1502 | 1244/1652 |
| Fork size | l/e/s(mm) | 1200/125/50 | 1200/125/50 | 1200/125/50 |
| Installation level | II B | II B | II B | |
| Fork outside width | b5(mm) | 260～725 | 260～725 | 260～725 |
| Side shift distance | mm | 1300 | 1300 | 1350 |
| Distance between fork rotation center and front axle center | l8(mm) | 1095 | S | 1095 |
| Outer distance of guide wheel | b6(mm) | 1550 | 1550 | 1700 |
| Minimum ground clearance of mast | m1(mm) | 45 | 45 | 45 |
| Minimum ground clearance of body wheelbase center | m2(mm) | 80 | 80 | 80 |
| Turning radius | Wa(mm) | 2235 | 2310 | 2535 |
| Aisle width for pallet 1200×1200 | Ast(mm) | 1650 | 1650 | 1800 |
| Main aisle width | mm | ≥(4100+400) | ≥(4175+400) | ≥(4400+400) |
| Driving speed (load/unload) | km/h | 10/10 | 10/10 | 10/10 |
| Lifting speed (load/unload) | mm/s | 320/320 | 320/320 | 320/320 |
| Lowering speed (load/unload) | mm/s | 400/380 | 400/380 | 400/380 |
| Maximum climbing ability, load/unloaded (S2-5min) | %(tanθ ) | 5/8 | 5/8 | 5/8 |
| Drving brake type | Regenerative brake/hydraulic brake | Regenerative brake/hydraulic brake | Regenerative brake/hydraulic brake | |
| Parking brake type | Electromagnetic brake | Electromagnetic brake | Electromagnetic brake | |
| Drive motor power (S2-60min) | kw | 8 AC | 8 AC | 9.5 AC |
| Lift motor power, (S3-15%) | kw | 21 AC | 21 AC | 21 AC |
| Lead acid battery voltage /capacity | V/Ah | 80/560 | 80/560 | 80/700 |
| Battery weight | kg | 1530 | 1530 | 1840 |
| Steering system | EPS | EPS | EPS | |
| Battery replacement method | Side pull | Side pull | Side pull |
Product Details
Clear LED Display & Ergonomic Controls
A large, comprehensive LED screen provides clear, real-time readings of battery status, operating hours, and built-in diagnostic functions. Paired with ergonomically designed joysticks, dashboards, and switches, this intuitive layout significantly enhances operating comfort and handling flexibility.
Ergonomic & Integrated Control Handle
2.The truck features an advanced ergonomic control handle that intelligently integrates all essential operational buttons into one highly accessible location. This intuitive design minimizes operator hand movement and fatigue, ensuring smooth, precise, and effortless control during high-intensity stacking tasks.
Versatile Cabin with Enhanced Safety
3.Designed for maximum operator comfort, the cabin is equipped with a foldable seat that seamlessly accommodates both standing and seated driving modes to meet dynamic picking and stacking requirements. Furthermore, the armrest incorporates a built-in safety switch that ensures the machine only operates when the driver is in a secure position, significantly enhancing overall workplace safety.
Efficient 80V Full AC System
Powered by an advanced 80V full AC maintenance-free motor system, the stacker delivers rapid and highly precise responsiveness with low energy consumption. This high-efficiency setup is specifically engineered to meet the rigorous demands of heavy-duty, continuous warehouse operations.
Media Gallery
FAQ
Q1: What type of aisle guidance systems can be integrated with this VNA turret truck?
A1: This equipment supports multiple guidance options, including magnetic, wire, or mechanical rail systems tailored to your specific warehouse infrastructure. Utilizing these advanced guidance systems ensures highly precise navigation within very narrow aisles, which significantly reduces the risk of racking damage and improves overall operator efficiency.Q2: How does the cold-store configuration impact battery performance and daily maintenance?
A2: The truck is engineered with specialized thermal protection and cold-resistant wiring to minimize battery capacity loss in freezing temperatures. To maintain peak performance, we strongly recommend utilizing batteries designed explicitly for cold storage and establishing a routine of charging the unit in a dry, ambient environment outside the freezer zone.Q3: What safety mechanisms are implemented to protect the operator during high-level operations?
A3: The forklift is equipped with an intelligent interlocking control system that automatically limits travel speed and mast sway when the cabin is fully elevated. Furthermore, essential safety features like emergency descent valves and a robust overhead guard provide an extra layer of security, ensuring the operator remains completely safe even during an unexpected power failure.Q4: Are there any specific maintenance requirements for operating continuously in a -25°C environment?
A4: Yes, routine maintenance must include the application of specialized cold-grade lubricants and hydraulic fluids that are formulated to resist thickening in sub-zero conditions. Additionally, regular inspections for condensation buildup and seal integrity are crucial to prevent ice-related mechanical wear when the truck transitions between ambient loading docks and the freezer.Q5: Does the operator require specialized training to transition from standard reach trucks to a man-up turret truck?
A5: Absolutely, operating a man-up turret truck involves managing simultaneous travel, lift, and 180-degree fork rotation at extreme heights, which demands a specific certification program. Proper training ensures operators are fully familiarized with the ergonomic controls and spatial awareness techniques needed to maximize both warehouse productivity and workplace safety.
Optional Extras
Auto-Guidance Aisle Mode
Activate this mode to automatically and precisely steer the forklift through extremely narrow aisles using advanced tracking sensors. By taking over the steering control, it minimizes the risk of rack collisions and allows the operator to focus entirely on productive lifting and pallet handling.
Height Preselection
This intelligent feature allows the operator to automatically raise or lower the forks to pre-programmed rack levels with pinpoint accuracy. It eliminates the need for manual, visual height adjustments, thereby accelerating cycle times and significantly reducing driver fatigue.
One-Touch Fork Synchronization
Streamline your material handling process with a single button that automatically coordinates the complex rotation and lateral traversing movements of the turret head. This seamless synchronization ensures swift, safe, and effortless pallet retrieval and storage in confined spaces.
Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.
Blue spot light
The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.
Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.
Forklift Wireless Cameras
Forklift wireless cameras enhance safety and efficiency by providing real-time visual feedback to operators. These cameras offer a clear view of blind spots, load positioning, and surrounding areas, reducing the risk of accidents and improving load handling accuracy. Easy to install and compatible with most forklifts, they are ideal for busy warehouses, tight spaces, and high-traffic environments. With durable designs and wireless connectivity, they ensure reliable performance and seamless integration into your operations.
Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.
Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.
Cold Store Modification and Cabin
Designed for extreme cold storage environments, this electric pallet truck features specialized cold-store oil, anti-slip platforms, and heated batteries to ensure reliable performance in low-temperature conditions. Enhanced with robust insulation and durable components, it maintains efficiency and durability even in harsh, freezing environments. The truck’s cabin is specifically built to withstand cold storage applications, offering improved operator comfort and safety while maximizing operational efficiency in demanding conditions.
Drive in rack overhead guard
The drive-in rack overhead guard is specifically designed for narrow aisle operations, providing protection and clearance when working in high-density storage environments. It ensures safety and maneuverability in tight spaces.
Fork weighing system
The fork weighing system provides real-time weight measurements of the load, ensuring safe handling and preventing overloading. It helps operators comply with safety standards and avoid equipment damage.
DC/DC converter
The DC/DC converter ensures stable power supply to auxiliary systems, enhancing the reliability and functionality of the truck’s additional features. It supports the seamless operation of electronic components.
