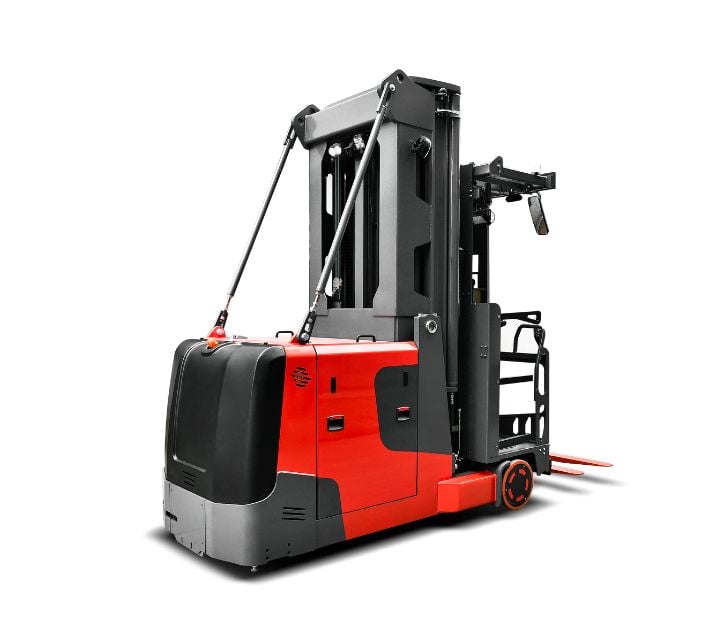

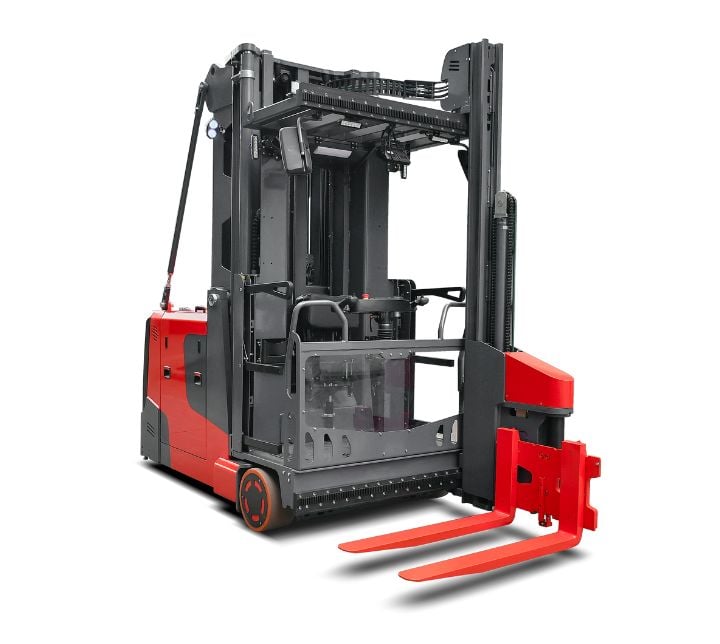

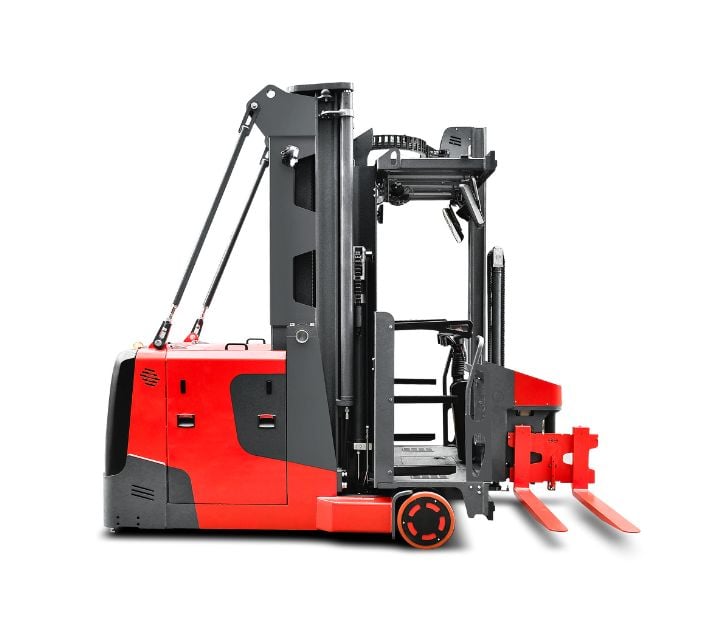

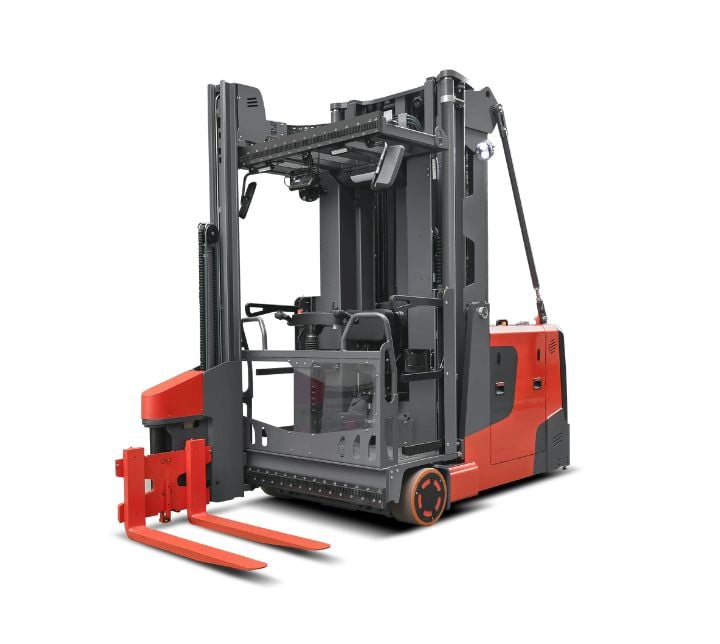

MCC16 1.6 Ton Man-up Turret Truck (Armrest Operation)
Designed to maximize your warehouse storage capacity, the MCC16 is a specialized man-up turret truck engineered specifically for very narrow aisle (VNA) environments. It features an innovative 180-degree rotating fork with side-shift capabilities, allowing operators to seamlessly stack and retrieve pallets on both sides of the aisle without needing to turn the vehicle. The elevating cabin provides unparalleled visibility and ergonomic comfort, empowering your team to handle high-level order picking and dense stacking with precision. Powered by a highly efficient, maintenance-free lithium-ion battery system, this truck is the ultimate solution for high-density distribution centers, large-scale warehouses, and facilities demanding maximum efficiency in extremely tight spaces.
Features
Optimize your high-density storage with the SINOLIFT MC Series Stand-on VNA Turret Truck, expertly engineered to maximize warehouse capacity. Designed for ultra-narrow aisles as tight as 1.6 meters, this man-down 3-way stacker features an innovative 180-degree rotating and side-shifting fork mechanism. This allows operators to load and unload goods on both sides of the racking without turning the vehicle. Reaching an impressive 10-meter lift height with zero capacity loss up to 6 meters, it guarantees stability and robust power. A standard high-definition fork camera ensures precise, safe stacking at extreme elevations. Combined with intuitive controls and ergonomic body supports, it minimizes operator fatigue, delivering unparalleled efficiency for your demanding intralogistics operations.

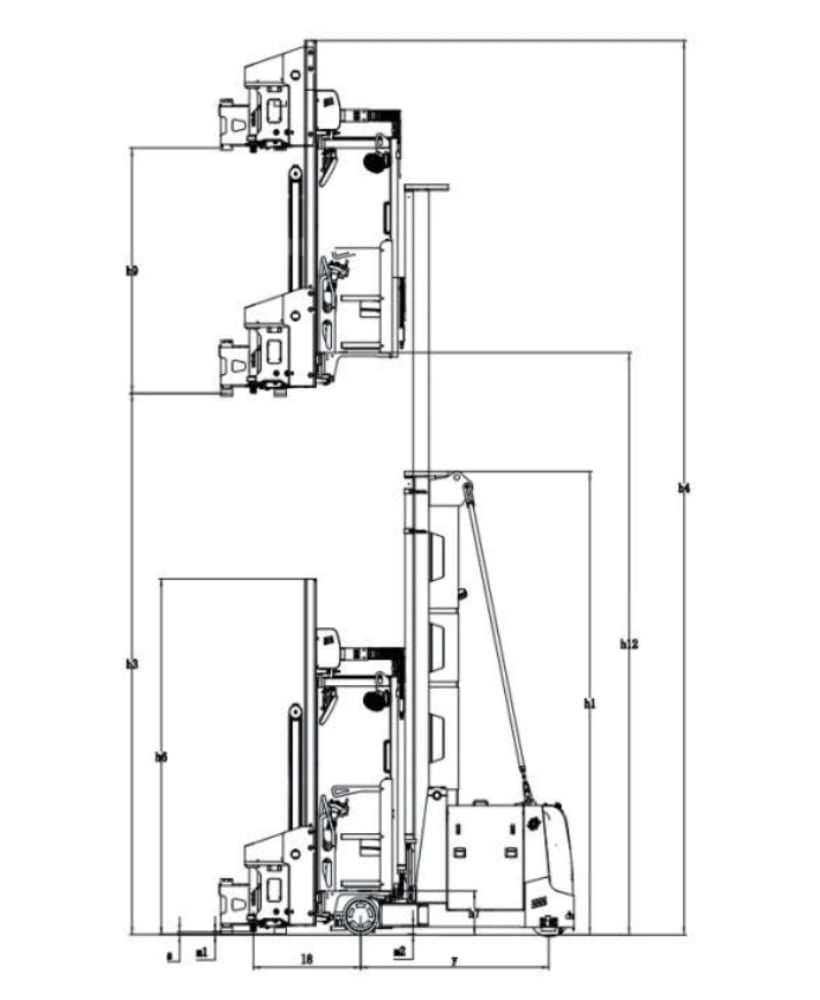

Parameters
| Model | MCC16 | MCC16SQ | MCC16H | |
| Power Type | Battery | |||
| Operation Type | Stand-on/Seated (Man-up) | |||
| Rated Capacity | kg | 1600 | ||
| Load Center | mm | 600 | ||
| Tire Type | Polyurethane Wheels | |||
| Turning Radius | mm | 2235 | 2310 | 2535 |
| Lift Height | mm | 14200 | ||
| Sideshift Stroke | mm | 1300 | ||
| Overall Length | mm | 3725 | 3800 | 4025 |
| Overall Width | mm | 1244/1502 | ||
| Fork Dimensions | mm | 1200/125/50 | ||
| Stacking Aisle Width (1200×1200 pallet) | mm | 1650 | ||
| Travel Speed (Laden/Unladen) | km/h | 10/10 | ||
| Lift Speed (Laden/Unladen) | mm/s | 320/320 | ||
| Lowering Speed (Laden/Unladen) | mm/s | 400/380 | ||
| Battery Voltage/Nominal Capacity | V/Ah | 80/560 | 80/700 | |
Product Details

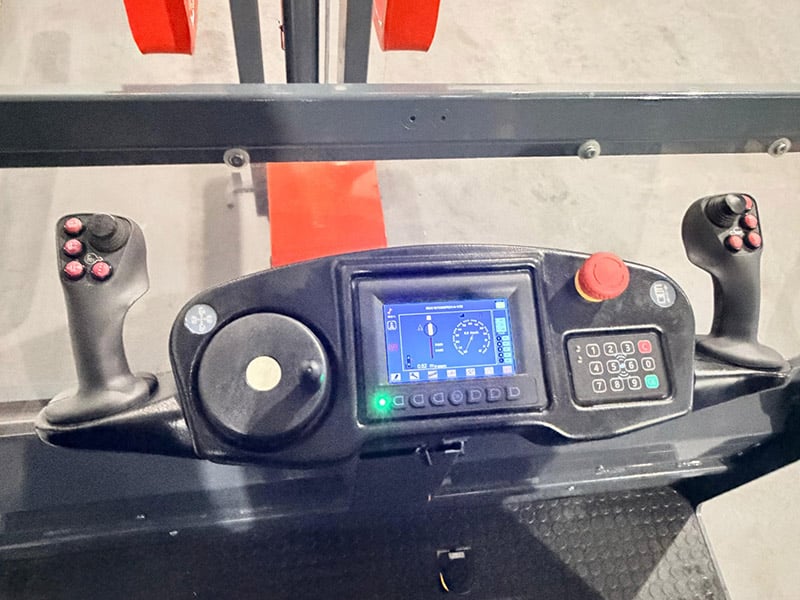

1.Clear LED Display & Ergonomic Controls
A large, comprehensive LED screen provides clear, real-time readings of battery status, operating hours, and built-in diagnostic functions. Paired with ergonomically designed joysticks, dashboards, and switches, this intuitive layout significantly enhances operating comfort and handling flexibility.

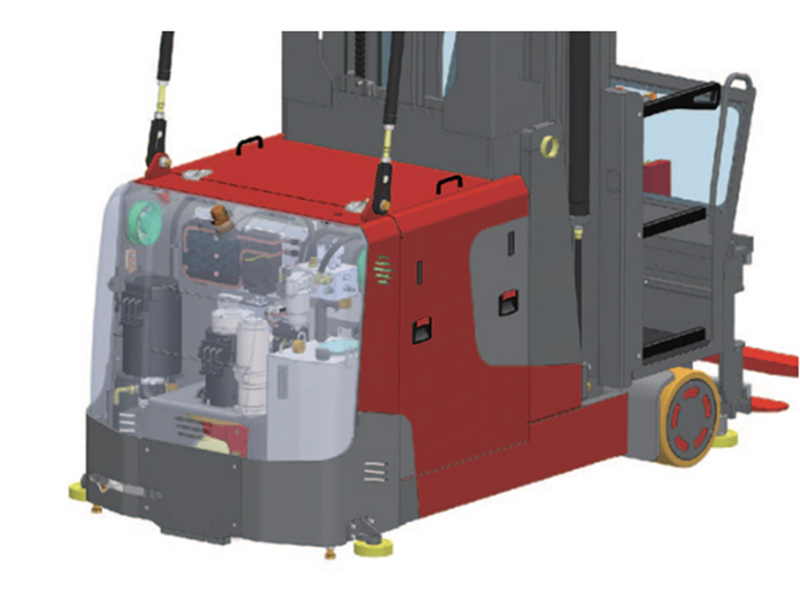

2.Efficient 80V Full AC System
Powered by an advanced 80V full AC maintenance-free motor system, the stacker delivers rapid and highly precise responsiveness with low energy consumption. This high-efficiency setup is specifically engineered to meet the rigorous demands of heavy-duty, continuous warehouse operations.

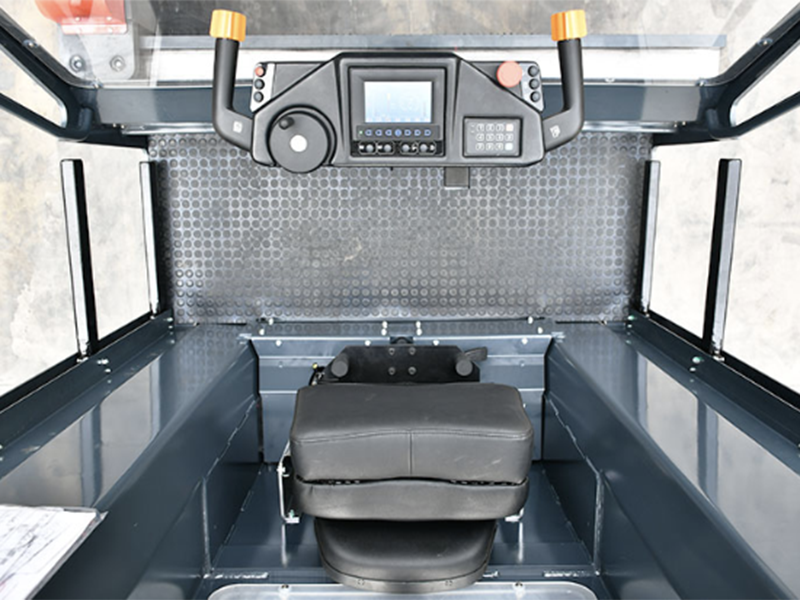

3.Safe & Versatile Open Cabin
The open-style man-up cabin features a foldable seat, perfectly accommodating both standing and seated positions for varied picking and stacking tasks. For maximum security, the armrest includes a built-in safety switch, while the advanced OPS (Operator Presence System) ensures the truck operates only when the driver securely grips the acceleration handle and engages the floor pedal.

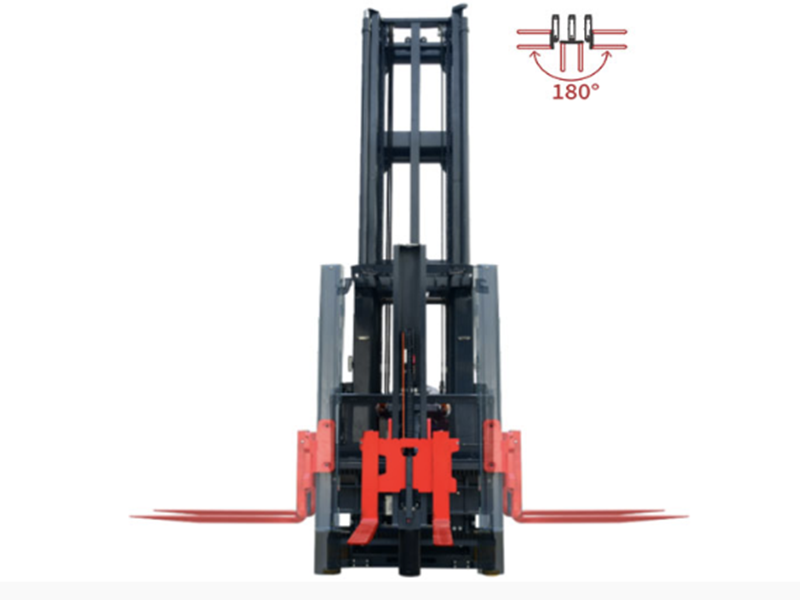

4.180° Rotating & Side-Shift Forks
Designed to excel in extremely narrow aisles, the innovative three-way turret head allows the forks to rotate a full 180 degrees and shift from left to right. This capability enables operators to seamlessly stack and unload goods on both sides of the racking system without ever needing to turn the vehicle body.
Media Gallery
FAQ
Q1: Does the man-up VNA stacker require specialized operator training before deployment?
A1: While the MCA Series features an intuitive, user-friendly control panel and ergonomic joysticks for quick familiarization, operating a man-up turret truck does require specific training. Because the operator ascends with the cabin for high-level picking, professional certification is highly recommended to ensure maximum safety and to fully utilize the truck's narrow-aisle capabilities.Q2: How is the turret truck guided within extremely narrow aisles to prevent racking collisions?
A2: To ensure safe and efficient navigation without repositioning the steering wheel, the stacker operates using either mechanical guide rails installed along the aisle floor or an advanced wire guidance system. This keeps the truck traveling in a perfectly straight line, allowing the operator to focus entirely on the 180-degree rotating and stacking tasks.Q3: What integrated safety mechanisms protect the operator during high-altitude operations?
A3: Operator safety is our top priority. The MCA Series is equipped with a comprehensive Operator Presence System (OPS), safety switches built into the armrests, and automatic height limiters. Furthermore, the robust full-wheel electromagnetic brakes provide immediate, secure stopping power, ensuring absolute stability when the cabin is fully elevated.Q4: How does the 80V full AC system benefit our warehouse's energy consumption and environmental goals?
A4: The advanced 80V electric drive technology delivers exceptional power while maintaining significantly lower energy consumption compared to traditional equipment. Because it is a 100% emission-free and low-noise system, it creates a cleaner, more environmentally friendly indoor working atmosphere while reducing your long-term electricity costs.Q5: Is routine maintenance complicated for this type of advanced VNA equipment?
A5: Not at all. The stacker is engineered for high serviceability, featuring a maintenance-free AC motor that eliminates the need to replace carbon brushes. Coupled with a convenient side-pull battery extraction design and a built-in diagnostic LED screen, your maintenance team can perform routine checks and battery swaps effortlessly, minimizing equipment downtime.
Optional Extras
Auto-Guidance Aisle Mode
Activate this mode to automatically and precisely steer the forklift through extremely narrow aisles using advanced tracking sensors. By taking over the steering control, it minimizes the risk of rack collisions and allows the operator to focus entirely on productive lifting and pallet handling.
Height Preselection
This intelligent feature allows the operator to automatically raise or lower the forks to pre-programmed rack levels with pinpoint accuracy. It eliminates the need for manual, visual height adjustments, thereby accelerating cycle times and significantly reducing driver fatigue.
One-Touch Fork Synchronization
Streamline your material handling process with a single button that automatically coordinates the complex rotation and lateral traversing movements of the turret head. This seamless synchronization ensures swift, safe, and effortless pallet retrieval and storage in confined spaces.
Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.
Blue spot light
The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.
Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.
Forklift Wireless Cameras
Forklift wireless cameras enhance safety and efficiency by providing real-time visual feedback to operators. These cameras offer a clear view of blind spots, load positioning, and surrounding areas, reducing the risk of accidents and improving load handling accuracy. Easy to install and compatible with most forklifts, they are ideal for busy warehouses, tight spaces, and high-traffic environments. With durable designs and wireless connectivity, they ensure reliable performance and seamless integration into your operations.
Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.
Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.
Cold Store Modification and Cabin
Designed for extreme cold storage environments, this electric pallet truck features specialized cold-store oil, anti-slip platforms, and heated batteries to ensure reliable performance in low-temperature conditions. Enhanced with robust insulation and durable components, it maintains efficiency and durability even in harsh, freezing environments. The truck’s cabin is specifically built to withstand cold storage applications, offering improved operator comfort and safety while maximizing operational efficiency in demanding conditions.
Drive in rack overhead guard
The drive-in rack overhead guard is specifically designed for narrow aisle operations, providing protection and clearance when working in high-density storage environments. It ensures safety and maneuverability in tight spaces.
Fork weighing system
The fork weighing system provides real-time weight measurements of the load, ensuring safe handling and preventing overloading. It helps operators comply with safety standards and avoid equipment damage.
DC/DC converter
The DC/DC converter ensures stable power supply to auxiliary systems, enhancing the reliability and functionality of the truck’s additional features. It supports the seamless operation of electronic components.
