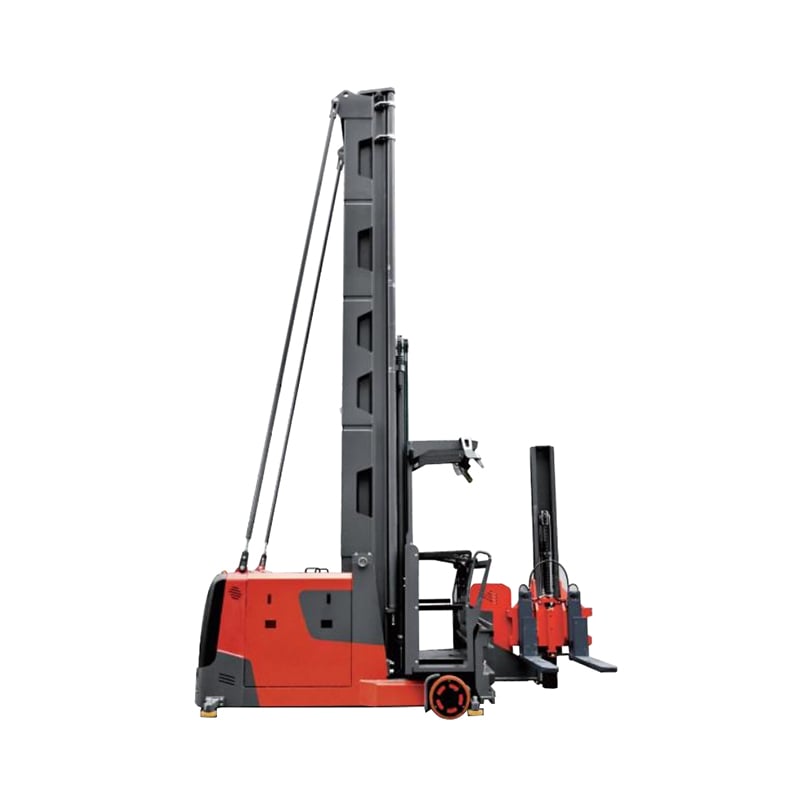

MCC12 1.2 Ton Man-up Turret Truck Double-deep Racking
Designed specifically for Very Narrow Aisle (VNA) applications and high-level double-deep dense storage, the MCC12 Man-up Turret Truck maximizes your warehouse capacity without the need for costly facility expansion. Equipped with advanced double-deep retractable forks featuring 180° rotation and side shift, it effortlessly accesses goods on both sides of the aisle while maintaining exceptional load stability at extreme heights. The innovative man-up design and specialized H-shaped mast provide operators with an expansive picking space and unobstructed visibility for precise, high-level stacking. To ensure absolute security in demanding logistics environments, the truck integrates full-wheel electromagnetic braking, automatic end-of-aisle speed reduction, and reliable high-altitude emergency escape systems. Ultimately, the MCC12 delivers an intelligent, high-efficiency solution for modern distribution centers and industrial warehouses seeking to optimize every inch of storage space.
Features
Optimize your high-density storage with the SINOLIFT MC Series Stand-on VNA Turret Truck, expertly engineered to maximize warehouse capacity. Designed for ultra-narrow aisles as tight as 1.6 meters, this man-down 3-way stacker features an innovative 180-degree rotating and side-shifting fork mechanism. This allows operators to load and unload goods on both sides of the racking without turning the vehicle. Reaching an impressive 10-meter lift height with zero capacity loss up to 6 meters, it guarantees stability and robust power. A standard high-definition fork camera ensures precise, safe stacking at extreme elevations. Combined with intuitive controls and ergonomic body supports, it minimizes operator fatigue, delivering unparalleled efficiency for your demanding intralogistics operations.
Parameters
| Model | MCC12F60 | |
| Load capacity | Q（kg） | 1200 |
| Load center | mm | 600 |
| Main lift | m | 4.5-12.5 |
| Auxiliary lift | m | 1.7 |
| Customized max. lift | m | 17 |
| Load extension distance | mm | 1000 |
| Min. stacking aisle | m | 1.9 |
| Tires | PU | |
| Standard battery | 80V Lead-acid | |
| Cabin type | Semi-open cab | |
| Control panel | Front-mounted auxiliary mast & control panel | |
| Others | Fork extension stroke 1000mm Standard weighing system |
Product Details

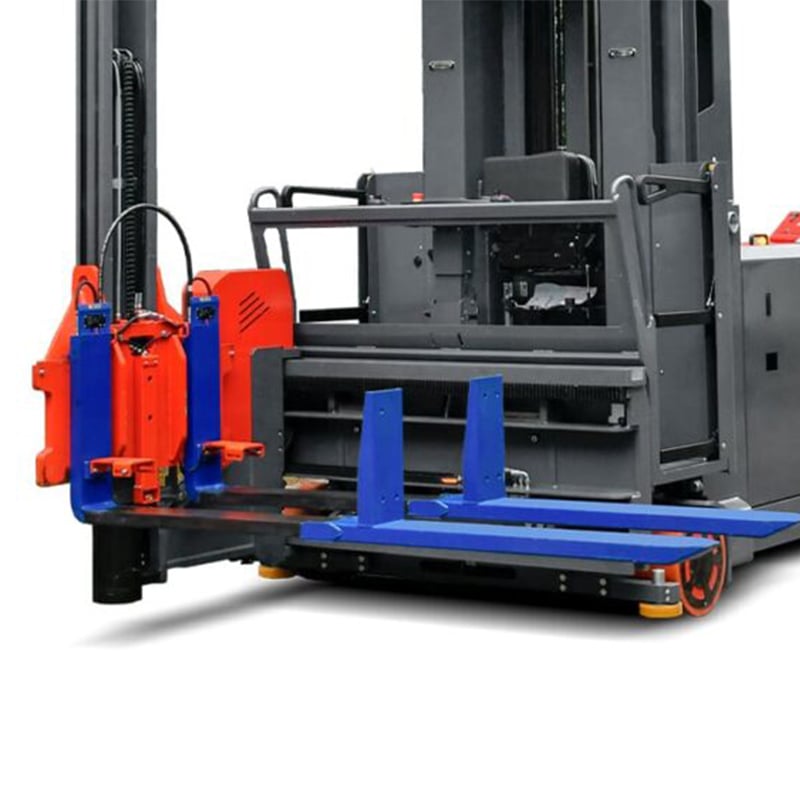

1.Advanced Double-Deep Retractable Forks
Equipped with a standard integrated weighing system for precise load management, these specialized double-deep reach forks effortlessly access and stack goods in the rear rows of double-deep racking. This capability effectively boosts overall storage capacity by up to 200%. Featuring versatile left-and-right side shift alongside a 180° rotation function, the forks maintain a robust load capacity of 600kg even when fully extended, ensuring superior flexibility and reliability in tight VNA operations.
2.Clear LED Display & Ergonomic Controls
A large, comprehensive LED screen provides clear, real-time readings of battery status, operating hours, and built-in diagnostic functions. Paired with ergonomically designed joysticks, dashboards, and switches, this intuitive layout significantly enhances operating comfort and handling flexibility.
3.High-Stability Specialized Mast
Engineered with a robust H-shaped mast channel steel, a precise central guide rail, and a reinforced frame structure to deliver unparalleled stability during high-altitude lifting. The innovative front-mounted secondary mast and integrated control panel design not only maximizes the operator's picking space but also provides an expansive, unobstructed field of vision for precise stacking at extreme heights.
4.Heavy-Duty Load Wheels & Braking System
Designed with large-diameter load wheels to provide exceptional stability, smooth traversal, and reduced ground pressure across warehouse floors. Combined with a highly responsive full-wheel electromagnetic braking system, it ensures shorter braking distances, faster reaction times, and maximum operational safety during travel or heavy-load handling.
Media Gallery
FAQ
Q1: What is the minimum aisle width required to operate the SINOLIFT MCC12 Man-up Turret Truck?
A1: Because it is designed for Very Narrow Aisle (VNA) operations, the required aisle width is significantly narrower than standard reach trucks, typically starting around 1.6 to 1.8 meters depending on your specific pallet dimensions. We highly recommend consulting with our technical team to calculate the exact aisle clearance needed for your double-deep racking layout.Q2: Are there any specific warehouse floor requirements for utilizing this high-level VNA forklift?
A2: Yes, operating a turret truck at extreme heights requires a super-flat warehouse floor (such as those meeting VDI 3618 standards) to ensure maximum vehicle stability and prevent mast sway. If your warehouse floor does not meet these ultra-flat specifications, we suggest conducting a professional floor assessment or implementing wire/rail guidance systems for optimal safety.Q3: Does the man-up cabin design require specialized safety training for our operators?
A3: Operating a man-up VNA truck does require specialized certification, as the operator travels vertically with the load to handle high-altitude stacking and picking. To support your team, the MCC12 features an intuitive integrated control panel and three separate high-altitude emergency escape methods, which significantly eases the training process and boosts operator confidence.Q4: Can the lifting height and overall configuration of the MCC12 be customized to match our facility?
A4: Absolutely. While our standard main lift heights range from 4.5m to 12.5m, we can fully customize the mast to reach up to 17,000mm to perfectly match your high-bay double-deep racks. We also offer flexible customization for battery types and exterior colors to seamlessly integrate the equipment into your current operations and corporate branding.Q5: Is this turret truck suitable for intensive multi-shift continuous operations in distribution centers?
A5: The MCC12 is engineered for demanding industrial environments and is equipped with a high-capacity traction battery designed to provide robust and consistent power. For warehouses running intensive multi-shift operations, we can upgrade the power system to advanced Lithium-ion technology, allowing for fast opportunity charging during breaks without the downtime of swapping batteries.
Optional Extras
Auto-Guidance Aisle Mode
Activate this mode to automatically and precisely steer the forklift through extremely narrow aisles using advanced tracking sensors. By taking over the steering control, it minimizes the risk of rack collisions and allows the operator to focus entirely on productive lifting and pallet handling.
Height Preselection
This intelligent feature allows the operator to automatically raise or lower the forks to pre-programmed rack levels with pinpoint accuracy. It eliminates the need for manual, visual height adjustments, thereby accelerating cycle times and significantly reducing driver fatigue.
One-Touch Fork Synchronization
Streamline your material handling process with a single button that automatically coordinates the complex rotation and lateral traversing movements of the turret head. This seamless synchronization ensures swift, safe, and effortless pallet retrieval and storage in confined spaces.
Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.
Blue spot light
The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.
Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.
Forklift Wireless Cameras
Forklift wireless cameras enhance safety and efficiency by providing real-time visual feedback to operators. These cameras offer a clear view of blind spots, load positioning, and surrounding areas, reducing the risk of accidents and improving load handling accuracy. Easy to install and compatible with most forklifts, they are ideal for busy warehouses, tight spaces, and high-traffic environments. With durable designs and wireless connectivity, they ensure reliable performance and seamless integration into your operations.
Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.
Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.
Cold Store Modification and Cabin
Designed for extreme cold storage environments, this electric pallet truck features specialized cold-store oil, anti-slip platforms, and heated batteries to ensure reliable performance in low-temperature conditions. Enhanced with robust insulation and durable components, it maintains efficiency and durability even in harsh, freezing environments. The truck’s cabin is specifically built to withstand cold storage applications, offering improved operator comfort and safety while maximizing operational efficiency in demanding conditions.
Drive in rack overhead guard
The drive-in rack overhead guard is specifically designed for narrow aisle operations, providing protection and clearance when working in high-density storage environments. It ensures safety and maneuverability in tight spaces.
Fork weighing system
The fork weighing system provides real-time weight measurements of the load, ensuring safe handling and preventing overloading. It helps operators comply with safety standards and avoid equipment damage.
DC/DC converter
The DC/DC converter ensures stable power supply to auxiliary systems, enhancing the reliability and functionality of the truck’s additional features. It supports the seamless operation of electronic components.
