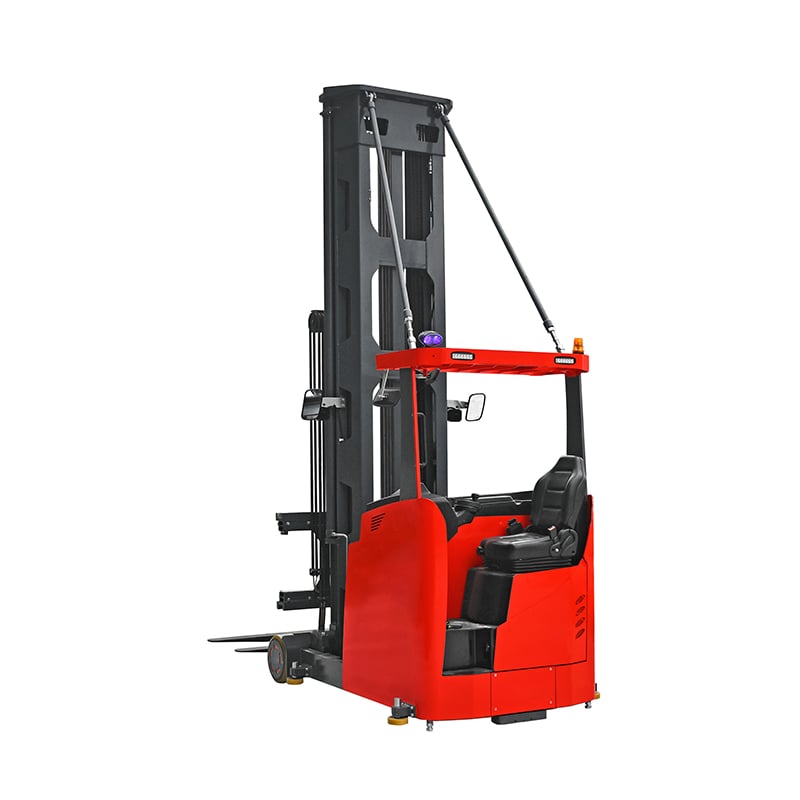

MCA16 1.6 Ton Seated 3- Way VNA Truck

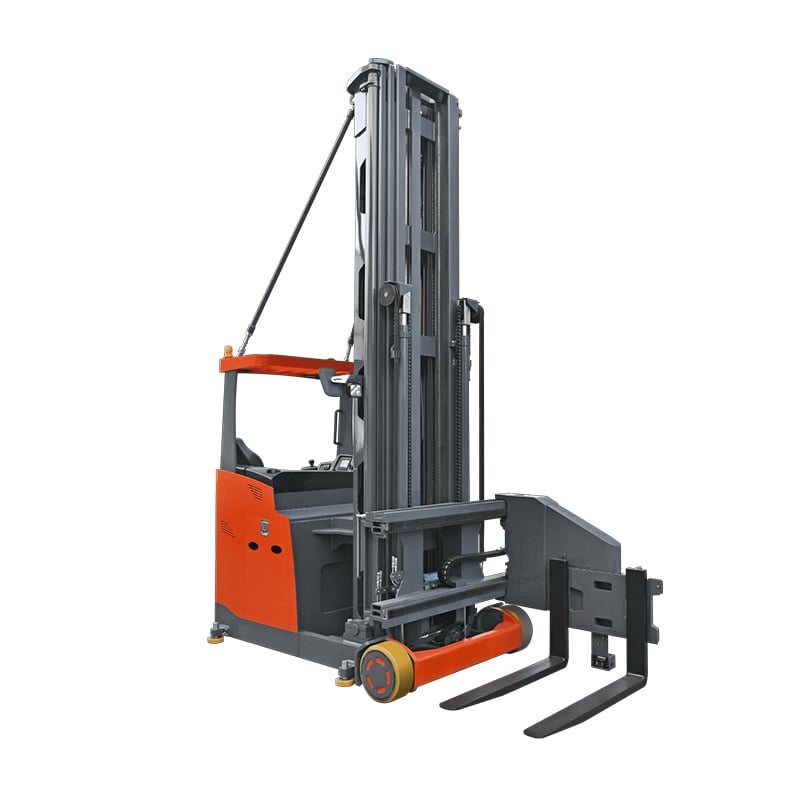

Designed specifically to maximize warehouse spatial efficiency, the MCA Series is a premium solution for high-density, very narrow aisle (VNA) stacking. Equipped with an innovative three-way turret head, its 180-degree rotating forks and side-shift capabilities allow operators to seamlessly stack and retrieve pallets without needing to turn the vehicle. This agile maneuverability significantly reduces handling time while enabling the stacker to operate in extremely confined aisles. Featuring an ergonomic seated design for long-shift comfort, it is the ideal choice for demanding environments such as logistics hubs, pharmaceutical storage, and cold-chain facilities looking to dramatically increase their storage capacity.
Features

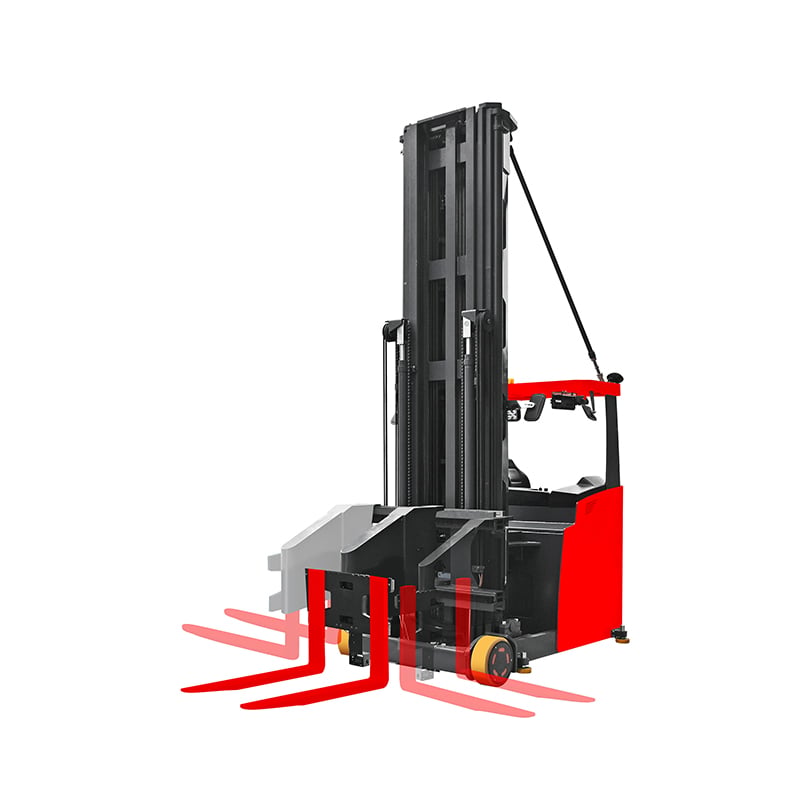

Optimize your high-density storage with the SINOLIFT MC Series Stand-on VNA Turret Truck, expertly engineered to maximize warehouse capacity. Designed for ultra-narrow aisles as tight as 1.6 meters, this man-down 3-way stacker features an innovative 180-degree rotating and side-shifting fork mechanism. This allows operators to load and unload goods on both sides of the racking without turning the vehicle. Reaching an impressive 10-meter lift height with zero capacity loss up to 6 meters, it guarantees stability and robust power. A standard high-definition fork camera ensures precise, safe stacking at extreme elevations. Combined with intuitive controls and ergonomic body supports, it minimizes operator fatigue, delivering unparalleled efficiency for your demanding intralogistics operations.
Parameters
| Model | MCA16SQ | |
| Power type | Battery | |
| Operation | Seated | |
| Load capacity | Q(kg) | 1600 |
| Load center distance | C(mm) | 600 |
| Front overhang | x(mm) | 860 |
| Wheelbase | y(mm) | 1800 |
| Service weight(incl.battery） | kg | 6000 |
| Tyre type,front/rear | Polyurethane | |
| Tyre size, front | mm | φ343×150 |
| Tyre size, rear | mm | φ400×160 |
| Wheels,number front/rear (X=driven) | 2 / 1X | |
| Track width, front | b11(mm) | 1315 |
| Mast retracted height | h1(mm) | 2765 |
| Free lift height | h2(mm) | 1670 |

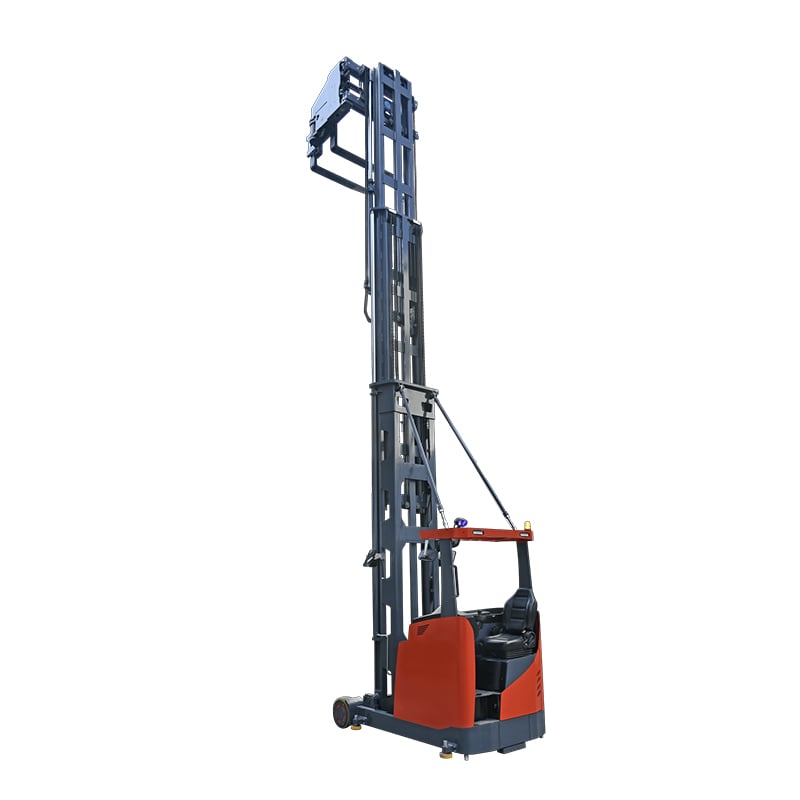

| Lift height | h3(mm) | 4500 |
| Mast extended height | h4(mm) | 5650 |
| Overhead guard height | h6(mm) | 2250 |
| Pedal height | h7(mm) | 600 |
| Overall length | l1(mm) | 3330 |
| Overall width | b1(mm) | 1575 |
| Fork dimensions | l/e/s(mm) | 1200/125/50 |
| Installation level | II B | |
| Fork outside spread | b5(mm) | 265~765 |
| Min.ground clearance | m1(mm) | 80 |
| Stacking aisle width pallet to pallet 1200x1200mm | Ast(mm) | 1600 |
| Turning radius | Wa(mm) | 2080 |
| Main aisle width with pallet 1200x1200mm | mm | ≥(3900+400) |
| Travelling speed, laden/unladen | km/h | 8/8 |
| Lift speed, laden/unladen | mm/s | 300/300 |
| Lowering speed, laden/unladen | mm/s | 340/340 |
| Gradeability, unladen | 8% | |
| Service brake | Regenerative brake/hydraulic brake | |
| Parking brake | Electromagnetic brake | |
| Drive motor, rating S2=60 | kw | 8 AC |
| Lift motor, rating S3=15% | kw | 15 AC |
| Lead acid battery, voltage/nominal capacity | V/Ah | 48/600 |
| Battery weight | kg | 945 |
| Steering system | Electric power steering | |
| Battery replacement method | Side pull |
Product Details
Ergonomic Suspension Seat
Designed with advanced ergonomics, the premium suspension seat significantly enhances operator comfort. It effectively absorbs vibrations to minimize driver fatigue during long, demanding shifts.
High-Definition Vision System
A high-definition fork camera system comes equipped as a standard feature, providing a crystal-clear and expanded field of view. This visual aid ensures that high-elevation stacking operations remain both exceptionally safe and highly efficient.
Heavy-Duty Front Wheel Configuration
Featuring dual φ343×150 mm front load wheels, the stacker is engineered for exceptional balance and stability during high-level lifting operations. This design minimizes chassis sway and guarantees precise, smooth navigation across warehouse floors.
Intuitive Control Layout
All control levers, the dashboard, and operational switches are arranged according to strict ergonomic principles. This intuitive layout places everything right at the driver's fingertips, significantly enhancing both comfort and handling flexibility.
Media Gallery
FAQ
Q1: Can the MCA Series VNA stacker be integrated into an automated guided vehicle (AGV) system?
A1: Yes, the MCA Series is fully designed to support AGV customization for smart warehouse operations. We can upgrade the steering, navigation, and control systems to integrate seamlessly with your existing automated logistics network, significantly reducing labor costs and improving handling accuracy.Q2: What are the floor flatness requirements for operating this turret truck safely?
A2: To ensure maximum stability when lifting heavy loads up to high levels, the warehouse floor must meet strict flatness and levelness standards, typically complying with VDMA or TR34 Superflat specifications. Operating on uneven surfaces can compromise the truck's balance, reduce its traveling speed, and lead to excessive wear on the mast and polyurethane tires.Q3: How does the maintenance-free AC driving system benefit our long-term operational costs?
A3: The advanced whole-AC system completely eliminates the need for carbon brush replacements, which significantly reduces downtime and routine maintenance intervals. This not only lowers your overall total cost of ownership (TCO) but also ensures a quicker, more precise power delivery during daily warehouse operations.Q4: Is the battery replacement process efficient enough for multi-shift warehouse environments?
A4: Absolutely. The stacker features a convenient side-pull battery extraction design that allows for quick and effortless battery swapping without requiring an overhead hoist. This ensures minimal interruption to your workflow, making the truck highly suitable for 24/7 demanding operations where continuous uptime is critical.Q5: What measures are in place to ensure smooth and secure handling at maximum lift heights?
A5: The MCA Series utilizes a large-section mast structure that maximizes rigidity and minimizes deflection, preventing load swaying when extended. Furthermore, it is equipped with imported premium hydraulic components that guarantee stable, jerk-free lifting and lowering, deeply protecting both your valuable goods and the racking systems.
Optional Extras
Auto-Guidance Aisle Mode
Activate this mode to automatically and precisely steer the forklift through extremely narrow aisles using advanced tracking sensors. By taking over the steering control, it minimizes the risk of rack collisions and allows the operator to focus entirely on productive lifting and pallet handling.
Height Preselection
This intelligent feature allows the operator to automatically raise or lower the forks to pre-programmed rack levels with pinpoint accuracy. It eliminates the need for manual, visual height adjustments, thereby accelerating cycle times and significantly reducing driver fatigue.
One-Touch Fork Synchronization
Streamline your material handling process with a single button that automatically coordinates the complex rotation and lateral traversing movements of the turret head. This seamless synchronization ensures swift, safe, and effortless pallet retrieval and storage in confined spaces.
Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.
Blue spot light
The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.
Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.
Forklift Wireless Cameras
Forklift wireless cameras enhance safety and efficiency by providing real-time visual feedback to operators. These cameras offer a clear view of blind spots, load positioning, and surrounding areas, reducing the risk of accidents and improving load handling accuracy. Easy to install and compatible with most forklifts, they are ideal for busy warehouses, tight spaces, and high-traffic environments. With durable designs and wireless connectivity, they ensure reliable performance and seamless integration into your operations.
Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.
Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.
Cold Store Modification and Cabin
Designed for extreme cold storage environments, this electric pallet truck features specialized cold-store oil, anti-slip platforms, and heated batteries to ensure reliable performance in low-temperature conditions. Enhanced with robust insulation and durable components, it maintains efficiency and durability even in harsh, freezing environments. The truck’s cabin is specifically built to withstand cold storage applications, offering improved operator comfort and safety while maximizing operational efficiency in demanding conditions.
Drive in rack overhead guard
The drive-in rack overhead guard is specifically designed for narrow aisle operations, providing protection and clearance when working in high-density storage environments. It ensures safety and maneuverability in tight spaces.
Fork weighing system
The fork weighing system provides real-time weight measurements of the load, ensuring safe handling and preventing overloading. It helps operators comply with safety standards and avoid equipment damage.
DC/DC converter
The DC/DC converter ensures stable power supply to auxiliary systems, enhancing the reliability and functionality of the truck’s additional features. It supports the seamless operation of electronic components.
