EPT20ES-S

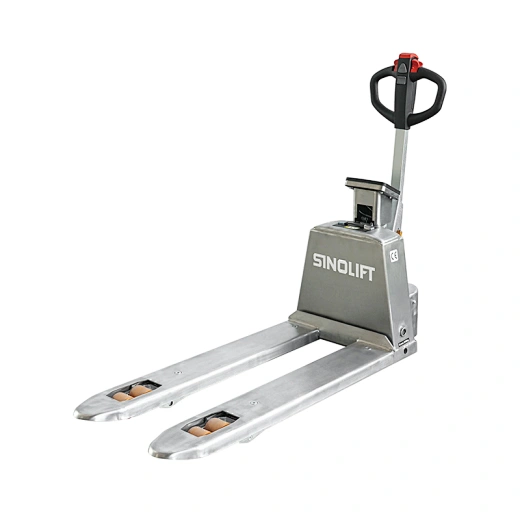

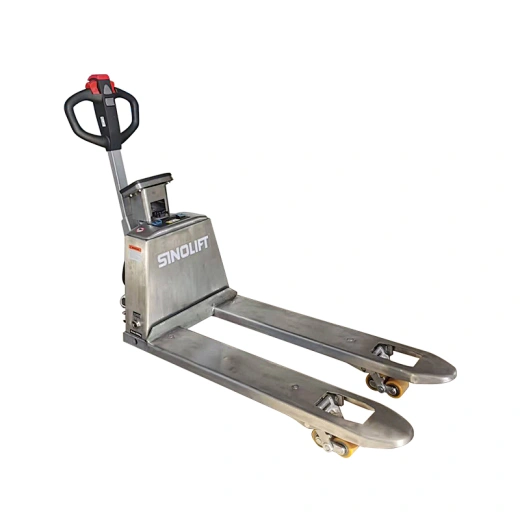

EPT20ES-S Stainless Steel Lithium Battery Operated Pallet Truck

The EPT20ES-S Stainless Steel Lithium Pallet Truck is designed for efficient and durable material handling in demanding environments. Its corrosion-resistant stainless steel body and reinforced manganese steel forks ensure longevity in cold stores, food processing, or chemical industries. The 48V/15Ah lithium battery delivers 3-6 hours of continuous operation with quick slide-out replacement, while built-in high-precision sensors provide accurate 0.1KG weight feedback. The CAN-BUS intelligent system enables real-time diagnostics, enhancing safety and reducing maintenance. Ideal for logistics, warehouses, and hygienic-sensitive sectors.

Features

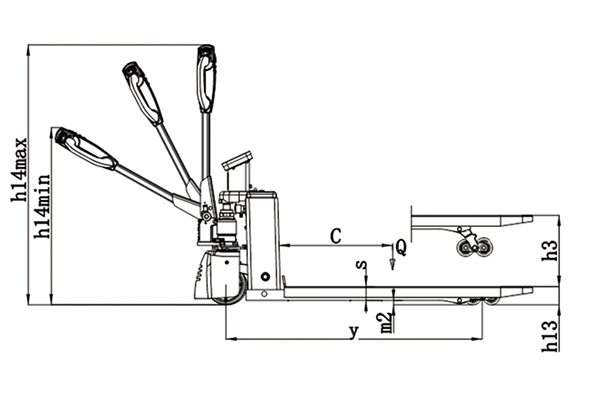

Parameters

Manufacturer SINOLIFT
Model EPT20E
Power Type Lithium Battery
Type of Operation Pedestrian
Load capacity/Rated load q kg 2000
Load Center Distance c mm 600
Alex centre to Fork Face x mm 840(910)
Wheelbase y mm 1220(1295)
Total Weight (with battery kg 140(145)
Tyre Type Polyurethane

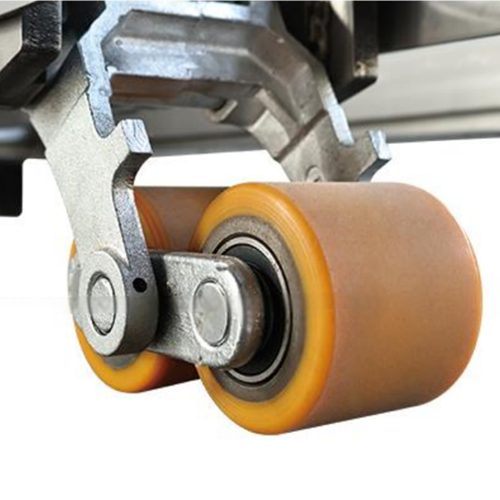

Tyre Size( Load Wheel)Tandem mm Φ80×70(85mm)or Φ74×70(75mm)
Tyre Size (Load Wheel) Single Φ80×93(85mm)or Φ74×93(75mm)
Tyre Size (Drive Wheel) mm Φ190×170
Wheels Quantity, front/rear (x=Driving Wheels 4/1x+2
Track Width,Front,Driving Side mm 460
Track Width,Rear,Loading Side mm 400(520)
Lifting Height b10 mm 180(200)
Height of Tiller Arm in Driving Position, Min.-Max. b11 mm 800-1240
Lowered Height h3 mm 75(85)
Overall Length h14 mm 1540(1610)
Length to Fork Face h13 mm 390
Overall Width l1 mm 560(680)
Fork Dimension l2 mm 50x160x1150(1220)
Fork Spread Width b1 mm 560/680
Ground Clearance at Center of WVheelbase (Min) s/e/l mm 30

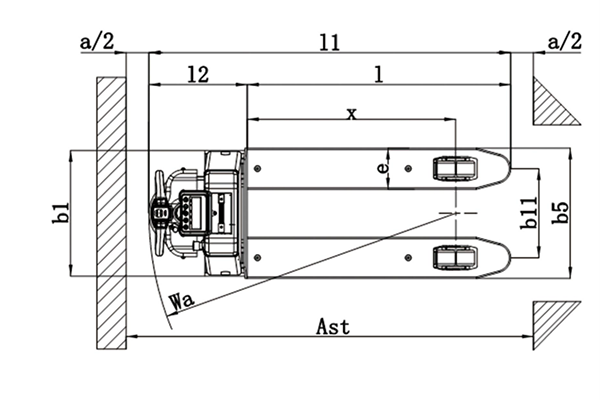

Aisle Width for Pallets 1000×1200 Crossways b5 mm 1790
Aisle Width for Pallets 800×1200 Crossways m2 mm 1740
Turning Radius Ast mm 1350
Traveling Speed (Laden/Unladen) Ast km/h 4.5/4
Lifting Speed (Laden/Unladen) Wa mm/s 22/17
Lowering Speed (Laden/Unladen) mm/s 26/30
Max.Gradient Performance (Laden/Unladen) % 8/20
Service Brake Type Electromagnetic
Driving Motor Rating (DC) S2 60min kw 0.85
Lifting Motor Rating S3 15% kw 0.6
Battery Type Li-ion
Battery Voltage/Capacity K5 V/Ah 48/15
Battery Weight kg 6.3
Charger V/A 48/16
Controller Model DC CURTIS
Steering Type Mechanical
Sound level atdriver’s ear according to EN 12 053 db(A) 70



Product Details

Media Gallery

FAQ

  • How long does the battery last on a single charge?

    The EPT20ES-S is equipped with a 48V/15Ah lithium iron phosphate (LiFePO4) battery, providing 3–6 hours of continuous operation per charge, depending on workload.
  • Is this pallet truck suitable for cold storage or corrosive environments?

    Yes, its stainless steel construction offers excellent corrosion resistance, making it ideal for cold storage, food processing, and chemical industries.

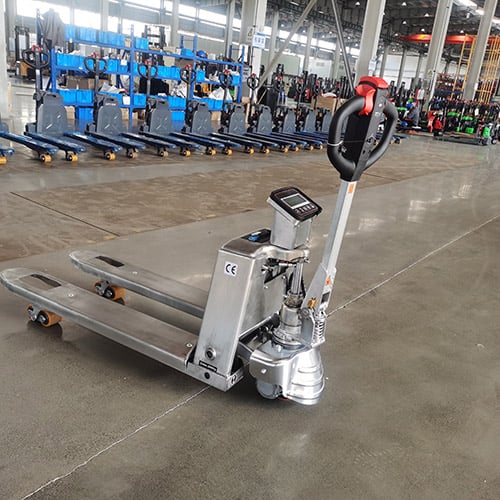

  • How accurate is the built-in weighing system?

    The truck features 4 high-precision sensors with an accuracy of ±0.1%, ensuring reliable weight measurements.
  • Can the battery be easily replaced?

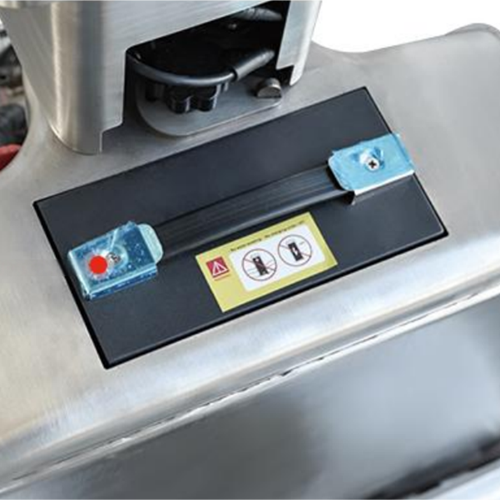

    Yes, the slide-out lithium battery design allows for quick and tool-free replacement, minimizing downtime.
  • What safety features does this electric pallet truck have?

    It includes CAN-BUS intelligent monitoring for real-time diagnostics, leak-proof hydraulic lifting, and reinforced manganese steel forks for enhanced durability.

Optional Extras

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer

Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks

This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels

PU wheels

Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.

Nylon wheels

Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle

The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
