EPT20E

EPT20E 2-Ton Electric Pallet Truck with 48V Lithium Battery for Warehouse & Retail

The EPT20E Full Electric Pallet Truck is a 2-ton lithium-powered solution designed for efficient material handling in warehouses, retail, and distribution centers. Its ergonomic design reduces worker strain, while the 48V 15Ah swappable battery ensures uninterrupted operation. Key features include an intelligent handlebar with PIN lock, LCD display for real-time monitoring, and turtle mode for safe maneuvering in tight spaces. The PU wheels and metal driving wheel cover enhance safety and noise reduction. Ideal for long-distance transport, it combines productivity with cost-effective performance.

Features

This demonstration reveals why professionals choose our pallet jack for its combination of power, precision and durability that specs alone can’t show.

Key Features Highlighted:

  • Smooth Hydraulic Operation – Chrome-plated cylinder and DC pump provide jerk-free lifting

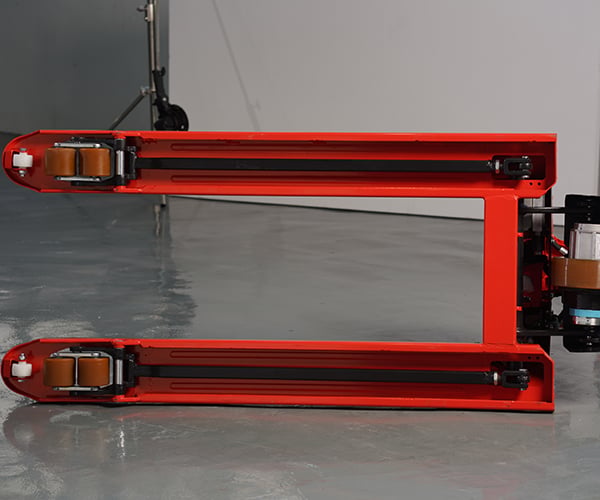

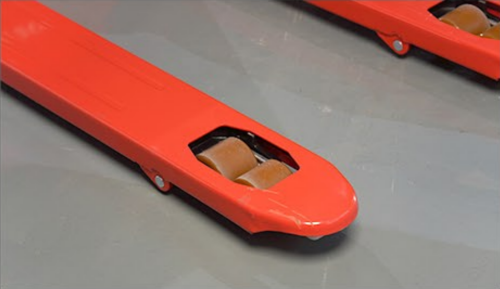

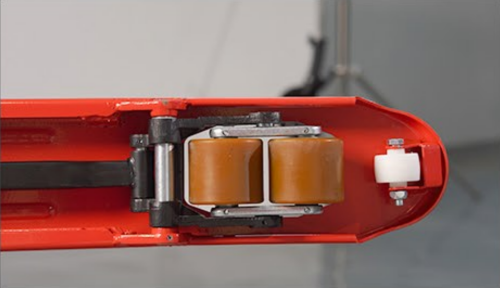

  • Intelligent Fork Design – Tapered tips with PU rollers glide smoothly under pallets
  • Maintenance-Free Drive – Brushless motor technology shown in continuous operation
  • Battery Performance – See the quick-swap 48V lithium battery system
  • Safety Demonstration – Electromechanical brake system in action

Parameters

Distinguishing Mark
Manufacturer SINOLIFT SINOLIFT
Model EPT20E EPT20ES(with scale)
Type Full Electric Full Electric
Power Unit Li-ion Battery Li-ion Battery
Operating Type Pedestrian Pedestrian
Load Capacity Q kg 2000 2000
Load Center C mm 600 600
Axle centre to fork face mm 950 950
Wheelbase Y mm 1200/1270 1200/1270
Weight
Service Weight (With Battery) kg 135 148
Tyres,Chassis
Wheel Material PU/PU PU/PU
Tyre size, Loading wheels b2 mm Ф80X70 Ф80X70
Tyre size, Driving wheels b4 mm Ф190X70. Ф190X70.
Number of wheels driving, caster/ loading (x=driving) psc 1x, 0/4 . 1x, 0/4 .
Dimensions
Max. Lifting height h3 mm 190 190
Height of tilerl arm in driving position, Min./Max. mm 650/1200 650/1200
Lowered height h6 mm 75/85 75/85
Frame height b8 mm 530 530
Overall length L1 mm 1540/1610 1540/1610
Length to fork face mm 390 390
Overall width b1 mm 560(680) 560(680)
Fork dimensions mm 50x160x1150(1220) 50x160x1150(1220)
Distance between fork arms B mm 560(680) 560(680)
Ground clearance, center of wheelbase b7 mm 30 30
Aisle width for pallets 1000 x 1200 crossways Ast mm 1500 1500
Aisle width for pallets 800 x1200 lengthways Ast mm 1700 1700
Turning radius Wa mm 1330/1400 1330/1400
Performance
Travel speed, laden/unladen km/h 4.5 4.5
Liftingspeed, laden/unladen . mm/s 22/17 22/17
Lowering speed, laden/unladen mm/s 26/30 26/30
Max. gradeability, laden/unladen % 6/10 6/10
 Service brake Electromagnetic Electromagnetic
Electric-engine
Driving motor rating S2 60 min kw 0.8 0.8
Lifting motor rating S3 15% kw 0.5 0.5
Battery type Li-ion Li-ion
Battery voltage/nominal capacity K20 V/Ah 48V/15Ah 48V/15Ah
Charger V/A 48V/6A 48V/6A
Others
Driving controller DC DC
Steering type Mechanical Mechanical
Noise at the driver’s ears dB(A) <74 <74



Product Details

Media Gallery

FAQ

  • What are the advantages of lithium-ion (Li-Ion) batteries over lead-acid batteries in electric pallet trucks?

    Lithium-ion batteries offer faster charging, longer lifespan (2-3x more cycles), and maintenance-free operation. They are also lighter, more energy-efficient, and don’t require watering or ventilation like lead-acid batteries.
  • Do you need a licence for an electric pallet truck?

    You don’t necessarily require a driving licence to operate a pallet. But depending on your location, you must have certification to operate electric pallet trucks. In the US, OSHA does not require certification for using electric pallet trucks. However, they recommend that companies establish a certification program for their employees. The individual certification will come upon completion of the course. Some courses may have an expiration date, so you might have to take the course again in the future.
  • How long does the 48V lithium battery last on a single charge?

    The 48V/15Ah lithium battery provides up to 3.5 hours of continuous operation and can be fully recharged in just 2 hours. Optional spare batteries are available for extended runtime.
  • Does this electric pallet jack require regular maintenance?

    No. The brushless DC motor and sealed hydraulics are maintenance-free. Only periodic cleaning and battery checks are recommended.
  • Can it handle double pallets or uneven surfaces?

    Yes. The reinforced forks with tapered tips and tandem rollers ensure smooth operation even with double pallets. However, extreme uneven surfaces may affect performance.

Optional Extras

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer

Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks

This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels

PU wheels

Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.

Nylon wheels

Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle

The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
