  5. 1.5ton 2 ton Narrow aisle CQD15B 20B Electric Reach stand Forklift Truck

EPT15V EPT20V

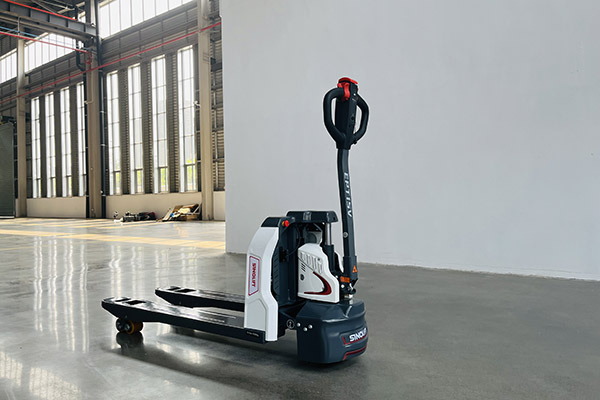

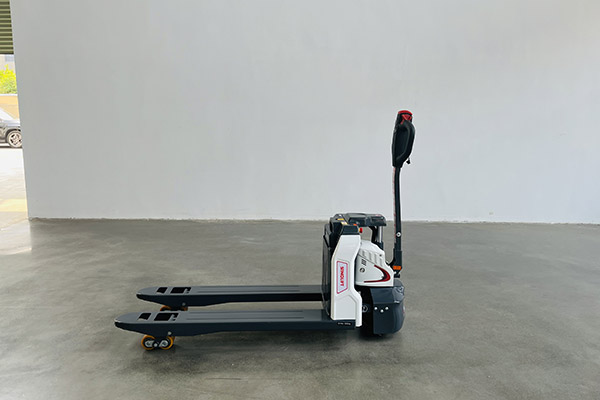

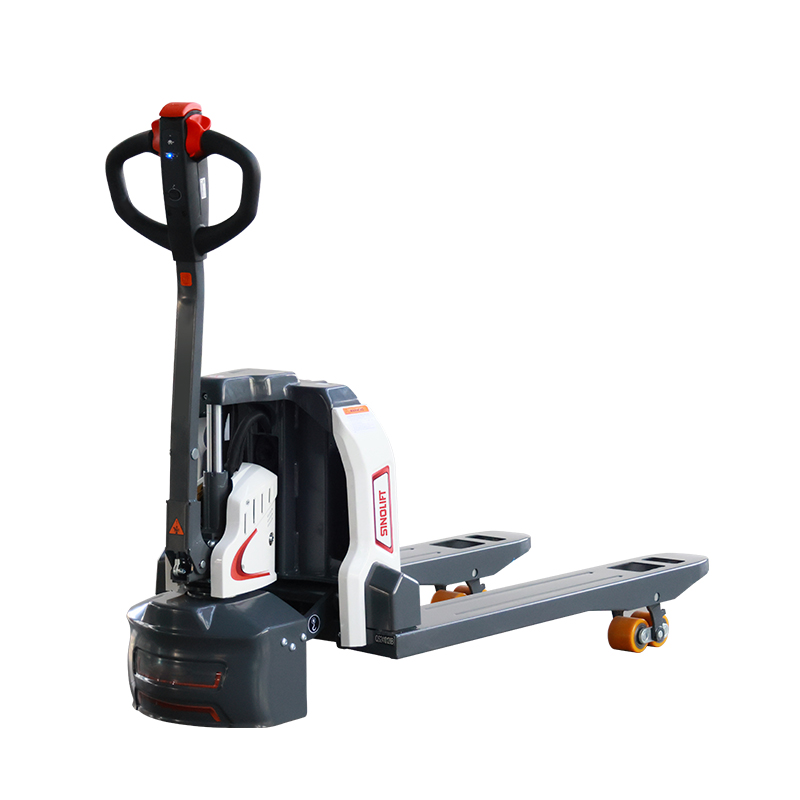

EPT15V EPT20V Li-Ion Electric Pallet Truck

Boost productivity with the EPT15V/20V – the industrial-grade electric pallet truck built for demanding operations. Engineered with heavy-duty lifting power and industry-leading maneuverability, it tackles 2-3 ton loads with ease while navigating tight spaces effortlessly. Its revolutionary quick-swap battery system eliminates downtime, and the advanced shock absorption protects delicate floors. The ultimate solution for warehouses and distribution centers that value both power and precision.

Features

Discover the EPT15V Electric Pallet Truck in Action!
The EPT15V combines intelligent design with robust functionality, featuring:
• Industry-leading lithium-ion battery technology for extended runtime

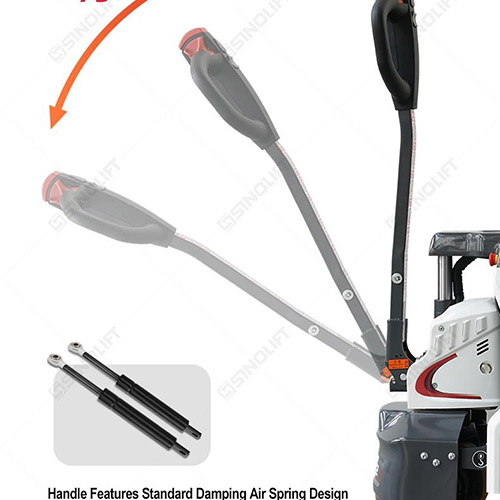

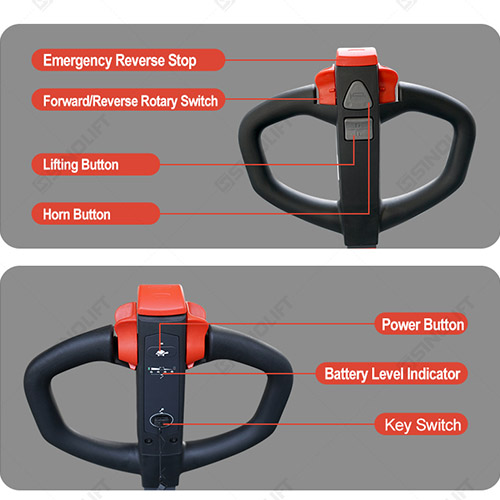

• Ergonomic controls for operator comfort and safety
• Smart load-sensing acceleration for precise handling
• Compact design for excellent maneuverability
• Low-maintenance operation for reduced downtime

Parameters

ParameterUnitEPT15VEPT20V
ModelEPT15VEPT20V
Drive TypeElectric
Operation ModeWalk-behind
Rated Load Capacitykg15002000
Load Centermm600
Front Overhangmm950
Wheelbasemm1270
Self-weight (with battery)kg142145
Drive Wheel SizemmMechanical Steering
Load Wheel Sizemm180×70
Wheel Quantity (Front/Rear, X=Drive)1X/4
Wheel Track (Load end)mm390/525
Lifting Heightmm195
Handle Min/Max HeightmmMechanical Steering
Fork Lowest Heightmm85
Overall Lengthmm1620
Underbody Lengthmm470
Overall Widthmm550/685
Fork Dimensionsmm50/160/1150
Fork Outside Widthmm550/685
Ground Clearance at Wheelbase Centermm35
Aisle Width (1000×1200 pallet)mm1820
Aisle Width (800×1200 pallet)mm1870
Turning Radiusmm1380
Travel Speed (Loaded/Unloaded)km/h4.2/4.5
Max Gradeability (Loaded/Unloaded)%6/10
Drive Motor PowerkW0.750.9
Lift Motor PowerkW0.50.5
Battery Voltage/CapacityV/Ah24/2048/15
Battery Weight (±5%)kg5.5
Noise LeveldB(A)≤70
Steering TypeMechanical Steering



Product Details

Media Gallery

FAQ

  • Do you need a licence for an electric pallet truck?

    You don’t necessarily require a driving licence to operate a pallet. But depending on your location, you must have certification to operate electric pallet trucks. In the US, OSHA does not require certification for using electric pallet trucks. However, they recommend that companies establish a certification program for their employees. The individual certification will come upon completion of the course. Some courses may have an expiration date, so you might have to take the course again in the future.
  • What is an electric pallet truck?

    An electric pallet truck is a battery-powered material handling equipment designed to lift and transport palletized loads with minimal manual effort. It features a fork assembly to slide under pallets, powered lifting/lowering functions, and self-propelled movement for efficient warehouse operations.
  • How much weight can an electric pallet truck lift?

    Capacity varies by model. Standard electric pallet jacks typically handle 3,000–5,500 lbs (1,360–2,500 kg), with heavy-duty models supporting up to 8,000 lbs. Always check the manufacturer’s rated capacity before use.
  • What are the main advantages of lithium-ion (Li-Ion) battery technology in electric pallet trucks like the EPT15V?

    Lithium-ion batteries offer higher energy density, faster charging, and longer lifespan compared to traditional lead-acid batteries. They also require no maintenance, have no memory effect, and provide consistent power output until fully discharged. Additionally, Li-Ion batteries are lighter, reducing the overall weight of the pallet truck and improving energy efficiency.
  • How does the EPT15V ensure safety during operation, especially in busy warehouse environments?

    The EPT15V incorporates multiple safety features, including: • Automatic braking system to prevent unintended movement. • Overload protection to avoid damage from excessive weight. • Emergency stop button for immediate shutdown in critical situations. • Speed control to adjust travel speed based on load and environment. • Anti-slip drive wheels for better traction on smooth surfaces.

Optional Extras

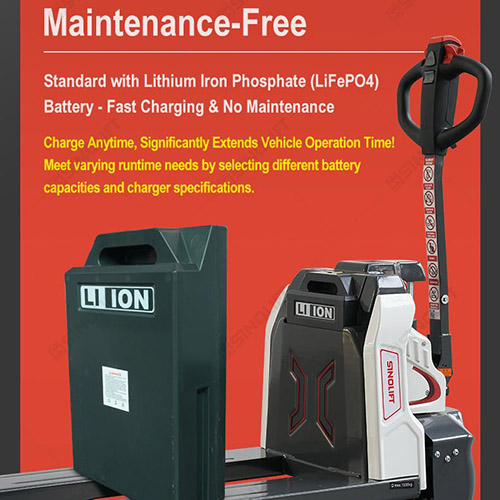

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer

Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks

This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels

PU wheels

Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.

Nylon wheels

Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle

The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
