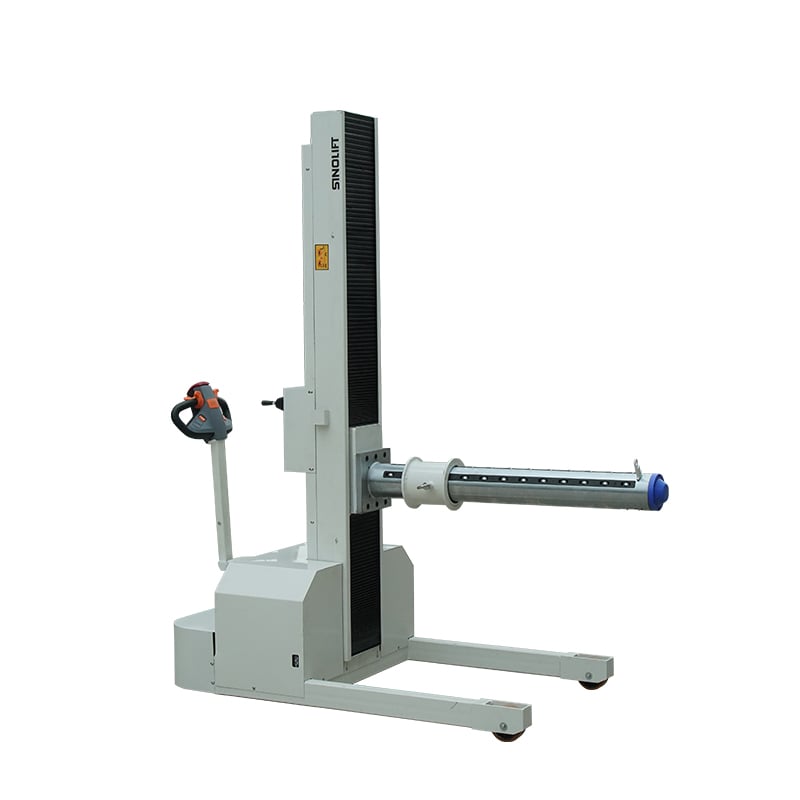

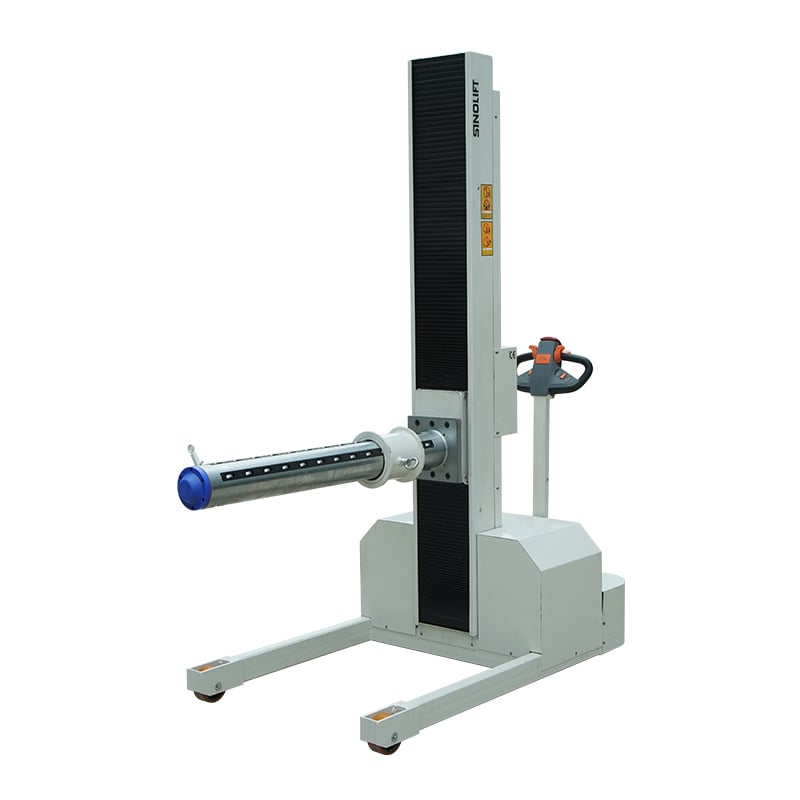

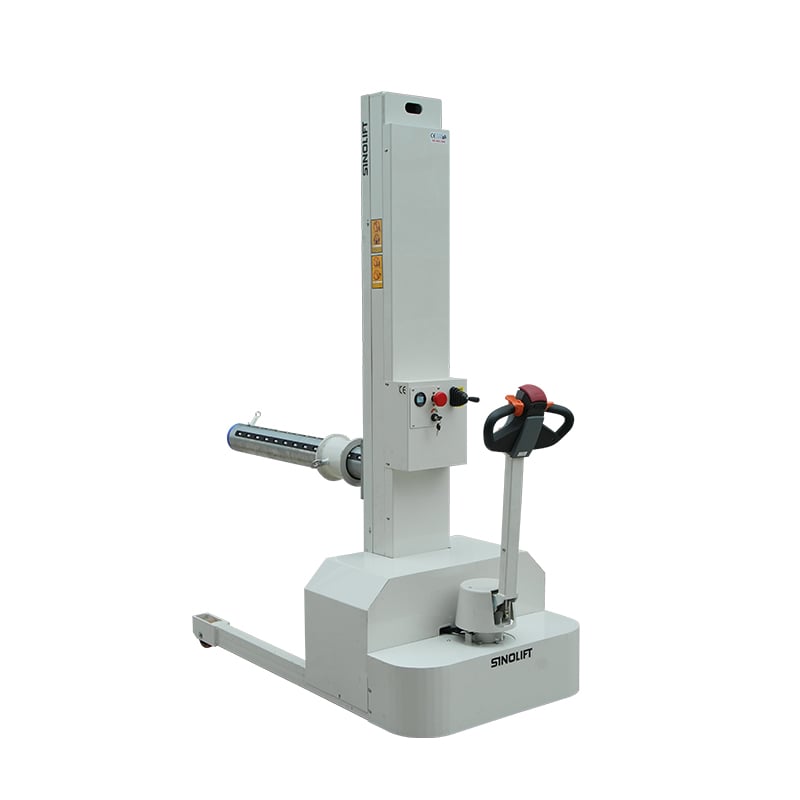

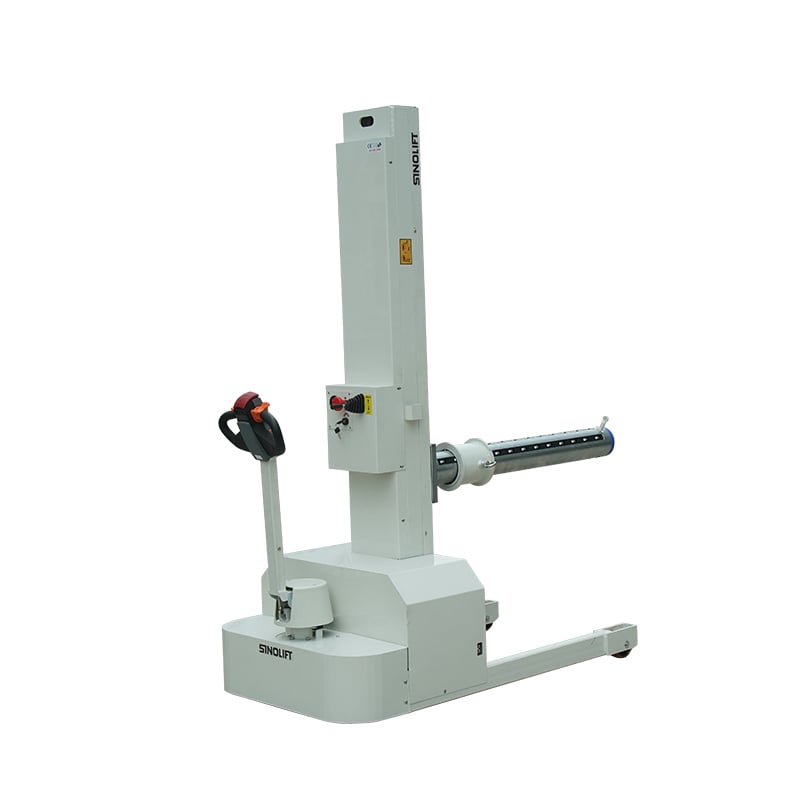

CDD-BF Electric Roll Handler with Push-Off

Electric Roll Handler with Push-Off | 1-Ton Single Ram Walkie Stacker

Designed specifically for the effortless handling and precise docking of roll materials, this electric single-arm push-pull cart is the ultimate solution for efficient material transportation. It features a compact, single-mast structure combined with fully electric lifting and traveling capabilities, allowing a single operator to manage heavy loads safely and smoothly. With its highly accurate electric push-pull system and intelligent control handle, the cart ensures seamless material transfer with your existing production equipment. Thanks to its flexible mobility and wear-resistant PU wheels, it is perfectly suited for navigating narrow aisles, busy warehouses, and modern manufacturing facilities.

Contact Us
Download

Features

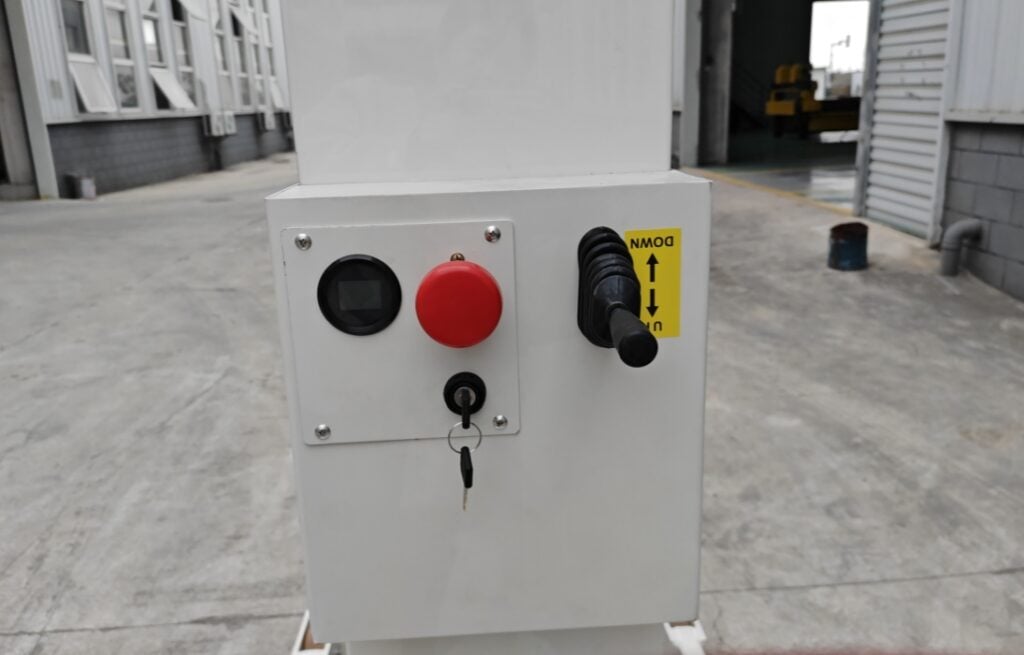

Experience effortless material handling with our 1-Ton Electric Roll Handler. Engineered for maximum efficiency, this fully powered walkie stacker combines electric lifting and a precise push-off mechanism to streamline your workflow. Its robust single ram design safely handles heavy roll materials, while the integrated intelligent handle allows a single operator to manage lifting, traveling, and push-pull operations with ease. Thanks to its compact, single-mast structure and durable PU drive wheels, the cart maneuvers smoothly through narrow aisles and confined workspaces. Boasting a lifting height of up to 1.95 meters and exceptional docking accuracy, it is the perfect solution for modern warehouses and manufacturing facilities seeking safe, time-saving, and customizable material transport.

Parameters

CDD-BF
Rated Load kg 1000
Arm Specification mm 960XΦ145
Travel Motor Rated Power W 750
Lift Motor Rated Power W 2200
Drive Wheel Specification mm 210*70
Load Wheel Specification mm 80*70
Maximum Lifting Height mm MIN450~MAX1950

Product Details

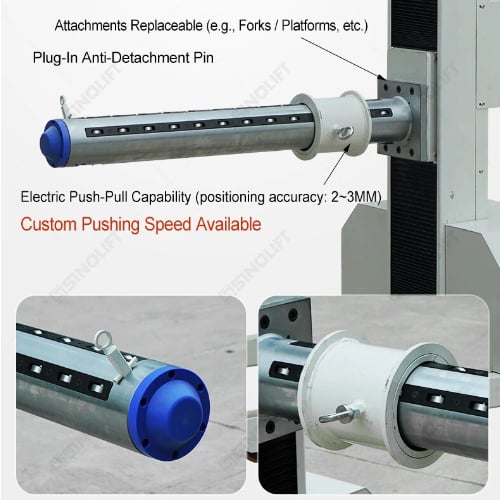

Precision Electric Push-Pull System

Precision Electric Push-Pull System

This highly efficient cart features a fully electric lifting and push-pull mechanism, significantly saving time and manual effort. It boasts a 500mm effective stroke with an outstanding positioning accuracy of 2-3mm, and supports customizable pushing speeds and replaceable attachments (like forks or platforms) to meet diverse operational needs.

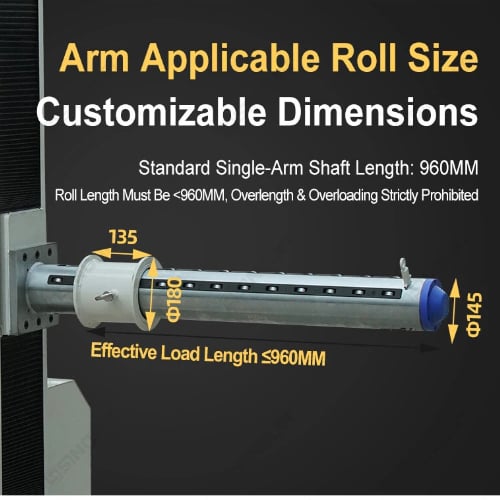

Customizable Single Ram Dimensions

Customizable Single Ram Dimensions

The standard single-arm shaft accommodates roll materials with an effective load length of up to 960mm to prevent overloading. To ensure perfect compatibility with your specific materials, we offer fully customizable arm dimensions tailored to your unique roll sizes.

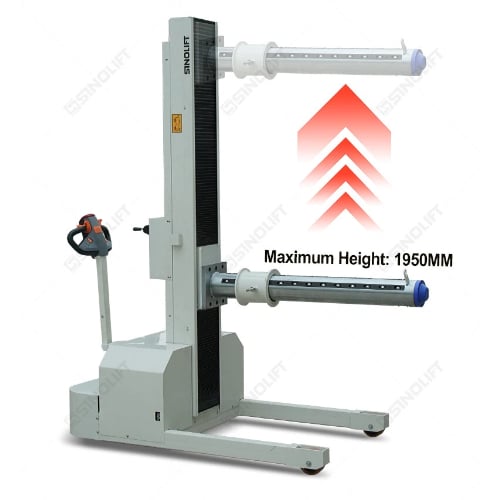

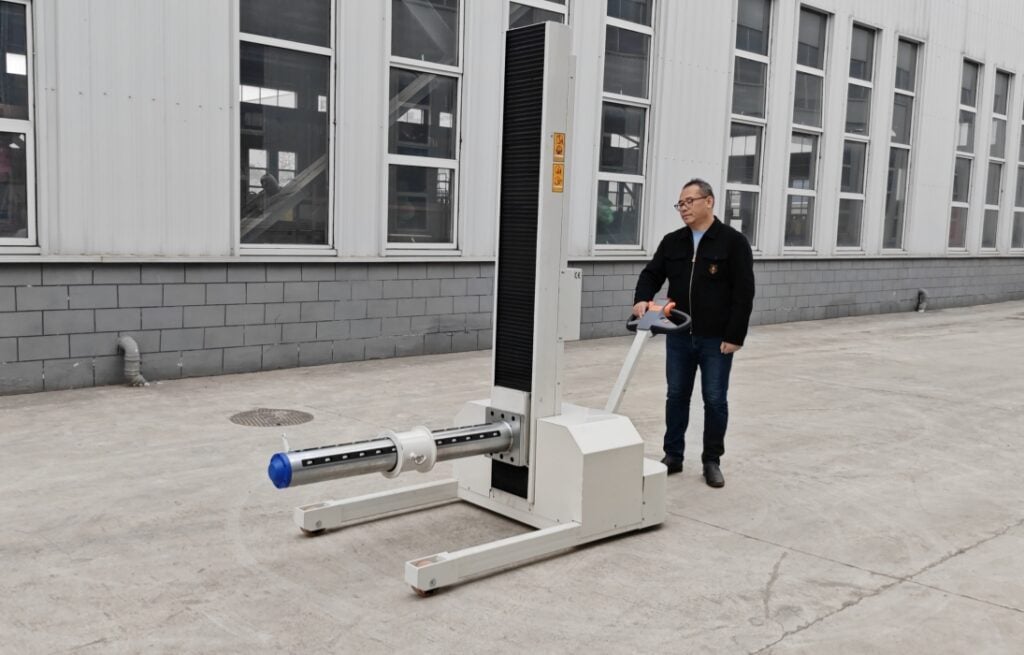

High-Lifting Capability for Single Operators

High-Lifting Capability for Single Operators

Engineered for effortless single-person handling, this intelligent stacker can safely reach a maximum electric lifting height of 1950mm. This impressive reach effectively streamlines the loading and unloading process, saving valuable time and maximizing workplace productivity.

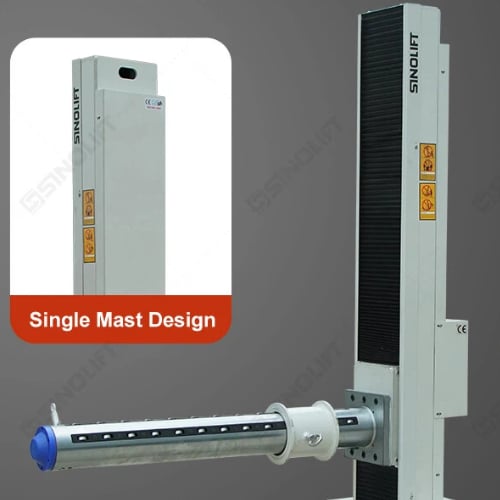

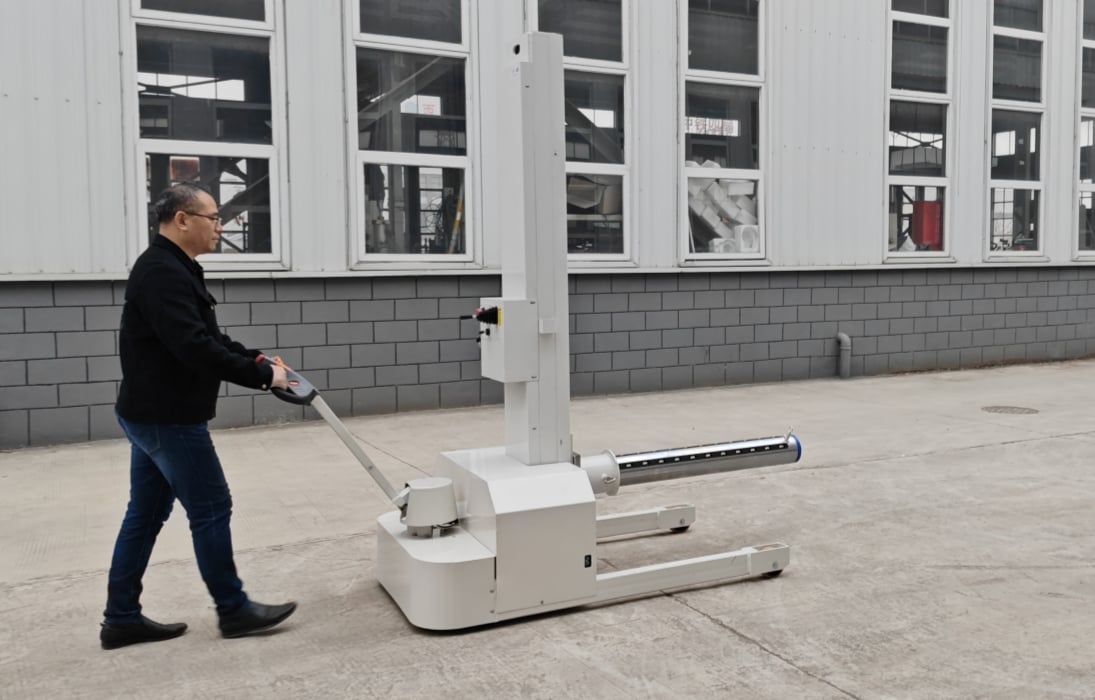

Robust Single Mast Construction

Robust Single Mast Construction

Constructed from reinforced, thickened high-quality steel, the single mast design is highly durable, corrosion-resistant, and built to resist deformation. Equipped with a premium 40CR lead screw, it guarantees stable, vibration-free lifting, making it ideal for the precise docking of materials with your production equipment.

Media Gallery

FAQ

  • Q1: How long does the battery typically last on a single charge, and what are the charging requirements?

    A1: Under standard operating conditions, a fully charged battery can comfortably support a full 8-hour shift of typical material handling tasks. The equipment uses a convenient built-in charger that can be plugged into a standard industrial outlet, making overnight charging hassle-free and ensuring minimal downtime for your operations.

  • Q2: What safety mechanisms are activated if the cart experiences a sudden power loss or is overloaded?

    A2: The stacker is equipped with an automatic electromagnetic braking system that immediately halts and securely locks the load in place if power is interrupted, effectively preventing any sudden drops. Additionally, an integrated electronic overload protection system and pressure relief valve will prevent the machine from lifting weights beyond its rated capacity, thereby safeguarding both the operator and the core mechanical components.

  • Q3: What is the recommended routine maintenance schedule to ensure the optimal lifespan of the equipment?

    A3: We strongly recommend conducting a quick visual inspection of the hydraulic system, lead screw, and battery connections on a weekly basis to catch any potential minor issues early. Furthermore, a comprehensive servicing—which includes lubricating moving parts, checking hydraulic fluid levels, and inspecting the electrical contacts—should be performed every three to six months depending on your daily usage frequency.

  • Q4: Does operating this electric walkie roll handler require a specialized forklift certification or license?

    A4: Because it is a pedestrian-operated (walkie) stacker rather than a ride-on forklift, standard operational use does not typically require a specialized commercial forklift license in most jurisdictions. However, we highly recommend that all users undergo thorough in-house training regarding the machine's safety protocols, load limits, and control panel functions before operating the equipment to maintain a secure working environment.

  • Q5: What does your warranty policy cover, and how can overseas customers access technical support and spare parts?

    A5: The machine comes with a comprehensive one-year warranty covering all major components, including the electric motors, hydraulic pump, and main structural frame against any manufacturing defects. For our international clients, we provide prompt remote troubleshooting support via video calls, and we maintain a full inventory of replacement parts ready for expedited global shipping to resolve issues swiftly.
