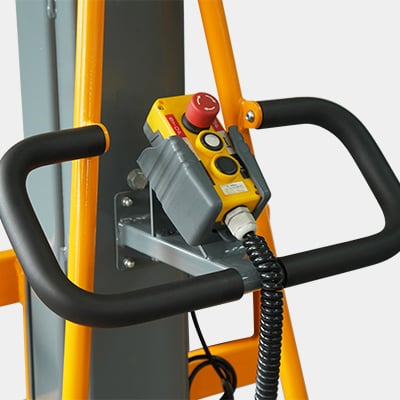

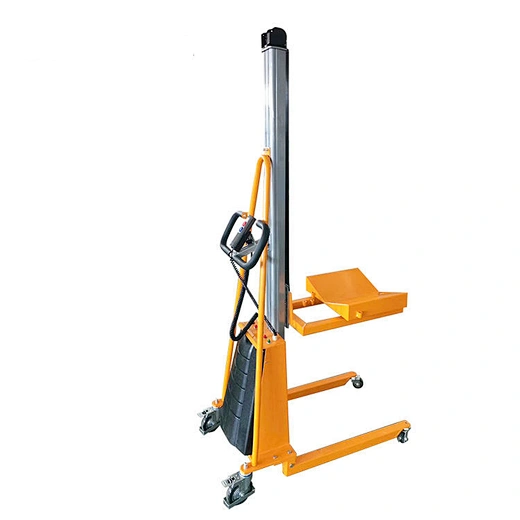

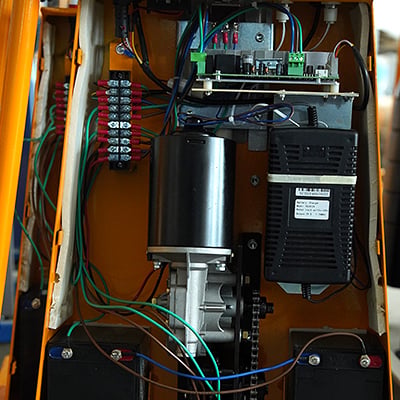

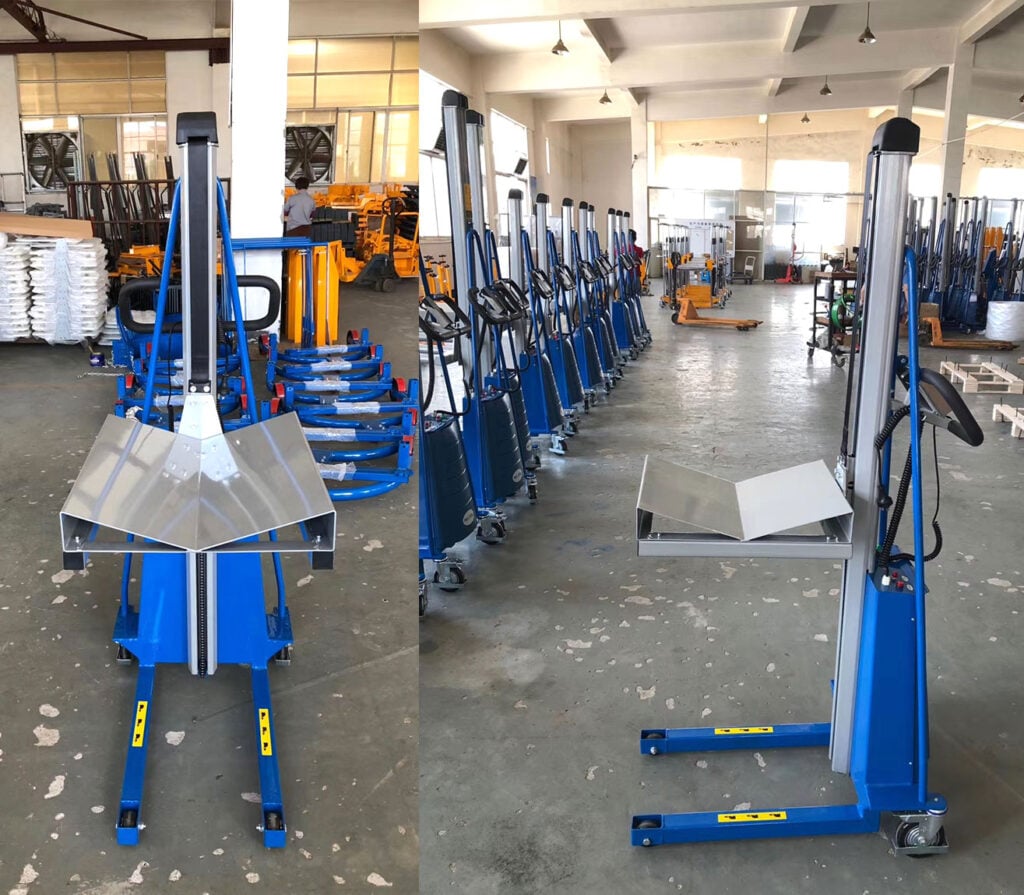

The E Series Electric Work Positioner with V-shaped Tray is designed for efficient and safe handling of cylindrical and coil-shaped materials, making it ideal for printing factories, supermarkets, and hotels. It features a high-efficiency maintenance-free power system, reliable motorized chain drive, and convenient push-button control for smooth lifting and lowering operations. Equipped with durable aluminum alloy construction and high-quality anti-slip casters, it ensures stability and easy mobility. The unique V-shaped tray design offers secure load holding and flexible operation, improving workflow in material handling and elevation tasks.

Download

Features

SINOLIFT remains a leader in the industry, with all products certified to CE, ISO9001, and ISO14001 standards, backed by a 12- or 24-month warranty. Our dedicated team of engineers and technical experts ensures cutting-edge design and production techniques, delivering specialized solutions with rigorous testing and readily available spare parts. We provide over 1,000 products to meet diverse applications.

Our facilities include a factory in Shanghai’s Pudong New Area and a partner factory in Anhui Province, spanning 290,942 sqm, staffed by 150+ engineers and 2,000+ skilled workers. This enables us to deliver customized solutions efficiently, tailored to each customer’s requirements.

We provide free shipping within Shanghai and mainland China, with regular global shipments. Contact us for international quotes.

Parameters

Model		E250-1.5	E250-1.8	E250-2	E350-1.7	E350-2.0
Load capacity	kg	250	250	250	350	350
Lift height	mm	130-1500	130-1800	130-2000	130-1700	130-2000
Platform size	mm	470*600	470*600	470*600	500*600	500*600
Outside leg width	mm	560	560	560	560	560
Outrigger height (front wheel universal)	mm	110	110	110
Wheel size(Front/ Rear)	mm	75/125	75/125	75/125	75/125	75/125
No-load speed	mm/s	50mm/s	50mm/s	50mm/s
Heavy load speed up, down	mm/s	40mm/s、45mm/s	40mm/s、45mm/s	40mm/s、45mm/s	120mm/s、100mm/s	120mm/s、100mm/s
Battery Parameters		24V20AH	24V20AH	24V20AH	12V58.3AH	12V58.3AH
Motor parameters		24V200W	24V200W	24V200W	12V800W	12V800W
Vehicle size	mm	8806001825	8806002125	8806002325	11806101990	11806102290
Net capacity	kg	90	100	108	108	118

Product Details

Media Gallery

FAQ

Q1: What types of materials is the V-shaped tray design best for?

A: The V-shaped tray is specifically engineered to securely hold and transport cylindrical or coil-shaped materials, such as paper rolls, textiles, or metal coils. This design prevents the load from rolling or shifting during elevation or movement, ensuring operational safety. It is ideal for handling items commonly found in printing, packaging, and manufacturing facilities.
Q2: Is this electric work positioner easy to move around a workshop or warehouse?

A: Yes, it is designed for excellent mobility. It is equipped with high-quality, wear-resistant casters, including swivel wheels for flexible direction changes and rear wheels with a foot brake function for stability during operation. The compact and robust design allows it to be easily maneuvered even in tight spaces on smooth floors.
Q3: How does the electric lifting system benefit my workflow?

A: The electric lifting system, powered by a maintenance-free battery and a reliable motorized chain drive, provides smooth, effortless, and precise height adjustment at the push of a button. This eliminates manual cranking or hydraulic pumping, significantly reducing operator fatigue and increasing productivity. It allows workers to focus on the task itself rather than the exertion of lifting.
Q4: What safety features does this work positioner have?

A: Safety is a key priority in its design. It features a guardrail with an anti-pinch foot protection to enhance operator safety, a secure foot brake to lock the wheels during operation, and a reliable chain drive system for stable lifting. These integrated features work together to create a safer working environment when handling heavy loads.
Q5: Can this machine be used for applications other than material handling?

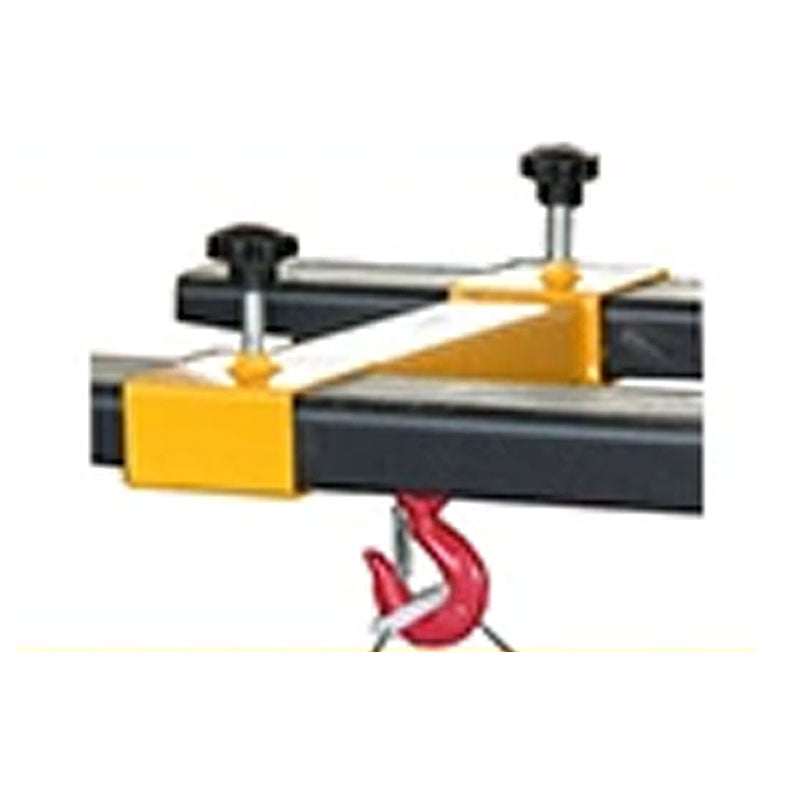

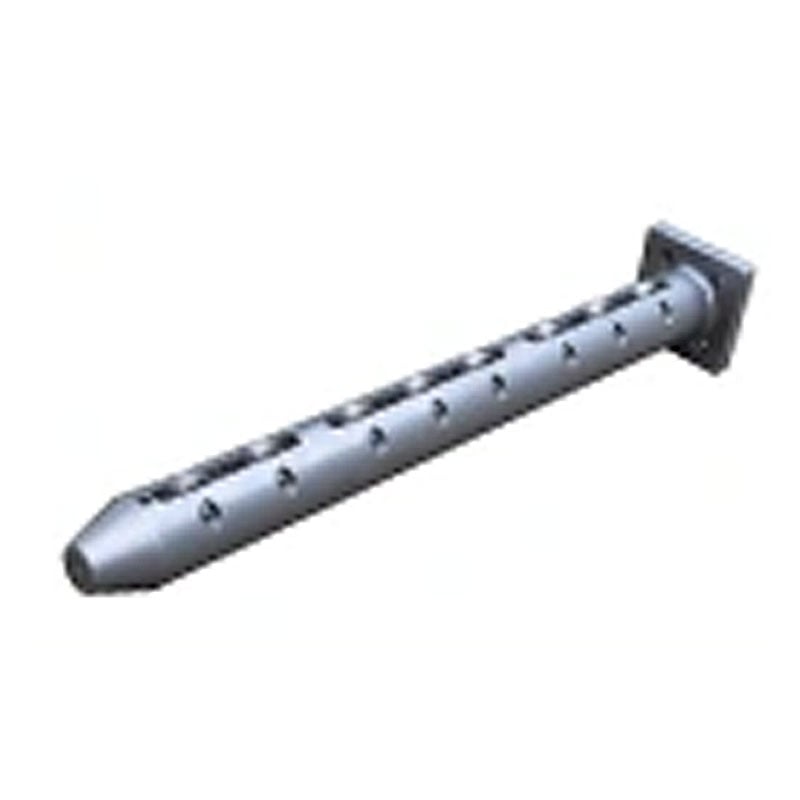

A: Absolutely. While perfect for lifting and transporting cylindrical goods, its stable elevating platform and optional accessories make it highly versatile. It can also serve as a temporary workbench for assembly tasks, a supportive base for maintenance work at height, or a ergonomic station to help workers avoid straining their backs, making it valuable in hotels, supermarkets, and workshops alike.
