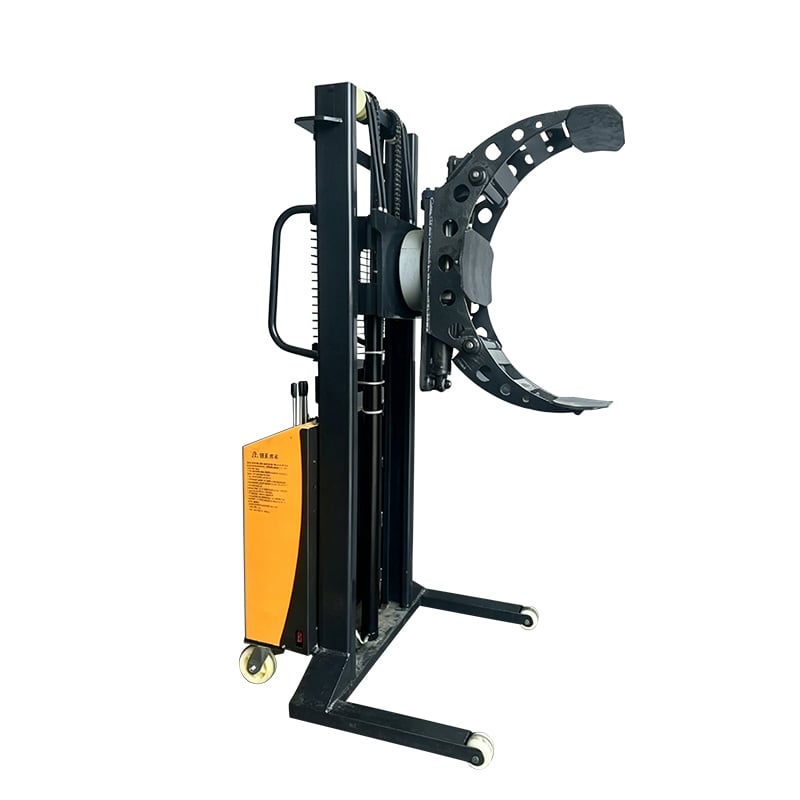

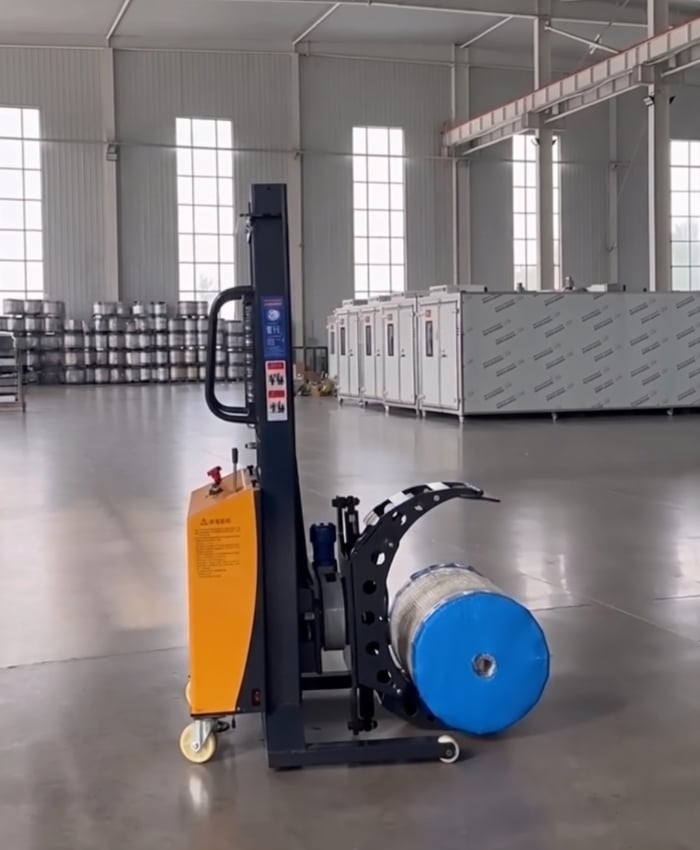

CTD350-R720 Semi-Electric Roll Handling Stacker with 360° Rotating Clamp
CTD350-R720 Semi-Electric Roll Handling Stacker with 360° Rotating Clamp

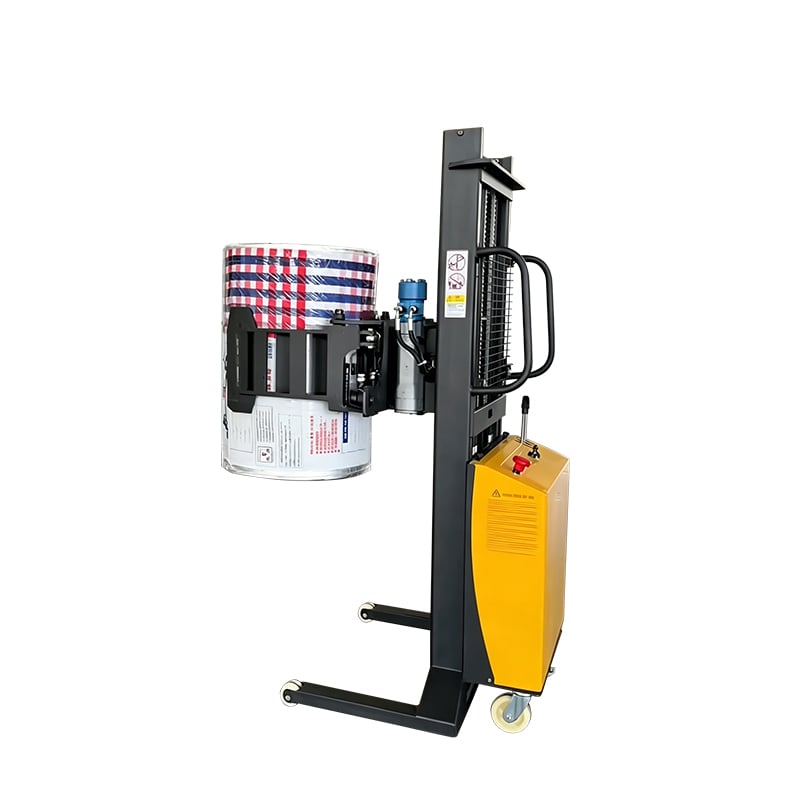

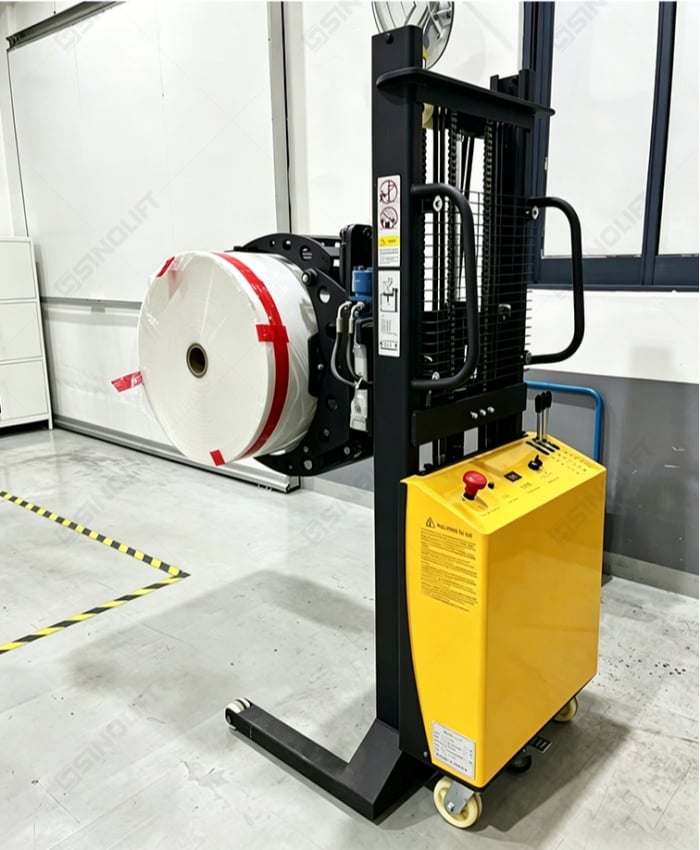

Designed specifically for the seamless handling of cylindrical materials, the SINOLIFT CTD350-R720 Semi-Electric Clamp Stacker combines transporting, lifting, and rotating into one highly efficient solution. It features a specialized, non-slip circular clamp with 360-degree continuous rotation, allowing operators to effortlessly lift and tilt loads for precise alignment. This makes it an indispensable tool for the printing and packaging industries, where smoothly feeding heavy paper or film rolls into production machinery is a daily necessity. Powered by reliable electric lifting and paired with an ergonomic design, it significantly reduces manual labor while ensuring steady and safe operations. Whether you are stacking drums in a warehouse or loading roll stock on a factory floor, this versatile stacker boosts productivity and eliminates material damage.
Features
Experience the ultimate efficiency with the SINOLIFT CTD350-R720 Semi-Electric Clamp Stacker, your all-in-one solution for handling cylindrical materials. Designed specifically for the printing and packaging industries, this versatile equipment seamlessly combines transporting, lifting, and rotating into a single, effortless process. The specialized circular clamp firmly grips paper rolls, film rolls, and drums, offering continuous 360° rotation and a 90° lockable tilt to ensure precise machine feeding without any surface damage. Powered by a robust 1600W lifting motor, it provides smooth and adjustable electric elevation up to 1500mm, drastically reducing manual labor. Featuring an ergonomic handle and an upgraded sealed hydraulic system, it guarantees superior stability, precise maneuverability, and enhanced workplace safety.
Parameters
| Model | CTD350-R720 | CDD500-2.0-R720 | CDD500-3.0-R720 | CPD500-R720 | |
| Overall Dimensions (LWH) | mm | 1300*950*1900 | 1800*800*1600 | 1800*800*1800 | 1900*850*1550 |
| Coil Diameter Range | mm | 360-720 | 360-720 | 360-720 | 360-720 |
| Battery Capacity | V/Ah | 12V/80Ah | — | — | — |
| Voltage | V | — | 24V | 24V | 24V |
| Lifting Height | mm | 1500 | 2000 | 3000 | 2000 |
| Load Capacity | kg | 350 | 500 | 500 | 500 |
| Rotation Angle | ° | 360 | 360 | 360 | 360 |
| Power Unit | V/W | 24/1600 | 24/1600 | 24/1600 | 24/1600 |
Product Details

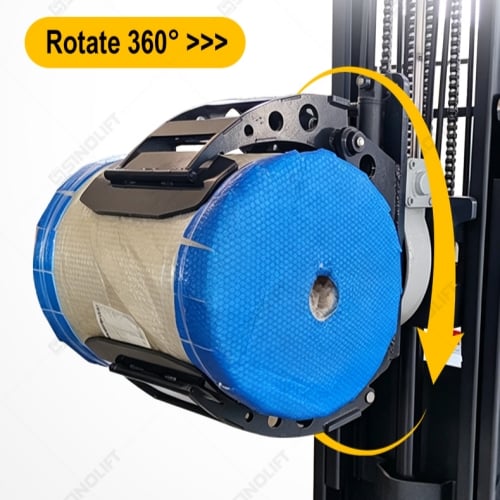

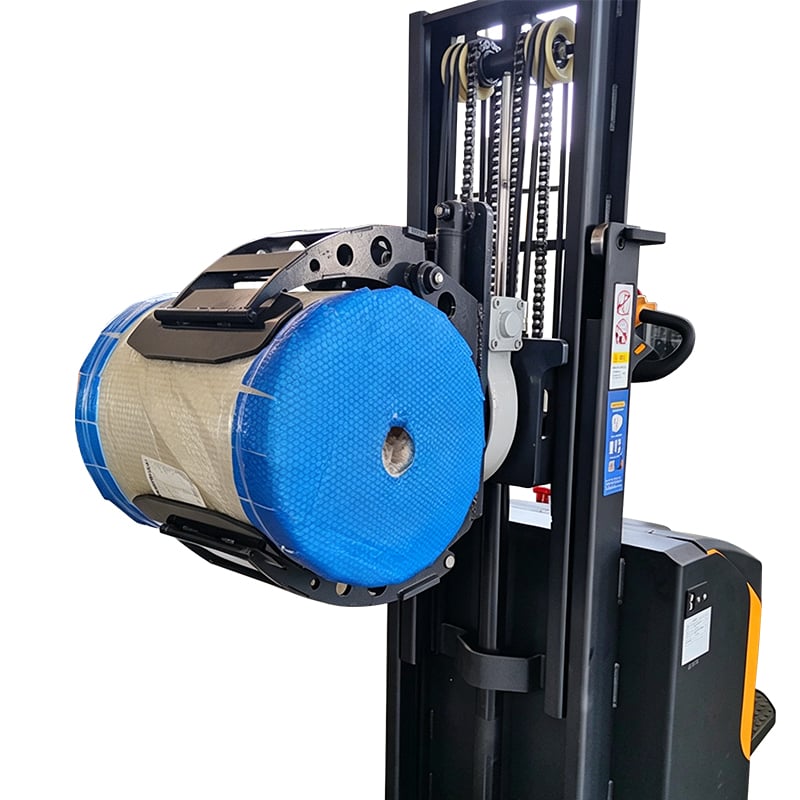

Intelligent 360° Rotating Clamp
This system provides intelligent control over the rotation angle, allowing for a full 360-degree rotation of the circular clamp. Additionally, it features a 90° lockable tilt, giving operators the flexibility to position materials with absolute precision.

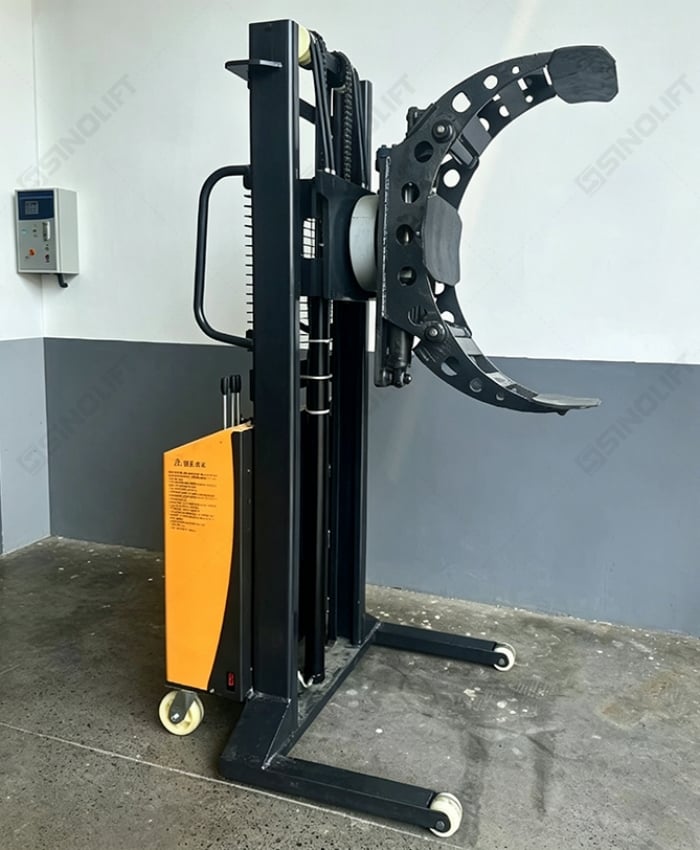

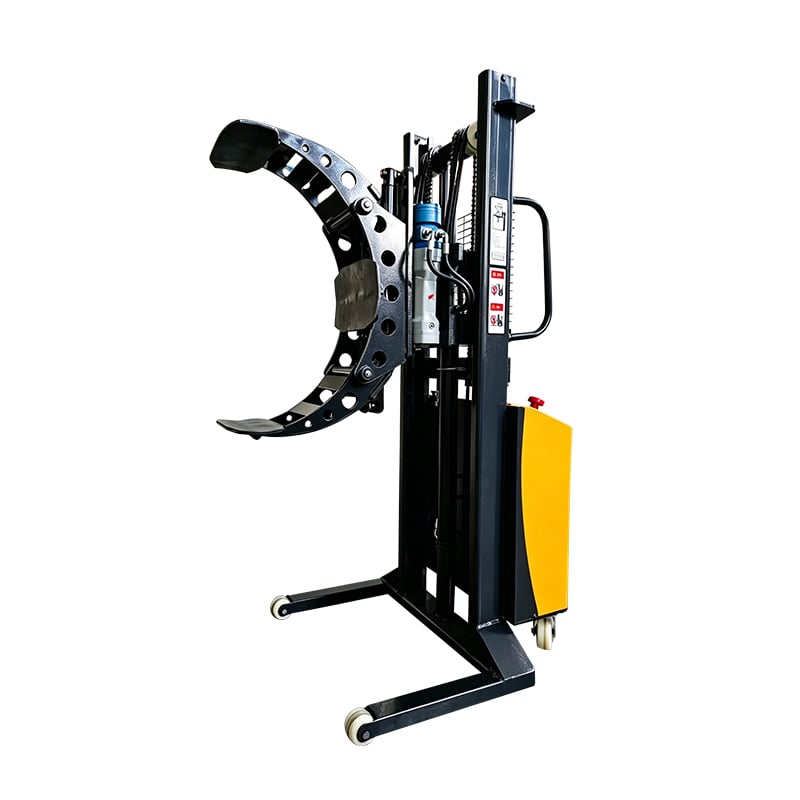

Specialized Circular Clamping Design
2.Engineered to accommodate a clamping diameter ranging from 300mm to 720mm, this specialized design fits drums and rolls perfectly. It ensures a secure, non-slip grip that handles your valuable materials smoothly and leaves them completely damage-free.

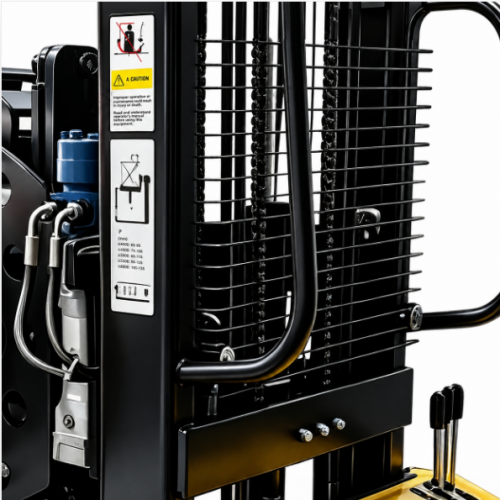

Upgraded Hydraulic Lifting System
Equipped with an upgraded sealed oil cylinder and a heavy-duty composite chain, this stacker delivers strong and reliable lifting power. The advanced leak-proof design ensures smooth and stable operation, significantly improving your overall material handling efficiency.

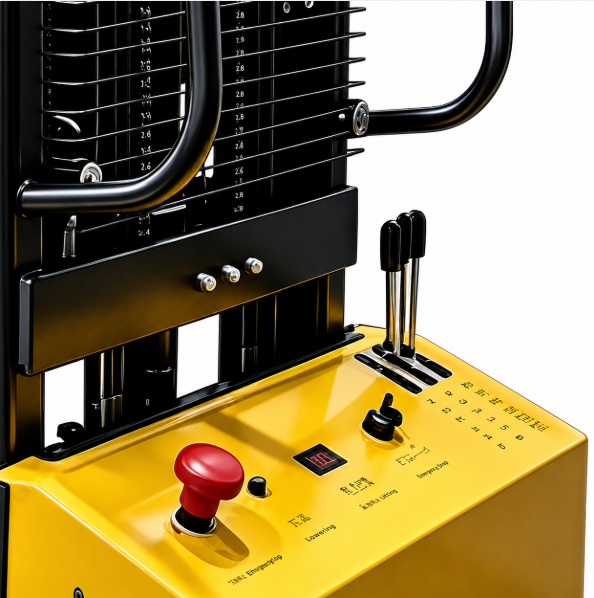

Ergonomic Intelligent Console
4.The multifunctional intelligent console is carefully designed with ergonomics in mind to minimize operator fatigue during long shifts. It is fully featured yet remarkably simple and easy to operate, providing precise and accessible control for all essential functions.
Media Gallery
FAQ
-
Q1: Is this clamping truck customizable to fit specific roll sizes and weights not listed in the standard specifications?
A1: Yes, this product supports non-standard customization to meet your unique operational requirements. Our engineering team will adjust the clamping diameter, load capacity, and mast configuration based on the specific material, weight, and dimensions of the cylinders you need to handle. -
Q2: Will the clamping mechanism damage fragile materials like paper rolls or soft films during rotation?
A2: The circular clamp is specially designed to perfectly fit the contours of drums and rolls without causing any surface damage or deformation. It applies an even, non-slip pressure that secures the load firmly, completely preventing any crushing or material loss during transit and rotation. -
Q3: What does "semi-electric" mean for this specific model, and how does it affect daily operations?
A3: "Semi-electric" indicates that the lifting, clamping, and rotating functions are fully powered by the electric motor, saving significant time and reducing manual labor. However, the forward and backward travel of the truck is operated manually, which is highly effective and easy to maneuver for short-distance transport and making fine adjustments. -
Q4: How secure is the load when rotated 90 degrees or held at an angle for machine loading?
A4: The intelligent control system ensures that the 360-degree continuous rotation is exceptionally smooth and stable under heavy loads. Furthermore, the clamp features a 90-degree lockable tilt function, ensuring the load remains completely motionless and secure while operators align and feed the materials into production equipment. -
Q5: Can this equipment pick up rolls directly from the floor or from standard wooden pallets?
A5: Absolutely, the equipment is engineered to grab cylindrical materials both horizontally and vertically directly from the ground or off standard pallets. This seamless integration into your workflow eliminates the need for secondary lifting equipment, significantly streamlining the entire process from storage to the production line.
Optional Extras
Different lifting heights
We offer multiple height options to suit various operational needs. Whether for low-clearance workstations or high-reaching industrial tasks, customizable stroke lengths ensure optimal performance.

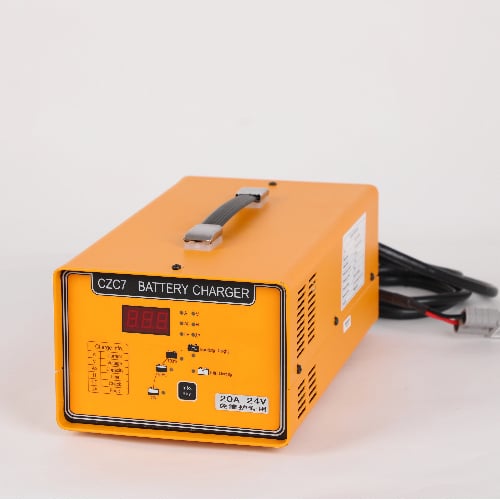

Industrial Smart Charger (Optional)
This advanced charging system features automatic self-recovery function and real-time LED status monitoring. Multi-color indicator lights clearly display charging progress and fault alerts for 24V battery packs.
Duplex Twin Chain Drive
This heavy-duty dual-chain transmission system features integrally connected roller chains for ultra-stable load handling. The synchronized duplex design distributes forces evenly across both chains, achieving 200% higher fatigue life than standard single chains.
Integrated Digital Scale
Enhance precision handling with our built-in digital scale, providing real-time weight measurement during roll loading and transport. The high-accuracy load cells offer ±0.5% tolerance with easy-to-read LCD display. Ideal for inventory control and material usage tracking in printing/textile industries.

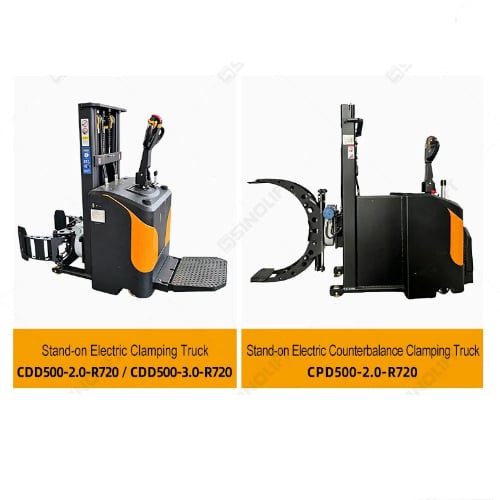

Counterbalance Model (CPD Series)
Available as a custom option, the CPD counterbalance design eliminates front support legs to provide unrestricted under-clearance access. This highly versatile configuration is ideal for directly approaching closed-bottom pallets, complex printing machinery, and loading docks without any spatial limitations.
Related products
-
Roll Lifter

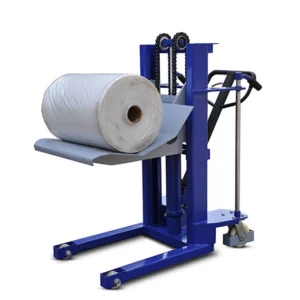

CTY1000-M700 Roll & Reel Hydraulic Stacker
