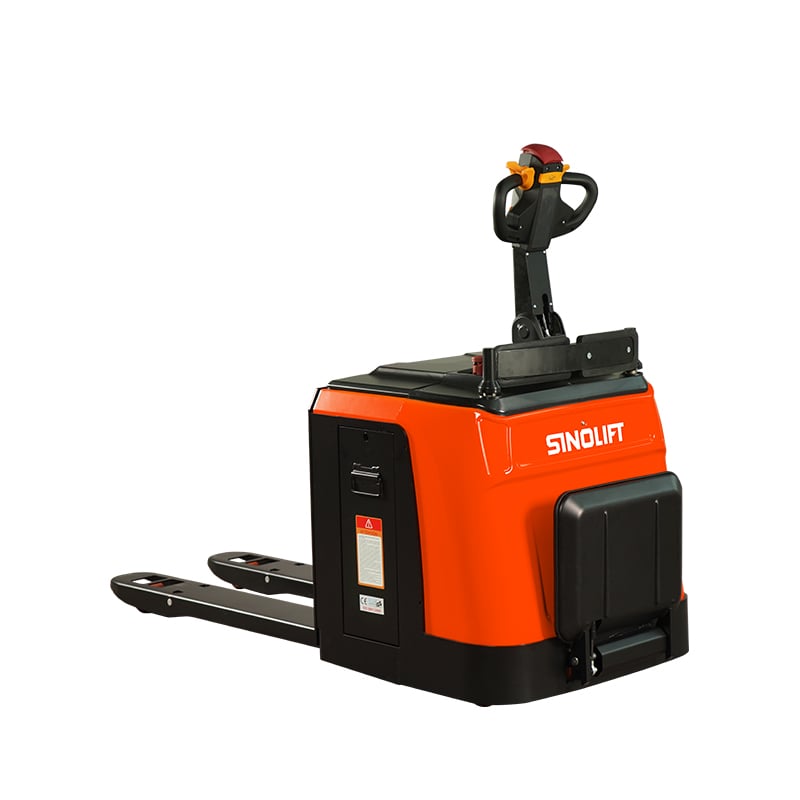

CBD20P Ride-on Electric Pallet Jack with Lithium Battery
CBD20P Ride on Electric Pallet Jack with Lithium Battery
Engineered for demanding, long-distance material handling, the CBD20P Ride-on Electric Pallet Jack is designed to maximize productivity while significantly reducing operator fatigue. It features a convenient stand-on platform, an intelligent electronic control system, and a highly efficient brushless motor to ensure the rapid and stable transportation of heavy loads. Thanks to its exceptionally tight turning radius and reliable side-pull lithium battery, operators can effortlessly navigate confined spaces throughout a full shift without interruption. This truck serves as the ultimate high-speed solution tailored for fast-paced logistics operations, large-scale warehouses, bustling loading docks, and express delivery hubs.
Features
The CBD20P Stand-on Electric Pallet Truck is engineered for high-efficiency, long-distance material handling in demanding logistics operations. It moves quickly with heavy loads up to 3 tons. A powerful 24V/150Ah LiFePO4 lithium battery provides full-day endurance and supports fast opportunity charging. The ergonomic folding stand-on platform and protective armrests allow operators to ride comfortably, reducing fatigue and boosting productivity. An advanced AC control system and maintenance-free brushless motor ensure precise operation and high reliability. With a tight turning radius and excellent gradient performance, this heavy-duty truck easily maneuvers in confined spaces and on loading docks. It is the ultimate solution for modern warehouses, bustling docks, and express delivery centers.
Parameters
| Model | CBD20P/25P/30P | CBD20PX（Logistics Series） | |
| Rated Load Capacity | kg | 2000/2500/3000 | 2000 |
| Load Center Distance | mm | 600 | 600 |
| Front Overhang | mm | 960 | 960 |
| Wheelbase | mm | 1500 | 1500 |
| Weight Including Battery | kg | 625 | 625 |
| Wheel Load (Full Load) – Drive Wheel Side / Load Wheel | kg | 1095/1633 | 1095/1633 |
| Wheel Load (No Load) – Drive Wheel Side / Load Wheel | kg | 497/124 | 497/124 |
| Tire Type | Polyurethane | ||
| Front Wheel Specification | mm | Φ250×80 | Φ250×80 |
| Rear Wheel Specification | mm | Φ80×80 | Φ80×80 |
| Stabilizer Wheel Size | mm | Φ115×55 | Φ115×55 |
| Number of Wheels Front/Rear (X = Drive Wheel) | 1X+2/4 | 1X+2/4 | |
| Front Wheel Track | mm | 625 | 625 |
| Rear Wheel Track | mm | 385/510 | 385/510 |
| Lifting Height | mm | 120 | 120 |
| Handle Height During Operation (Min./Max.) | mm | 1030/1430 | 1030/1430 |
| Minimum Fork Height | mm | 85 | 80-85 |
| Overall Length | mm | 1930 | 2420 |
| Chassis Length | mm | 780 | 1270 |
| Overall Width | mm | 820 | 820 |
| Fork Dimensions | mm | 50/176/1150 | 50/176/1150 |
| Fork Spread Width | mm | 560/685 | 560/685 |
| Minimum Ground Clearance | mm | 30 | 30 |
| Working Aisle Width (1000×1200 Pallet) | mm | 2551 | 2961 |
| Working Aisle Width (800×1200 Pallet) | mm | 2416 | 2826 |
| Turning Radius | mm | 1750 | 2160 |
| Travel Speed (Full Load/No Load) | km/h | 5.5/5.8 | 8/12 |
| Lifting Speed (Full Load/No Load) | m/s | 0.04/0.05 | 0.04/0.05 |
| Lowering Speed (Full Load/No Load) | m/s | 0.06/0.05 | 0.06/0.05 |
| Maximum Gradeability (Full Load/No Load) | % | 8/20 | 8/20 |
| Service Brake | Electromagnetic Regenerative Braking | ||
| Drive Motor Power | kW | 2.5 (AC) | 2.5 |
| Lift Motor Power | kW | 2.2 | 2.2 |
| Battery Voltage/Capacity | V/Ah | 24/210(270) | 24/210(270) |
| 24/(150,175,200,230) | 24/(150,200,230) | ||
| Battery Weight | kg | 200/260 | 200/260 |
| Drive Control Method | AC Speed Control | ||
Product Details
Versatile Handling Solutions
One truck for all your handling needs. We offer multiple specifications and custom options, including two electric models like the CDD20PX Logistics Series, to perfectly fit your operational requirements.

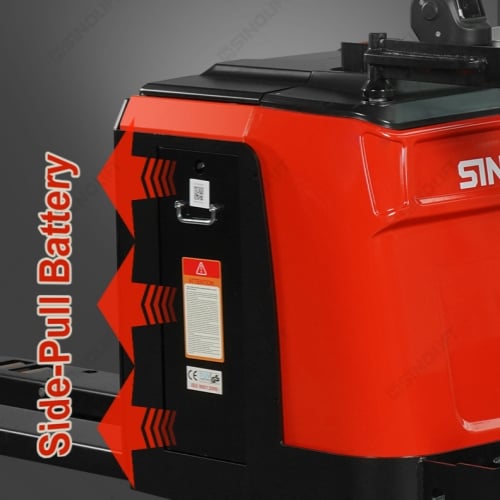

Side-Pull LiFePO4 Battery System
Equipped with a reliable 24V/150Ah LiFePO4 battery, this truck provides full-power endurance to effortlessly manage a full day's work. The side-pull battery design ensures quick, convenient access for maximum uptime.

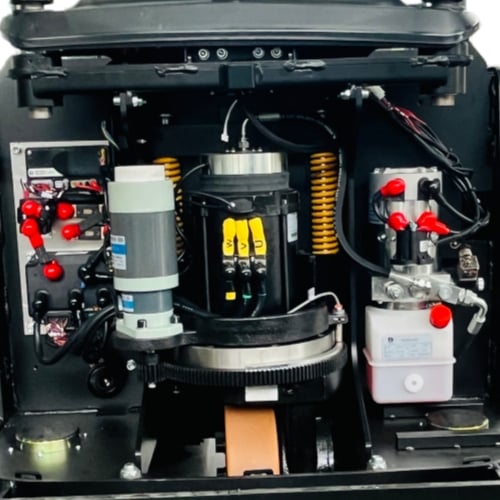

Intelligent Electronic Control & Drive System
Enjoy easy-access maintenance with a simple hood opening and integrated self-diagnosis that enhances overall reliability. It features a maintenance-free brushless AC drive motor, a precision-controlled AC system for superior efficiency, and a high-performance hydraulic station that delivers efficient, low-noise, and low-vibration operation.

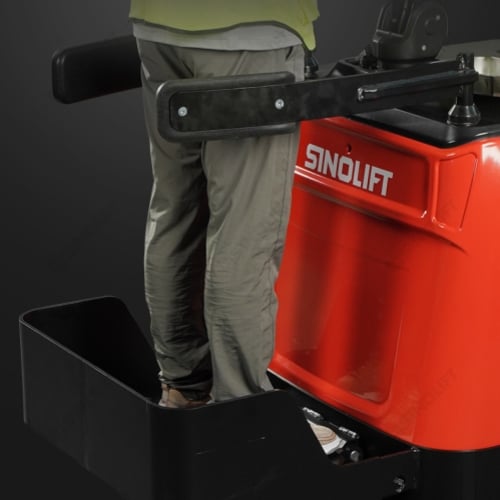

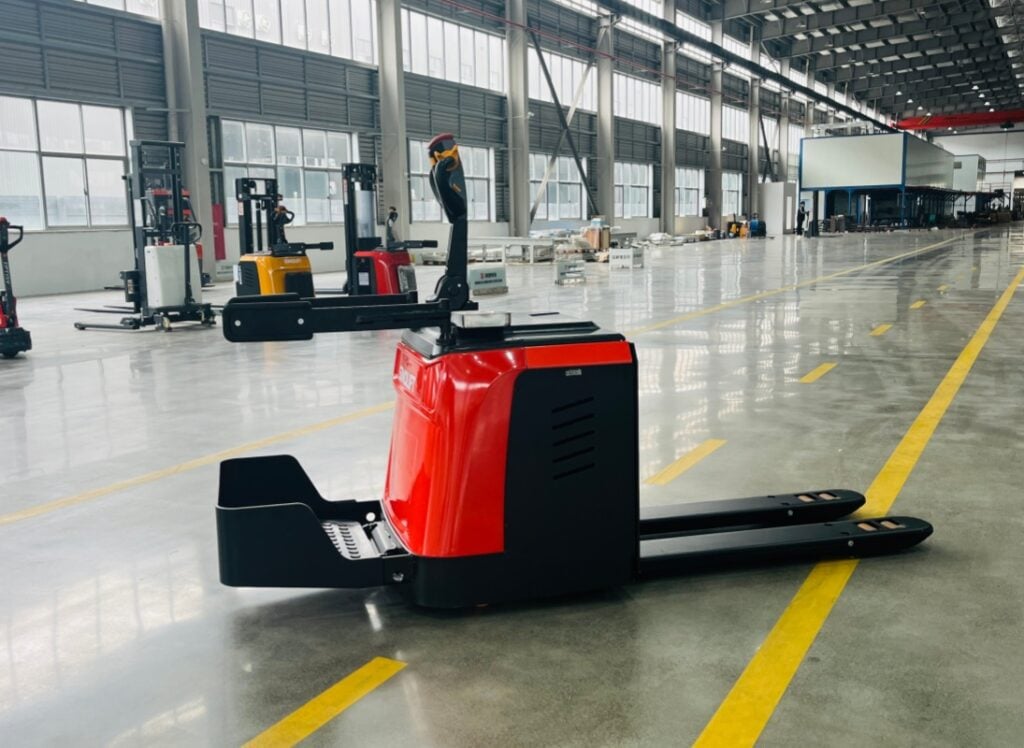

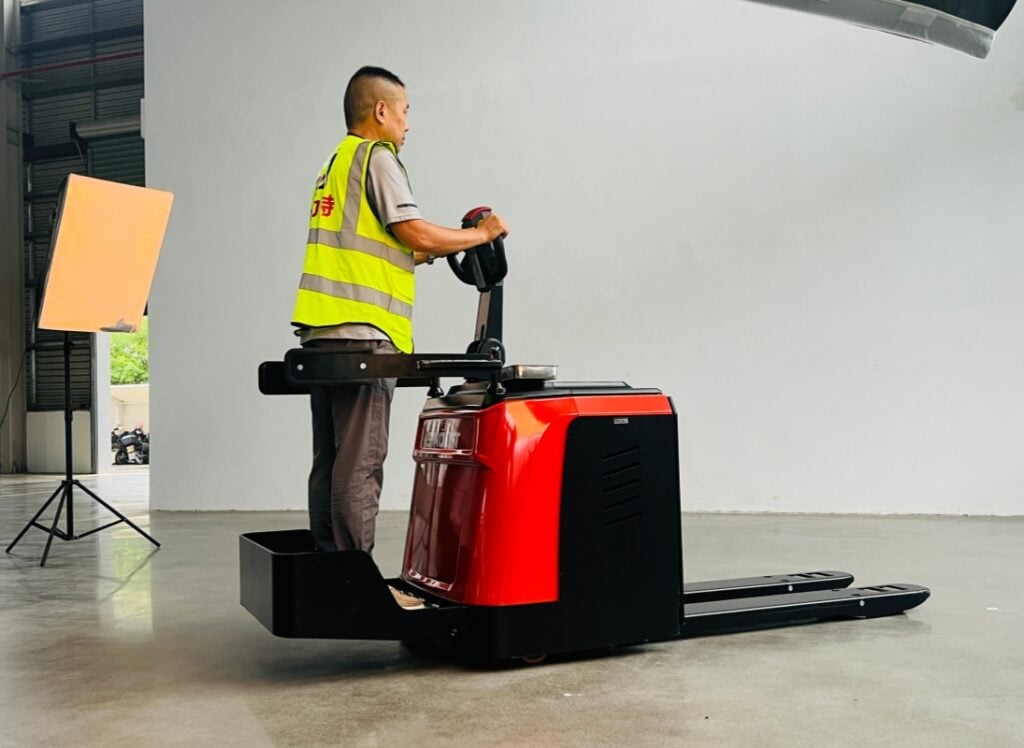

Folding Armrest & Stand-on Platform
Designed to significantly reduce physical strain, the integrated step plate allows the operator to ride on the vehicle to boost productivity. The folding armrest ensures operator safety and stability during stand-on operation.
Media Gallery
FAQ
-
Q1: What is the expected lifespan of the LiFePO4 battery, and how do we handle replacements?
A1: The high-quality lithium battery used in the CBD20P is designed to last for thousands of charging cycles, typically translating to several years of heavy industrial use. When a replacement is eventually needed, SINOLIFT provides direct OEM replacement batteries and guidance on proper recycling protocols to ensure strict environmental compliance. -
Q2: Can the CBD20P be operated safely in cold storage facilities or high-humidity environments?
A2: While our standard models are highly optimized for typical warehouse environments, we can custom-configure the CBD20P with specialized hydraulic oils and moisture-resistant sealing for cold storage applications. Please consult with our engineering team regarding your facility's specific temperature requirements so we can build the truck accordingly. -
Q3: What does the preventative maintenance routine look like for this specific equipment?
A3: Thanks to the brushless AC drive motor and the integrated self-diagnostic system, daily maintenance requirements are incredibly minimal. We recommend a scheduled quarterly inspection of the hydraulic pump station, load wheels, and structural pivot points to maintain peak operational safety and prolong the equipment's lifecycle. -
Q4: Is it possible to integrate this pallet truck into our existing warehouse fleet management system?
A4: Yes, the intelligent electronic control system on the CBD20P can be adapted to support aftermarket telematics modules for larger logistics operations. This allows fleet managers to efficiently track usage metrics, monitor real-time battery health, and schedule maintenance across multiple SINOLIFT units. -
Q5: How is the truck delivered to the site, and does it require professional commissioning upon arrival?
A5: The pallet truck is shipped fully assembled and undergoes rigorous factory load testing before it leaves our manufacturing facility. Upon arrival, it simply requires a full initial charge of the lithium battery and a basic visual inspection before it is ready for immediate deployment on your warehouse floor.
