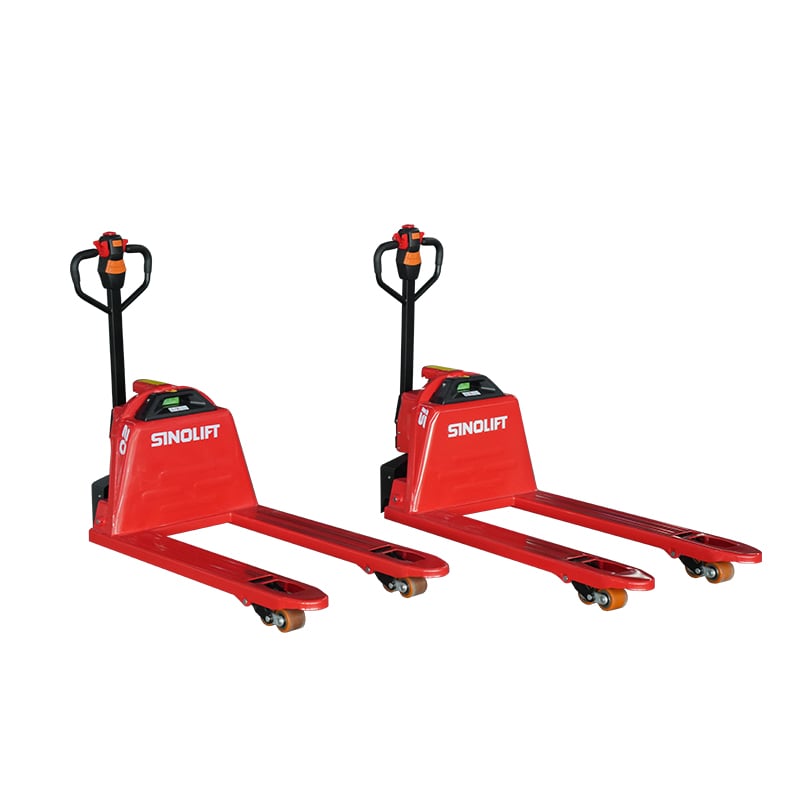

CBD1.5Li-2 Powered Pallet Jack with Lithium Battery
CBD1.5Li-2 Powered Pallet Jack with Lithium Battery| Heavy-Duty & Anti-Slip

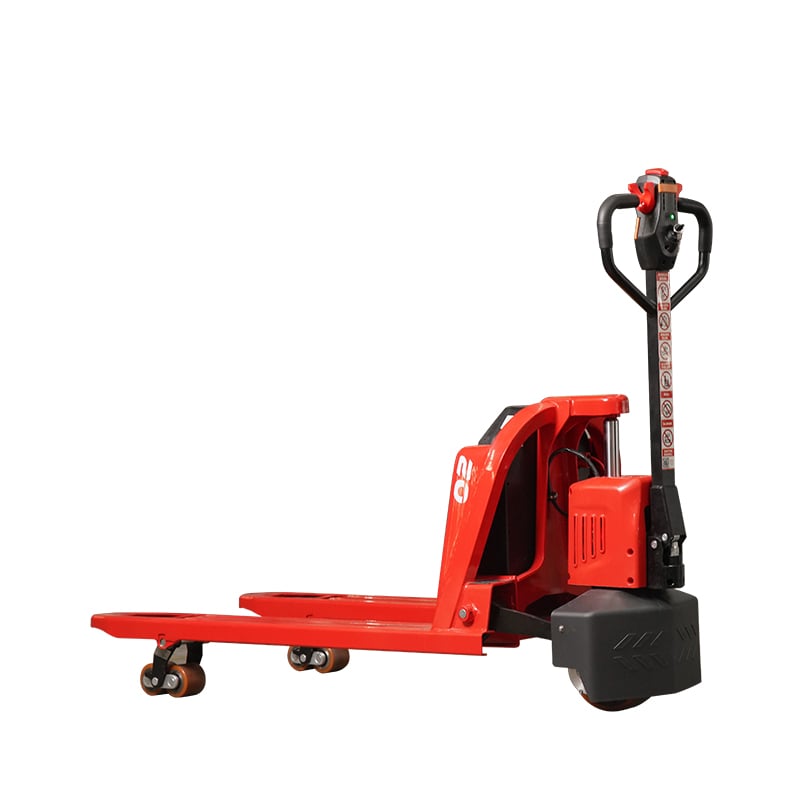

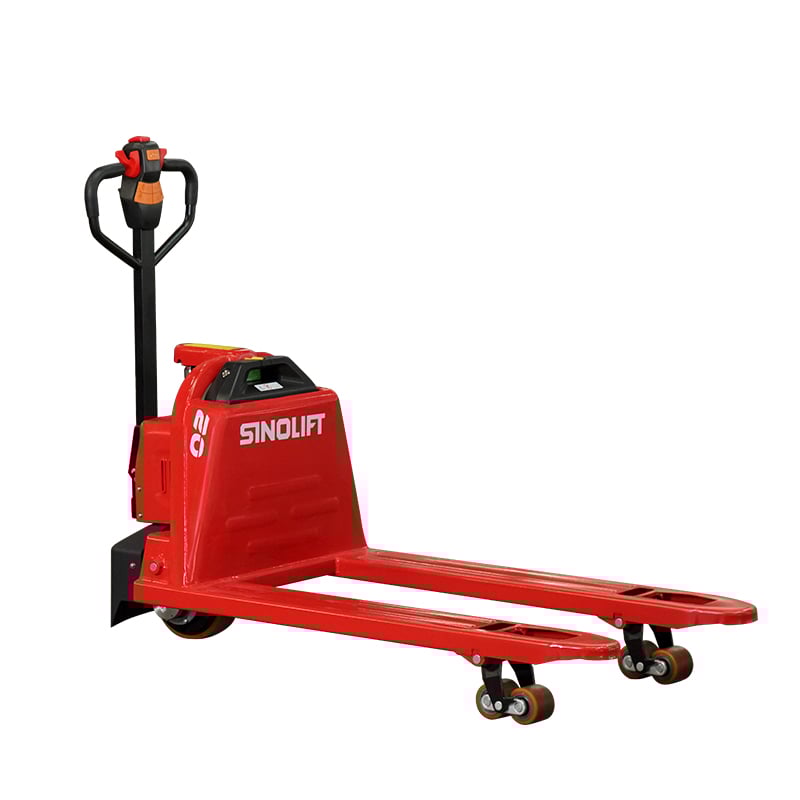

The CBD1.5Li-2 Powered Pallet Jack is specifically designed to make heavy cargo transportation effortless, safe, and highly efficient. Powered by a 5-second quick-remove lithium battery and a high-power drive motor, it offers exceptional climbing performance with an advanced electromagnetic braking system to strictly prevent ramp slipping. Built with a thickened manganese steel fork and a fully enclosed body, it ensures outstanding load capacity and operator safety in various demanding environments. Exclusively optimized for single-sided pallets, this versatile truck is your ideal handling solution for supermarkets, warehouses, airports, and wharves.
Features

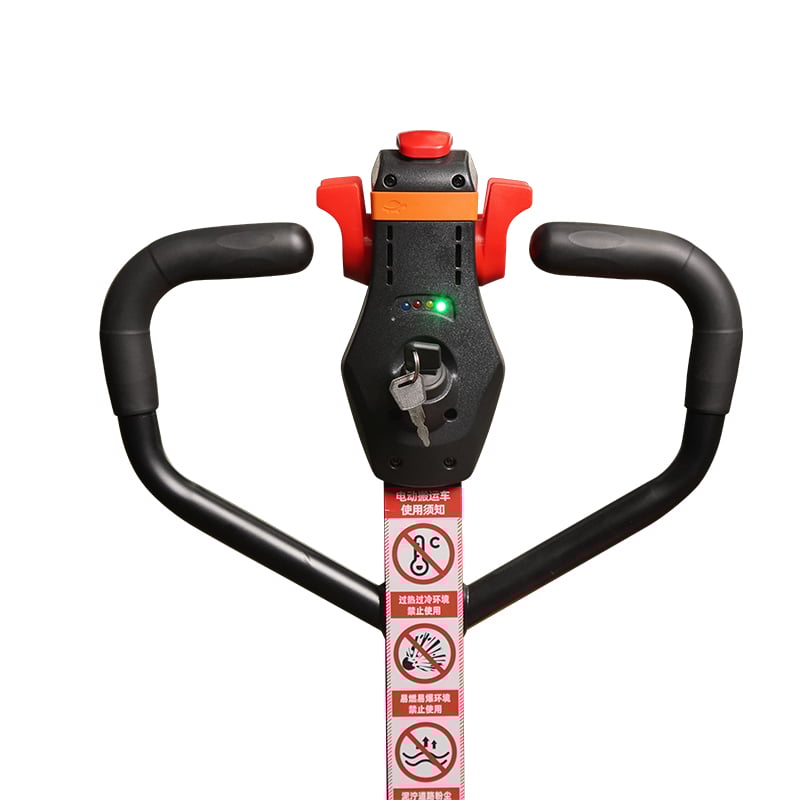

Watch the SINOLIFT CBD1.5Li-2 in action. This highly efficient lithium battery pallet truck is specifically engineered to make heavy cargo transportation effortless across demanding environments like busy warehouses and outdoor wharves. Swap power in seconds. Equipped with a convenient 5-second quick-remove battery and a robust copper-core motor, it delivers exceptional climbing performance with absolutely no ramp slipping. Safety is always a priority. A thickened manganese steel fork and a fully enclosed body provide a highly stable structure that protects internal components and ensures operator confidence. The smooth hydraulic lifting saves valuable time. Optimized for single-sided pallets and featuring a waterproof smart handle, this durable truck is your ultimate solution for upgrading daily operational efficiency.
Parameters
| Characteristic | 1.1 | Manufacturer Brand | SINOLIFT | |||
| 1.2 | Model | CBD15Li | CBD20Li | |||
| 1.3 | Power Type | Electric | Electric | |||
| 1.4 | Type of Operation | Walkie | Walkie | |||
| 1.5 | Steering Mode | Mechanical | Mechanical | |||
| 1.6 | Load Capacity/Rated Load | Q | kg | 1500 | 2000 | |
| 1.7 | Load Center Distance | C | mm | 600 | 600 | |
| 1.8 | Wheel Base | Y | mm | 1220 | 1220 | |
| Weight | 2.1 | Total Weight (Include Battery) | kg | 120 | 124 | |

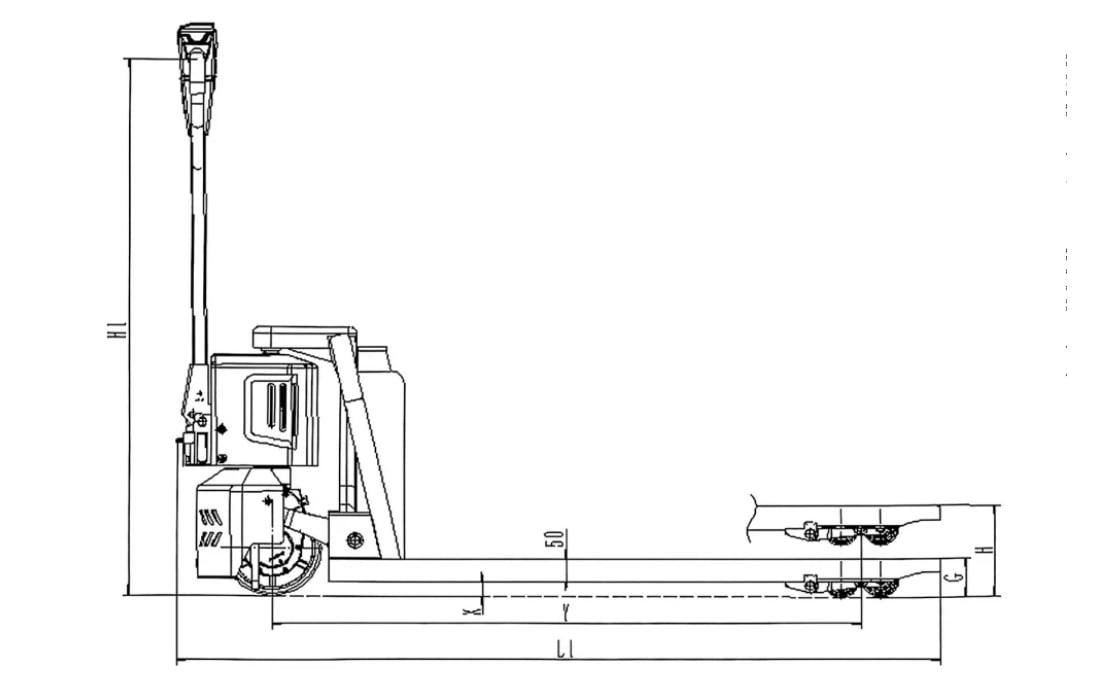

| Dimension | 3.1 | Overall Length | L1 | mm | 1625 | 1616 |
| 3.2 | Overall Width | D | mm | 560/685 | 560/685 | |
| 3.3 | Fork Dimension | l/e/s | mm | 1150×160×50 | 1150×160×50 | |
| 3.4 | Width of Fork | D | mm | 550/685 | 550/685 | |
| 3.5 | Min. Fork Height | G | mm | 85 | 85 | |

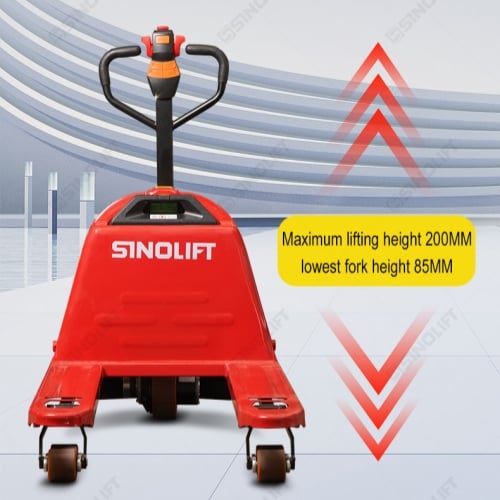

| 3.6 | Lift Height | H | mm | 200 | 200 | |
| 3.7 | Ground Clearance at Center of Wheelbase | X | mm | 35 | 35 | |
| 3.8 | Height of Operating Handlebar (Min./Max.) | H1 | mm | 735/1155 | 735/1155 | |

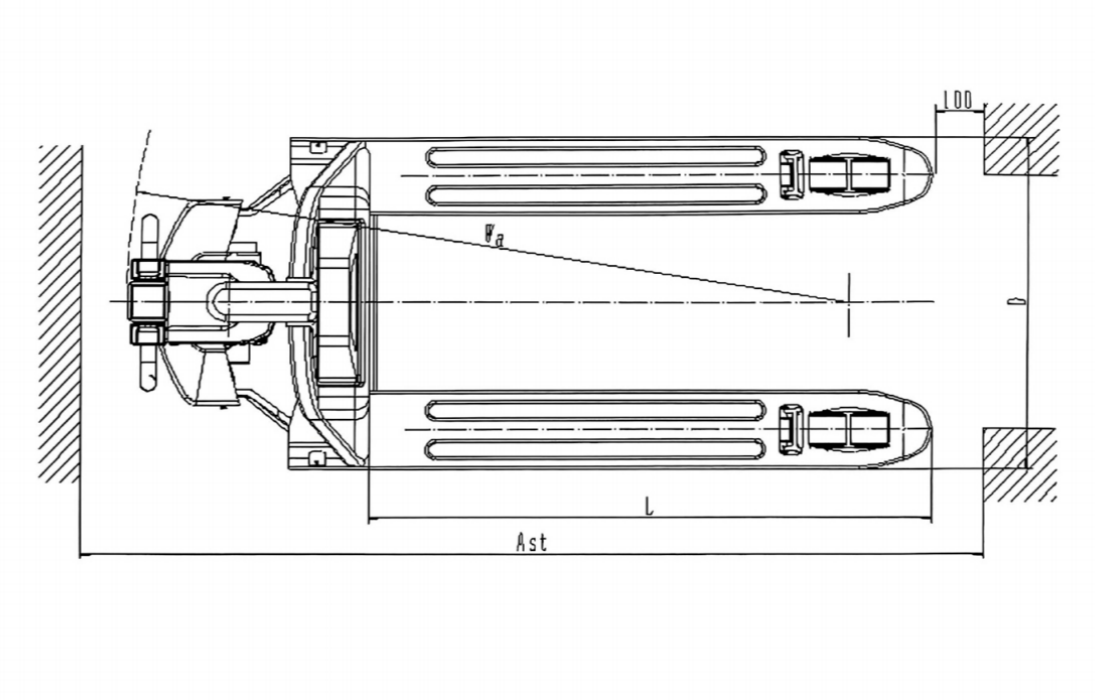

| 3.9 | Turning Radius | Wa | mm | 1425 | 1425 | |
| 3.10 | Aisle Width for Lengthways (Pallet size1000*1200) | Ast | mm | 2375 | 2375 | |
| 3.11 | Aisle Width for Lengthways (Pallet size 800*1200) | Ast | mm | 1825 | 1825 | |
| Tyre | 4.1 | Tyre Type | Polyurethane | Polyurethane | ||
| 4.2 | Tyre Size (Front) | mm | φ80×70 | φ80×70 | ||
| 4.3 | Tyre Size(Driving Wheel) | mm | φ210×70 | φ210×70 | ||
| 4.5 | Wheels Quantity, Front/Rear(x=Driving Wheel) | 2/1x | 2/1x | |||
| Performance | 5.1 | Drive Damping Method | / | / | ||
| 5.2 | Traveling Speed (laden/unladen) | Km/h | 3.5/3.6 | 4.3/4.8 | ||
| 5.3 | Lifting Speed (laden/unladen) | mm/s | 18/25 | 20/25 | ||
| 5.4 | Lowering Speed (laden/unladen) | mm/s | 49/32 | 49/32 | ||
| 5.5 | Max.Gradient Performance (laden/unladen) | % | 6/15 | 6/15 | ||
| 5.6 | Service Brake Type | Electromagnetic | Electromagnetic | |||
| 5.7 | Parking Brake Type | Electromagnetic | Electromagnetic | |||
| Power Unit | 6.1 | Drive Motor (AC) | kW | 0.75 | 1 | |
| 6.2 | Lifting Motor (DC) | kW | 0.5 | 0.8 | ||
| 6.3 | Battery Voltage/Capacity K5 | V/Ah | 24/18 (24,36) | 48/12 (18) | ||
| 6.4 | Battery Weight | kg | 5.4 (6.4,8.6) | 6.2 (8.4) | ||
1
2
Product Details

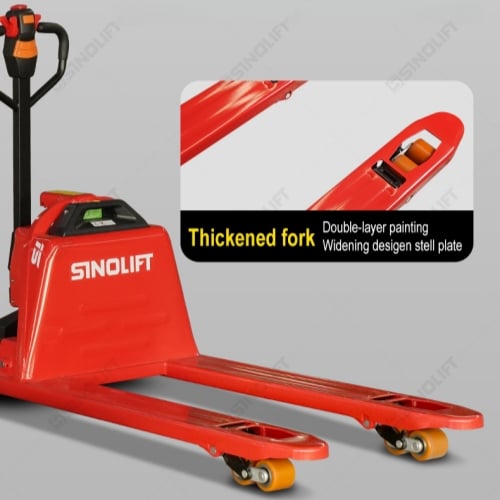

Thickened Manganese Steel Fork
Designed for a stable structure without side tumbling. It can bear heavy loads with absolutely no deformation, ensuring safe and reliable operation.

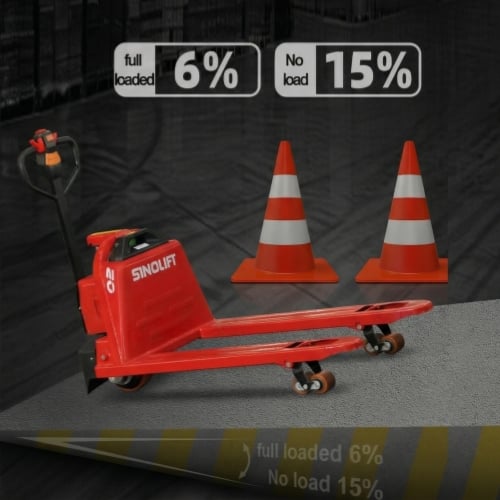

Upgraded Steep Descent Control
Ensures easy uphill and stable downhill travel with no ramp slipping. It delivers reliable performance, supporting a 6% gradient when fully loaded and a 15% gradient with no load.
Smooth Hydraulic Lifting
Features a humanized hydraulic design for smooth lifting and lowering. This simple, effort-saving operation saves time for shipping cargo and effectively improves overall work efficiency.

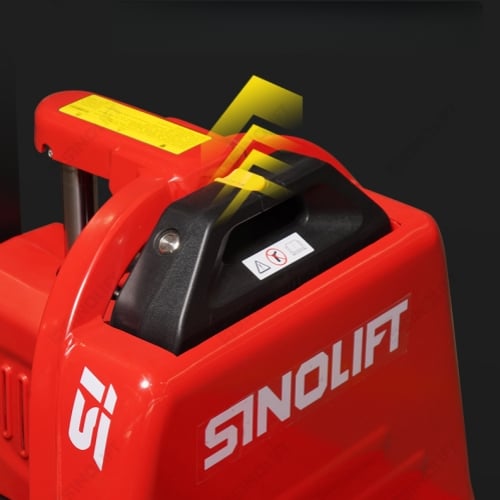

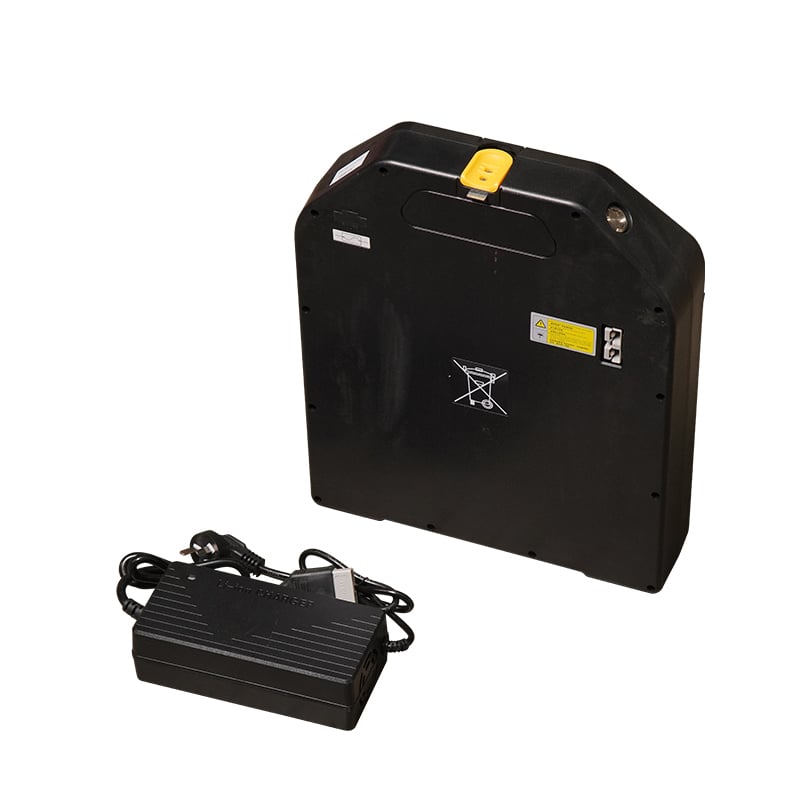

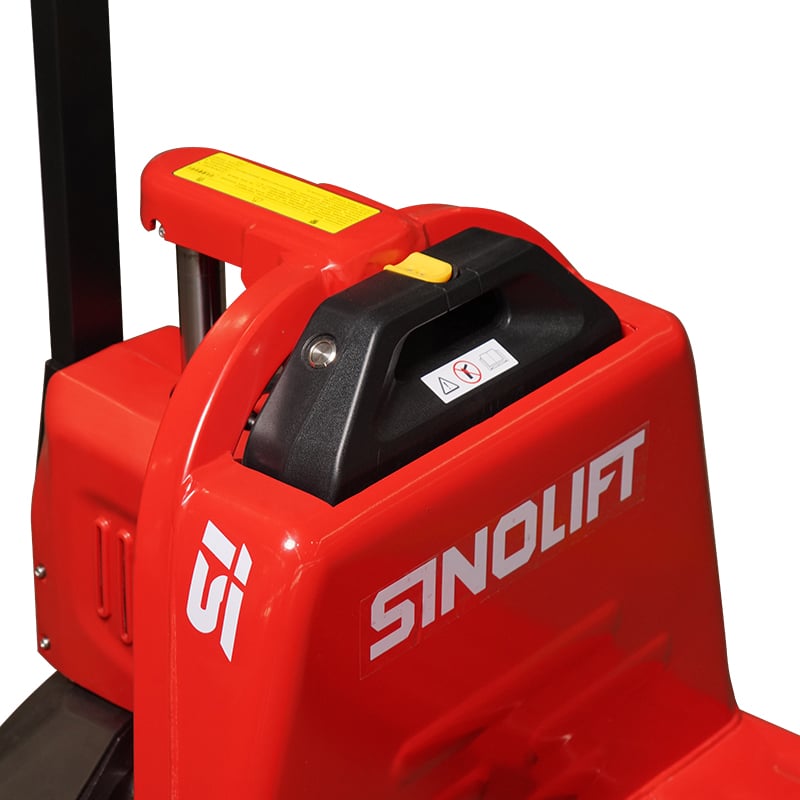

5-Second Quick-Removing Lithium Battery
This time-saving and effort-saving battery can be removed in just 5 seconds to take to another place for charging. It allows you to charge anywhere and anytime to keep your workflow uninterrupted.
Media Gallery
FAQ
-
Q1: What is the expected runtime of the lithium battery on a single charge, and how many charge cycles does it support?
A1: A fully charged battery typically supports three to four hours of continuous, heavy-duty operation. However, actual runtime heavily depends on your cargo weight and the frequency of lifting. The premium lithium-ion cells are designed to last for over 1,500 charging cycles before you notice any significant capacity drop. -
Q2: What does the daily maintenance schedule look like for this specific model?
A2: Daily upkeep is incredibly simple. Because the hydraulic and electrical systems are highly integrated within the enclosed body, you only need to perform basic visual inspections. Just check the wheels for debris and ensure the battery contacts remain clean to keep the truck running perfectly. -
Q3: Is this enclosed electric pallet truck suitable for use in cold storage warehouses or heavy rain?
A3: The fully enclosed body provides excellent protection against light water splashes and everyday industrial dust. You can confidently use it outdoors in mild weather conditions. However, the internal electronics are not specifically sealed for sub-zero cold storage operations or driving through deep water puddles. -
Q4: Our logistics center operates continuously. Can we buy additional batteries to keep the truck running across multiple shifts?
A4: Absolutely. Purchasing an extra 5-second quick-remove battery is a highly cost-effective strategy for 24/7 non-stop operations. While one battery powers the truck on the warehouse floor, the other can be plugged into the standard charger nearby. This seamless swapping routine entirely eliminates frustrating equipment downtime. -
Q5: Can we request custom modifications to fit our unique warehouse dimensions?
A5: Absolutely. While our standard configuration meets most industry needs, SINOLIFT can adjust certain specifications such as fork length or overall width upon request. Simply reach out via sinoliftforklift.com, and our engineering team will evaluate your exact facility requirements. -
Q6: How long is the estimated production and delivery lead time for bulk purchases?
A6: We pride ourselves on rapid fulfillment. Standard orders typically leave our manufacturing facility within two to three weeks of payment confirmation. If your order involves extensive customizations or exceptionally large quantities, the timeline will be slightly extended to guarantee our strict quality control.
