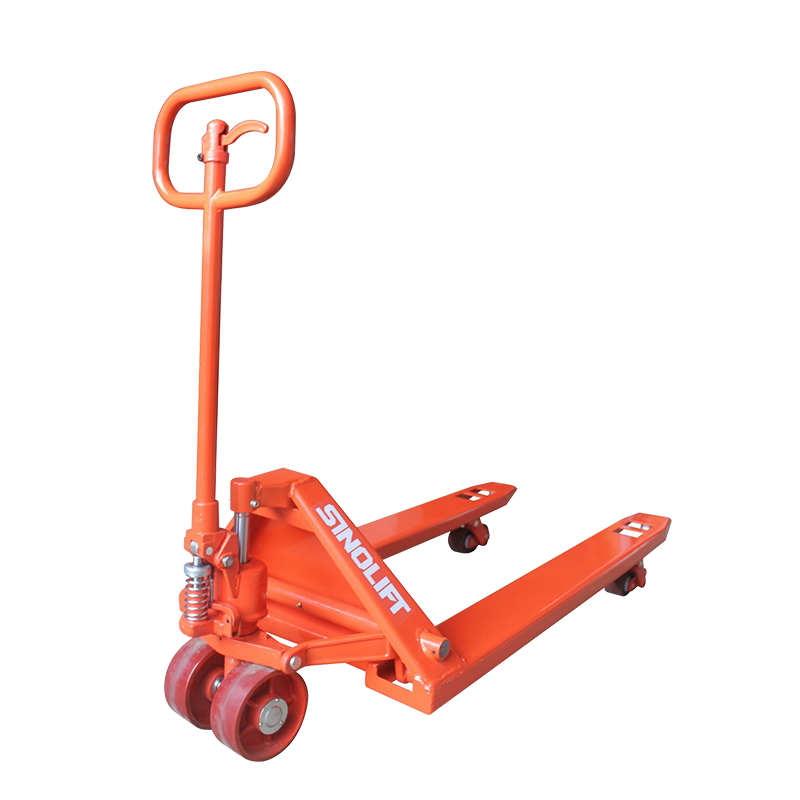

BL sereis Hand Pallet Truck
BL Hand Pallet Truck – 2.5/3/5 Ton Manual Hydraulic Pallet Jack for smaller size pallet openings
This high-quality BL Hand Pallet Truck features durable welded steel construction with a powder-coated finish, ensuring long-lasting performance. Designed with Japanese-inspired compact sizing, it effortlessly navigates smaller pallet openings. The intuitive operation includes collapsible foot pedal or 3-function handle control, sensitive lowering, and overload protection for safety. Its robust design boasts a hard chromium-plated frame and ram, along with polyurethane rollers for smooth, non-marring movement. Ideal for warehouses, factories, and logistics, this truck combines strength, precision, and ease of use.
Features
The BL Hand Pallet Truck is a reliable manual hydraulic solution designed to handle loads of 2.5, 3, or 5 tons, particularly suited for pallets with smaller openings. Built with high-strength welded steel and a durable powder-coated finish, this pallet jack offers excellent resistance to wear and corrosion, making it a dependable choice for tough working environments such as warehouses, factories, and logistics centers.
Its compact, Japanese-inspired design allows for easy maneuvering in tight spaces and narrow pallet entry points. The truck features an intuitive control system with a 3-function handle or an optional collapsible foot pedal for precise lifting, lowering, and neutral positioning. A sensitive lowering valve ensures smooth handling of goods, while the integrated overload protection enhances operational safety.
For added durability, the BL Hand Pallet Truck comes with a hard chromium-plated piston and frame, along with high-quality polyurethane rollers that provide quiet, non-marking movement across various surfaces. Engineered for both strength and user-friendly operation, this pallet truck is ideal for fast-paced industrial settings requiring efficiency, precision, and safety.
Parameters
| MODEL | BL20/BL25/BL30 | |
| Capacity | 2000kg 2500kg 3000kg | 4500lbs 5500lbs 6600lbs |
| Fork width | 520mm 550mm 685mm | 21″ 27″ |
| Fork length | 1100mm 1150mm 1220mm | 36″ 42″ 48″ |
| Lowered height | 64mm 74mm 85mm | 2.5″ 2.9″ |
| Lifting height | 200mm | 7-7/8″ |
| Load wheel | Single / Tandem Nylon / Polyurethane | |
| Steering wheel | Nylon / Polyurethane / Rubber | |
| Weight | 80kg | 180lbs |
Product Details

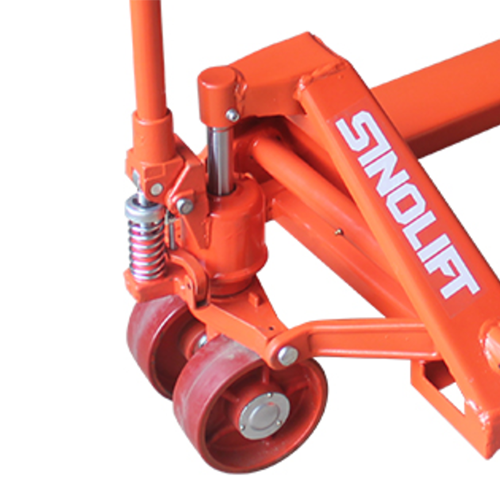

Hydraulics
Welded steep pump with safety overload& bypass system
Forks
Constructed with high-strength welded steel and top-balanced weight distribution for enhanced stability and durability during transport.
Wheels
Durable non-marking PU rollers with ball bearings ensure smooth maneuverability while protecting floors from damage. Options: Nylon wheel, polyurethanewheel, rubber wheel; Single fork loadwheel or tandem fork load wheel
Handle
Features lift/neutral/lower 3-stage hydraulic control with ergonomic design for precise and effortless operation.
Media Gallery
FAQ
How do I properly operate a hand pallet truck?
To properly operate a hand pallet truck, first, ensure the control lever is in the neutral position. Approach the pallet squarely and insert the forks fully into the pallet openings. Move the lever to the "down" (or pump) position and pump the handle to lift the load off the floor. Once the load is clear, return the lever to neutral for maneuvering. To lower the load, pull and hold the lever in the "up" position. Always operate at a controllable speed and avoid sudden stops.What are the basic steps for lifting and lowering a pallet?
Lifting: With the forks inserted and the control lever in the "down" position, pump the handle until the pallet is raised clear of the floor. Lowering: With the pallet at the desired location and the truck stopped, pull and hold the control lever in the "up" position to lower the forks and load to the ground.How do I check and add hydraulic fluid to a hand pallet truck?
Lower the forks completely. Locate the hydraulic reservoir cap or screw, usually near the pump. Clean the area around the cap before opening it to prevent contamination. Remove the cap/screw and check the fluid level. Add the recommended hydraulic fluid using a funnel until it reaches the proper level (usually specified in the manual, often to the bottom of the filler opening). Replace the cap/screw securely.How do I bleed air from the hydraulic system of a hand pallet truck?
With the forks unloaded and fully lowered, repeatedly pump the handle through its full stroke (15-20 times is often recommended). This helps circulate the fluid and expel trapped air. Some models may have a bleed valve that can be opened briefly while pumping.Where can I find replacement parts for my hand pallet truck?
You can find replacement parts for your hand pallet truck through the manufacturer, authorized dealers, material handling equipment suppliers, or online retailers specializing in pallet jack parts. Having the make, model, and serial number of your truck will help in your search. For expert assistance, you may also consult SINOLIFT's professional advisors.
Optional Extras
Nylon
Choose nylon pallet truck steer wheels for low rolling resistance, long life, and cost-effectiveness. Ideal for smooth surfaces and light to medium-duty applications.
Polyurethane
Choose polyurethane treaded pallet truck steer wheels for quiet operation, excellent grip, and resistance to wear. Suitable for indoor use on smooth or slightly uneven surfaces.
Steel
Choose steel steer wheels for durability in harsh working environments, such as metalworking areas or heavy-duty industrial settings. They are resistant to impact and can handle heavy loads.
Rubber
Choose solid rubber treaded steer wheels for quiet operation and smooth rolling over uneven or rough surfaces. They provide excellent shock absorption and are ideal for environments where floor protection is a priority.
Tiller
Choose a tiller that suits your habits and preferences
Adjustable Fork
The adjustable fork enables stepless width/length adjustment, allowing one pallet truck to handle all pallet types effortlessly. Eliminating the need for multiple equipment, it significantly improves mixed-pallet handling efficiency and precision – an intelligent solution for modern logistics.
Backrest
This option provides additional protection when transporting lightweight or slippery loads. The sturdy backrest design effectively prevents cargo from tipping or sliding backward, and straps can be used for added security when needed. The foldable feature ensures unimpeded operation when empty, making it an ideal accessory for enhanced stability and efficiency in material handling.
Foot Brake
The foot brake option is a rear-wheel-mounted braking device that provides instant locking through pedal operation. When the pallet truck comes to a stop, simply stepping on the pedal activates the brake, effectively preventing load shifting or unintended vehicle movement. This eliminates risks of cargo damage and enhances operator safety during material handling operations.
Hand Brake
The hand brake option provides secure stopping control for slopes and inclines, preventing unintended rolling to protect both operator and cargo. Its ergonomic lever enables quick, one-handed operation for reliable braking when needed. This safety-focused upgrade is ideal for warehouses, ramps, or uneven surfaces.
Nose Pallet Truck
This option is specifically engineered for dense stacking operations. Its unique set-back fork design enables precise single-pallet handling. The special clearance between fork tips and front rollers ensures individual pallet pickup, allowing tight inline positioning – perfect for high-density warehousing, production line logistics and other applications requiring exact stacking accuracy.
