Why Electrode Roll Handling is Critical in Lithium Battery Manufacturing

The global shift towards electrification, from electric vehicles (EVs) to grid-scale energy storage, rests entirely on the power and reliability of the lithium-ion battery (LIB). As demand explodes, manufacturers are racing to scale up production. This race, however, is one of precision, not just speed. In the complex world of battery manufacturing, every single step is critical.

But one step is often overlooked, despite holding the power to halt a multi-million dollar production line: the simple act of moving materials.

We’re not talking about finished battery packs. We’re talking about one of the most valuable and vulnerable components in the entire facility: the electrode roll.

These giant, heavy rolls of coated foil are the heart of the battery cell. How they are handled, moved from coating to slitting, and loaded onto machinery is not just a logistical detail—it is a fundamental pillar of production quality, operator safety, and financial viability.

This article explores why “electrode roll handling” is such a high-stakes process and how specialized equipment is becoming the only viable solution to mitigate its inherent risks.

The High-Risk Paradox: Understanding the Electrode Roll

To understand the handling challenge, you first must understand the material. Electrode rolls present a difficult paradox: they are simultaneously extremely heavy and incredibly fragile.

This unique combination of characteristics makes them a nightmare for generic material handling equipment.

1. Extreme Weight

An electrode roll consists of a thin copper or aluminum foil coated with a precise layer of active chemical slurry (like graphite for the anode or NCM/LFP for the cathode). This combination is densely wound, and a single roll can easily weigh hundreds of kilograms, with many applications pushing 1.0 ton or more. This weight immediately rules out any form of manual handling and puts immense stress on any equipment used to lift it.

2. Extreme Fragility

Despite its mass, the roll is delicate. The value is not in the foil; it’s in the coating. This coating must be perfectly uniform, down to the micron. The edges of the roll are easily damaged, and the surface is susceptible to scratches or creases. Any defect in this coating can compromise the performance of the final battery cell.

3. Vulnerability to Collision

This is the most critical risk. If a standard forklift or a basic stacker jolts, bumps, or—in a worst-case scenario—drops an electrode roll, the consequences are catastrophic.

A collision doesn’t just cause a visible dent. It can create internal structural damage. The impact can cause the tightly wound layers to shift, leading to delamination (the coating separating from the foil) or micro-tears that are invisible to the naked eye. This damage creates an immediate failure point.

4. Vulnerability to Contamination

The battery manufacturing process, especially post-coating, often occurs in a cleanroom or controlled environment. Any contamination from dust, oil, or hydraulic fluid from handling equipment can be disastrous. A single foreign particle introduced into the cell can lead to an internal short circuit.



The Domino Effect: When Poor Handling Destroys Value

Using the wrong equipment—or even just “good enough” equipment—to move these rolls is a gamble. When that gamble fails, the dominoes fall fast.

The Immediate Loss: Costly Scrap

When an electrode roll is dropped or impacted, it is almost always a complete loss. This isn’t just the cost of the raw foil and chemicals. It’s the cost of the complex, energy-intensive coating and drying process, the machine time, and the labor. A single dropped roll can represent tens of thousands of dollars in sunk costs, instantly vaporized.

The Delayed-Action Bomb: Compromised Product Safety

This is the risk that keeps plant managers awake at night.

Let’s say a roll is bumped, but the damage isn’t obvious, and it proceeds to the next stage (slitting and assembly). Those invisible micro-tears or particle contaminants are now sealed inside the final battery cell.

When that battery is in use—in a customer’s EV or home energy system—that internal defect can become the origin point for a short circuit. This can lead to thermal runaway, the violent and unstoppable chain reaction that causes battery fires. A simple handling mistake in the factory can become a catastrophic safety failure in the field, leading to recalls, brand damage, and immense liability.

The Human Cost: Operator Safety

Finally, asking operators to use improper tools for a high-stakes job is a safety hazard. Attempting to balance a 1.0-ton, unstable roll on standard forks, or using manual equipment to push and pull it, creates a significant risk of crush injuries, strains, and accidents.

Solving the Unsolvable: The Rise of Purpose-Built Handlers

Given these risks, “good enough” is no longer acceptable. The industry requires a solution designed specifically for the unique physics of an electrode roll. The goal is to lift, hold, and transport the roll without applying any stress, pressure, or contamination.

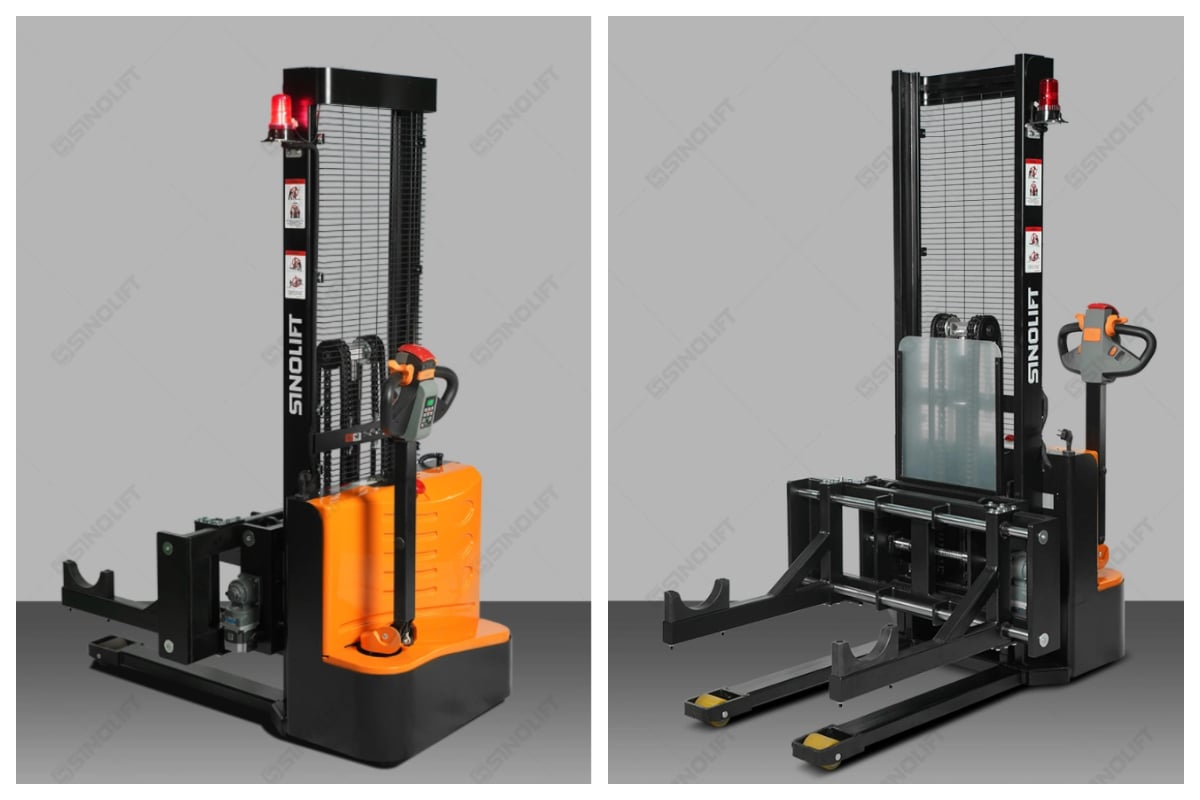

This is precisely the challenge that specialized equipment, like the Sinolift CDD10-LS700 Walkie Fully Electric Lithium Cell Dual-Arm Reel Stacker, is designed to solve.

Unlike a standard forklift, which lifts from below, or a clamp truck, which squeezes from the sides, a dual-arm reel stacker cradles the load. This approach directly neutralizes the key risks of electrode roll handling.



How Specialized Design Eliminates Risk

A dedicated handler like the CDD10-LS700 is built from the ground up to protect these high-value assets.

• Stable, Secure Cradling:The “Adjustable Dual-Arm Rack” is the key. Instead of a single probe or forks, it uses two strong arms that support the roll from both ends. This distributes the load capacity (up to 1.0 ton) evenly and prevents any pressure on the delicate roll surface.
• Precision Without Impact:In a production line, rolls must be loaded onto machinery with millimeter-level accuracy.
  • Electric Side-Shift Function:Allows the operator to move the entire mast and arm assembly left and right without having to re-adjust the entire stacker. This prevents “bumping” the roll into the machine.
  • Electrically Adjustable Arm Spacing:The arms can be widened or narrowed electronically to perfectly match the roll’s width before lifting, ensuring a secure fit.
• Jolt-Free Lifting:To protect the roll’s internal structure, the lift must be perfectly smooth. The CDD10-LS700 uses a “thickened C-type steel mast” and “double reinforced lifting chains” with a high-power lifting motor. This heavy-duty build ensures there is no flexing, swaying, or jolting as the 1.0-ton roll is raised up to 1.5 meters.
• Total Operator Control:The operator must be in complete command.
  • Handheld Remote Control:This feature is critical. It allows the operator to stand away from the stacker, get a clear line of sight on the machine they are loading, and make micro-adjustments to the arm spacing and side-shift. This makes the delicate “last-inch” placement simple and safe.
  • Turtle-Speed Button:When engaged, the stacker’s travel speed is significantly reduced. This is essential for navigating tight aisles and approaching expensive processing equipment with caution.
• A Clean, Safe Workplace:
  • Lithium-Powered:As a fully electric, lithium-cell stacker, it produces zero fumes and has no engine oil or complex hydraulic systems prone to leaking, making it ideal for clean manufacturing environments.
  • Password Lock & Card Unlocking:This security feature ensures that only trained, assigned operators can use the machine, drastically reducing the risk of human error.

The Critical Link: From Handling to Quality Control

In modern lithium battery manufacturing, material handling is no longer just logistics. It is an active and essential part of quality control.

The moment an electrode roll leaves the coater, it represents a massive investment. Protecting that investment until it becomes a finished cell is non-negotiable. The adoption of specialized electrode roll handlers is a direct response to this high-stakes reality.

By eliminating the risks of impact, contamination, and operator error, a purpose-built stacker transforms a high-risk bottleneck into a safe, efficient, and reliable process.

Of course, every production line has unique needs. For different workflows, we also offer other solutions like the Lithium-Powered Walkie Reel Stacker with Single Spindle for Precision Reel Handling for single-point lifting, and the Sinolift ND95C intelligent Single-Arm compact electric reel stacker for film & paper rolls.

Don’t let outdated handling methods be the weak link in your production chain. If your facility is struggling with the challenges of moving heavy, fragile electrode rolls, it’s time to invest in a solution that protects your product, your people, and your profits.

Learn more about how the Sinolift CDD10-LS700 Dual-Arm Reel Stacker can secure your lithium battery production line, or contact our team to discuss your specific handling application.
