GSF series Scissors Lift Pallet Truck
GSF series Scissors Lift Pallet Truck — изображение 2
GSF series Scissors Lift Pallet Truck — изображение 3

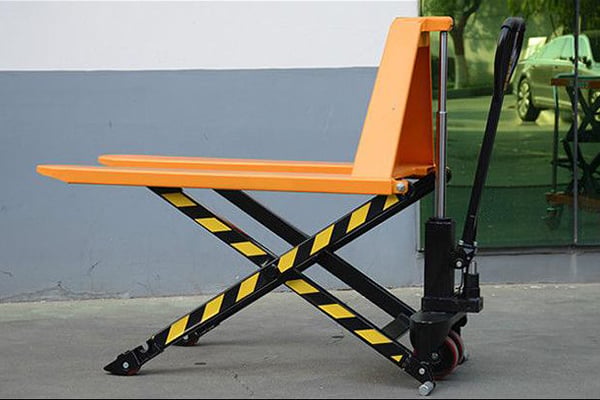

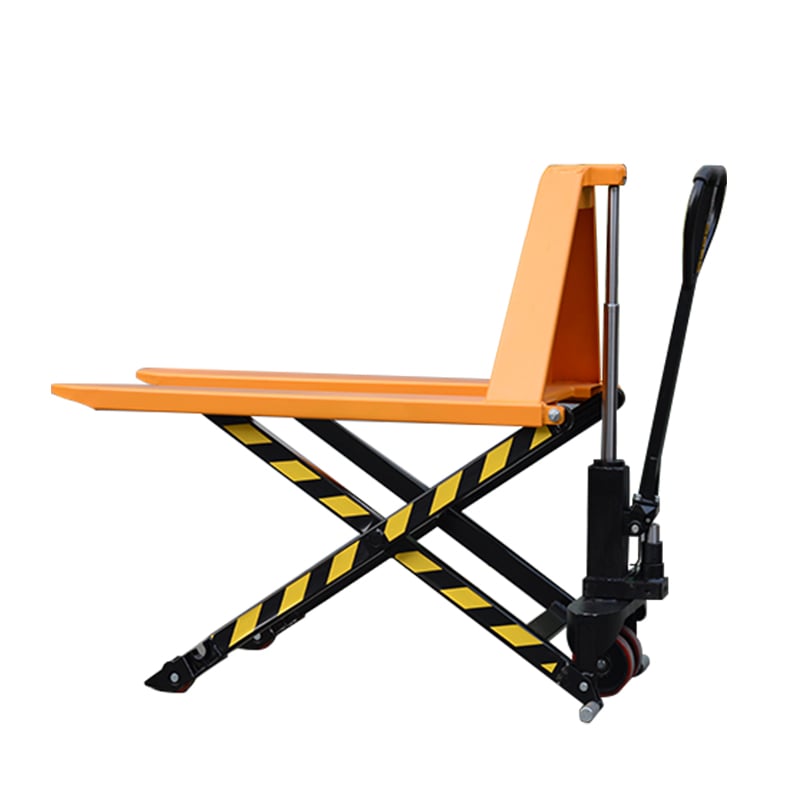

GSF series Scissors Lift Pallet Truck

GSF high-lift scissor pallet truck – Ergonomic Hydraulic Forklift for Heavy Loads with Stabilizers and Smooth Lowering Valve

The high-lift scissor pallet truck is designed to lift loads up to 1500kg to a height of 800mm, making it ideal for ergonomic handling in production and assembly lines. Equipped with a reinforced robotic welding frame and ergonomic A-handle, it offers stability and smooth operation. The advanced hydraulic system features a single or double cast pump, overload bypass valve, and top-of-stroke bypass for secure lifting. Its updated design includes front and rear stabilizers, providing extra stability and safety, especially when handling heavy loads or working at heights over 400mm. This pallet truck is perfect for use in various workstations and is a reliable tool for efficient load management.

Связаться с нами
Скачать

Функции

The GSF high-lift scissor pallet truck is a reliable and ergonomic solution for lifting and transporting heavy loads up to 1500kg to a maximum height of 800mm. Designed for use in production lines, workshops, and assembly areas, it helps reduce physical strain by allowing operators to handle goods at a comfortable working height.

Built with a reinforced robotic-welded steel frame, this pallet truck ensures long-term durability and stability. Its ergonomic A-shaped handle provides smooth and easy maneuverability, while the advanced hydraulic system—featuring a single or double cast pump—offers precise control during lifting and lowering. Safety is enhanced with an integrated overload bypass valve and a top-of-stroke bypass, preventing overextension and protecting the internal system.

The GSF model also includes upgraded front and rear stabilizers that automatically engage when the forks are lifted above 400mm, ensuring added stability during elevated use. This thoughtful design makes it especially suitable for handling heavy or delicate materials at height. Whether in manufacturing or warehousing environments, this high-lift pallet truck improves operational efficiency and promotes safer material handling.

Параметры

Модель GSF1000 GSF1500
Load Capacity(kg) 1000 1500
Min. Height(mm) 85 85
Max. Height(mm) 800 800
Длина вилки (мм) 1150 1150
Fork Width(mm) 520/550/685 520/550/685
Size(mm） 1520*520/550/685*1200 1520*520/550/685*1200

Подробная информация о продукте

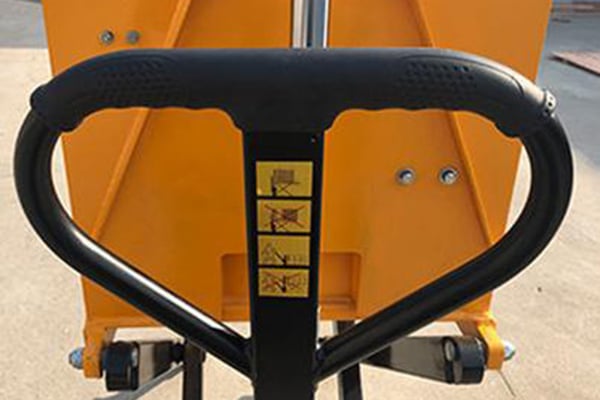

Rubberized handle: The long handle design allows the operator to maintain a sufficient safe distance from the car body, anti-skid operation convenient.

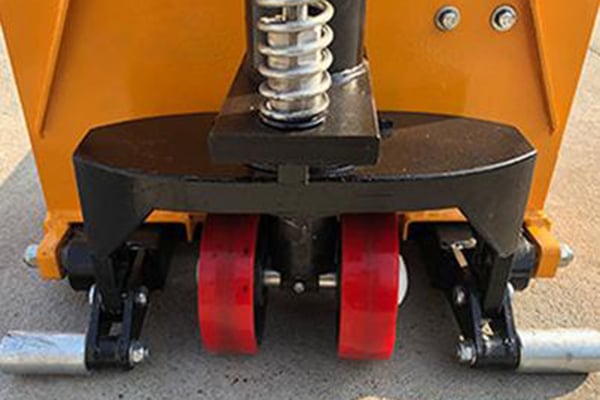

Polyurethane guide wheels: Light driving, low resistance, noise reduction, wear resistance, and long service life.

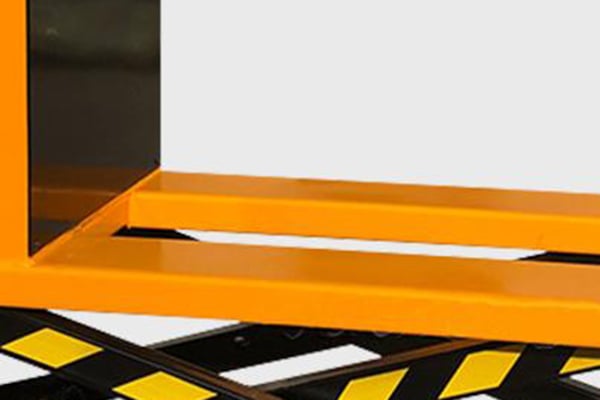

Exquisite craftsmanship: The surface of the car body is painted at high temperature and sprayed with electrostatic plastic. The surface is flat and smooth, sturdy and durable, beautiful, and corrosion-resistant.

Adjust button design: The lifting equipment is controlled by buttons, making the operation simple and easier to get started.

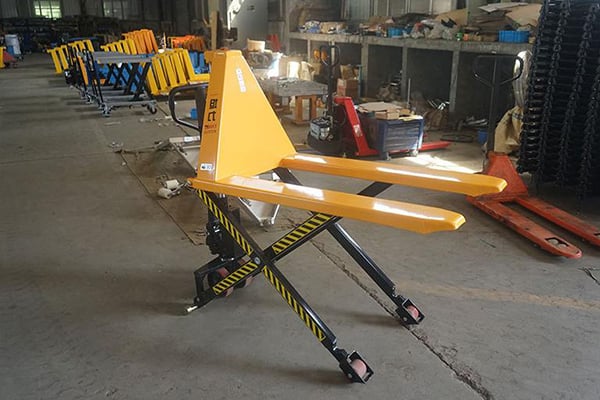

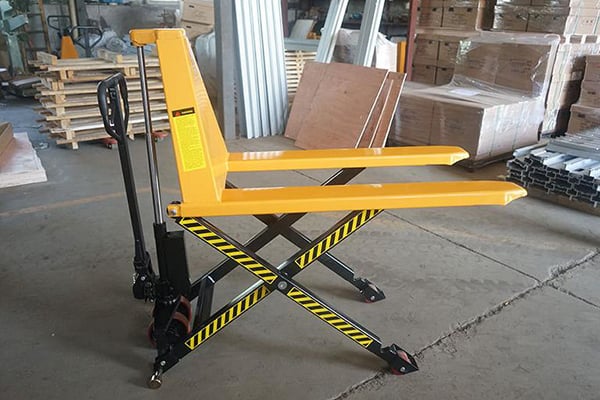

Медиа Галерея

Часто задаваемые вопросы

  • Why Use a Scissor Lift Pallet Truck?

    A Scissor Lift Pallet Truck combines a standard pallet jack with lifting capabilities, allowing operators to raise heavy loads to an ideal working height. This reduces manual lifting, lowers the risk of injuries, and boosts efficiency. It's especially useful in tight spaces like narrow aisles or small warehouses. By simplifying operations and improving safety, it provides a cost-effective solution to enhance productivity.

  • What is a Scissor Lift Pallet Truck?

    A Scissor Lift Pallet Truck is a versatile material handling tool that combines the functionality of a traditional pallet jack with the ability to lift palletized goods to an elevated position. It uses a scissor lift mechanism to raise pallets to a comfortable working height, allowing operators to easily slide products off or place them onto a work surface. This type of pallet truck is commonly used in warehouses, distribution centers, and manufacturing environments for transporting and lifting palletized goods. It is especially suitable for handling open-bottom pallets or skids, reducing physical strain on operators and improving efficiency and safety in material handling tasks.

  • What should I pay attention to when using a scissor lift pallet truck?

    Ensure Proper Fork Insertion: Make sure the forks are fully inserted under the pallet and the load is balanced. Check Load Stability: Ensure the load is evenly distributed to prevent tipping. Lift Gradually: Pump the handle slowly to lift the pallet steadily. Monitor Weight Capacity: Do not exceed the truck's maximum load capacity. Avoid Overhead Obstacles: Ensure there are no obstacles when lifting. Use on Flat Surfaces: Operate on smooth, level ground to ensure stability. Check Hydraulic System: Regularly inspect the hydraulic system for leaks or damage. Move Carefully: Avoid sharp turns or sudden movements when transporting. Lower Slowly: Release the hydraulic valve slowly to lower the load smoothly. Inspect Regularly: Check the forks and wheels for wear or damage.

Дополнительные опции

Nylon

Nylon
Choose nylon pallet truck steer wheels for low rolling resistance, long life, and cost-effectiveness. Ideal for smooth surfaces and light to medium-duty applications.

Полиуретан
Choose polyurethane treaded pallet truck steer wheels for quiet operation, excellent grip, and resistance to wear. Suitable for indoor use on smooth or slightly uneven surfaces.

Steel
Choose steel steer wheels for durability in harsh working environments, such as metalworking areas or heavy-duty industrial settings. They are resistant to impact and can handle heavy loads.

Rubber
Choose solid rubber treaded steer wheels for quiet operation and smooth rolling over uneven or rough surfaces. They provide excellent shock absorption and are ideal for environments where floor protection is a priority.

Tiller

Choose a tiller that suits your habits and preferences

Adjustable Fork

The adjustable fork enables stepless width/length adjustment, allowing one pallet truck to handle all pallet types effortlessly. Eliminating the need for multiple equipment, it significantly improves mixed-pallet handling efficiency and precision – an intelligent solution for modern logistics.

Backrest

This option provides additional protection when transporting lightweight or slippery loads. The sturdy backrest design effectively prevents cargo from tipping or sliding backward, and straps can be used for added security when needed. The foldable feature ensures unimpeded operation when empty, making it an ideal accessory for enhanced stability and efficiency in material handling.

Foot Brake

The foot brake option is a rear-wheel-mounted braking device that provides instant locking through pedal operation. When the pallet truck comes to a stop, simply stepping on the pedal activates the brake, effectively preventing load shifting or unintended vehicle movement. This eliminates risks of cargo damage and enhances operator safety during material handling operations.

Hand Brake

The hand brake option provides secure stopping control for slopes and inclines, preventing unintended rolling to protect both operator and cargo. Its ergonomic lever enables quick, one-handed operation for reliable braking when needed. This safety-focused upgrade is ideal for warehouses, ramps, or uneven surfaces.

Nose Pallet Truck

This option is specifically engineered for dense stacking operations. Its unique set-back fork design enables precise single-pallet handling. The special clearance between fork tips and front rollers ensures individual pallet pickup, allowing tight inline positioning – perfect for high-density warehousing, production line logistics and other applications requiring exact stacking accuracy.
